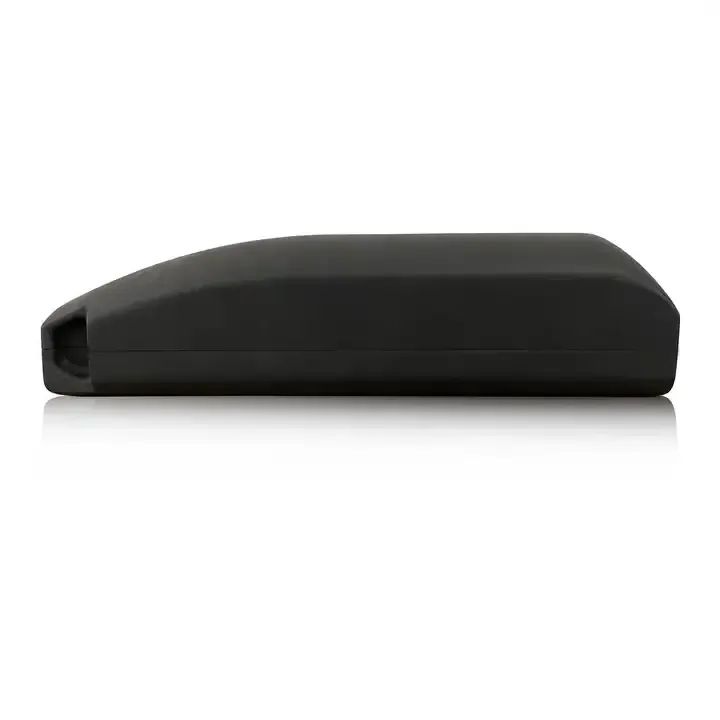

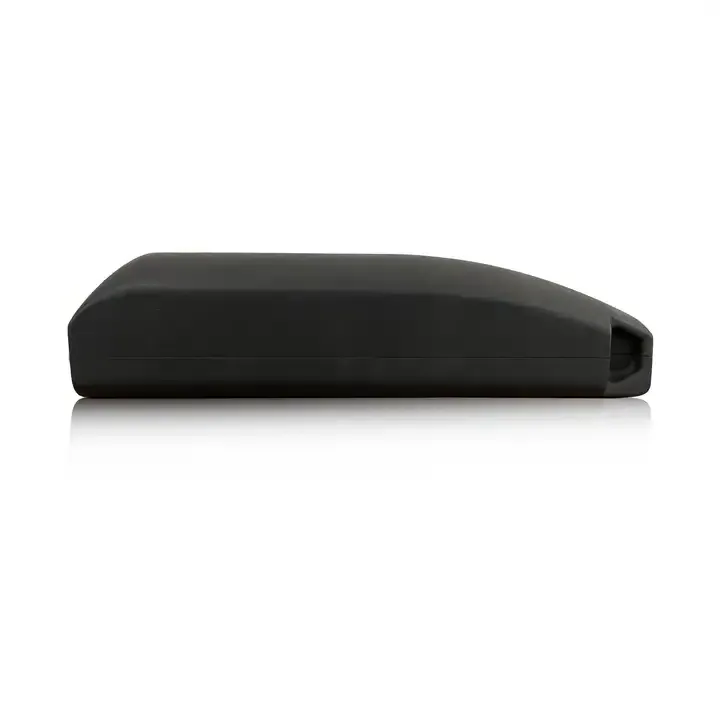

Raydafon Down Tube Lithium Battery 36V 20Ah Batteries for Bicycle Electric

[embed]https://www.youtube.com/embed1gEgTyn5N2Q[/embed]The Raydafon Down Tube Lithium Battery 36V 20Ah is a high-capacity, lightweight, and lockable battery specifically designed for electric bicycles. This battery model, BI3620, comes with a set of impressive features, including a built-in Battery Management System (BMS), imported Panasonic cells, an IP66 waterproof grade, and a long cycle life. The battery's dimensions are 323mm by 86mm by 84.8mm, offering a compact design while still capable of holding a significant amount of power. Its rated voltage is 36V, and its rated capacity is 20Ah, making it a reliable and efficient power source for electric bicycles.

BI3620 Down Tube Battery Specification

Specification	BI3620
L×W×H (mm)	323mm×86mm×84.8mm
Rated Voltage (V)	36V
Rated Capacity (Ah)	20Ah
Voltage Range (V)	28V~42V
Battery Capacity (Wh)	720Wh
Maximum Current (A)	40A
Charge Current (A)	3A
Charge Time (h)	6h~8h
Charge Mode	CC-CV
Working Temperature (℃)	-20℃~75℃
Cycle Life (times)	≥1000times
Waterproof	IP66
BMS	Yes
Position	Water holder
Weight (kg)	3.0kg

BI3620 Down Tube Battery Dimension

Advantages of the Raydafon Down Tube Lithium Battery 36V 20Ah

As an eCommerce SEO expert copywriter, it's essential to highlight the unique advantages that the Raydafon Down Tube Lithium Battery 36V 20Ah brings to the market. This product provides:

1. Light Weight: At just 3kg, the Raydafon Down Tube Lithium Battery 36V 20Ah is easy to handle and install, minimizing the overall weight of the electric bicycle.
2. High Capacity: Rated at 20Ah, this battery can store a significant amount of energy, extending the range of the e-bike and reducing the need for frequent charging.
3. Lockable: This feature enhances the security of the battery, preventing theft or accidental dislocation during rides.
4. Built-in BMS: The integrated Battery Management System (BMS) protects the lithium cells from overcharge, undercharge, and overheating, prolonging the battery life and ensuring safe use.
5. Panasonic Cells: By adopting imported Panasonic cells, the battery offers high performance, excellent reliability, and long cycle life.
6. Waterproof Grade IP66: This high waterproof grade means the battery can effectively withstand harsh weather conditions, making it ideal for outdoor use.

The Raydafon Down Tube Lithium Battery 36V 20Ah is a high-quality product that we are proud to produce. It is not just a product; it is a reliable power solution for electric bicycles.

Applications of the Raydafon Down Tube Lithium Battery 36V 20Ah

Down tube batteries for electric bicycles, like the Raydafon Down Tube Lithium Battery 36V 20Ah, have several applications that make them a highly sought-after choice among e-bike riders.

1. 1. Extended Range: With a higher capacity compared to other types of e-bike batteries, down tube batteries enable riders to travel longer distances on a single charge. This feature is ideal for both commuting and recreational purposes, allowing riders to explore more without the worry of running out of power.
   2. Improved Weight Distribution: The integration of the battery into the down tube achieves a more balanced weight distribution. This improves the overall stability and handling of the bicycle.
   3. Aesthetics and Integration: The sleek and streamlined appearance of down tube batteries enhances the look of the e-bike. The integrated design reduces the visual bulkiness associated with external battery packs, making the bike more aesthetically pleasing.
   4. Protection from Elements: The down tube position of the battery offers enhanced protection against external elements like water, dust, and impacts, ensuring the longevity and performance of the battery.
   5. Removability and Convenience: Many down tube batteries, including the Raydafon Down Tube Lithium Battery 36V 20Ah, are easily removable for charging, storage, or transportation.
   6. Compatibility and Accessibility: Down tube batteries are widely used in the e-bike industry, making it easier for riders to find compatible replacement batteries or upgrade their existing e-bike with higher-capacity options.

How Does the Down Tube Battery for Electric Bicycle Work?

The down tube battery for an electric bicycle, like the Raydafon Down Tube Lithium Battery 36V 20Ah, works by storing electrical energy and supplying it to power the e-bike's motor.

1. 1. Battery Integration: The down tube battery is designed to be integrated into the down tube of the bicycle frame. It is securely mounted and connected to the e-bike's electrical system.
   2. Lithium-ion Cells: The primary energy storage units of the down tube battery are the lithium-ion cells. These cells are connected in a series or parallel configuration to achieve the desired voltage and capacity.
   3. Voltage and Capacity: The number and configuration of the lithium-ion cells determine the voltage and capacity of the battery. Higher voltage batteries, such as 36V or 48V, are common in e-bikes.
   4. Power Control: The down tube battery is connected to the e-bike's motor controller, which regulates the power flow. The motor controller receives input from the rider and determines the amount of power required to assist the rider.
   5. Charging Process: To charge the down tube battery, you connect it to a charger using a charging cable. The charger supplies the appropriate voltage and current to replenish the battery's energy.
   6. Discharging Process: When the e-bike is in use, the down tube battery discharges its stored energy to power the motor. The motor controller converts the electrical energy from the battery into mechanical power, assisting the rider's pedaling or providing full electric propulsion, depending on the e-bike's mode of operation.
   7. Removability: Many down tube batteries are designed to be easily removable. This allows riders to detach the battery from the down tube for charging or replacement.

Choosing the Right Down Tube Battery for an Electric Bicycle

Several factors need to be considered when choosing the right down tube battery for an electric bicycle to ensure compatibility and meet specific needs.

1. Voltage and Capacity: Determine the voltage and capacity requirements based on your e-bike's motor specifications and your desired range. Higher voltage batteries generally provide more power and better performance.
2. Battery Size and Shape: Measure the available space in the down tube of your e-bike and ensure the battery you choose fits securely without interfering with other components or accessories.
3. Battery Weight: Consider the weight of the down tube battery as it affects the overall weight of the e-bike.
4. Battery Integration: Check if the down tube battery is compatible with your specific e-bike model and frame.
5. Battery Management System (BMS): Ensure the down tube battery you choose has a reliable and well-designed BMS.
6. Removability: Decide if you prefer a removable or non-removable down tube battery based on your convenience and usage.

Maintenance of the Down Tube Battery for an Electric Bicycle

Proper maintenance of the down tube battery for an electric bicycle is essential to ensure its longevity, performance, and safety. Here are some maintenance tips to keep in mind:

1. Read the Manual: Carefully read the manufacturer's manual that accompanies the battery for specific maintenance instructions.
2. Charging: Follow the recommended charging procedures outlined in the manual. Regularly inspect the charging cable for any signs of damage.
3. Storage: If you won't be using the e-bike for an extended period, store the battery in a cool and dry place away from direct sunlight.
4. Cleaning: Keep the battery and its connections clean and free from dirt, dust, and moisture.
5. Inspections: Regularly inspect the battery for any signs of physical damage.
6. Extreme Temperatures: Avoid exposing the battery to excessively high or low temperatures.

Why Choose Raydafon's Down Tube Battery for Electric Bicycle?

Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design.Our main products include a variety of motors and batteries, all suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking the high-end electrical components of electric bicycles, if you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
