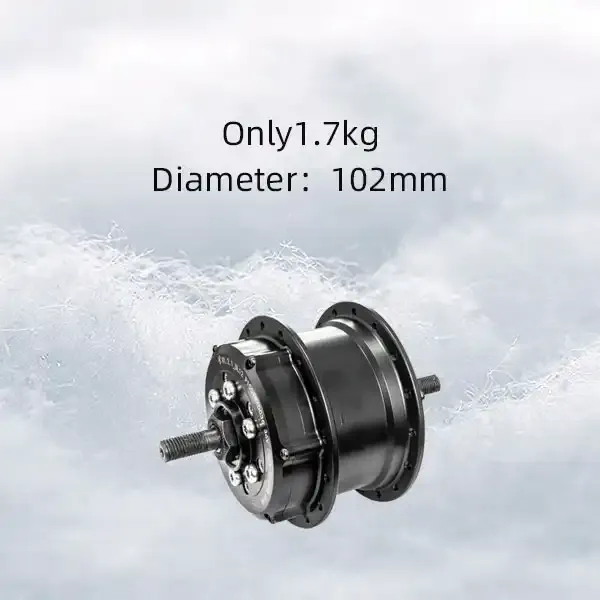

Raydafon Front Motor with Controller Bike Hub Motor Kit

The Raydafon Front Motor with controller bike hub motor kit is an essential piece of high-quality equipment for any electric bicycle. This product presents a perfect blend of functionality, efficiency, and style. It features a 36V voltage and a brushless design. Offered in two stunning color variations, black and silver, it fits seamlessly into the aesthetics of your bike. The product's dimensions are meticulously calibrated, with a diameter of 112??1mm and a width of 100??2mm. The motor boasts a rated voltage of 24V/33V/36V, a rated current of 6.25A/6.74A/9.16A, and a rated output power of 250W that ensures smooth and powerful operation. The efficiency is rated at ??90%, indicating high performance. With a revolution rate of 160-260r/min and a lightweight design of 2.3kg, this hub motor kit is designed to deliver superior performance consistently. The packaging is done securely in a carton box with bubble wrap for safe transportation. The ports of shipping include Shanghai, Ningbo, and Shenzhen.

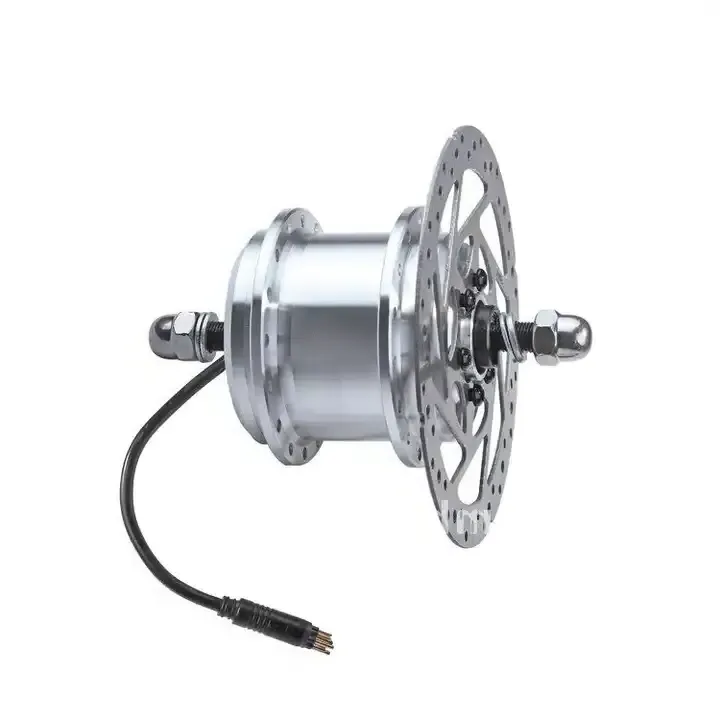

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

Product Advantages

The P110 Powerful Front Hub Motor offers several advantages:

• Built-in controller
• Wireless pedal sensor
• Easy to install & disassemble
• Max power: 750W, Torque: exceeds 40N??m
• Efficiency: ??90%
• Wireless control

These features make the P110 a powerful and efficient front hub motor for any e-bike system.

Applications of the P100/P110 Front Hub Motors

The P100/P110 front hub motors are versatile and can be used in various applications:

• • Commuting: They provide assistance to riders, making it easier to cover longer distances and overcome steep hills during daily commutes.
  • Urban Riding: Offers smooth acceleration and assists riders in navigating through busy city streets and congested traffic.

• Recreation and Leisure: Enhances the overall riding experience while exploring trails, cruising along scenic routes, or enjoying outdoor adventures.
• Delivery Services: The motors help delivery riders cover distances quickly and efficiently.
• Tourism and Sightseeing: They provide a more enjoyable and efficient way to explore cities, landmarks, and tourist attractions.
• Electric Bike Sharing Programs: Front hub motors like the P100/P110 are commonly found in e-bikes used in bike-sharing programs.

How Does the E-Bike System with P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor is an integral part of any e-bike system. Here's how it works:

1. Power Source: The e-bike system includes a rechargeable battery pack as the power source that provides electrical energy to the motor.
2. Motor Controller: Manages the flow of electricity from the battery to the motor. It receives input from the rider through various controls like a throttle or pedal-assist sensor.
3. Torque Sensor or Throttle: The e-bike system includes a torque sensor, which measures the force applied to the pedals, or a throttle, which allows the rider to control the motor's power output directly.
4. Motor Assistance: When the rider applies force to the pedals or activates the throttle, the motor controller sends the appropriate amount of power to the P100/P110 front hub motor.
5. Front Hub Motor: The motor generates rotational force (torque) that is transmitted to the wheel, propelling the e-bike forward.
6. Power Transmission: The motor's rotational force is transmitted to the wheel through the gears integrated into the hub motor.
7. Regenerative Braking: Some systems may have regenerative braking capabilities. When the rider applies the brakes, the motor can convert the kinetic energy of the moving e-bike back into electricity and store it in the battery for later use.
8. Display and Control Unit: Provides the rider with information such as speed, battery level, and selected assistance level. It also allows the rider to adjust settings and control the motor's assistance level.

Choose the Right P100/P110 Front Hub Motor for E-Bike System

When choosing the right P100/P110 front hub motor for your e-bike system, consider these factors:

• Power and Torque: Consider your riding needs and terrain. Higher power motors might consume more battery energy but provide more power.
• Efficiency: Efficient motors convert a greater portion of the electrical energy into mechanical power, resulting in longer battery life and a more effective riding experience.
• Compatibility: Ensure the motor's specifications, including voltage and wattage requirements, are compatible with your battery and motor controller specifications.
• Wheel Size: The motor should be designed to fit the specific wheel size of your e-bike.
• Weight and Size: Consider the weight and dimensions of the motor. A lighter motor can contribute to better maneuverability, while a larger motor may impact the aesthetics and balance of the bike.

Maintenance of the P100/P110 Front Hub Motor

Proper maintenance of the P100/P110 front hub motor is crucial for its longevity and optimal performance.

• Regular Cleaning: Keep the motor clean by wiping it down regularly with a damp cloth.
• Inspection: Inspect the motor for any signs of damage, loose connections, or wear.
• Lubrication: Some motors may require lubrication for smooth operation.
• Battery Maintenance: Follow the manufacturer's instructions for battery maintenance.
• Wheel Maintenance: Maintain the wheel's condition.
• Water and Moisture Protection: Avoid excessive moisture and submerging the motor in water.

Why Choose Raydafon's P100/P110 Front Hub Motor for E-Bike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. Our products are renowned for their reliable quality, exquisite craftsmanship, and stylish design. Our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays, etc. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.
