Raydafon New Round Hay Baler RXYK0910 for Farm Hay Baling

[embed]https://youtu.be/pihgFul5F-c[/embed] The Raydafon new round hay baler RXYK0910 is a state-of-the-art machine designed to make farming tasks easier and more efficient. It is a round baler type that operates at a speed of 2-5km/h, suitable for hay, wheat, and rice straw baling. With its impressive size of 3000X2200X1650mm and weight of 1700 kg, this new model is backed by a 1-year warranty and excellent after-sales service provided by engineers available overseas. It has a pickup width of 1800mm and works efficiently at 80-120 bales/hour. The PTO operates at 540rpm and is powered by a tractor power of 55-100HP. The bale size is 900x950mm and roller speed is 200r/min. It has a CE ISO certification and comes packaged in an iron crate with plastic film. The Round Hay Baler RXYK0910 is a specialized piece of equipment designed for efficient and effective hay baling on farms. It is a machine commonly used in agricultural operations to gather cut hay or straw into compact cylindrical bales, making them easier to handle, store, and transport. The RXYK0910 round hay baler is equipped with advanced features and mechanisms that streamline the baling process. It typically consists of a pickup system, a baling chamber, a twine or net wrapping system, and a control panel. The baler's pickup system is responsible for gathering the cut hay from the ground and feeding it into the baling chamber. It consists of a series of tines or augers that pick up the hay and transfer it to the next stage of the baling process. Baling chamber is where the hay is compacted and shaped into cylindrical bales. The baling chamber is equipped with a series of rotating belts or rollers that compress the hay as it enters. The size and density of the bales can often be adjusted to meet specific requirements.

Advantages of the Raydafon New Round Hay Baler RXYK0910

• High efficiency: With a working efficiency of 80-120 bales per hour, this baler significantly enhances productivity.
• Wide application: Suitable for hay, wheat, and rice straw baling, it serves versatile farming needs.
• Powerful performance: Equipped with a PTO operating at 540rpm and powered by a tractor power of 55-100HP, it guarantees powerful baling performance.
• Robust and sturdy: With a 1.5mm thickness steel board, this baler ensures stronger rollers for long-lasting durability.
• Reliable after-sales service: Raydafon offers excellent after-sales service with engineers available to service machinery overseas.
• Quality assurance: The baler comes with a 1-year warranty, providing customers with peace of mind.

Applications of the Raydafon New Round Hay Baler RXYK0910

1. Agricultural farming: With a wide pickup width, it is perfect for large agricultural farms.
2. Grain farming: It efficiently bales wheat and rice straw, making it ideal for grain farming.
3. Hay baling: The baler is suitable for hay baling, ensuring high-quality hay for livestock feeding.
4. Landscaping: It can be used in landscaping applications for the efficient collection and baling of plant residues.
5. Eco-friendly waste management: The baler can be used for the collection and baling of farm waste, promoting eco-friendly waste management.
6. Commercial farming: With high working efficiency and robust performance, it is ideal for commercial farming operations.

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler works by attaching the baler to the back of a tractor using a three-point hitch or another attachment mechanism. The tractor provides the power and mobility needed to operate the baler effectively. Here is a step-by-step overview of how the tractor-mounted mini hay round baler typically works:

• Preparing the tractor: Ensure that the tractor is properly equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.
• Hitching the baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism. Secure the baler to the tractor, ensuring a firm and stable connection.
• Adjusting settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
• Operating the pickup attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
• Bale formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale, ensuring it remains intact.
• Bale ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. The process typically requires basic mechanical skills and an understanding of your tractor and baler's specific requirements. Here's a general guide on how to install a mini hay round baler to a tractor:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow. Before attachment, inspect both the tractor and baler for any damage or wear that might affect operation. Ensure all moving parts are in good condition and that the baler is ready for use.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link. Adjust the top link and lift arms to ensure the baler is level. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged. Check that the PTO shaft is the correct length. The shaft should have enough overlap to accommodate the movement when the tractor and baler are in operation but not so much that it could bind or buckle.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted. Look for any signs of looseness or misalignment that may affect the baler's operation or safety.

Maintenance of the Raydafon New Round Hay Baler RXYK0910

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

1. Regular cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers. Use compressed air, brushes, or water (if applicable) to remove stubborn residue. Keeping the baler clean helps prevent clogs and reduces the risk of corrosion.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.
3. Roller inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris. Adjust or replace rollers as necessary to maintain proper compression during bale formation.
4. Twine or net wrap system: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage. Replace or adjust components as needed to ensure consistent and secure bale tying.
5. PTO maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components. Ensure that the PTO guards are in place and in good condition for operator safety.
6. Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

Raydafon Agricultural Machinery Co., Ltd. has been engaged in the research and development of agricultural machinery for over a decade. We offer a wide range of products, including PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Our team of over 100 employees includes 20 technical staff and five senior R&D personnel. Our company is equipped with advanced casting, forging, machining, heat treatment, and lacquering production lines. We use CAD computer-aided design systems to ensure our products are designed with precision and manufactured to the highest standards. Our production technology is strong and our equipment is advanced, which includes lathing, milling, planing, stamping, cutting plate, and electric welding. Our main products are PTO shafts, agricultural gearboxes, flail mower, lawn mowers, sickle bar mowers, drum mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. We always strive to provide our customers with high-quality products and excellent after-sales service.

Certifications and Customized Services

We pride ourselves on our professionalism and our commitment to quality. Our products are certified by international standards, including CE and ISO. We also offer customized services to meet the diverse needs of our customers. Whether you need a specific product design, size, or performance characteristic, our team is ready to work with you to create the perfect solution for your farming needs.

Production Facilities and After-Sales Services

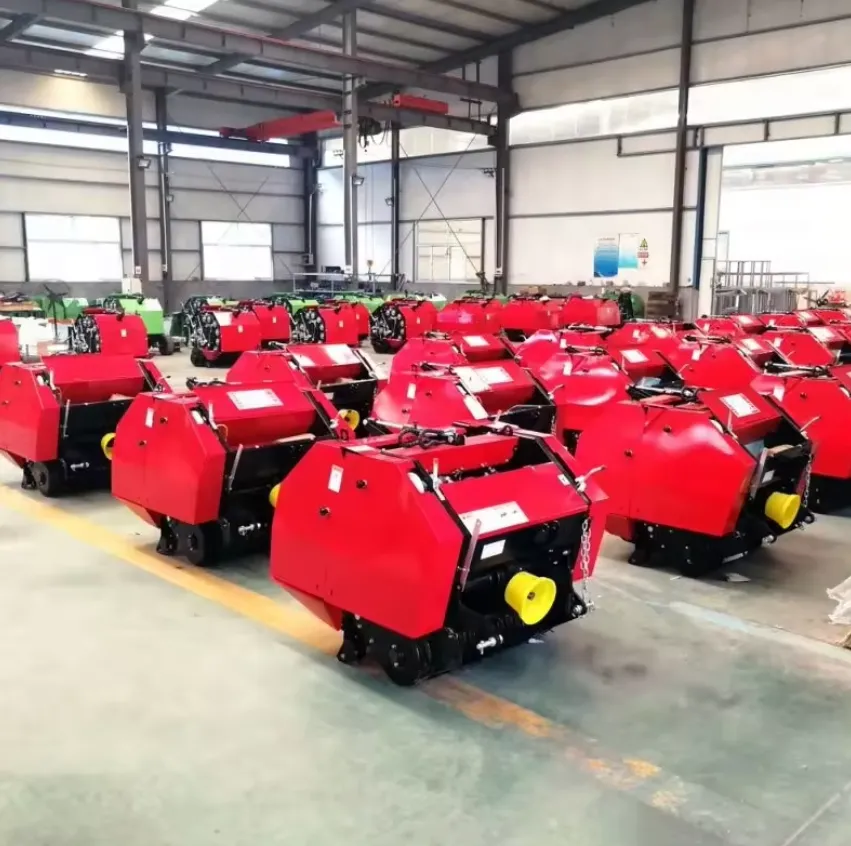

Our production facilities are equipped with advanced technology and machinery to ensure the highest quality of our products. We also have a dedicated after-sales service team ready to assist you with any issues or questions you may have about our products. Our goal is to provide you with the best farming machinery and customer service experience possible.

Professionalism and Innovation

We are committed to continuous innovation in our product designs and manufacturing processes. Our team of experts is constantly researching and developing new technologies and methods to improve the performance and efficiency of our products. We believe in the power of innovation to drive our company forward and provide our customers with the best agricultural machinery on the market. Author: Yjx
