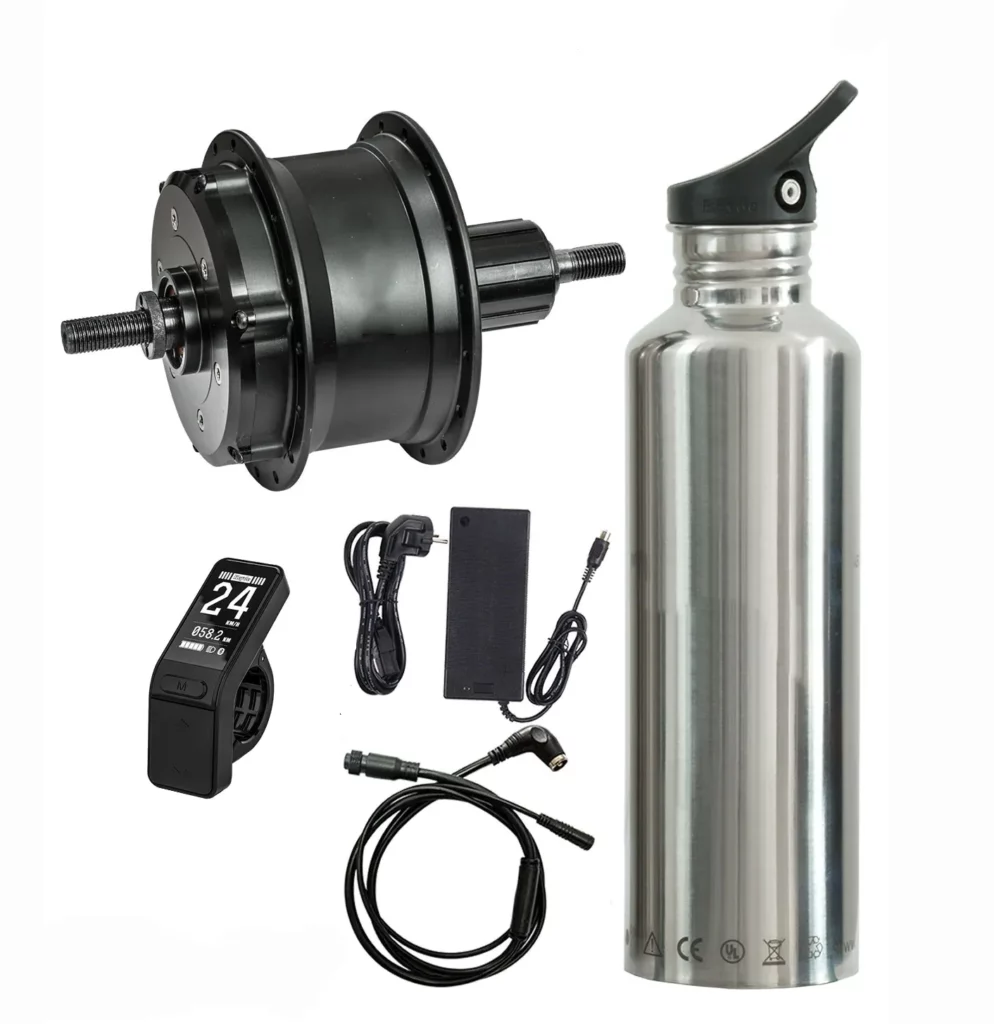

Raydafon OLED130 E Bike Display Electric Bike Instrument Display

Introducing the OLED130, a top-of-the-range E Bike Display for your electric bike. Boasting a sizeable 1.3-inch screen, this instrument display is designed to provide a clear and comprehensive view of key cycling data while you're on the go. Its functional design is complemented by a sleek, minimalist style, while the solid and durable buttons ensure ease of use and longevity. But that's not all - let's delve deeper into the many features and advantages of the OLED130.

Electric Bicycle OLED130 Display Specification

Specification	OLED130
Display Size (L×W×H mm)	75mm×47mm×35mm
Screen Size (inch)	1.3mm
Display Type	OLED
Holder Diameter (mm)	Φ22.2mm
Voltage (V)	24V / 33V/ 36V
Material	ABS/PA
Communication	UART
Show Info	PAS Level / Speed / Trip /ODO etc.
Error Info	Yes
Data Port	Wireless
Working Temperature (℃)	-20℃ ~ 60℃
Waterproof	IP65
Weight (g)	38g

Electric Bicycle OLED130 Display Dimension

Main Advantages of OLED130 E Bike Display

The OLED130 E Bike Display offers a plethora of advantages for the modern cyclist. Here are just six of the standout features that make this product a must-have:

1. 1. 1.3 inch OLED screen: Allows for easy viewing of cycling data, even in bright sunlight or low-light conditions.
   2. 2.5D shape craft: Offers a sleek and stylish design that complements any bike.
   3. Minimalist style design: Ensures the display is easy to read and operate, even while in motion.
   4. Durable solid button: Provides longevity and reliability, even with regular use.
   5. Cycling data display: Delivers valuable information about your ride, including speed, distance, and power assist level.
   6. Motor parameter setting: Allows for customization of your ride to suit your needs and preferences.

With these advantages, it is clear why our OLED130 E Bike Display is a popular choice among electric bike users. We are proud to manufacture this product and stand behind its quality and performance.

Functions of OLED130 E-Bike Display

The OLED130 E Bike Display is not just about looks - it's packed full of practical functions that enhance your cycling experience. Here are ten of the key features:

1. Four buttons: Easy to operate, even while on the move.
2. Password protection: Ensures your bike's security when not in use.
3. Km/miles selection: Allows for customization based on personal preference.
4. Speed display: Displays real-time speed, maximum speed, and average speed.
5. Power assist control: Offers six levels of power assist for a tailored riding experience.
6. Battery level indication: Keeps you informed of your battery status, including under-voltage prompts and BMS information.
7. Mileage display: Shows both subtotal mileage (TRIP) and total mileage (ODO).
8. Riding time display: Helps you keep track of the duration of your trips.
9. UART communication port: Provides a convenient means for system maintenance and parameter setting.
10. Error code indication: Alerts you to any potential issues with your bike.

How Does the Electric Bike OLED Display Work?

The OLED130 E Bike Display utilizes advanced OLED (Organic Light-Emitting Diode) technology to deliver a superior viewing experience. Here's a basic rundown of how it works:

1. OLED Structure: The display is composed of several layers of organic materials, sandwiched between two electrodes.
2. Electroluminescence: When an electric current is applied, light is emitted as energy is released.
3. Organic Materials: Carbon-based compounds in the OLED emit light when electrically stimulated, producing vibrant and accurate colors.
4. Pixel Arrangement: Composed of numerous tiny pixels, each can be controlled independently to create complex images and text.
5. Electronic Control: A control circuit regulates the flow of electricity to each pixel, determining the brightness and color of the emitted light.
6. Information Display: The display presents data from various sources, including speed, distance traveled, battery level, assist level, time, and other parameters.
7. User Interaction: The display often incorporates touch-sensitive capabilities, allowing the rider to interact with the interface.

Choosing the Right OLED Display for Your Electric Bicycle

When selecting an OLED display for an electric bike, there are several factors to consider:

1. Display Size: The size should offer good visibility without obstructing your view while riding.
2. Resolution: Higher resolution displays provide sharper and more detailed images and text.
3. Brightness and Contrast: These should be high for good visibility in different lighting conditions. Adjustable brightness can also help optimize visibility and conserve battery power.
4. Information and Features: Consider the type and amount of information you want the display to provide.
5. User Interface and Interaction: Evaluate the user interface and interaction options of the display.
6. Compatibility: Ensure the OLED display is compatible with your electric bicycle's system.

Maintenance of the OLED130 E Bike Display

To ensure the longevity and optimal performance of your OLED130 E Bike Display, follow these maintenance tips:

1. Clean the Display: Regularly clean the OLED display to remove dirt, dust, and smudges.
2. Avoid Excessive Pressure: OLED displays are sensitive to pressure and can be damaged if pressed too hard.
3. Protect from Impact: Take precautions to protect the OLED display from impacts or sudden shocks.
4. Water and Moisture Resistance: Prevent prolonged exposure to water. Avoid riding in heavy rain or submerging the display in water.
5. Temperature Considerations: OLED displays can be sensitive to extreme temperatures. Avoid exposing the display to direct sunlight for prolonged periods or to extremely cold temperatures.
6. Firmware Updates: Check if there are firmware updates available for your OLED display. Follow the manufacturer's instructions to install any available updates.

Why Choose Raydafon's Electric Bike OLED Display?

Raydafon Electric Technology Co Ltd. is dedicated to the research, development, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by numerous domestic and international intellectual property rights. Our products are CE-certified and we have introduced professional production and testing equipment, advanced production lines, and a complete quality management system. Our products' reliable quality, exquisite craftsmanship, and stylish design have earned us a renowned reputation in the electric bicycle industry.Our range includes super-mini wireless motors, super-mini intelligent motors, water bottle batteries, down tube batteries, ALL-IN-ONE rear hub motors, P100/P110 rear hub motors, S100/S110 rear hub motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, ALL-IN-ONE rear hub motors, down tube batteries, Wireless buttons, and Wireless displays. They are suitable for all types of bikes.Seeking high-end electrical components for your electric bicycle? Look no further. Raydafon welcomes global distributors to visit and negotiate. We look forward to working with you to promote the development of the electric bicycle industry and contribute to environmental protection.

FAQ

Q: Are you a manufacturer?A: Yes. Established in 1993, our company is keeping dedicated to the R&D, manufacturing and worldwide marketing of high-end electric bicycle parts. We provide ODM & OEM services as per your requests. Welcome to our company.Q: Can I get a sample and how long will it take?A: Yes. We'd like to submit a sample for checking at the beginning of our business. Usually it needs take about 2 weeks to produce sample order.Q: What is your MOQ and delivery time?A: Our MOQ is 1 pcs normally. It takes about 30 days to complete an order. The specific delivery time depends on the items and the quantity of your order.Q: How to control the quality of the products?A: We have independent quality inspection department for products quality. The parts are inspected in every production process to prevent bad parts from entering the next process. 100% products are inspected before shipment. Third party detection is welcomed.Q: Do you have customized service?A: Yes, the technical specifications and logo of Motor, and the Raydafon APP both can be customized.Q: What is the warranty period for your products?A: Motor: 2 years. Battery: 1.5 - 2 years. Other Accessories: 1 year.Q: Where is your after-sales service location?A: Germany or China. You can choose a suitable after-sales location according to your convenience.Q: How do I pay for my order?A: We accept your payment through T/T, L/C, D/C, Paypal, Western Union, etc.Author: Yjx.
