Raydafon P130 ALL-IN-ONE ebike motor wireless control battery inside integrated

[embed]https://youtu.be/Z3rT9dG_4wI[/embed]The Raydafon P130 all-in-one ebike motor features a wireless control system and an integrated battery. This sleek design is a brushless two-wheel model available in black and silver. With a rated power of 250W and a voltage of 30V, this model also boasts an internal battery system for added convenience. Packaged securely in a carton box with bubble wrap and shipped from Shanghai, Ningbo, or Shenzhen, this product is a flagship offering from the award-winning ZHEJIANG CHAOJI ELECTRICE TECHNOLOGY CO., LTD.

P130 ALL-IN-ONE Front Hub Motor Specification:

Item No.	P130SWXDC30/P130SWXC30
Diameter	143mm±1mm
Width	100±2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Wireless pedal sensor
Battery	7Ah
Rated power	250W
Max. power	300W
Max. torque	30N·m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	＜50dB
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.6KGS

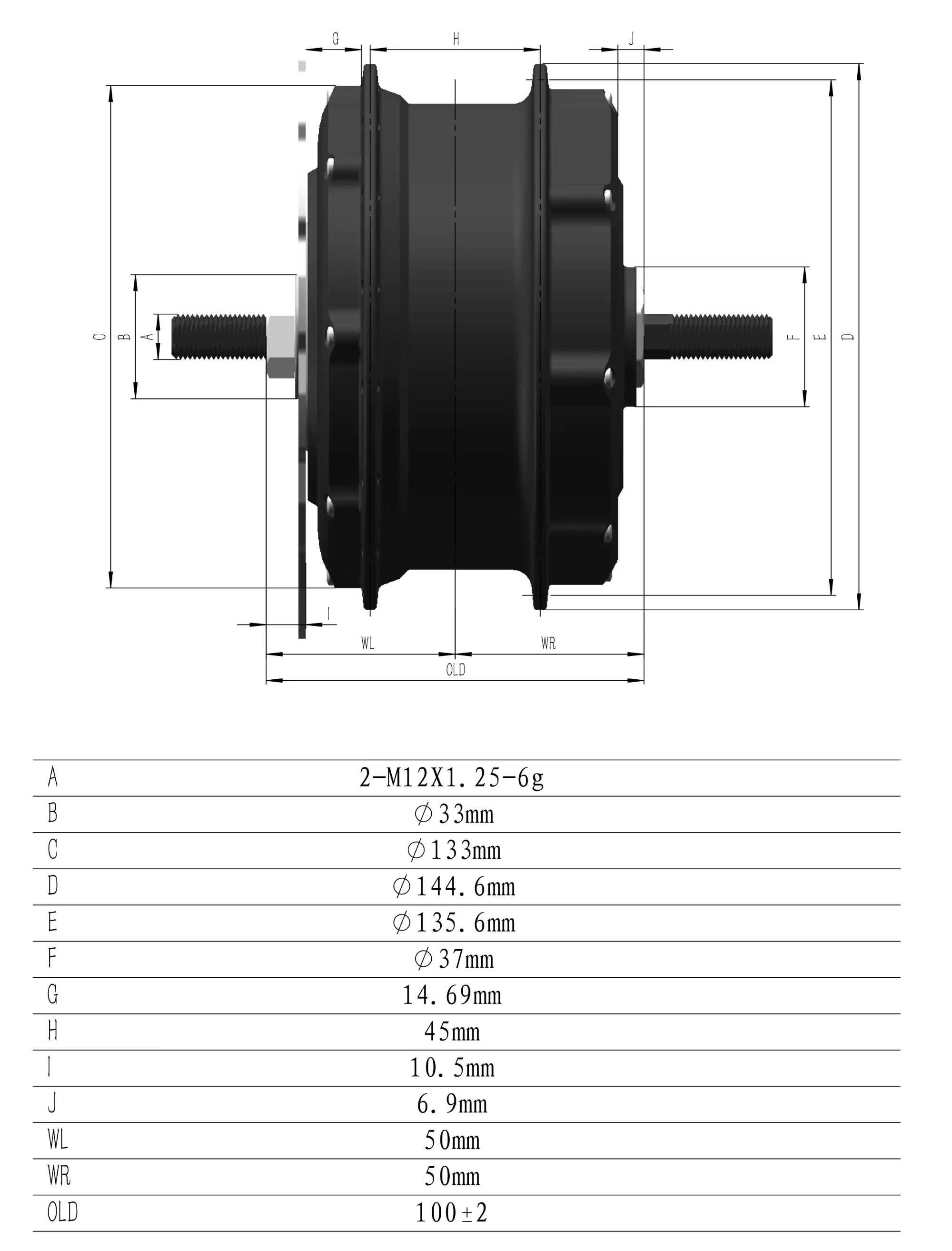

P130 ALL-IN-ONE Front Hub Motor Dimension:

Advantages of the Raydafon P130 ALL-IN-ONE Ebike Motor

There are several advantages to using the Raydafon P130 all-in-one ebike motor:

• Built-in 7Ah battery and controller: The integrated design eliminates the need for external batteries and controllers, simplifying installation and use.
• Wireless pedal sense: This feature provides a seamless riding experience with intuitive control.
• Support for extended-range battery: This allows for longer rides without worrying about running out of power.
• Lightweight design: The compact and lightweight design makes it easy to handle and reduces the overall weight of the bike.
• Wireless control: The wireless control system makes it easy to adjust settings and control the bike without any cables or wires.
• Easy to install & disassemble: The all-in-one design simplifies the installation and disassembly process, making it easy for anyone to use.

With these advantages, we are confident in our ability to produce this product to the highest standards of quality and performance.

Applications of the Raydafon P130 ALL-IN-ONE Ebike Motor

The ALL-IN-ONE Front Hub Motor system for e-bikes is versatile and can be beneficial in various scenarios. Here are some of the key applications:

1. Commuting: This system is popular among commuters who want to incorporate the benefits of electric assistance into their daily travels. It allows riders to effortlessly navigate through traffic, tackle hills, and cover longer distances without getting fatigued.
2. Urban Transportation: E-bikes equipped with this system provide an eco-friendly alternative to traditional modes of transportation. Riders can efficiently navigate city streets, reach their destinations faster, and avoid the hassle of parking.
3. Recreation and Leisure: The system enhances the overall experience of recreational bike rides. Riders can tackle challenging terrains with ease, extend their range, and enjoy longer rides without excessive physical exertion.
4. Delivery Services: E-bikes equipped with this system have become a popular choice for last-mile deliveries. Delivery riders can cover more ground, navigate through congested areas quickly, and make multiple deliveries in a shorter time.
5. Bike-Sharing Programs: The compact and user-friendly nature of the system makes it suitable for bike-sharing programs, offering an efficient and sustainable transportation option for the public.

How Does the Ebike System ALL-IN-ONE Front Hub Motor Work?

The ALL-IN-ONE front hub motor system for e-bikes combines several components into a single unit, including the motor, battery, and controller. Here's a general overview of how it works:

1. 1. Motor: The front hub motor generates torque to propel the bicycle forward. The motor is usually compact and lightweight, allowing it to fit seamlessly into the wheel hub.
   2. Battery: The battery supplies power to the motor and is responsible for storing and providing the electrical energy needed for propulsion. It is rechargeable and can be removed for charging or replaced when necessary.
   3. Controller: The controller manages the flow of electricity between the battery and the motor. It receives input from the rider and adjusts the motor's power output accordingly.
   4. Power delivery: When the rider activates the electric assistance, a signal is sent to the controller. The controller then sends the appropriate amount of current from the battery to the motor.
   5. Propulsion: As the current flows into the motor, it creates a magnetic field that generates rotational force (torque), which propels the bicycle forward.
   6. Control settings: The system often offers different control settings to suit the rider's preferences, including throttle-only mode and pedal-assist mode.

Choosing the Right ALL-IN-ONE Front Hub Motor for Your Ebike System

When choosing the right ALL-IN-ONE front hub motor for your e-bike system, consider the following factors:

1. Power and torque: Consider your riding needs and terrain. If you plan to tackle hilly or steep terrain, you may require a motor with higher power and torque.
2. Battery capacity: The battery capacity directly affects the range of your e-bike. Choose a battery capacity that meets your riding distance requirements.
3. Voltage and current: Ensure that the motor and battery voltage and current specifications match to avoid damage to the components.
4. Wheel size: Most front hub motors are available in standard sizes such as 26-inch, 27.5-inch, and 700c. Ensure that the motor is suitable for the wheel size of your bike.
5. Weight and balance: A lighter system will have less impact on the overall weight of your e-bike and help maintain good balance and handling. Ensure that the weight distribution remains balanced between the front and rear of the bike.
6. Installation compatibility: Check the compatibility of the front hub motor system with your bike's fork and dropout spacing. Ensure that the system is compatible with your bike's frame and fork design.

Maintenance of the ALL-IN-ONE Front Hub Motor

Proper maintenance of the ALL-IN-ONE front hub motor for your e-bike system is essential to ensure its longevity and optimal performance. Here are some maintenance tips:

1. 1. Regular cleaning: Clean the front hub motor and the surrounding area regularly to prevent the buildup of dirt, dust, and debris.
   2. Battery maintenance: Keep the battery charged within the recommended voltage range and avoid overcharging or deep discharging.
   3. Check electrical connections: Periodically inspect the electrical connections between the motor, controller, and battery.
   4. Tire pressure and wheel alignment: Maintain the appropriate tire pressure and check the wheel alignment to ensure that the front wheel spins freely.
   5. Brake system maintenance: Regularly inspect and adjust the brakes to ensure they are functioning properly.
   6. Lubrication: Apply lubricant to the moving parts of the front hub motor system as recommended by the manufacturer.
   7. Protect from moisture: Avoid exposing the front hub motor and electrical components to excessive moisture.

Why Choose Raydafon's ALL-IN-ONE Front Hub Motor for Ebike System?

Established in 1993, Raydafon Electric Technology Co., Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. Our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have professional production and testing equipment, advanced production lines, and a complete quality management system. Our products are CE-certified and renowned for their reliable quality, exquisite craftsmanship, and stylish design. They are suitable for all kinds of bikes and provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics. Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
