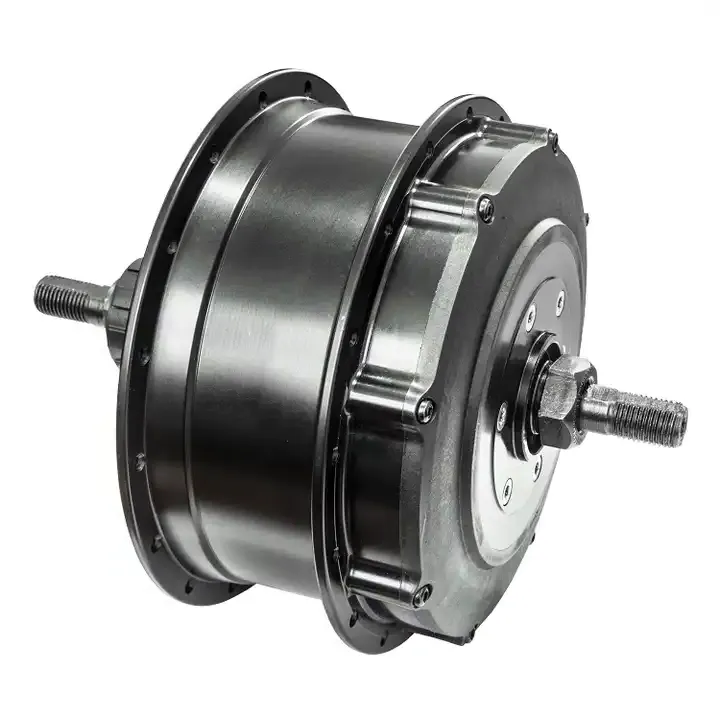

Raydafon P130 Hub Motor Kit Electric Bike Bicycle Conversion Kit Front Motor

The Raydafon P130 Hub Motor Kit is a high-quality electric bike conversion kit that features a front motor. The kit comes with a brushless non-gear hub motor boasting an impressive efficiency of over 90%. The motor operates on a 36V voltage and the battery is conveniently located within the motor itself, resulting in a sleek and compact design. The kit is available in two stylish colors - black and silver, and comes with a Bluetooth button/display controller for easy and intuitive operation.

P130 ALL-IN-ONE Front Hub Motor Specification:

Item No.	P130SWXDC30/P130SWXC30
Diameter	143mm±1mm
Width	100±2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Wireless pedal sensor
Battery	7Ah
Rated power	250W
Max. power	300W
Max. torque	30N·m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	＜50dB
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.6KGS

P130 ALL-IN-ONE Front Hub Motor Dimension:

Advantages of the Raydafon P130 Hub Motor Kit

When it comes to electric bike conversion kits, the Raydafon P130 Hub Motor Kit stands out for its numerous advantages:

1. Built-in 7Ah battery and controller: This all-in-one design reduces the hassle of handling multiple components and makes installation straightforward.
2. Wireless pedal sensor: It adds convenience and enhances riding experience by automatically detecting pedal movement and adjusting the motor assistance accordingly.
3. Support extended-range battery: The kit is designed to support an extended-range battery for longer rides.
4. Lightweight: The motor is lightweight which ensures that it doesn't add significant weight to your bike, maintaining its agility and ride feel.
5. Wireless control: The Bluetooth button/display controller allows for wireless control, contributing to a clutter-free handlebar.
6. Easy to install & disassemble: The simplicity of design and inclusion of clear instructions make the installation and disassembly process easy even for beginners.

Applications of the All-in-One Front Hub Motor System

The ALL-IN-ONE Front Hub Motor system for e-bikes has a wide range of applications:

1. 1. Commuting: It allows riders to effortlessly navigate through traffic, tackle hills, and cover longer distances without getting fatigued.
   2. Urban Transportation: It provides an eco-friendly alternative to traditional modes of transportation like cars or motorcycles.
   3. Recreation and Leisure: The system enhances the overall experience of exploring scenic trails, going on off-road adventures, or simply enjoying a leisurely ride.
   4. Delivery Services: E-bikes equipped with this system are a popular choice for last-mile deliveries due to their efficiency and sustainability.
   5. Bike-Sharing Programs: The compact and user-friendly nature of the ALL-IN-ONE Front Hub Motor system makes it suitable for bike-sharing programs.

How Does the Ebike System ALL-IN-ONE Front Hub Motor Work?

The ALL-IN-ONE front hub motor system for e-bikes combines several components into a single unit:

1. Motor: The front hub motor is located in the front wheel hub. It consists of a brushless electric motor that generates torque to propel the bicycle forward.
2. Battery: The battery supplies power to the motor and is responsible for storing and providing the electrical energy needed for propulsion.
3. Controller: The controller acts as the brain of the system, managing the flow of electricity between the battery and the motor.
4. Power delivery: When the rider activates the electric assistance, a signal is sent to the controller which then determines the level of assistance required.
5. Propulsion: The motor's power output assists the rider's pedaling effort, making it easier to pedal or providing full electric propulsion, depending on the mode selected.
6. Control settings: Different control settings are available to suit the rider's preferences, including throttle-only mode or pedal-assist mode.

Choose the Right ALL-IN-ONE Front Hub Motor for Ebike System

When choosing the right ALL-IN-ONE front hub motor for your e-bike system, consider the following factors:

1. Power and torque: Based on your riding needs and terrain, choose a motor with the appropriate power and torque.
2. Battery capacity: Consider your typical ride distance and choose a battery capacity that meets your requirements.
3. Voltage and current: Ensure the motor and battery voltage and current specifications match to ensure proper operation and avoid damage to the components.
4. Wheel size: Check the compatibility of the front hub motor with your e-bike's wheel size.
5. Weight and balance: Choose a lighter system to have less impact on the overall weight of your e-bike and help maintain good balance and handling.
6. Installation compatibility: Check the compatibility of the front hub motor system with your bike's fork and dropout spacing.

Maintenance of the ALL-IN-ONE Front Hub Motor

Proper maintenance of the ALL-IN-ONE front hub motor for your e-bike system is essential:

1. 1. Regular cleaning: Clean the front hub motor and the surrounding area regularly to prevent the buildup of dirt, dust, and debris.
   2. Battery maintenance: Keep the battery charged within the recommended voltage range and avoid overcharging or deep discharging.
   3. Check electrical connections: Periodically inspect the electrical connections between the motor, controller, and battery.
   4. Tire pressure and wheel alignment: Maintain the appropriate tire pressure as recommended by the tire manufacturer.
   5. Brake system maintenance: Regularly inspect and adjust the brakes to ensure they are functioning properly.
   6. Lubrication: Apply lubricant to the moving parts of the front hub motor system, such as the bearings and gears, as recommended by the manufacturer.
   7. Protect from moisture: Avoid exposing the front hub motor and electrical components to excessive moisture.

Why Choose Raydafon's ALL-IN-ONE Front Hub Motor for Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life," adhere to the business philosophy of "Credit First, Quality First," and constantly develop new products to meet customer needs and market changes. All our products are CE-certified and protected by independent intellectual property rights. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly.Author: Yjx
