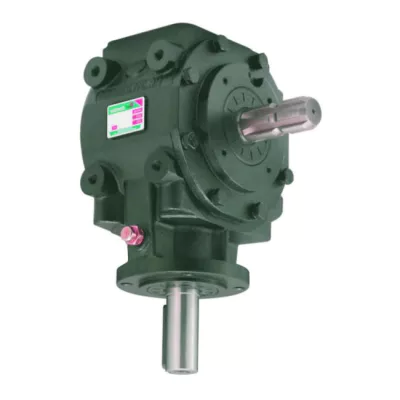

RDF-9.311 Rotary Tiller Cultivator Gearbox for Agricultural

RDF-9.311 Rotary Tiller Cultivator Gearbox for Agricultural

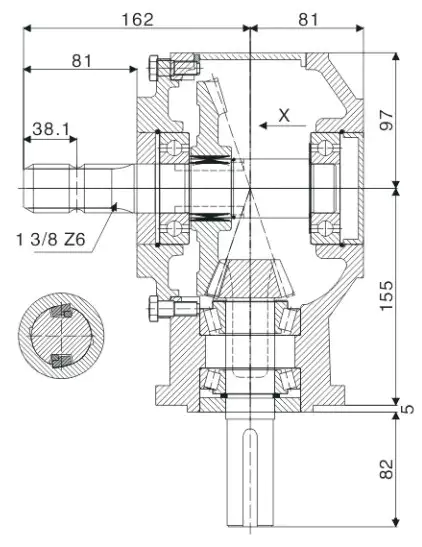

ITEM	HC-9.311 Rotary Tiller Gearbox
Ratio	1:3
Teeth	36/12
Module	4.35
Power(HP)	50
Rated Input	540rpm
Input/Output Description	1 3/8 Z6 Optic axis/Optic axis
Weight(N.W)	21KG

 If you're looking for Rotary Tiller Gearbox, you've come to the right place. Raydafon has a wide selection of the top brands to suit your particular mower and any tough task you need to tackle. Browse our selection to discover your many options in these essential parts to keep life on the farm running smoothly.These are CB70 Series industrial gearboxes, which were independently designed by Raydafon. RG70 industrial gearbox helps to save mold-making fees, allowing for a lower cost for customers. Meanwhile, it has been sold on global

PTO Shafts for Agricultural Gearboxes

A PTO shaft is an integral part of an agriculture gearbox; failure to maintain it properly can severely damage the PTO mechanism. PTO shafts are crucial for maintaining the performance of the agricultural implementation, as they are responsible for connecting the transmission to the implementation. To avoid problems with vibration, a good PTO shaft should resist torsion and shear stress. We offer a variety of durable PTO shafts to meet all your requirements. Contact us now!

Advantages of Rotary Tiller Gearbox

Our Rotary Tiller Gearbox has many items for your choice and we can produce as per your drawing or sample to meet your special request1. Large output torque2. Safe, reliable, economical, and durable3. Stable transmission, quiet operation4. High carrying ability5. High modularization design, may equip with various outer power inputs conveniently. The same machine type may equip with various power motors. It is easy to realize the combination and junction between every machine type6. Transmission ratio: Fine division, wide scope. The combined machine type may form a very large transmission ratio, i. E. Output very low rotary speed.7. Form of installation: The position to be installed is not limited.8. High strength, compact the box body of high strength cast iron, gear and gear shaft adopt the gas carbonization, quenching, and fine grinding process, therefore the bearing capacity of unit volume is high.9. Long life: Under the condition of the correct type chosen(including choosing suitable operation parament ) normal operation and maintenance, the life of the main parts speed reducer(except wearing parts)should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal, and bearing.10. Low noise: Because the main parts of the speed reducer are processed, and tested critically, therefore the noise of the speed reducer is low.11. Our gearbox has reached the advanced international level and can replace the same kind of products imported.

Agricultural Gearbox Production Workshop

The Raydafon Group was established in 1995. Raydafon has 230 million fixed assets, 280 sets of large-scale equipment sets, floor area over 80,000 square meters, an area of the structure of 56,000 square meters, and an annual value of production of 500 million. Raydafon commits itself to the development, production, sales, and service of transmission products. Its products include spiral and straight bevel gearboxes, cylinder gear speed reducers, worm reducers, transmission cases, etc.There are more than 1000 kinds of gearboxes, and more than 95 percent of these exports go to Europe, the United States, Australia, Asia, and Canada. Our main customers include the Alamo, GKN group, the pragmatic power group Kuhn, Brandt, Canada, France, Japan, Malaysia group and Dewalt, Zoomlion, China international industry corporation, etc well-known enterprises in the domestic and overseas.
