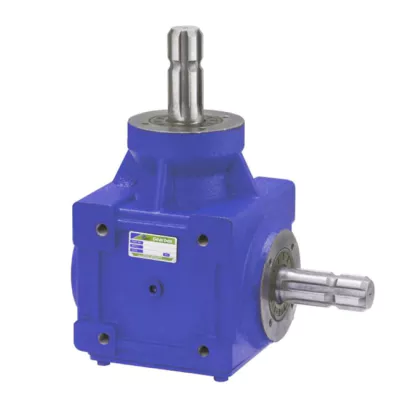

RDF-BGB9 Lawn Mower Gearbox For Agricultural Lawn Mower

RDF-BGB9 Lawn Mower Gearbox For Agricultural Lawn Mower

Lawn mower gearbox work to administer a transfer of speed and torque through their internal gear rotation, helping the overall performance of your rotary cutter. This RDF-BGB9 gearbox operates at 30 HP. The housing is constructed from durable ductile iron, and the smooth input shaft measures 1-3/8 inches. It has a beveled type of gear, with the gear ratio measuring 1:1.46. Designed for use with 4-foot, 5-foot, and 6-foot rotary cutters, Lawn mower gearboxes has 4 bolt holes measuring 5/8 inch on a 6-3/4 inch bolt circle for installment.The right angle gearbox for lawn mower is a new type of gearbox independently developed by the Raydafon machinery factory according to the requirements of customers. It is mainly used in lawnmowers. Various speed ratios and input and output configurations can be selected according to needs.

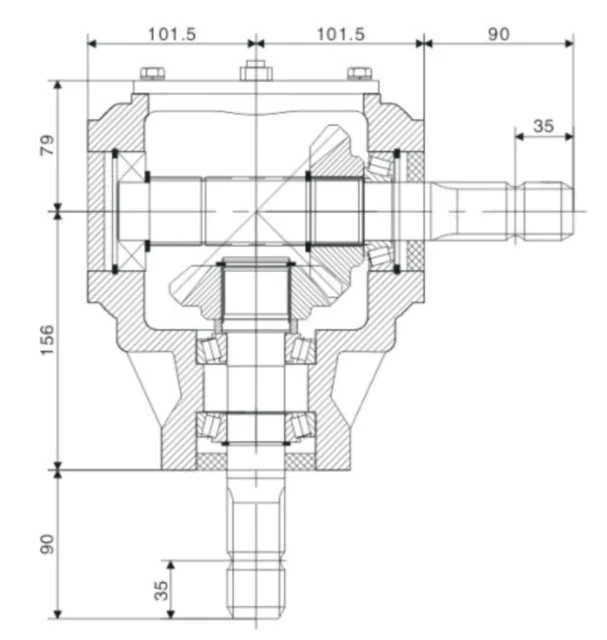

▍Agricultural Lawnmower Gearbox Specification:

ITEM	RDF-BGB9 Lawn mower gearbox
Ratio	1:1 / 1:1.35 / 1:1.46 / 1:2
Teeth	16/16  23/17  22/15 15/30
Module	6.35 /  5.0 / 5.0 / 3.5
Power（HP）	30
Rated Input	540rpm
Input/Output description	1 3/8 Z6 13/8 Z6 OPtic axis
Weight（N.W）	23Kg

▍Features of Agricultural Lawn Mower Gearbox

Our agricultural gearbox has many items for you to choose from. We can produce according to your drawings or samples to meet your special requirements1. High output torque2. Safe, reliable, economical, and durable3. Stable transmission and quiet operation4. Strong bearing capacity5. Highly modular design, easy to configure various external power inputs. The same model can be equipped with various power motors. Easy to realize the combination and connection of various models6. Transmission ratio: fine subdivision and wide range. The combined machines can form a very large transmission ratio, that is, output at a very low speed.7. Installation form: unlimited installation position.8. The high-strength and compact box body is made of high-strength cast iron, and the gear and gear shaft are made of gas carburizing, quenching, and fine grinding processes, so the bearing capacity per unit volume is high.9. Long service life: under the condition of correct model selection (including the selection of appropriate operating parameters) and normal operation and maintenance, the service life of the main components (except vulnerable parts) of the reducer shall not be less than 20000 hours. Vulnerable parts include lubricating oil, oil seal, and bearing.10. Low noise: since the main components of the lawn mower gearbox have been processed and strictly tested, the noise of the agricultural gearbox is very low.

▍Lawn Mower 90 Degree Gearbox Application:

• Grain transportation storage
• Rotary lawn mower
• Rice harvester
• Rotary Tiller
• Pesticide sprayer
• Potato harvester
• Post-hole digger
• Chain gearbox
• Oil pump jack reducer
• Fertilizer spreader

Lawn Mower Gearbox Repair and Maintenance

Most of the problems with lawn mower gearbox drive equipment are due to a lack of service and maintenance. An operator can check a few things before using their equipment.Always maintain proper oil levels. If a right angle gearbox for lawn mower is run low, the bearings will not be adequately lubricated. If the lawn mower gearboxes are overfilled, it will generate heat, cause the box to run hot, and possibly damage the seals.Check for free play in the input and output shafts. If any free space is present, it may be a sign of bearing wear or a change in bearing preload setting. Excessive free play will cause oil seal failure, thus causing a loss of lubricant and bearing and gear damage. In most cases, the bearing preload can be reset, eliminating all radial free play by either re-shimming or tightening the bearing adjustment nut.Most lawnmower gearboxes require a breather to prevent pressure from building up inside the housing. Periodically check to ensure the breather is functioning correctly. If the pressure builds up in the box, it will cause the oil seal to rupture, and a loss of lubricant will occur.

Agricultural Gearbox and PTO Drive Shaft

Agricultural gearboxes often incorporated a separate PTO shaft that was removed from the main output shaft of the tractor. As a result, PTO shaft rotations were not completely independent of the tractor’s motion. PTO drive shafts are a common component of many agricultural implements, and while they can provide high torque, they’re only capable of transmitting them at low speeds. To meet these demands, many implements use chain drives or pulleys. Gearboxes can help to overcome these limitations, but they’re not only used in farms. Gearboxes are also used for wheel drives and massive torque, and low-speed applications in many industries.Agricultural PTO gearboxes can be either single or dual-shaft designs. One type is an axle-facing design that diverts engine power to an additional PTO output shaft. The other type, also known as a “sandwich” design, is mounted between the transmission and engine and receives drive directly from the engine shaft. This means that full engine power can be transferred to the PTO shaft, and the driveline is typically modified to accommodate it.The PTO drive shaft is one of the most important components of the agriculture gearbox since its failure can damage the PTO mechanism. A good PTO shaft is made to withstand torsion and shear stress while minimizing vibrations. The best quality PTO shaft is made from cold-extruded steel, and Raydafon offers both high-quality and durable agricultural PTO shafts.

Other Agricultural Gearboxes

Raydafon provides agricultural solutions to global agricultural machinery manufacturers and dealers through a full range of spiral bevel gearboxes, straight bevel gearboxes, straight gearboxes, and drive shafts. Products such as sheet metal, hydraulic cylinders, motors, tires, worm gearboxes, and worm operators can be customized according to customer requirements. Raydafon machinery has established a perfect quality management system and sales service network to provide customers with high-quality products and satisfactory services. Our agricultural gearboxes are sold to 40 provinces and cities in China and 36 countries and regions in the world. Our main market is the European market.

Agricultural Gearbox Production Workshop

Agricultural Lawn Mower Gearbox Suppliers

Raydafon Transmission Machinery Co., Ltd. is devoted to R&D and manufacturing and personnel training on various gearboxes, reducers, and engineering machinery, including bevel gearboxes, agricultural gearboxes, planetary gearboxes, helical gearboxes, cycloidal gearboxes, worm gearboxes. Raydafon offers reliable agricultural gearbox solutions for almost any farming application. The agricultural gearbox is the main mechanical component of the kinematic chain of farming machines. We make high-quality for all kinds of agriculture gearboxes. Vast choices include the agricultural machine application of rotary cutters, fertilizer spreaders, feed mixers, post-hole diggers, flail mowers, rotary tillers, etc. Welcome to contact us by phone or email.
