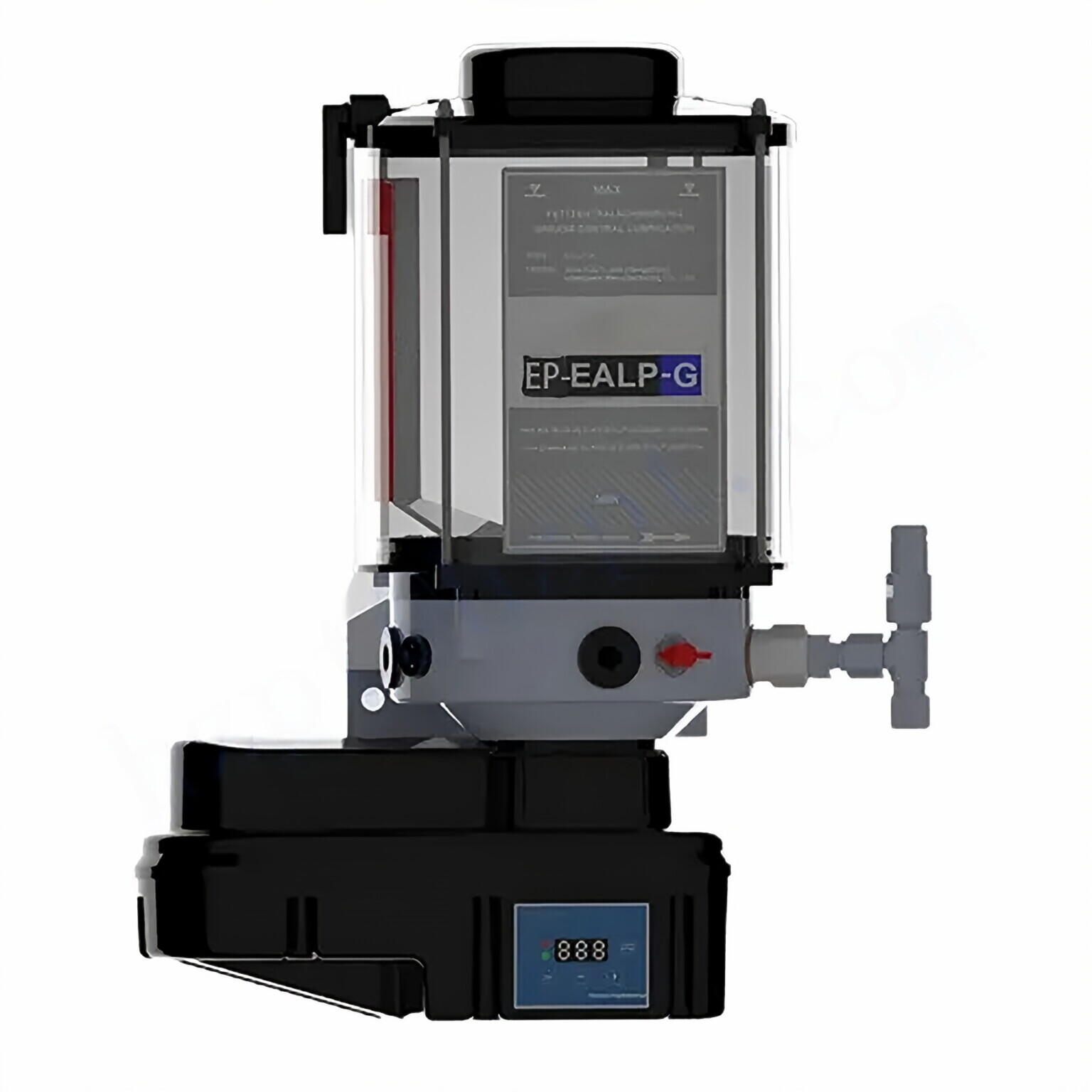

RDF-EALP-G Series Grease-Type Electric Lubrication Pump

The RDF-EALP-G series grease-type electric lubrication pump is designed for versatility and efficiency, featuring up to six independently operated lubricant outlets. Each outlet is powered by a single pump element, providing flexibility in lubrication distribution across multiple points. Users can choose between two pump element options: PE-125 or PE-175, allowing for customization based on specific application requirements.This advanced lubrication pump is capable of delivering lubricants with a viscosity rating not exceeding NLGI class 2, which ensures compatibility with a wide range of lubricating greases. It operates effectively under a maximum working pressure of 350 bar, making it suitable for demanding industrial applications where high-pressure lubrication is necessary.The RDF-EALP-G series is available in various oil tank sizes, catering to different lubrication needs and operational demands. Additionally, the pump offers multiple control options, enabling external control through a Programmable Logic Controller (PLC) or an additional control unit. This flexibility allows for integration with various automated systems, enhancing operational efficiency.Moreover, the pump can be combined with several different integrated control devices, providing further customization for unique applications. This adaptability makes the RDF-EALP-G series an ideal solution for industries requiring precise and reliable lubrication management, ensuring optimal performance and longevity of machinery and equipment.The RDF-EALP-G series grease-type electric lubrication pump offers a robust and flexible solution for effective lubrication, with customizable features that meet the diverse needs of modern industrial applications.

PUMP PARAMETER

Suitable for progressive lubrication systems
Single-outlet single-stroke displacement(=pump rotation 1 turn)	0.125cm³/0.175cm³(Actual depends on pump core specifications）
Pump core specifications	PE125/PE175
Volume	4L(2L&3L&6L&8L）
Operating pressure	350 bar
Safety valve set pressure	300 bar
pumped medium	the oil viscosity is not higher than NLGl-cl2
Operating temperature	-35~+70°C
Number of oil outlets	1-4（Up to6exitscan be customized)
Outlet pipe diameter	Ø6mm
Installation requirements	the oil drum is perpendicular to the horizontal plane, as shown in the picture
IP Code	IP6K9K
Weight	5.6KG (Single pump core with safety valve,no grease)

ELECTRIC MACHINE PARAMETER

Driver type	DC speed reduction motor
Working voltage	12/24VDC
Incoming current	max.3.5/2.2A
Stall current	max.8.5/6.0A
Speed(pump scraper speed)	17r.p.m

Check the pump motor voltage before connecting the voltage.

1. The green light is on, and the pump works nomally2. When the red light is on, the low level sensor alarms the oil is low, or the pressure sensor alarms, the system is blocked3.  Set the button and long press to set the pump working time.●  Long press for the first time, enter the working minute setting，    L01=1min, setting range L01~L29.●  Long press for the second time, enter the working time cycle setting,  C01=0.5h, setting range C01~C16.4. Long press to exit the settings again5. Add keys6. Reduce the button7. Force the start button

What are the advantages of RDF-EALP-G series electric lubrication pumps?

01# Optimized Lubrication IntervalsThe RDF-EALP-G series electric lubrication pump offers significant advantages over traditional manual lubrication systems by providing precise control over lubrication intervals. Users can set these intervals with accuracy down to the minute, ensuring that machinery receives timely lubrication without delays.02# Enhanced Production Efficiency and Equipment UptimeOne of the standout features of the RDF-EALP-G series is its ability to supply lubricants without requiring equipment shutdowns. This means that operations can continue seamlessly during emergency situations, ultimately improving overall equipment uptime and productivity.03# Reduction of Lubricant Waste and Equipment FailuresThis series utilizes a targeted lubrication approach, dispensing small amounts of lubricant multiple times during operation. This method not only minimizes waste but also significantly enhances the overall lubrication effectiveness. By delivering the right amount of lubricant at designated times and locations, the RDF-EALP-G series helps to decrease the likelihood of parts failure, which is a common issue with traditional manual lubrication techniques.04# Safer Working EnvironmentThe RDF-EALP-G series incorporates integrated control systems that allow for real-time adjustments to lubricant quantities from a safe distance. This capability ensures high efficiency while enabling timely adaptations to varying operational conditions. Additionally, once installed, the system eliminates the need for personnel to enter hazardous lubrication areas that may be difficult to access due to exhaust emissions or tight spaces, enhancing workplace safety.05# Labor and Time Cost SavingsDesigned to cater to diverse operational needs, the RDF-EALP-G series comes in various sizes, allowing for substantial grease reserves. This feature enables long-term operation with less frequent grease replenishment, effectively saving both labor and time costs associated with maintenance.06# Prevention of Over-Lubrication and Under-LubricationThe RDF-EALP-G series addresses the common pitfalls of lubrication management. Over-lubrication can result in excess heat buildup, wasted lubricant, and increased labor costs, while under-lubrication can lead to excessive wear on parts, higher energy consumption, and elevated operational costs. This pump ensures the right balance, promoting optimal equipment performance.07# Lower Maintenance and Spare Parts CostsBy minimizing the risk of unplanned maintenance and reducing the need for spare parts, the RDF-EALP-G series electric lubrication pump helps maximize equipment utilization. This proactive approach not only avoids unexpected downtime but also contributes to more efficient resource management, ultimately leading to cost savings for your operations.The RDF-EALP-G series electric lubrication pump is an innovative solution that enhances lubrication efficiency, safety, and overall productivity while significantly reducing costs associated with maintenance and operational interruptions.

SIMPLE INTRODUCTION OF THE PUMP BODY WORK

The direct current motor(10)continuously rotates the eccentric convex wheel (5) and the pressure ring (6). This kind of eccentric wheel influence the suction and pressure stroke of the piston （7)， The check valve(8)  in the pump core prevents the delivery medium from being sucked out of the line.Churn-dasher(2) Through the filter (4) push the lubricating agent out of the oil storage drum（1) The filter screen reduces the air bubble inthe aluminum base(3). The volume of lubricating agent remaining in the oil storage drum（1) can be detected by direct inspection through the scraper mounted on the stirring (2). Safety valve(9) is preset to 300 bar.

INSTALLATION SIZE

RDF-EALP-G has five different models of oil storage barrels to meet different lubrication requirements.Installation dimensions of a lubrication pump with a volume of 4L and a single pump core with a control system:

PUMP CORE AND SAFETY VALVE

The pump core and safety valve components are of separable designThe ines can be directly connected to the pump core under specific requirements

RDF-EALP-G GREASE LOW LEVEL  ALARM

In addition to the standard configuration, a low liquid level alarm device can be optionally configured according to demand. In order to achieve the alarm effect, a capacitive proximity switch is set inside the oil barrel. When the oil level is sufficient, the pump works normally; when the oil level is in the low liquid level range, the pump stops working, and the display shows ERO. At this time, the pump needs to be filled with oil (the minimum oil filling amount is not less than the top of the sensor), and then the forced start button is pressed. The pump continues to run at the last stop time. The proximity switch can also be connected to an external control unit or PLC. After the connection, the pump will stop working at a low liquid level and oil needs to be added in time. If the lubrication pump does not have a low-level alarm device, sufficient grease should be added in advance before the power is turned on to avoid false alarms.

TECHNICAL PARAMETERS

Temperature resistance	-35~+85°℃
IP Code	IP65
Operating voltage	12~24VDC
Withstand voltage	0~0.6Mpa
Protect	extreme reverseprotection over current protection
Output signal	maximum output 100mANPN, PNP dual output、PWM

ELECTRIC PUMP RDF-EALP-G ORDER NO

Real shot of app installation

Application Cases
