Reach Stacker Steering Cylinder

Reach Stacker Steering Cylinder

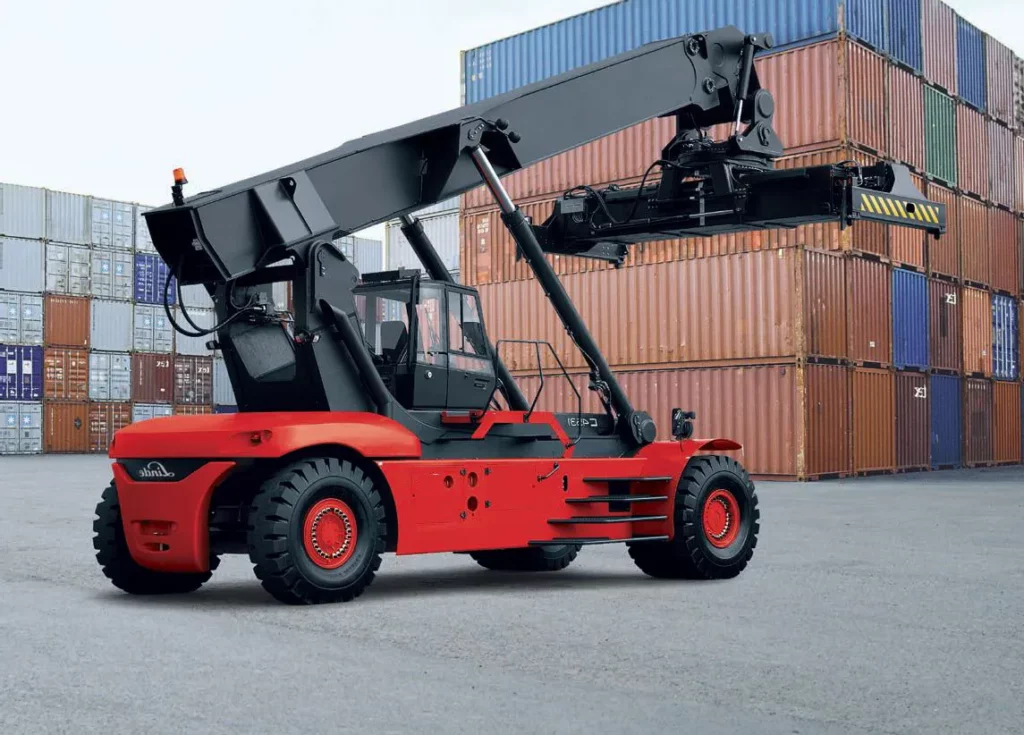

A reach stacker steering cylinder is a hydraulic cylinder that is used to steer reach stackers. Reach stackers are specialized forklifts that are used to load and unload containers from ships and railcars. They are often used in port terminals and warehouses.

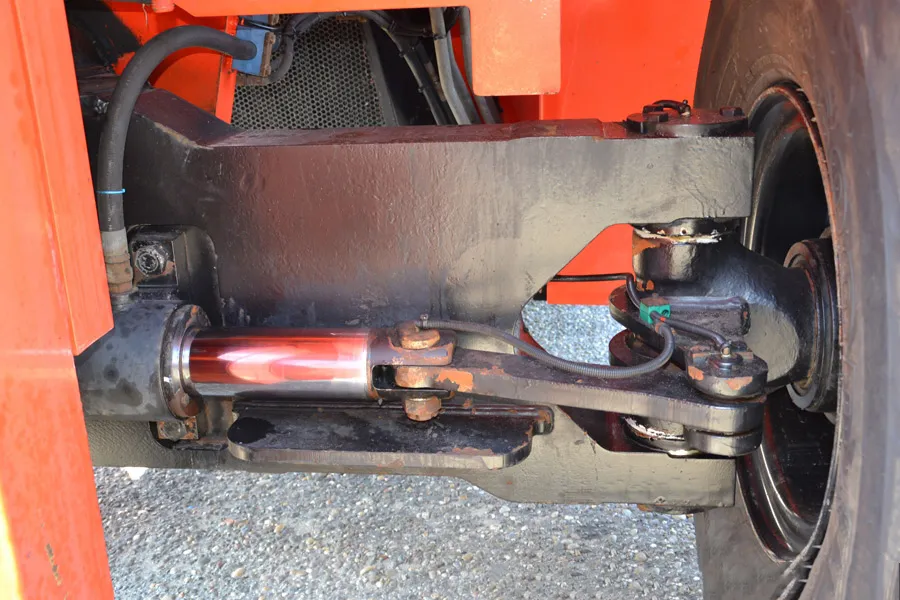

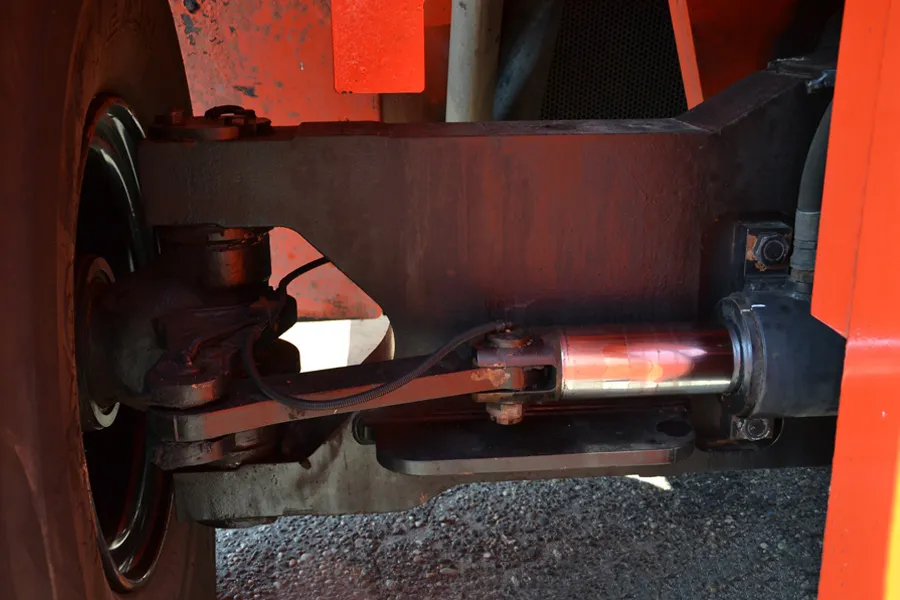

Reach stacker steering cylinders are typically double-acting, which means that they can be used to push and pull the wheels. This allows the reach stacker to be steered in both directions. The cylinder is typically mounted on the front of the reach stacker, and it is connected to the wheels by tie rods.

When the operator turns the steering wheel, hydraulic fluid is pumped into one side of the cylinder, which causes the piston to extend. This pushes the wheels in the desired direction. When the operator releases the steering wheel, hydraulic fluid is pumped into the other side of the cylinder, which causes the piston to retract. This returns the wheels to their neutral position.

Reach stacker steering cylinders are subject to a lot of wear and tear as they are used frequently. It is important to inspect and maintain these cylinders regularly to ensure that they are operating properly.

Benefits of Using a Reach Stacker Steering Cylinder:

Here are some of the benefits of using a reach stacker steering cylinder:

• Easy steering: Reach stacker steering cylinders make it easy to steer the reach stacker, even at high speeds. This is important for safety, as it allows the operator to quickly and easily maneuver the reach stacker in tight spaces.
• Reduced fatigue: Reach stacker steering cylinders help to reduce operator fatigue. This is because the operator does not have to use as much muscle power to steer the reach stacker.
• Improved performance: Reach stacker steering cylinders help to improve the performance of the reach stacker. This is because they allow the operator to make precise steering movements.

Overall, reach stacker steering cylinders are an important safety and performance feature on reach stackers. By ensuring that these cylinders are properly maintained, operators can help to extend the lifespan of their reach stackers and improve their safety and productivity.

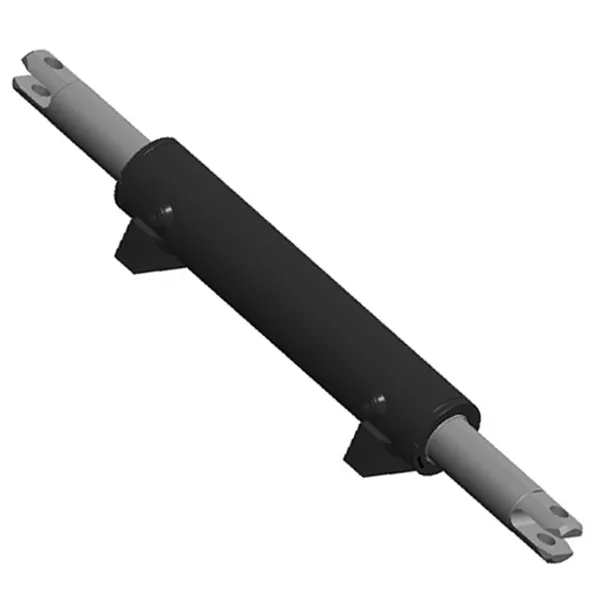

Reach Stacker Steering Cylinder Specifications:

Product Name	Reach Stacker Luffing Cylinder
Features:	Realize the adjustment of the direction of the crane's tires
Bore diameter:	80mm～200mm
Rod diameter:	60mm～100mmStroke≤9500mm
Pressure：	Maximum 25MPa
Applications:	Reach Stacker

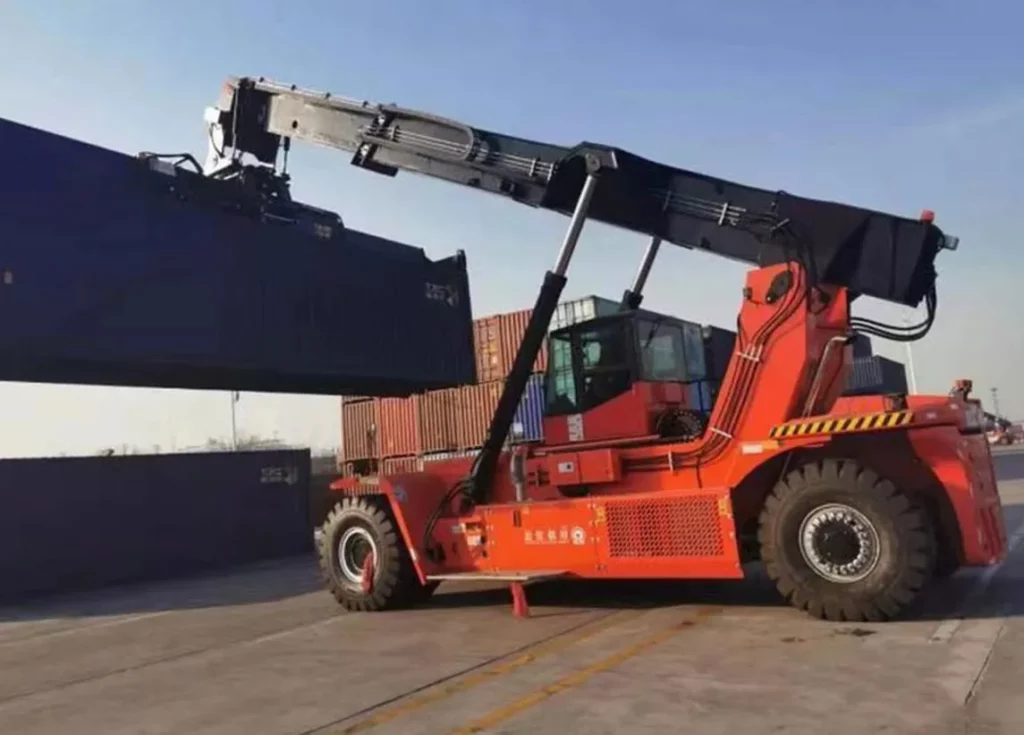

Characteristics of Reach Stacker Steering Cylinder:

Reach stacker steering cylinders are hydraulic cylinders that are used to steer the front axle of a reach stacker. They are typically double-acting cylinders, meaning that they can push and pull the axle in either direction. Reach stacker steering cylinders must be able to withstand high forces and torques, as well as the harsh operating conditions of a port or terminal environment.

Here are some of the key characteristics of reach stacker steering cylinders:

1. Bore diameter: The bore diameter of a reach stacker steering cylinder is typically between 80mm and 200mm. This is determined by the amount of force that the cylinder needs to produce.2. Rod diameter: The rod diameter of a reach stacker steering cylinder is typically between 60mm and 100mm. This is determined by the amount of torque that the cylinder needs to produce.3. Stroke length: The stroke length of a reach stacker steering cylinder is typically between 5000mm and 9500mm. This is determined by the maximum turning angle of the front axle.4. Operating pressure: The operating pressure of a reach stacker steering cylinder is typically between 25MPa and 30MPa. This is determined by the amount of force and torque that the cylinder needs to produce.5. Materials of construction: Reach stacker steering cylinders are typically made of high-strength materials such as alloy steel or stainless steel. This is to ensure that they can withstand the high forces and torques, as well as the harsh operating conditions.6. Seals and gaskets: Reach stacker steering cylinders typically use high-quality seals and gaskets to prevent leakage. This is important because hydraulic fluid leaks can create a safety hazard and damage the machine.7. Corrosion protection: Reach stacker steering cylinders are typically coated with a corrosion-resistant layer to protect them from the elements. This is especially important in marine environments.

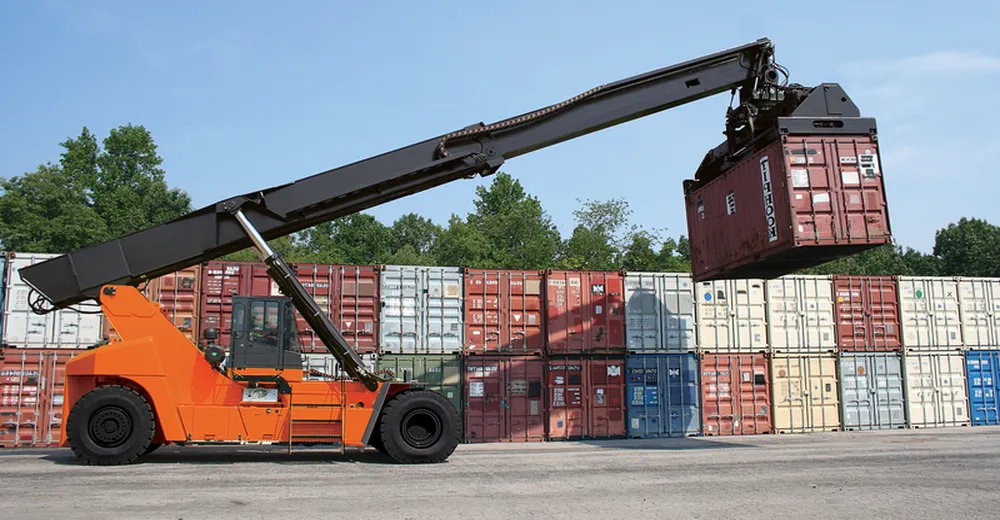

Why Choose Reach Stacker Steering Cylinder at Raydafon:

There are several reasons why you should choose a reach stacker steering cylinder from Raydafon:

• Quality: Raydafon is a leading manufacturer of hydraulic cylinders, and its reach stacker steering cylinders are known for their high quality and durability. The hydraulic cylinders are made from high-strength materials and are rigorously tested to ensure that they meet or exceed all industry standards.
• Performance: Raydafon reach stacker steering cylinders offer excellent performance in all operating conditions. They are designed to provide smooth and precise steering, even at high speeds and under heavy loads.
• Reliability: Raydafon reach stacker steering cylinders are highly reliable and require little maintenance. They are backed by a comprehensive warranty, so you can be confident that you are investing in a quality product.
• Value: Raydafon reach stacker steering cylinders offer excellent value for money. They are competitively priced and offer a number of features that are not available on other brands of cylinders.

In addition to these general benefits, Raydafon reach stacker steering cylinders also offer a number of specific advantages, including:

• Longer service life: Raydafon cylinders are made from high-quality materials and are designed to withstand heavy use. They typically have a longer service life than cylinders from other brands.
• Better fuel efficiency: Raydafon cylinders help to improve the fuel efficiency of reach stackers by reducing friction and wear.
• Reduced maintenance costs: Raydafon cylinders require less maintenance than cylinders from other brands. This can save you money in the long run.

Overall, Raydafon reach stacker steering cylinders are a great choice for businesses that want to invest in high-quality, reliable, and value-priced products.

China Reach Stacker Cylinder Manufacturers

The reach stacker is a kind of crane used to load and unload containers. The number of stacking layers and the utilization rate of the yard are the most important indicators to test its performance. In fact, it puts forward higher requirements on the load-lifting capacity of the spreader. At the same time, it is requested to be easy to operate and shuttle between channels flexibly. The lifting cylinders and telescopic cylinders designed and produced by Raydafon adopt a special structural design with the characteristics of corrosion resistance, wear resistance, and long life and could meet the high requirements of reach stackers and high-frequency load lifting operation conditions.Moreover, we go beyond reach stacker cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.[embed]https://www.youtube.com/embedqlR4ZvCup9A[/embed]
