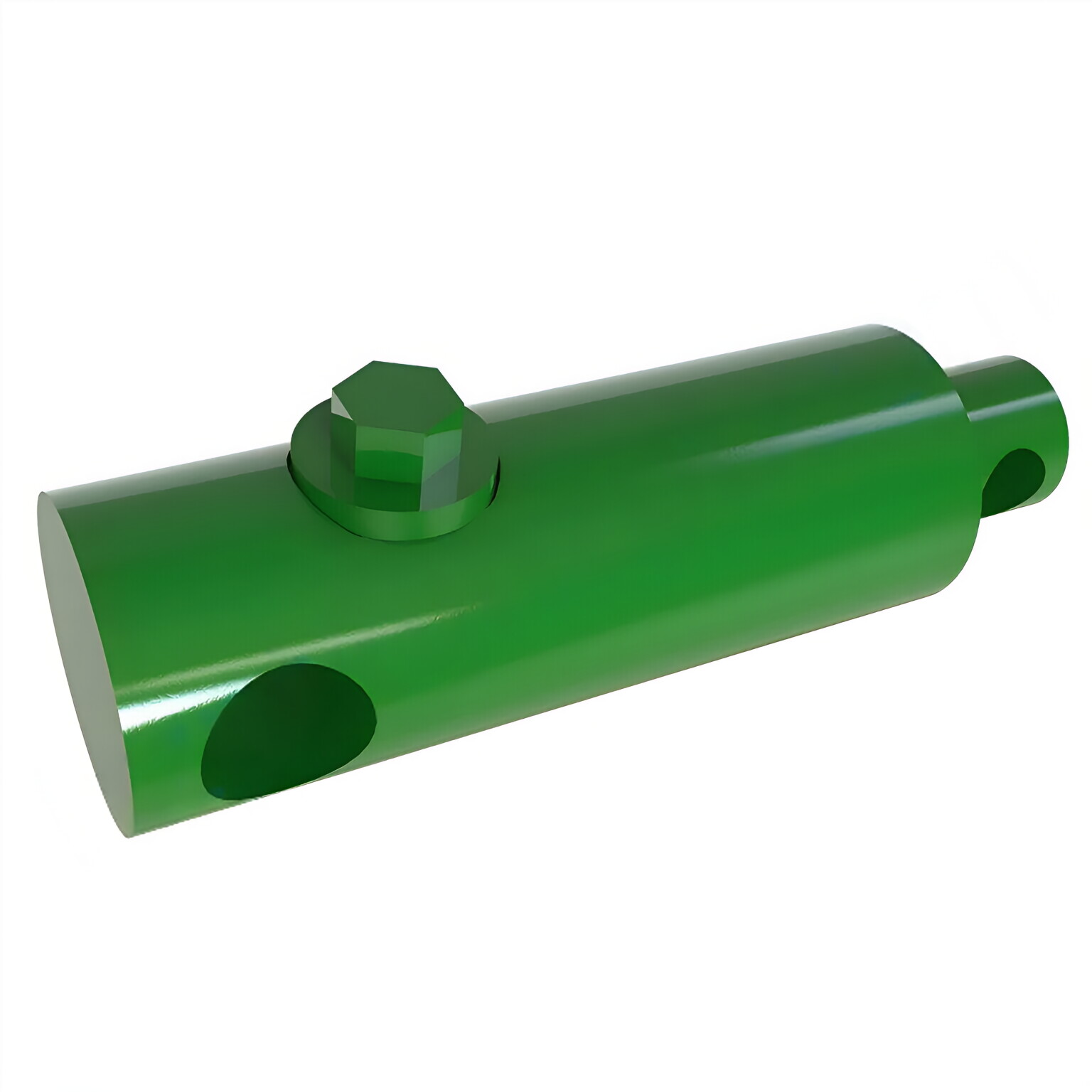

Repacement Of John Deere AH169245 Platform Float Hydraulic Cylinder

Product Introduction

The Replacement Of AH169245 Platform Float Hydraulic Cylinder is a hydraulic cylinder used in various models such as 615F, 616, 616F, 616R, 618, 618F, 618R, 620, 620F, 620R, 622, 622F, 622R, 625F, 625R, 630, 630F, 630R, 635, and 635F. It is designed to provide support and stability in construction equipment, manufacturing processes, transportation, and aviation.

Specifications and Models

Weight: 1.43 lb

Height: 1.5 in

Width: 1.5 in

Length: 4.7 in

Features

• High load-bearing capacity
• Excellent sealing performance
• Long-lasting durability
• Ensured safety
• Ease of maintenance

Applications

Construction

Commonly used in cranes, hoists, and elevators that require secure fixation of heavy objects.

Manufacturing

Used in hydraulic presses for shaping materials under high pressure, requiring reliable fixation during the manufacturing process.

Transportation

Utilized in stabilizers and jacks of vehicles to ensure safety during maintenance or transportation.

Aviation

Applied in landing gear systems to securely position the landing gear during takeoff and landing.

Design Considerations and Selection Criteria

Load-Bearing Capacity

The hydraulic cylinder is designed to withstand heavy loads and provide reliable support.

Sealing Performance

Various sealing components, such as piston seals and rod seals, are used to ensure effective sealing and prevent leakage.

Durability

The cylinder body and threaded ends are meticulously processed to enhance wear resistance and longevity.

Safety

The design incorporates safety features to prevent accidents and ensure the users' well-being.

Maintenance

Regular inspection and proactive maintenance measures are recommended to ensure optimal performance and extend the hydraulic cylinder's lifespan.

Sealing and Lubrication

The hydraulic cylinder utilizes a variety of seals, including piston seals and rod seals, made from wear-resistant materials such as polyurethane and nitrile rubber. The cylinder body and threaded ends are finely processed to improve wear resistance. Regular lubrication with the appropriate amount of hydraulic oil is necessary to ensure smooth operation.

Inspection and Preventive Maintenance

• Regularly inspect the hydraulic cylinder for any signs of wear or damage.
• Ensure proper lubrication to prevent friction and maintain optimal performance.
• Replace worn-out seals promptly to prevent leakage and maintain sealing effectiveness.
• Perform calibration checks to ensure accurate operation.
• Provide recommended installation guidelines to align the cylinder correctly and use suitable installation brackets for secure fixation.
• Recommend inspection, repair, and replacement procedures to enhance the longevity of the hydraulic cylinder.

Safety Considerations and Environmental Factors

When using the hydraulic cylinder, it is crucial to follow safety measures to prevent accidents and ensure the well-being of individuals involved. Proper handling, operation, and maintenance are essential to minimize potential risks and promote a safe working environment.

Troubleshooting and Common Issues

It is important to diagnose and address potential problems with the hydraulic cylinder. Common issues may include leakage, insufficient performance, or abnormal operation. Promptly addressing these issues with appropriate troubleshooting methods and preventive measures can help maintain the cylinder's functionality and prevent further complications.
