Replacement of Bonfiglioli 303R Series Planetary Gearbox Reducer Right Angle Replacement 303R2 303R3 303R4

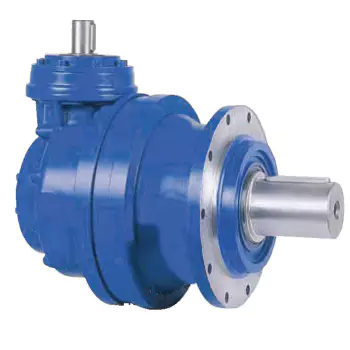

303R Series Planetary Gearbox

The 303R series right angle planetary gearbox and gear motor are a full series of modular design planetary gearboxes suitable for industrial applications. It combines high-performance, low-cost, and compact dimensions, excellent reliability, simple installation, and reduced maintenance. Our industrial planetary gearbox comes in multiple sizes to ensure optimal duration and silent operation in various applications. These inline or right angle planetary gearboxes come in both male and female shaft configurations. The outer shaft solution (spline or cylindrical) can withstand strong radial or axial loads on the output shaft.Features and Benefits

• Quiet, efficient, and reliable operation with high torque density and compact size
• Modular design
• Interchangeable cast iron housing with base, flange, or surface mounting configuration
• Universal installation device
• Available free shaft, sleeve hollow shaft, C-face, shovel base, and top mounted inputs
• The internal components are made of hardened, vacuum degassed, and bearing grade steel
• Low vibration, low noise, small backlash, and long service life
• Product Warranty : 12 month warranty guarantees BAFFERO ® Excellent reputation of the product

Torque range	1000-450.000 Nm
Transmissible mechanical power	up to 150 kw
Gear ratios	3.4-9.000
Gear unit versions	right angle
Output configurations	1) Foot and flange mounted2)Output shaft: solid with key, splined, splined hollow3)Hollow with shrink disc
Input configurations	1)Flanged axial piston hydraulic motors2)Hydraulic orbit motors3)IEC and Nema motor adaptors4)Solid input shaft
Hydraulic brake	hydraulically released parking brake
Electnc brake	DC and AC type

Raleted Planetary Gearboxes

You can click on the image to learn about the corresponding related products

Replaceable Planetary Gearbox Models
