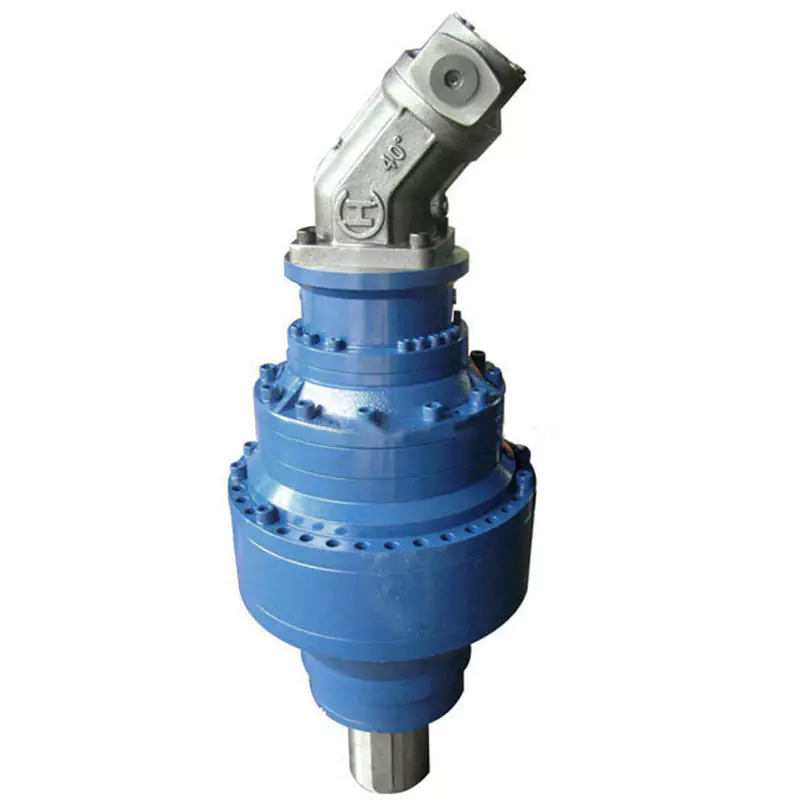

Replacement of Bonfiglioli 313L Series Planetary Gearbox Reducer Replacement 313L1 313L2 313L3 313L4

313L Series Planetary Gearbox

The "313" in Replacement of Bonfiglioli's 313L series planetary gearbox is not a specific number or code, but rather one of the models of the series gearbox. Similar to the 310L series gearbox, the 313L series gearbox also adopts the principle of planetary gear transmission, which consists of a combination of multiple planetary gears, sun gears, and internal gear rings, achieving power transmission and torque amplification through meshing between gear teeth.The 313L series gearbox has some different characteristics compared to the 310L series gearbox. For example, the maximum output torque and input speed of the 313L series gearbox are higher than those of the 310L series, making it suitable for applications that require higher torque output. In addition, the 313L series gearbox also offers various installation methods and transmission ratio options to meet the needs of different application scenarios.Therefore, the 313L series gearbox is a high-performance, high torque, and multifunctional mechanical transmission device suitable for various applications in industrial machinery, construction machinery, metallurgical equipment, and other fields.

Torque range	1,000 ... 1,100,000 Nm (8,850 … 9,735,820 in-lb)
Gear ratios	3.4 ... 5,000
Transmissible Mechanical Power	up to 1,050 kW
Brake options	Hydraulic brakeHydraulically released parking brake on requestElectric brakeDC and AC type
Output	Foot and flange mountedOutput shaft: solid with key, splined, splined hollow, hollow with shrink disc
Input	Flanged axial piston hydraulic motorsHydraulic orbit motorsIEC and Nema motor adaptersSolid input shaft
Applicable motors	Piston hydraulic motorsHydraulic orbit motorsElectric motors IEC
