Replacement of Bonfiglioli 315L Series Planetary Gearbox Reducer Replacement 315L1 315L2 315L3 315L4

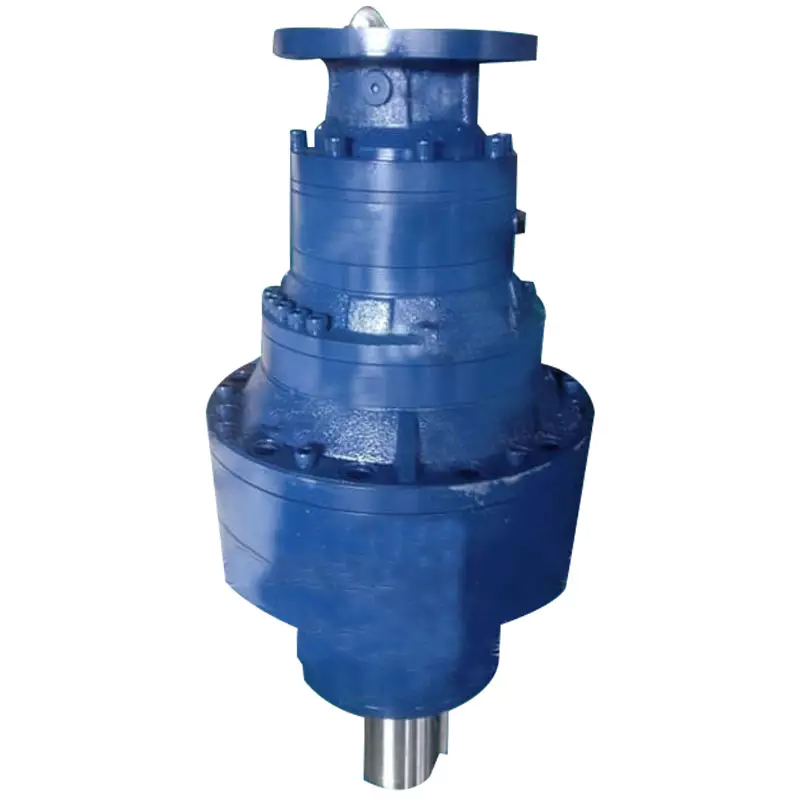

315L Series Planetary Gearbox

We provide high-quality planetary gearboxes with torque ranging from 1000 to 450000Nm. The installation and overall dimensions of the planetary gearbox are designed in strict accordance with the requirements of Italian and American manufacturers, so they can be completely interchangeable with Brevini ED, ET, EQ, EM, EC and EL series, Replacement of Bonfiglioli 300 series and Dinamicoil RE, and RA series are about performance and connection dimensions. They are ideal products to replace those from Italy.We have developed planetary gearboxes for various industrial applications, operated by electric and hydraulic motors. Agnee provides customers with high-quality, cost-effective, and energy-saving planetary gearboxes and various power transmissions..The planetary reduction gearbox consists of an inner toothed ring gear, which is equipped with three planets installed on the planet carrier. These planets also mesh with the sun gear (pinion), and the reduced output speed is obtained through the planet carrier, while the ring gear remains stationary. The output shaft maintains the same direction of rotation as the input shaft.High deceleration ratio, energy saving, high efficiency, long life, space saving, compact, high overload capacity, reliable and fault free use, compact coaxial and sturdy, and no self-locking performance.Planetary gear boxes are used in machine tools, plastic machinery, cargo and personnel lifts, derrick and dock cranes, Material-handling equipment, truck mounted mobile cranes and other dredging equipment, road manufacturing machinery, sugar crystallizers and mill drivers.Planetary gearboxes are used in steel and sugar factories.technical parameter

Type	Rated torque (Nm)	Rated power (Kw)	Input speed (Max rpm)	Ratio range for Inline gear	Ratio range for Right angle gear	Ratio range for Combined with worm gear	Design
300	1000	20	3000	3.3-2700	7-800	400-9000	A
301	1750	30	3000	3.3-2700	7-800	400-9000	A
303	2500	40	3000	3.6-2900	9-900	400-9000	A
305	5000	60	3000	3.6-2900	9-900	400-9000	A
306	8500	75	2500	3.7-2900	9-900	400-9000	A
307	12500	100	2500	3.4-2500	13-800	400-9000	A
309	18500	130	2500	3.4-2500	13-800	400-9000	B
310	25000	150	2000	3.8-2500	40-900	400-9000	B
311	35000	180	2000	4-2200	18-800	400-9000	B
313	50000	200	2000	4-2200	18-800	400-9000	B
315	80000	250	1500	4-2000	70-900	400-9000	B
316	105000	270	1500	4-2000	50-600	400-9000	B
317	150000	300	1000	4-1900	70-900	400-3000	B
318	200000	340	1000	4-1100	200-700	400-9000	B
319	300000	380	500	4-1400	300-800	1000-9000	B
321	450000	450	500	4-1100	300-800	1000-9000	B
