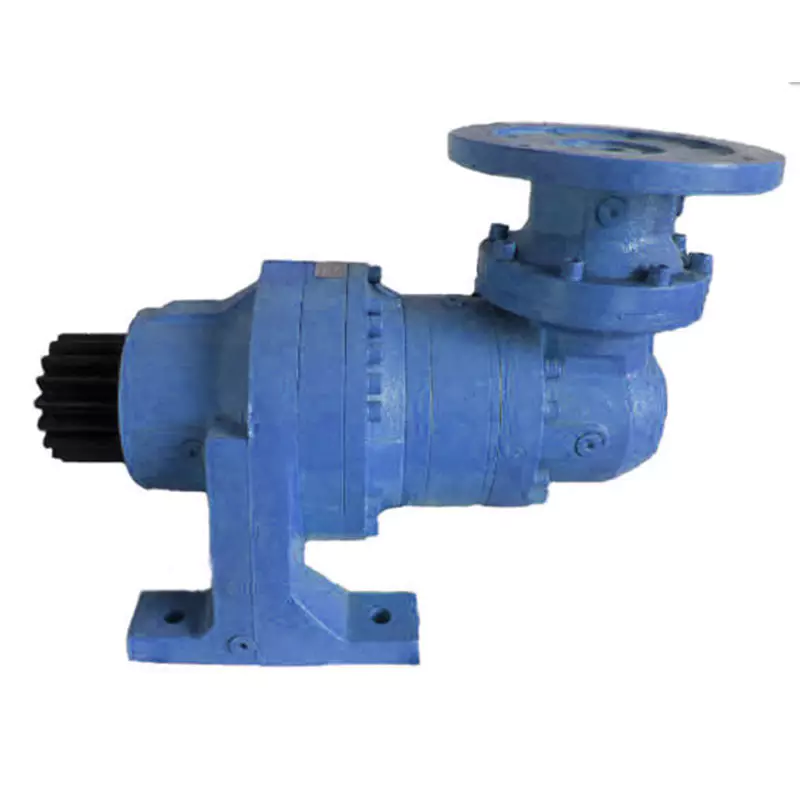

Replacement of Bonfiglioli 318R Series Planetary Gearbox Reducer Replacement 318R4

Raydafon Group proudly presents the Replacement of Bonfiglioli 318R Series Planetary Gearbox Reducer Replacement 318R4. This high-precision planetary gearbox reducer ensures seamless integration and reliable performance in industrial applications. Engineered with durable materials and advanced technology, it offers superior efficiency and reduced maintenance, making it ideal for machinery operators seeking robust and cost-effective solutions. Experience enhanced productivity and peace of mind with Raydafon's trusted replacement, designed to outperform and inspire confidence in every operation.

Send Inquiry

Product Description

318R Series Planetary Gearbox

Choosing the appropriate planetary gearbox model for your application requires careful consideration of several factors. Here are some steps you can take to choose the right planetary gearbox:

Determine the torque requirements: The torque requirements of your application will help you determine the size and capacity of the planetary gearbox. Consider the maximum torque that will be transmitted through the gearbox, as well as any variations in torque that may occur during operation.
Determine the speed requirements: The speed requirements of your application will help you determine the gear ratio of the planetary gearbox. Consider the input and output speed of the gearbox, as well as any variations in speed that may occur during operation.
Consider the available space: The size of the planetary gearbox is also an important consideration. Make sure to measure the available space for the gearbox and ensure that the gearbox you choose will fit within your application.
Choose the appropriate backlash: The backlash is the amount of clearance between the gears in the gearbox and can affect the precision and accuracy of the gearbox. Consider the level of precision required by your application and choose a gearbox with an appropriate backlash.
Choose the appropriate efficiency: The efficiency of the gearbox determines how much power is lost due to friction and other factors. Consider the efficiency of the gearbox and choose a model that provides the required level of efficiency for your application.
Consider the operating environment: The operating environment of your application will also influence your gearbox selection. Consider factors such as temperature, humidity, dust, and other environmental conditions that may affect the gearbox's performance.

By taking these factors into account, you can narrow down your options and choose the appropriate planetary gearbox model for your needs. It's also a good idea to work with a planetary gearbox manufacturer or distributor who can provide expert guidance and help you select the right gearbox for your specific needs. Replacement of Bonfiglioli 318R Series Planetary Gearbox Reducer Replacement 318R4

Technical Parameter

Type	Rated torque (Nm)	Rated power (Kw)	Input speed (Max rpm)	Ratio range for Inline gear	Ratio range for Right angle gear	Ratio range for Combined with worm gear	Design
300	1000	20	3000	3.3-2700	7-800	400-9000	A
301	1750	30	3000	3.3-2700	7-800	400-9000	A
303	2500	40	3000	3.6-2900	9-900	400-9000	A
305	5000	60	3000	3.6-2900	9-900	400-9000	A
306	8500	75	2500	3.7-2900	9-900	400-9000	A
307	12500	100	2500	3.4-2500	13-800	400-9000	A
309	18500	130	2500	3.4-2500	13-800	400-9000	B
310	25000	150	2000	3.8-2500	40-900	400-9000	B
311	35000	180	2000	4-2200	18-800	400-9000	B
313	50000	200	2000	4-2200	18-800	400-9000	B
315	80000	250	1500	4-2000	70-900	400-9000	B
316	105000	270	1500	4-2000	50-600	400-9000	B
317	150000	300	1000	4-1900	70-900	400-3000	B
318	200000	340	1000	4-1100	200-700	400-9000	B
319	300000	380	500	4-1400	300-800	1000-9000	B
321	450000	450	500	4-1100	300-800	1000-9000	B

Raleted Planetary Gearboxes

You can click on the image to learn about the corresponding related products


Planetary Feed Mixer Gearbox	Tracked Vehicle	Winch Drive	Wheeled Vehicle Drive

Slewing Drive	Wind Turbines Drive	Inline Planetary gearbox	Right Angle Planetary gearbox

Replaceable Planetary Gearbox Models

The 300L series gearbox and 300R series planetary gearboxes can be interchangeable with the following models of Trasmital Replacement of Bonfiglioli.The installation and dimensions of the planetary gearboxes are strictly designed according to Italian and American manufacturers, so they are interchangeable with Brevini ED, ET, EQ, EM, EC, and EL Replacement of Bonfiglioli 300 series, and Dinamicoil RE, RA series. Performance and connection size. They are ideal substitutes for those Italian products.

300L 1	300L 2	300L 3	300L 4	300R2	300R3	300R4
301L 1	301L 2	301L 3	301L 4	301R2	301R3	301R4
303L 1	303L 2	303L 3	303L 4	303R2	303R3	303R4
305L 1	305L 2	305L 3	305L 4	305R2	305R3	305R4
306L 1	306L 2	306L 3	306L 4	306R2	306R3	306R4
307L 1	307L 2	307L 3	307L 4	307R2	307R3	307R4
309L 1	309L 2	309L 3	309L 4	309R2	309R3	309R4
310L 1	310L 2	310L 3	310L 4	310R2	310R3	310R4
311L 1	311L 2	311L 3	311L 4	311R2	311R3	311R4
313L 1	313L 2	313L 3	313L 4	313R2	313R3	313R4
315L 1	315L 2	315L 3	315L 4		315R3	315R4
316L 1	316L 2	316L 3	316L 4		316R3	316R4
317L 1	317L 2	317L 3	317L 4		317R3	317R4
318L 1	318L 2	318L 3	318L 4			318R4
319L 1	319L 2	319L 3	319L 4			319R4
321L 1	321L 2	321L 3	321L 4			321R4
