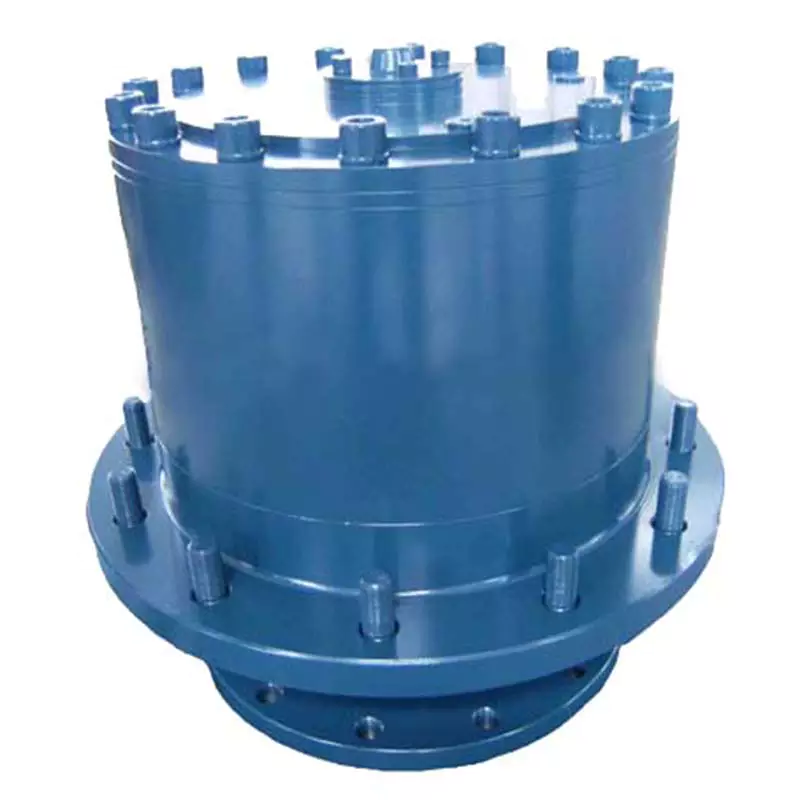

Replacement of Bonfiglioli 701C1 Series Track Drive Planetary Gearbox Reducer Replacement

701C1 Series Track Drive

Track Drive is a system that drives rail vehicles, typically used for vehicles that need to travel on uneven or complex terrain, such as tracked excavators, loaders, and military tanks. The Track Drive system typically consists of drive wheels, tracks, transmission shafts, and electric motors. The driving wheel is connected to an electric motor through a transmission shaft, which provides power. The driving wheel transmits power to the track through friction, thereby driving the vehicle to move. Due to the ability of the track to adapt to uneven terrain, the Track Drive system can provide better traction and stability, allowing the vehicle to travel in harsh terrain conditions.The Track Drive system has a wide range of applications, including the following aspects:Construction machinery: The Track Drive system is usually applied to construction machinery that needs to work on uneven terrain, such as crawler excavators, loaders, bulldozers, etc. These machines usually need to work on complex terrains such as soil, stones, and mud. The Track Drive system can provide better traction and stability, enabling the machines to complete work tasks more effectively.Military equipment: The Track Drive system is also one of the common power systems in military equipment. For example, tanks typically use the Track Drive system as the driving system to adapt to the complex terrain and environment on the battlefield.Special vehicles: Some special vehicles that require driving on uneven terrain, such as fire trucks, rescue vehicles, exploration vehicles, etc., often use the Track Drive system.In summary, the Track Drive system has a wide range of applications, especially suitable for vehicles that need to drive on complex terrains, providing better traction, stability, and adaptability, enabling vehicles to complete tasks more effectively.Key Features

1. Output torque range: 1000-60000 N.m
2. Gear ratios: i=5.3-142
3. Applicable motors: axial piston hydraulic motors, hydraulic orbit motors or others
4. Hydraulic motor options: pressure relief valve, overcenter valve
5.  Bearing: robust bearing system absorbing the forces exerted by the ring gear
6. Brake: hydraulically released parking brake
7. Large radial and axial load capacity due to the use of strong tapered roller bearings.
8. Reliable oil seal protection, designed according to our field experience.
9.  Universal and SAE input direct mounting flanges
10. The units are designed for their direct mounting into the wheel rims.

Raleted Planetary Gearboxes

You can click on the image to learn about the corresponding related products

Replaceable Planetary Gearbox Models

Trasmital bonfiglioli Models	700C1H	701C1	703C2H	705C2H	706C3H	707C3B	709C3B
Our Models	EP700C1H	EP701C1	EP703C2H	EP705C2H	EP706C3H	EP707C3B	EP709C3B
Trasmital bonfiglioli Models	710C3B	711C3B	715C3B	716C3B	717C3H	718C3H	720C3H
Our Models	EP710C3B	EP711C3B	EP715C3B	EP716C3B	EP717C3H	EP718C3H	EP720C3H
