In the demanding environment of modern mining, the reliability of your crawler chain is non-negotiable. A single point of failure can lead to catastrophic downtime and lost productivity. While the Cincinnati Mine Machinery Co. CC-720 crawler chain is a well-known industry name, we offer a superior, high-performance alternative designed to not only meet but exceed the demands of modern mining applications. Our products guarantee an extended service life, reduced maintenance, and enhanced operational efficiency. We are a global leader in the manufacturing of heavy-duty mining chains, specializing in providing robust crawler chain solutions for both surface and underground operations. With decades of industry experience and an unwavering commitment to excellence, we offer a product that isn't just a simple replacement for the Cincinnati CC-720—it's a significant upgrade.

Direct Replacement for the Cincinnati CC-720: A Technical Comparison

The Cincinnati CC-720 crawler chain features standard and carbide chevron and straight grousers with a width of 20 inches, a length of 9-7/8 inches, and a connecting pin diameter of 7/8 inches. It is designed for various continuous miner models, including the 14CM15 and 14CM10 series. While it is a durable product, our TC series offers an advanced alternative that is fully compatible and provides superior longevity. The Cincinnati CC-720's dimensions and component design are directly comparable to our TC series models. Our TC series is designed for excavator-anchor integrated machine crawler chains and has a width of $22?1/4$ inches and a unit length of $12?3/5$ inches, and models like the TC301A and TC302A have widths of 15 inches. This provides options for different machine specifications, ensuring a perfect fit for a variety of continuous miners. Our products are built to withstand the high impact and abrasion of underground mining, just like the CC-720. Our TC series provides a range of products that are perfectly aligned to replace the Cincinnati CC-720. We have specific models that match the crawler pad dimensions and are optimized for the same rigorous mining applications.

TC201A CRAWLER CHAIN SELECTION CHART
Pitch=7 1/4 INCH （184mm）	Chain Unit Length is 14 1/2 INCH （368mm） (one Standard Chevron Grouser,one Standard Straight Grouser, four Connecting Pins and four Retaining Pins)		WIDTH: 22 INCH （560mm）
Secondary component
TC201A001 Standard Chevron Grouser	TC201A002 Standard Straight Grouser	TC201A003 Connecting Pin	TC201A004 Retaining Pin
TC202A CRAWLER CHAIN SELECTION CHART
Pitch=7 INCH 178mm	Chain Unit Length is 14 INCH （356mm） (one Standard Chevron Grouser,one Standard Straight Grouser, four Connecting Pins and four Retaining Pins)		WIDTH: 22 INCH （560mm）
Secondary component
TC202A001 Standard Chevron Grouser	TC202A002 Standard Straight Grouser	TC201A003 Connecting Pin	TC201A004 Retaining Pin
Note: Product data sheets are available on request.

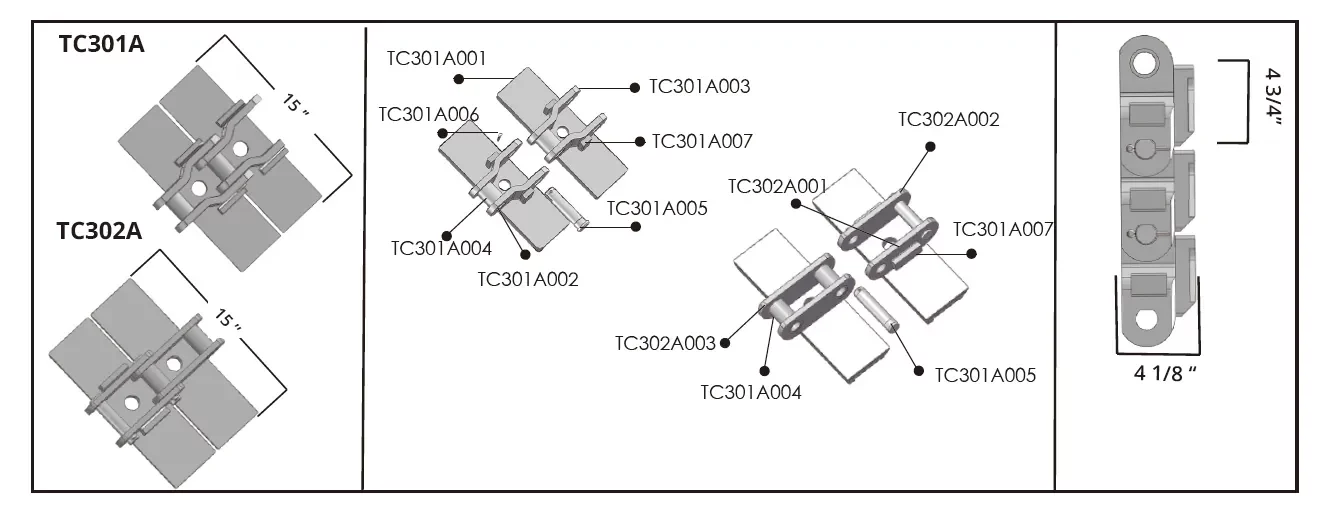

TC301A CRAWLER CHAIN SELECTION CHART
Pitch=4 3/4 INCH （120.9mm）		Chain Unit Length is 9 1/2 INCH （241.8mm） (two Standard Links—TC301A01)						WIDTH: 15 INCH （381mm）
Secondary component
TC301A001 Crawler Pad	TC301A002 Bend plate A	TC301A003 Bend plate B		TC301A004 Bush		TC301A005 Pin		TC301A006 Retaining Pin		TC301A007 Wear Plate
TC302A CRAWLER CHAIN SELECTION CHART
Pitch=4 3/4 INCH （120.9mm）		Chain Unit Length is 9 1/2 INCH （241.8mm） (one Outer Link—TC302A01 + one Inner Link—TC302A02)							WIDTH: 15 INCH （381mm）
Secondary component
TC301A001 Crawler Pad	TC302A001 outer plate A	TC302A002 Outer plate B	TC302A003 inner Plate		TC301A004 Bush		TC301A005 Pin		TC301A006 Retaining Pin		TC301A007 Wear Plate
Note: Product data sheets are available on request.

Our TC series offers a comprehensive range of products that are perfectly aligned to replace the Cincinnati CC-518 chain. Our chains are designed to be mechanically interchangeable, ensuring a seamless fit and hassle-free installation. We have specific models that match the crawler pad widths and are optimized for the same rigorous mining applications. Our TC series offers a comprehensive range of products that are perfectly aligned to replace the Cincinnati CC-720 chain. Our chains are designed to be mechanically interchangeable, ensuring a seamless fit and hassle-free installation. We have specific models that match the crawler pad widths and are optimized for the same rigorous mining applications.

The Advantage of TC Series Crawler Chain:

Choosing our products is a strategic decision that benefits your entire operation. Our TC series chains are not merely imitations; they are engineered with key benefits that deliver superior performance and long-term cost savings.

1. Enhanced Durability and Service Life

• Longer Lifespan: Our crawler chains offer an exceptional service life, which translates to a longer operational period and fewer replacements.
• Special Heat-Treated Pins: We use special heat-treated pins to improve wear resistance, a common point of failure for lesser chains. This feature alone significantly extends the life of the chain, reducing overall maintenance downtime.
• Selected Premium Steels: Our chains are manufactured from a selection of premium, high-quality steels, ensuring a robust and reliable product that can withstand the harshest mining conditions.

2. Operational Efficiency and Safety

• Smooth Turning: Our TC series is designed for smooth turning, which is critical for maneuverability and performance in tight mining spaces.
• Great Compatibility: Our products offer great compatibility with a wide range of mining equipment, making them a versatile and reliable choice for your entire fleet.
• Easy Installation and Disassembly: We understand that every minute of downtime costs you money. Our chains are designed to be easy to install and disassemble, streamlining maintenance and reducing labor costs.

3. Cost-Effectiveness and Long-Term Value

While the initial focus is on a direct replacement, the long-term value of choosing our products is immense. The enhanced durability and reduced maintenance needs of our chains significantly lower your total cost of ownership. Fewer replacements, less downtime, and improved operational efficiency all contribute to a more profitable and sustainable mining operation. Our products are designed to deliver exceptional value over their entire lifespan.

Our TC Series Crawler Chain Components:

To provide you with complete confidence in our product, here is a detailed breakdown of the components that make up our TC Series chains. We believe that a superior product is the sum of its expertly crafted parts.

• Crawler Pads: The foundation of the crawler chain, our pads are designed for maximum traction and durability in various mining conditions.
• Connecting Pins : These pins are critical for holding the chain together. We use special heat-treated pins to enhance their resistance to wear and tear, a common point of failure for lesser chains.
• Retaining Pins: These pins provide added security and stability, ensuring a secure connection even in high-stress applications.

This modular design not only ensures the exceptional strength of our chains but also facilitates easy maintenance. Should a component need to be replaced, our design allows for quick and efficient work, further reducing your operational downtime.

Our Promise: Quality, Customization, and Support

At our company, customers are our top priority. We are dedicated to building long-term relationships based on trust, integrity, and mutual success.

• Customization: We understand that every mining operation has unique requirements. While we offer a wide range of standard products, our team is equipped to provide customized solutions to meet your specific needs. This includes various chain configurations, sizes, and crawler pad designs to ensure that your equipment is always operating at peak performance.
• Global Reach and Support: With a strong global clientele, we have the experience and logistical capabilities to support your operations, no matter where you are located. Our knowledgeable team offers guidance on optimizing crawler chain performance and maximizing uptime.

About Us:

1. Experience and Expertise

Our extensive experience in the mining sector is the driving force behind our product innovation. For decades, we have focused on producing top-tier mining chains and sprockets, developing a profound expertise in heavy-duty chain conveyor solutions for a wide range of applications. This experience allows us to anticipate industry needs and design products that are robust, reliable, and perfectly suited for the harsh, abrasive, and high-stress conditions of underground and surface mining. Our TC series of crawler chains, in particular, is a testament to this expertise. It is a product of meticulous design, engineered to withstand the high stresses and constant abrasion that continuous mining operations present. Each chain link and component is the product of our refined manufacturing processes, ensuring exceptional performance where it matters most. Our special heat-treated pins, for example, are a direct result of our commitment to improving product durability and wear resistance, which is crucial for maximizing service life and minimizing maintenance downtime.

2. Authority and Trustworthiness

Our authority in the industry is proven by our status as a trusted supplier to world-class original mining machinery manufacturers. This relationship is built on a foundation of trust, integrity, and consistent product quality. The durability and reliability of our TC series chains are renowned in demanding underground mining environments, and they are specifically designed as direct replacements for original equipment manufacturer (OEM) parts. Trustworthiness isn't just a claim; it's a promise we fulfill every day. We ensure that every link of our DF drop forged series chains is meticulously made using professional manufacturing techniques and is subjected to rigorous quality control measures. This same standard of excellence is applied across our entire product line, including the TC series. By choosing our products, you are partnering with a company committed to building long-term relationships based on mutual success. Our dedicated team provides comprehensive technical support and expert consultation to assist you with everything from chain selection to installation and maintenance, ensuring your operation runs smoothly and efficiently.
