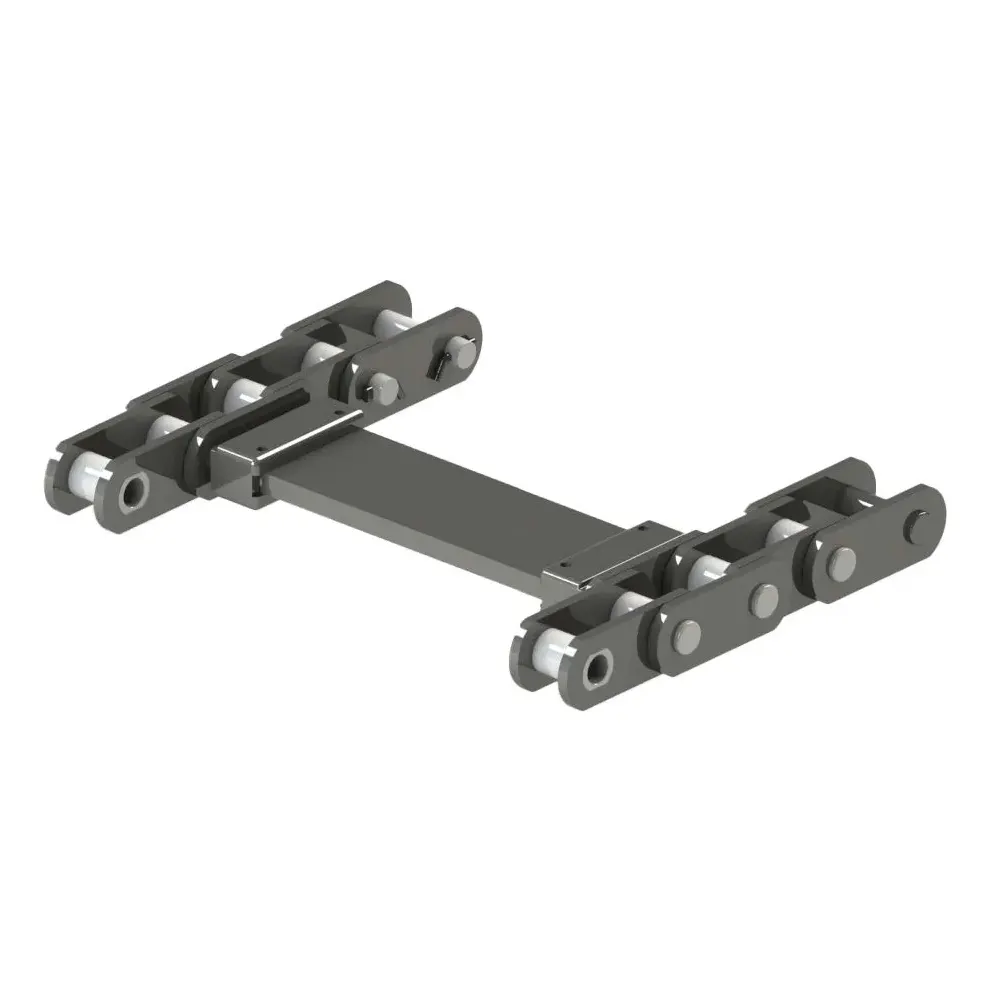

Replacement Of Thiele Double Stand Flight Bar For Mining

Replacement Of Thiele Double Stand Flight Bar For Mining

Welcome to the global home for highly specialized, precision-engineered Double-Strand Flight Bars. We are a trusted international manufacturer dedicated to providing heavy-duty chain conveyor solutions for the world’s most challenging underground applications, particularly in high-production longwall and mechanized mining systems. Our commitment is simple: to enhance your operational efficiency by providing superior component quality and reliability that consistently meets or exceeds the specifications of original equipment manufacturers (OEMs).The Double-Strand Conveyor System is the critical artery of material haulage, relying on rugged flight bars to transport massive volumes of coal and rock. Our replacement bars are engineered to function as the direct Flight Section/Scraper component within these systems, drawing on the same manufacturing expertise used to produce our renowned K Series Ladder Conveyor Chains. This ensures seamless integration, optimal durability, and reduced maintenance complexity.By partnering with us, you gain access to decades of specialized manufacturing experience, delivering components proven to provide:

• Maximum Productivity: Achieved through robust, reliable component performance.
• Consistent Component Lifespan: Ensuring predictable performance in tough operating environments.
• Reduced Time and Cost: Through durable construction and minimized replacement frequency.

Double-Strand Flight Bar Features & Benefits:

Our replacement Double-Strand Flight Bars are forged to deliver maximum durability and operational stability, applying the expertise from our highly efficient K Series conveyor systems, which are explicitly suited for underground feeder breakers and shuttle cars.

Core Engineering & Design

1. Double-Strand Symmetrical Design:?The bar is designed as a direct, symmetrical replacement component that mounts securely over the pair of chain strands. This design is paramount for stability and high-tonnage conveyance in armored face conveyors (AFCs) and other high-capacity systems.2. Drop Forged Construction for Strength: All of our heavy-duty scraper components are produced using a specialized drop forging process. This manufacturing method is proven to produce metal components with superior strength and durability compared to chains made using other techniques. In mining, where components are subjected to high loads and harsh conditions, drop forged components offer excellent resistance to wear and damage.3. Calibrated Chain Seats: Precision machining is applied to the interior chain seats. This calibration is vital for achieving seamless chain operation and ensuring the bar does not induce excessive friction or uneven load distribution across the two chain strands.

Key Performance Advantages

Technical Specifications & Metallurgical Expertise

Uncompromising Quality: Material and Performance Specifications

Our authority is built on specialized manufacturing, utilizing the latest techniques in material science, welding, and thermal treatment to ensure our products perform reliably in the world's harshest operating environments.

Advanced Material Science & Forging

We utilize only selected premium, qualified steels in our forging process, applying decades of metallurgical knowledge (as defined in our product lines, including our DF Series Drop Forged Chain) to maximize component properties.

• Forging Advantage: The drop forging process guarantees an optimized grain structure, leading to components with greater resistance to wear and tear.
• Heat Treatment Focus: Our rigorous process includes special heat-treated pins and controlled quenching to achieve the necessary balance of hardness and toughness. Components are often heat-treated to achieve a high Brinell hardness while retaining the core's impact-absorbing resilience.
• Optional Forged Scraper Heads: For the most abrasive conditions, we offer the option of forged scraper bar heads to further enhance durability.

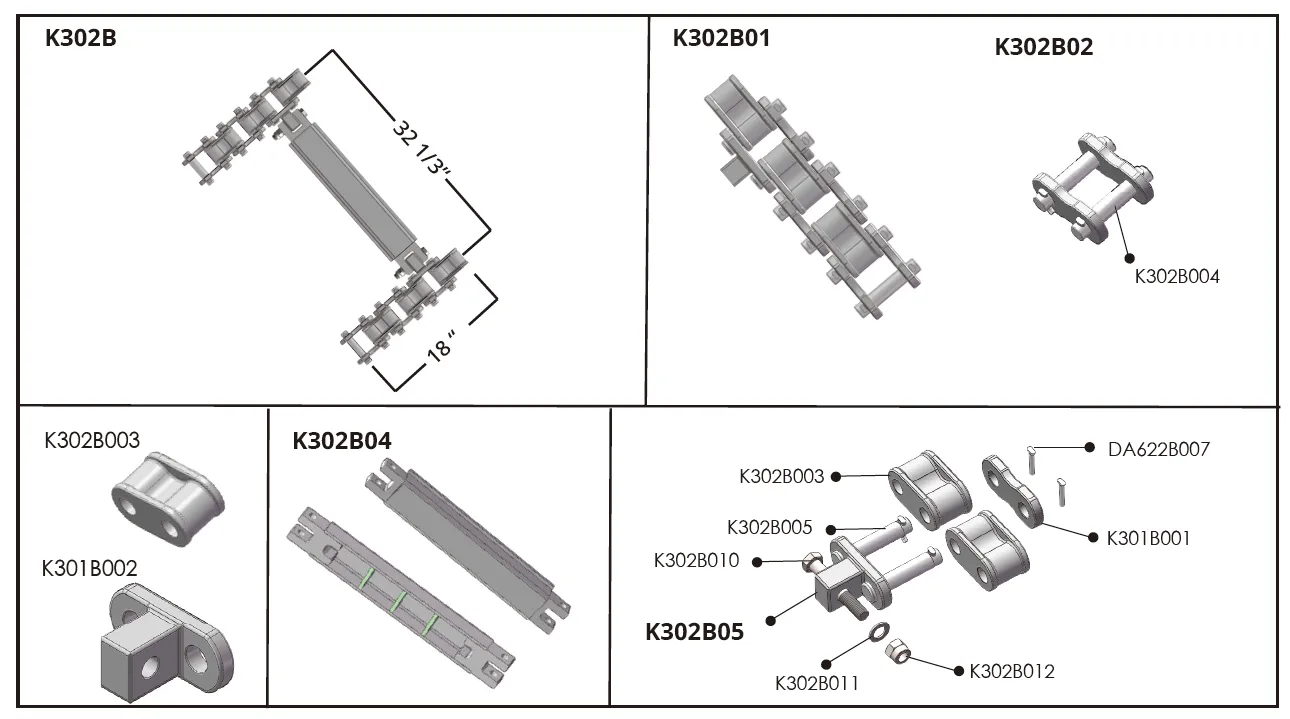

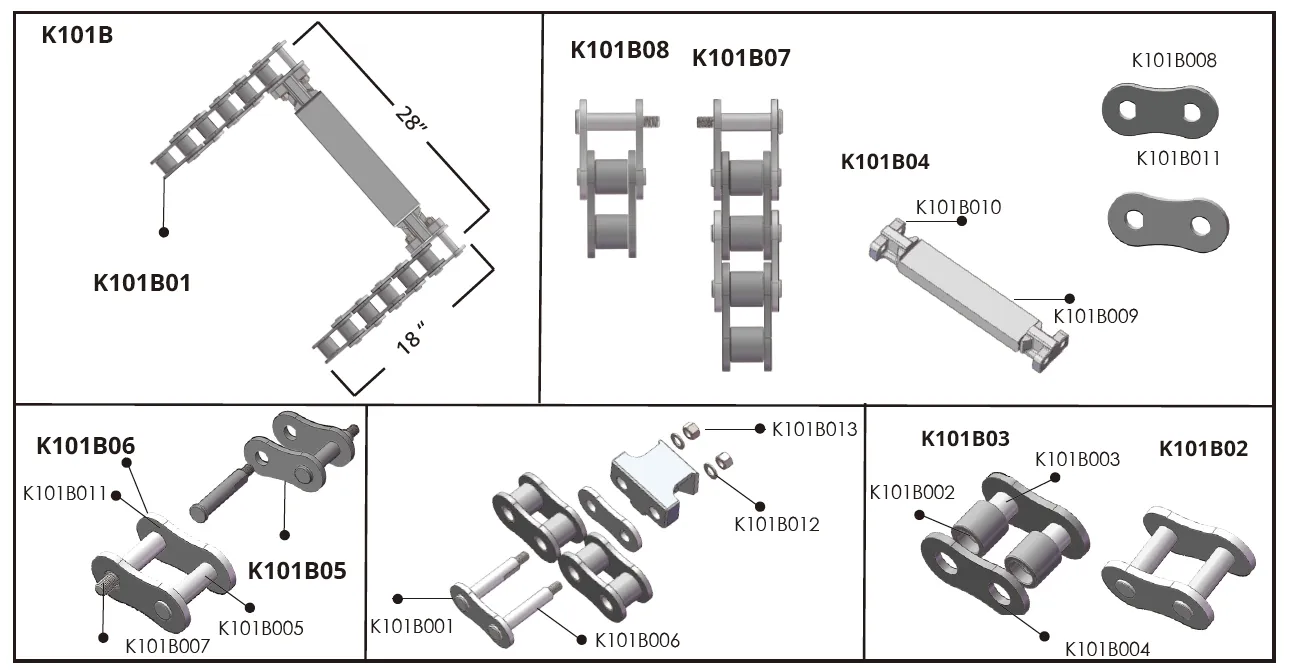

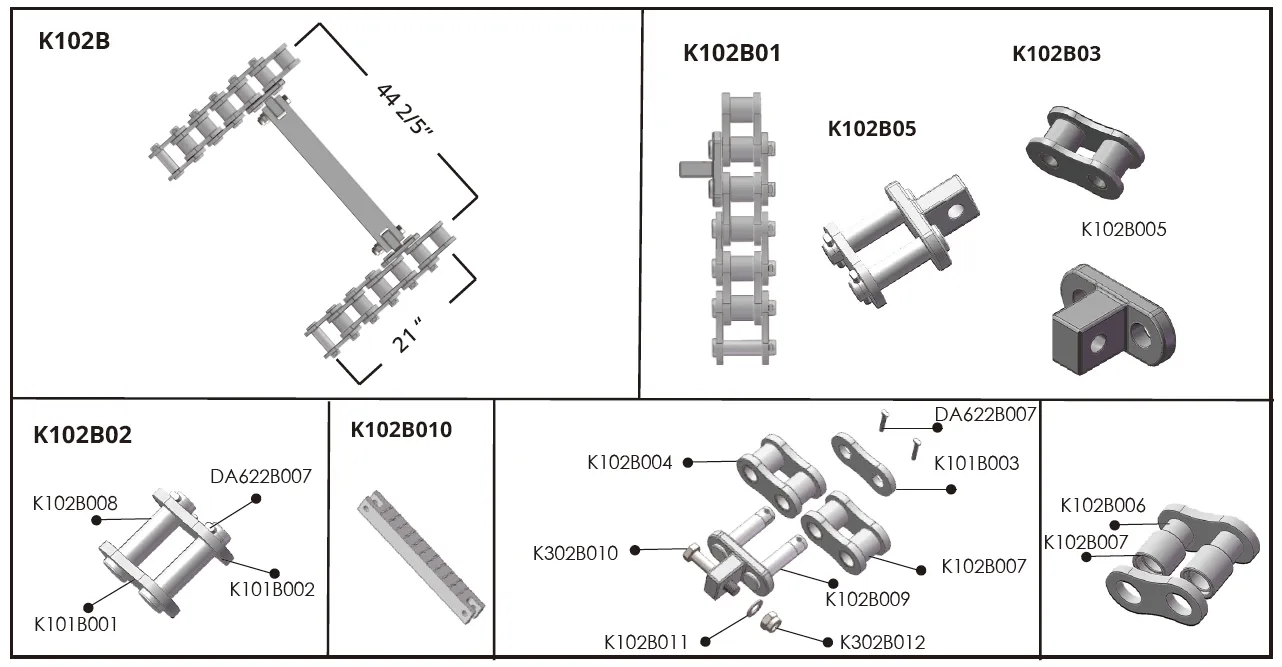

Double-Strand Flight Bar Technical Compatibility

Our replacement flight bars are manufactured to match the dimensional specifications of the most common Double-Strand Scraper Conveyor systems:
