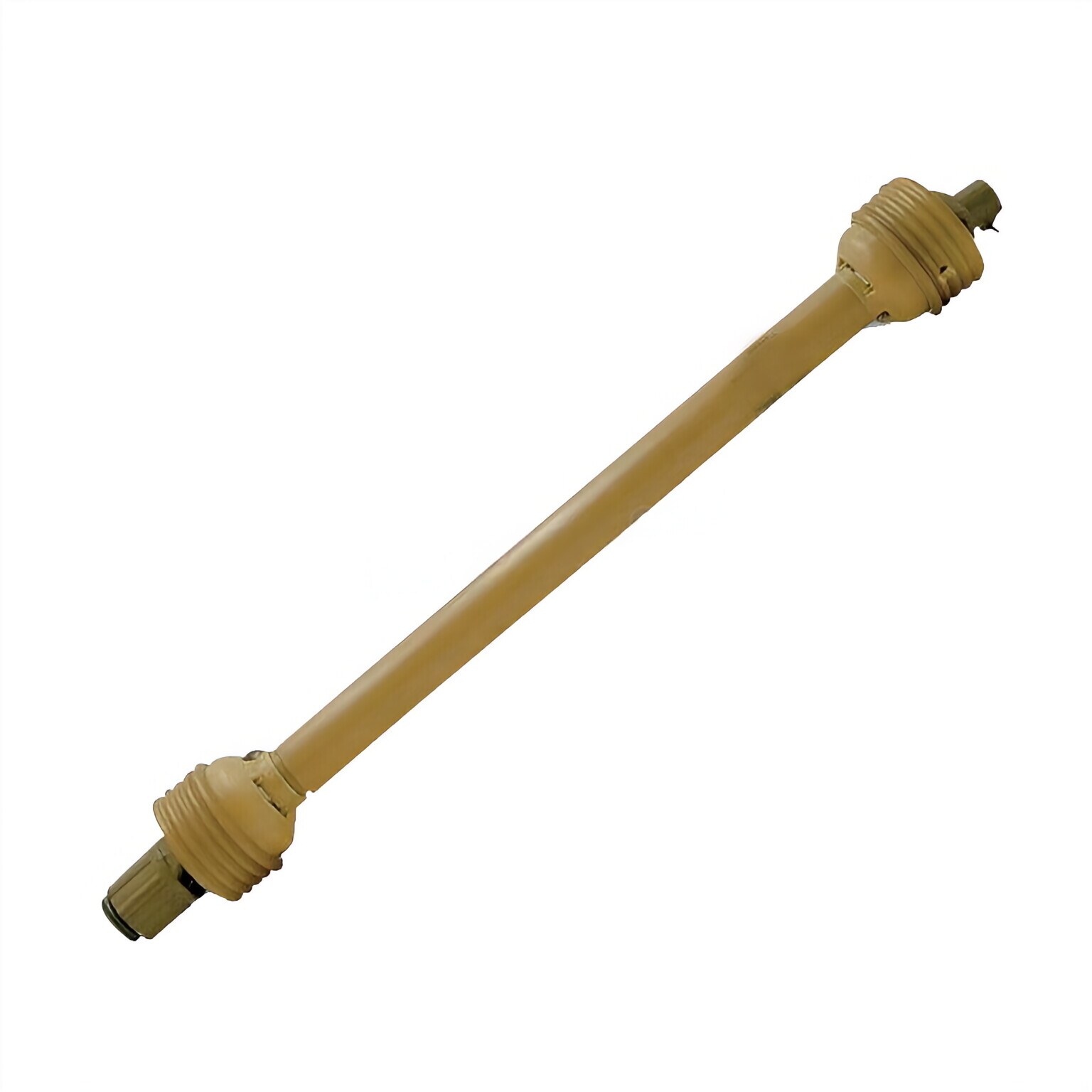

Replacement of Walterscheid pto shaft Replacement W2500 860mm Profile pair S4/S5

Replacement of Walterscheid Standard Cardan shaft

Further information

Universal joint A profile (mm):

36 x 89

Universal joint B profile (mm):

36 x 89

Size:

2500

Tractor version:

1 3/46 teeth

Implement version:

1 3/46 teeth

(mm):

860

Profile:

with star profile

Locking system:

Automatic pull closure / pull closure

Profile pair:

S4/S5

Guard version:

SD 25

Max. speed (1/min.):

540

Lock:

QS/QS

Type:

W

A (profile):

1 3/46 teeth

B (profile):

1 3/46 teeth

Additional information:

Bedienungsanleitung ist im Lieferumfang enthalten

PS/kW(1000 / 540 U/min.):

102 / 66

Weight:

21.70?kg

Service-Center form:

Click here

To be found in category:

Standard PTO shafts & drive technologySearch filters: Standard PTO shaftsStandard Standard PTO shafts

Part no.: 395607354

Understanding PTO Shafts

A Power Take-Off (PTO) shaft is a critical component for transmitting power from a tractor to the implements it drives. Here are five key features of PTO shafts:

• They can transmit high power at high speeds.
• They are designed to be flexible to accommodate the movements of the machines they are connected to.
• They are built with universal joints to alloWfor angular misalignment.
• They are equipped with safety devices to protect operators from rotating parts.
• They are available in a wide range of sizes and configurations to suit different applications.

Our PTO Shafts

At Raydafon Group we produce PTO shafts that are fully compatible with Replacement of Walterscheid's dimensions providing a perfect replacement option. Our shafts are designed with the same meticulous attention to detail and commitment to quality that Replacement of Walterscheid is known for.

Choosing the Right PTO Shaft

To choose the right PTO shaft you need to consider the following parameters:

Length

The distance between your power source and the receiving device is critical. The PTO shaft needs to be long enough to reach but not so long that it could cause operational problems.

Rated Power

The PTO shaft should be capable of handling the power output of your tractor. The power rating is usually expressed in horsepower or kilowatts.

and Connection Method

PTO shafts come in various types and connection methods including splined keyed and flanged. The right for you depends on your specific application and equipment.

Torque Transmission Capability

The PTO shaft should be capable of transmitting the torque generated by your tractor. This is a critical parameter as it directly influences the performance of your implements.

Environmental Requirements

Depending on the conditions in which the PTO shaft will be used you might need one with specific features such as a protective cover sealing performance and durability.

Safety Features

PTO shafts should come with safety features like reliable anti-entanglement devices and safety yokes to protect the operator.

Compatibility

The PTO shaft should be compatible with the power source (typically a tractor) and the implement it is driving.

Certification

PTO shafts should have certifications such as CE to demonstrate their safety and quality.

Importance of CE Certification

CE certification is crucial for PTO shafts for the following reasons:

• It shows that the PTO shaft complies with relevant EU regulations and standards ensuring the design manufacture and use of PTO shafts meet European market requirements.
• It's a requisite for selling PTO shafts in the EU market.
• It provides a reliable guarantee of the safety performance of the PTO shaft.
• It conveys confidence in product quality and safety.

Our Certifications

Our PTO shafts at Raydafon Group hold CE TS/16949 and ISO 9001 certificates. We're proud to adhere to these international standards ensuring our products' safety and quality.

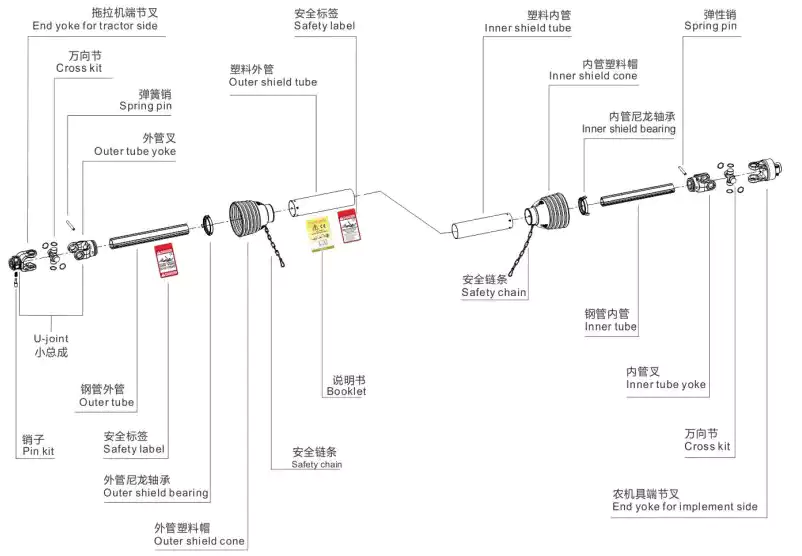

PTO Shaft Structure

A PTO shaft typically consists of the following components:

• • Housing
  • Drive Shaft

• Universal Joint
• Protective Cover
• Connectors

We also sell individual parts for users who may need to replace a specific component.

PTO Shaft Applications

PTO shafts have a broad range of applications:

• Agricultural machinery: They are commonly used to connect tractors to agricultural equipment like mowers harvesters straWcrushers sprayers mixers etc.
• Industrial equipment: PTO shafts are used to drive various rotating equipment such as pumps generators centrifuges mixers etc.
• Transport equipment: PTO shafts are also used to drive certain transportation equipment like trailers semi-trailers and toWtrucks.
• Solar systems: PTO shafts are frequently used to enable the rotation and adjustment of tracker photovoltaic panels.

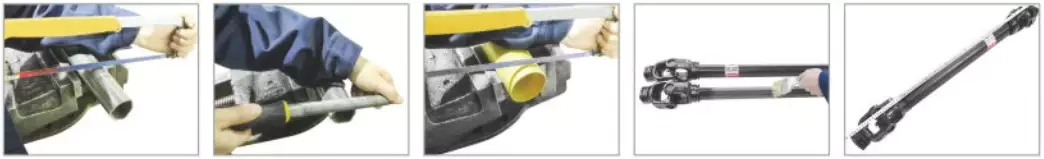

HoWto Adjust PTO Shaft Length

Adjusting the length of a PTO shaft involves the following steps:

• Remove the plastic protective cover.
• Shorten the inner and outer tubes as needed making sure to shorten them the same length.
• Remove burrs with a file.
• Shorten the inner and outer plastic tubes as needed making sure to shorten them the same length.
• Oil the inner steel tube then reinstall the PTO shaft plastic protective cover.

About Raydafon Group

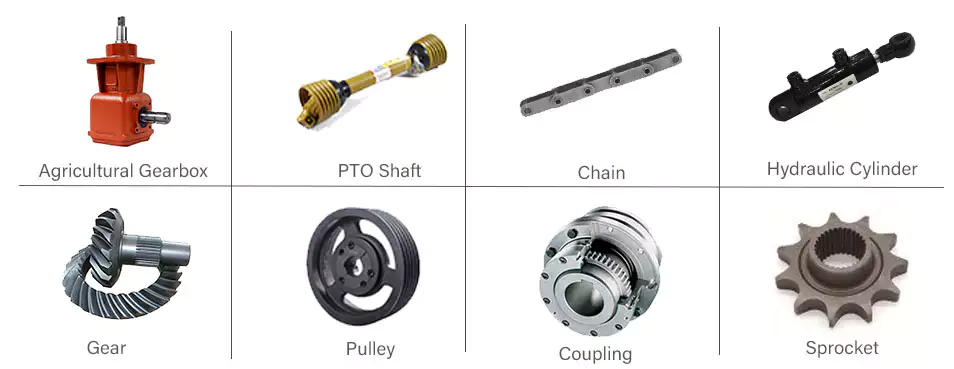

In the PTO Shaft market Raydafon Group is a leader specializing in the development manufacturing and marketing of power output shafts industrial universal joints and automotive transmission shafts. Our products have earned a reputation in Europe America Asia Australia and North America. We offer custom and OEM services and can laser print logos. We are among the top three professional OEM suppliers to numerous agricultural machinery factories and have earned the CE TS/16949 and ISO 9001 certificates. With a comprehensive production system and team we guarantee our quality and delivery. In addition to PTO shafts we also supply the following related products: agricultural gearboxes chains sprockets pulleys couplings and agricultural machinery accessories.We welcome custom orders based on drawings or samples. Let Raydafon Group be your trusted partner for all your PTO shaft needs.Author: Miya
