Replacement of Walterscheid Standard PTO shaft W2400 1010mm 1b/2a



Further information

universal joint A profile (mm):

32 x 76

Universal joint B profile (mm):

32 x 76

Size:

2400

Tractor version:

1 3/86 splines

Implement version:

1 3/86 splines

(mm):

1010

Profile:

With lemon profile

Locking system:

Automatic push-pull lock/automatic push-pull lock

Profile pair:

1b/2a

Guard version:

SD 25

Max. speed (1/min.):

1000

Lock:

QS/QS

Type:

W

A (profile):

1 3/86 splines

B (profile):

1 3/86 splines

Additional information:

Operating instructions included

PS/kW(1000 / 540 U/min.):

61 / 39

Weight:

17.19?kg

Service-Center form:

Click here

To be found in category:

Standard PTO shafts & drive technologySearch filters: Standard PTO shaftsStandard Standard PTO shafts

Part no.: 395800060

Introducing the PTO Shaft

The Power Take-Off (PTO) shaft a crucial component in many agricultural and industrial machinery is known for its versatility power and adaptability. Here are five key features that you need to know:

• Universal joint A profile (mm): 32 x 76
• Universal joint B profile (mm): 32 x 76
• Size: 2400
• Tractor version: 1 3/86 splines
• (mm): 1010

Our PTO shaft bears the same measurements and installation methods as those of the Replacement of Walterscheid making it a perfect replacement.

Selecting the Right PTO Shaft

Understanding the right parameters is key to choosing the perfect PTO shaft. Here's what you need to consider:

• Length: The distance between the transmission and receiving devices.
• Rated Power.
• of shaft and connection.
• Torque transmission capacity.
• Environmental requirements: Protective cover sealing performance and durability.
• Safety features: Reliable anti-jamming devices anti-jamming pins etc.
• Compatibility.
• Certification: CE certification.

The Importance of CE Certification

CE certification plays a vital role in the PTO shaft market. Here are the reasons:

• It ensures that the PTO shaft conforms to the regulations and standards of the European Union providing basic safety guarantees.
• CE certification is a necessary condition for entering the European market.
• It provides a reliable guarantee for the safety performance of the PTO shaft.
• A PTO shaft with CE certification instills confidence in product quality and safety.

Our Certifications

We are proud to announce that our PTO shafts have CE TS/16949 ISO 9001 certificates. Additionally our company has always put quality first ensuring our products meet and exceed industry standards.

PTO Shaft Structure

The PTO shaft consists of several components each made from quality materials. We also sell individual parts should you need replacements. The parts include:

• • Housing
  • Drive Shaft

  • universal joint
  • protective cover
  • connectors


  applications of pto shaft

  pto shafts are versatile and can be used in various scenarios. they include:
  • agricultural machinery: typically used to connect tractors and agricultural equipment such as mowers harvesters strawcrushers sprayers mixers etc.
  • industrial equipment: pto shafts are used to drive various rotating equipment such as pumps generators centrifuges mixers etc.
  • transportation equipment: pto shafts are also used to drive certain transportation equipment such as trailers semi-trailers and trolleys.
  • solar system: pto shafts are commonly used to achieve the rotation and adjustment of tracker photovoltaic panels.

  adjusting the length of the pto shaft

  adjusting the length of the pto shaft is a straightforward process. here's how:
  • remove the plastic protective cover.
  • shorten the inner and outer tubes according to the required length. both tubes should be shortened the same length at once.
  • use a file to remove burrs.
  • shorten the inner and outer plastic tubes according to the required length. both tubes should be shortened the same length at once.
  • oil the inner steel tube then reinstall the drive shaft plastic protective cover.


  about hzpt group

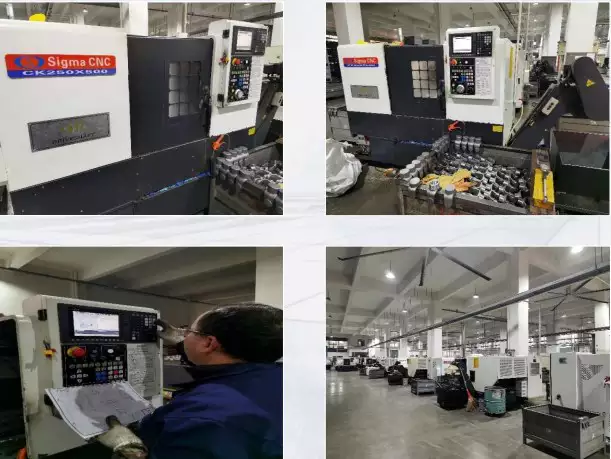

  hzpt group is a leading force in the pto shaft market in china engaging in the development manufacturing and marketing of power take-off shafts industrial universal joints and automotive transmission shafts. our products enjoy a stellar reputation among clients in europe the us asia australia and north america. we offer custom and oem services with laser printing for logos. we are amongst the top three professional oem suppliers for many agricultural tool factories and have obtained ce ts/16949 iso 9001 certifications. our systematic production equipment and team ensure our quality and timely delivery. in addition we supply related products such as agricultural gearboxes chains sprockets pulleys couplings and agricultural machinery parts. we welcome custom orders based on drawings or samples.author: miya   src="https://hzpt.com/wp-content/uploads/2023/12/0_pto-shaft-factory-3.webp" />
  • Universal Joint
  • Protective Cover
  • Connectors


  Applications of PTO Shaft

  PTO shafts are versatile and can be used in various scenarios. They include:
  • Agricultural machinery: Typically used to connect tractors and agricultural equipment such as mowers harvesters straWcrushers sprayers mixers etc.
  • Industrial equipment: PTO shafts are used to drive various rotating equipment such as pumps generators centrifuges mixers etc.
  • Transportation equipment: PTO shafts are also used to drive certain transportation equipment such as trailers semi-trailers and trolleys.
  • Solar system: PTO shafts are commonly used to achieve the rotation and adjustment of tracker photovoltaic panels.

  Adjusting the Length of the PTO Shaft

  Adjusting the length of the PTO shaft is a straightforward process. Here's how:
  • Remove the plastic protective cover.
  • Shorten the inner and outer tubes according to the required length. Both tubes should be shortened the same length at once.
  • Use a file to remove burrs.
  • Shorten the inner and outer plastic tubes according to the required length. Both tubes should be shortened the same length at once.
  • Oil the inner steel tube then reinstall the drive shaft plastic protective cover.


  About Raydafon Group

  Raydafon Group is a leading force in the pto shaft market in China engaging in the development manufacturing and marketing of power take-off shafts industrial universal joints and automotive transmission shafts. Our products enjoy a stellar reputation among clients in Europe the US Asia Australia and North America. We offer custom and OEM services with laser printing for logos. We are amongst the top three professional OEM suppliers for many agricultural tool factories and have obtained CE TS/16949 ISO 9001 certifications. Our systematic production equipment and team ensure our quality and timely delivery. In addition we supply related products such as agricultural gearboxes chains sprockets pulleys couplings and agricultural machinery parts. We welcome custom orders based on drawings or samples.
  • universal joint
  • protective cover
  • connectors


  applications of pto shaft

  pto shafts are versatile and can be used in various scenarios. they include:
  • agricultural machinery: typically used to connect tractors and agricultural equipment such as mowers harvesters strawcrushers sprayers mixers etc.
  • industrial equipment: pto shafts are used to drive various rotating equipment such as pumps generators centrifuges mixers etc.
  • transportation equipment: pto shafts are also used to drive certain transportation equipment such as trailers semi-trailers and trolleys.
  • solar system: pto shafts are commonly used to achieve the rotation and adjustment of tracker photovoltaic panels.

  adjusting the length of the pto shaft

  adjusting the length of the pto shaft is a straightforward process. here's how:
  • remove the plastic protective cover.
  • shorten the inner and outer tubes according to the required length. both tubes should be shortened the same length at once.
  • use a file to remove burrs.
  • shorten the inner and outer plastic tubes according to the required length. both tubes should be shortened the same length at once.
  • oil the inner steel tube then reinstall the drive shaft plastic protective cover.


  about hzpt group

  hzpt group is a leading force in the pto shaft market in china engaging in the development manufacturing and marketing of power take-off shafts industrial universal joints and automotive transmission shafts. our products enjoy a stellar reputation among clients in europe the us asia australia and north america. we offer custom and oem services with laser printing for logos. we are amongst the top three professional oem suppliers for many agricultural tool factories and have obtained ce ts/16949 iso 9001 certifications. our systematic production equipment and team ensure our quality and timely delivery. in addition we supply related products such as agricultural gearboxes chains sprockets pulleys couplings and agricultural machinery parts. we welcome custom orders based on drawings or samples.author: miya  >
