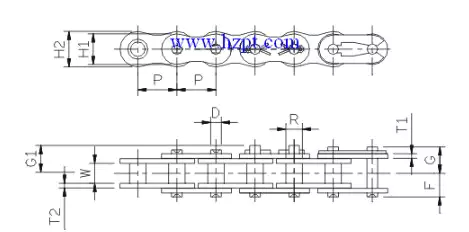

CHAIN NO.(ANSI) | Pitch | Width | Bush | Plate | Pin | Average ?Ultimate Strength kgf | Approx Weightkg/m | |||||||
P | W | Dia | Height | Thickness | Dia | Lengths | ||||||||
inch | mm | mm | R | H1 | H2 | T1 | T2 | D | F | G | G1 | |||
| 45-1 | 1/2" | 12.70 | 7.94 | 5.60 | 10.20 | 11.80 | 1.50 | 1.50 | 3.96 | 8.20 | 9.35 | 10.10 | 1850 | 0.53 |
| 55-1 | 5/8" | 15.875 | 9.53 | 7.00 | 13.00 | 14.80 | 2.00 | 2.00 | 5.06 | 10.10 | 11.65 | 12.60 | 3100 | 0.83 |
| 65-1 | 3/4" | 19.05 | 12.70 | 8.10 | 15.50 | 17.50 | 2.40 | 2.40 | 5.95 | 12.50 | 14.15 | 15.40 | 4400 | 1.20 |
| 85-1 | 1" | 25.40 | 15.88 | 11.30 | 20.40 | 24.00 | 3.10 | 3.10 | 7.94 | 16.10 | --- | 18.80 | 7800 | 2.20 |
| 105-1 | 1-1/4" | 31.75 | 19.05 | 13.45 | 24.80 | 30.10 | 3.90 | 3.90 | 9.52 | 20.10 | --- | 23.10 | 11800 | 3.30 |
| 125-1 | 1-1/2" | 38.10 | 25.40 | 15.85 | 30.00 | 35.00 | 4.70 | 4.70 | 11.10 | 25.20 | --- | 28.60 | 15500 | 4.82 |
| 145-1 | 1-3/4" | 44.45 | 25.40 | 18.00 | 36.20 | 42.00 | 5.60 | 5.60 | 12.70 | 27.30 | --- | 31.50 | 21500 | 7.35 |
| 165-1 | 2" | 50.80 | 31.75 | 20.15 | 41.40 | 48.00 | 6.40 | 6.40 | 14.28 | 32.55 | --- | 37.25 | 27500 | 9.42 |
