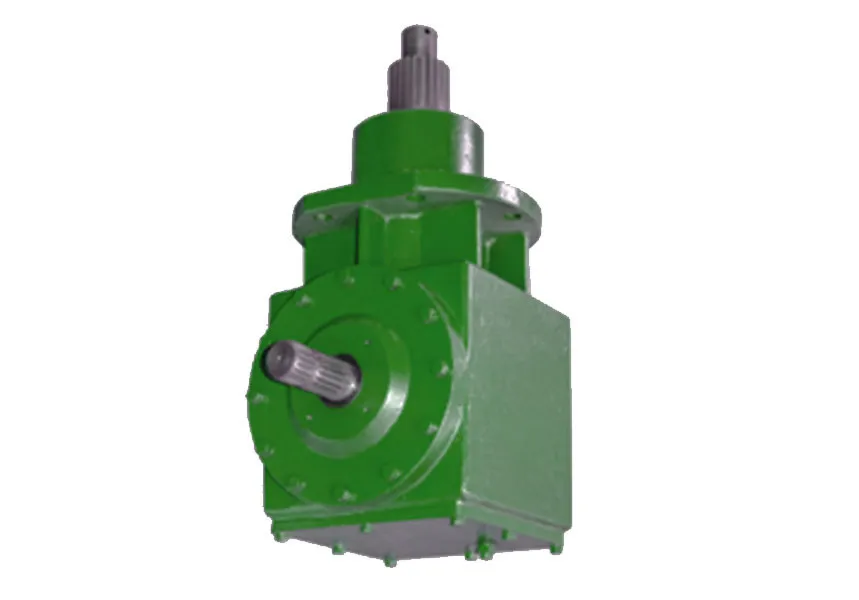

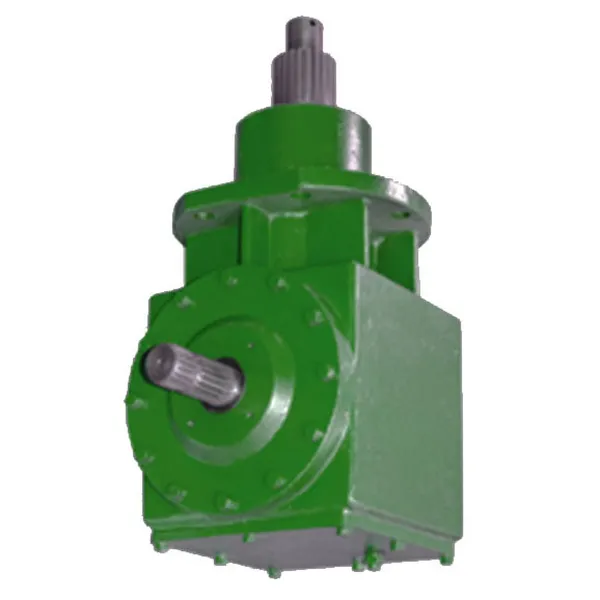

Rotary Cutter Gearboxes - Replacement of Omni Code RC-200 Gearbox

Rotary Cutter Gearboxes - Replacement of Omni Code RC-200 Gearbox

The RC200 rotary cutter gearbox is a type of gearbox designed for use with rotary cutters, also known as brush cutters or bush hogs. Rotary cutters are agricultural tools used for cutting grass, weeds, and other vegetation in fields, pastures, and along roadsides. The RC200 rotary cutter gearbox is a high-quality gearbox that is designed to withstand heavy use and provide reliable performance. It is typically used with rotary cutters that are designed for tractors with a power output of up to 60 horsepower. The rotary cutter gearbox is designed to transfer power from the tractor to the rotary cutter, allowing it to spin the cutting blades.The RC200 rotary cutter gearbox is designed to be durable and long-lasting, with heavy-duty cast iron housing and hardened gears that can withstand the stresses of heavy use. It is also designed to be easy to maintain, with easily accessible oil fill and drain plugs and a replaceable input seal. Overall, the RC200 rotary cutter gearbox is an important component of many rotary cutters and helps to ensure that they operate reliably and effectively in the field.

▍RC200 Rotary Cutter Gearbox Parts

The RC200 rotary cutter gearbox is made up of several parts that work together to transfer power from the tractor to the rotary cutter and spin the cutting blades. Here are some of the key parts that make up the RC200 rotary cutter gearbox:1. Input shaft: The input shaft is the part of the gearbox that connects to the PTO (power take-off) shaft on the tractor and transfers power to the rotary cutter gearbox.2. Gear set: The gear set is made up of several gears that work together to transfer power from the input shaft to the output shaft.3. Output shaft: The output shaft is the part of the rotary cutter gearbox that connects to the rotary cutter and transfers power to spin the cutting blades.4. Housing: The housing is the outer shell of the rotary cutter gearbox that encloses and protects the internal parts.5. Bearings: The rotary cutter gearbox bearings support the rotating shafts and help to reduce friction and wear.6. Seals: The rotary cutter gearbox seals help to keep oil inside the gearbox and prevent dirt and debris from entering.7. Oil fill and drain plugs: These allow for easy maintenance by allowing the operator to fill and drain the rotary cutter gearbox oil.8. Mounting flange: The mounting flange is the part of the rotary cutter gearbox that attaches to the rotary cutter.These are some of the key parts that make up the RC200 rotary cutter gearbox. Each part plays an important role in ensuring that the gearbox operates smoothly and reliably.

▍RC200 Rotary Cutter Gearbox Specifications

Model:	EPT-RC200 Rotary Cutter Gearbox
Torque	21,000 - 28,350 lb.-in.(2,371 - 3,201 Nm.)
Ratios	1.21:1, 1:1, 1:1.21, 1:1.46
Gear Type	Bevel
Seal Type	Triple Lip Spring Loaded
Bearing Type	Tapered Roller
Oil Capacity	174 oz.(5.2 L)
Weight	220 lbs.(99.8 kg.)
Applications:	Finishing MowersRotary CuttersRotary Slashers

▍RC200 Rotary Cutter Gearbox Features

The RC200 rotary cutter gearbox is a high-quality gearbox that is designed to be durable, reliable, and easy to maintain. Here are some of the key features of the RC200 rotary cutter gearbox:Heavy-duty cast iron housing: The RC200 rotary cutter gearbox housing is made from high-quality cast iron, which provides excellent durability and protection for the internal components.Hardened gears: The gears within the RC200 rotary cutter gearbox are hardened to withstand the stresses of heavy use and to provide long-lasting performance.Easily accessible oil fill and drain plugs: The RC200 rotary cutter gearbox is designed with easy-to-access oil fill and drain plugs, making it easy to maintain and service.Replaceable input seal: The input seal can be easily replaced if it becomes worn or damaged, helping to ensure the longevity and reliability of the RC200 rotary cutter gearbox.Designed for tractors up to 60 horsepower: The RC200 rotary cutter gearbox is designed to work with tractors with a power output of up to 60 horsepower, making it a versatile option for a wide range of applications.Compatible with a variety of rotary cutters: The RC200 rotary cutter gearbox is compatible with a variety of rotary cutters, making it a popular choice for many different types of agricultural and landscaping applications.Easy to install: The RC200 rotary cutter gearbox is designed to be easy to install and can be quickly and easily mounted onto the rotary cutter.High-quality construction: The RC200 rotary cutter gearbox is constructed using high-quality materials and is built to withstand the demands of heavy use in tough working conditions.Overall, the RC200 rotary cutter gearbox is a reliable and durable gearbox that is designed to provide excellent performance and longevity. Its combination of durable construction, hardened gears, and easy maintenance features make it a popular choice for many different types of rotary cutter applications.

▍Where Is the RC200 Rotary Cutter Gearbox Commonly Used?

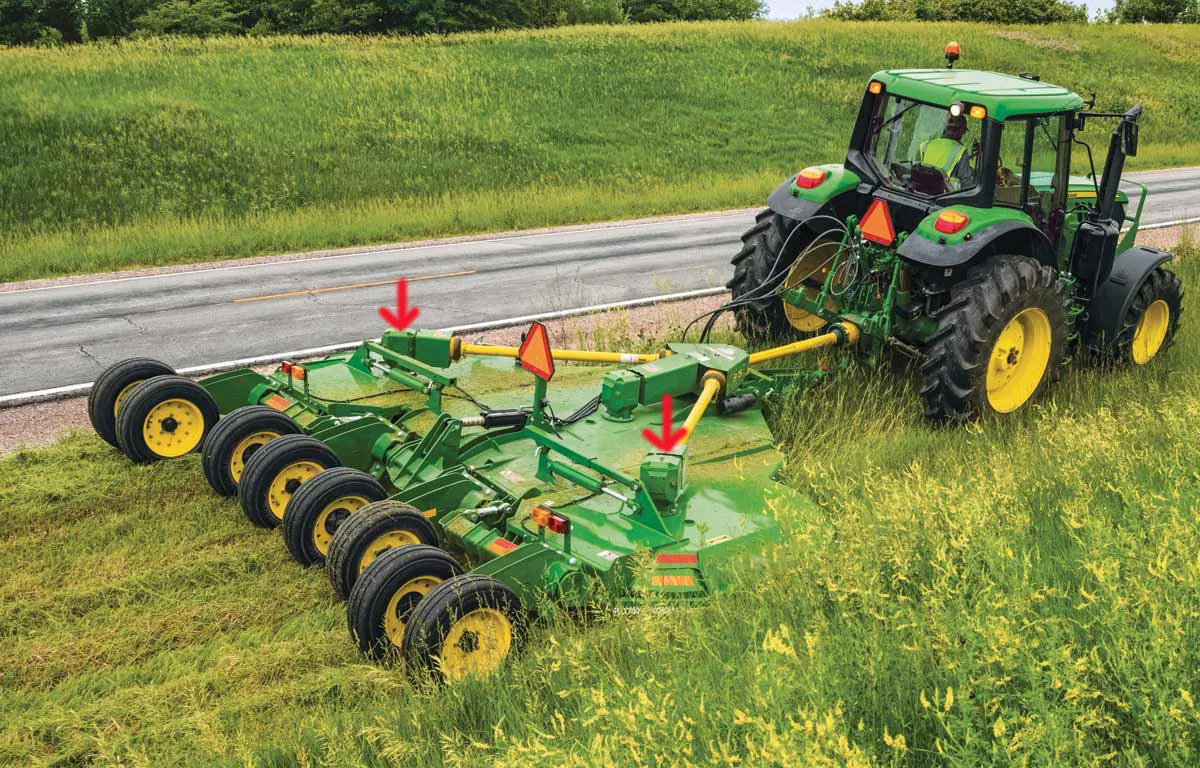

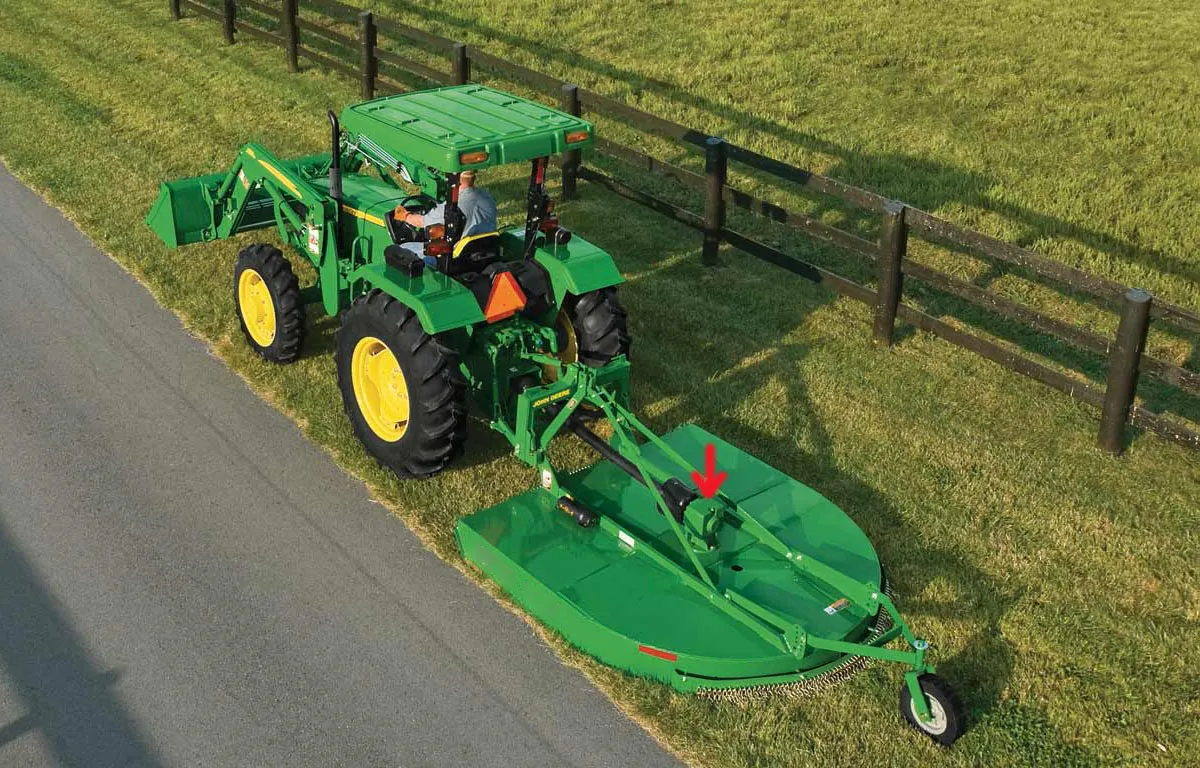

The RC200 rotary cutter gearbox is commonly used in agricultural and landscaping applications, as well as for maintenance and industrial purposes. Here are some specific examples of where the RC200 rotary cutter gearbox is commonly used:Agricultural Applications: The RC200 rotary cutter gearbox is often used in rotary cutters or brush hogs for mowing fields, pastures, and roadsides. It can also be used for shredding crops, such as corn stalks and cotton plants, after harvest.Landscaping Applications: The RC200 rotary cutter gearbox is commonly used in brush cutters or brush mowers to clear overgrown areas, trim hedges, and remove small trees and branches. It can also be used for land leveling and grading.Maintenance Applications: The RC200 rotary cutter gearbox is frequently used in industrial mowers for maintaining large properties, such as golf courses, parks, and cemeteries. It can also be used for roadside maintenance, such as cutting grass and clearing debris.Overall, the RC200 rotary cutter gearbox is a versatile and reliable tool that can be used in a wide range of applications, making it a popular choice for many industries.

▍Agricultural PTO Shaft and Rotary Cutter Gearbox

An agricultural PTO (Power Take-Off) shaft and rotary cutter gearbox work together to transfer power from a tractor to a rotary cutter, allowing for efficient cutting and shredding of vegetation in agricultural and landscaping applications.The PTO shaft is a driveshaft that connects the tractor's PTO output shaft to the gearbox input shaft. It transfers power from the tractor's engine to the rotary cutter gearbox, which then transfers power to the cutting blades. The rotary cutter gearbox is a mechanical device that converts the rotational motion from the PTO shaft into the linear motion needed to drive the cutting blades. It is typically mounted on the rotary cutter and contains gears and bearings that transmit power from the agricultural PTO shaft to the cutting blades.Together, the PTO shaft and rotary cutter gearbox provide a reliable and efficient means of transferring power from the tractor to the rotary cutter, allowing for effective cutting and shredding of vegetation in agricultural and landscaping applications. When selecting an agricultural PTO Shaft and rotary cutter gearbox, it is important to ensure that they are compatible with the specific tractor and rotary cutter being used. It is also important to choose components that are rated for the appropriate horsepower and torque requirements of the rotary cutter.Overall, the agricultural PTO shaft and rotary cutter gearbox are crucial components of any rotary cutter system, and selecting the right components can help ensure the reliable and efficient operation of the equipment.

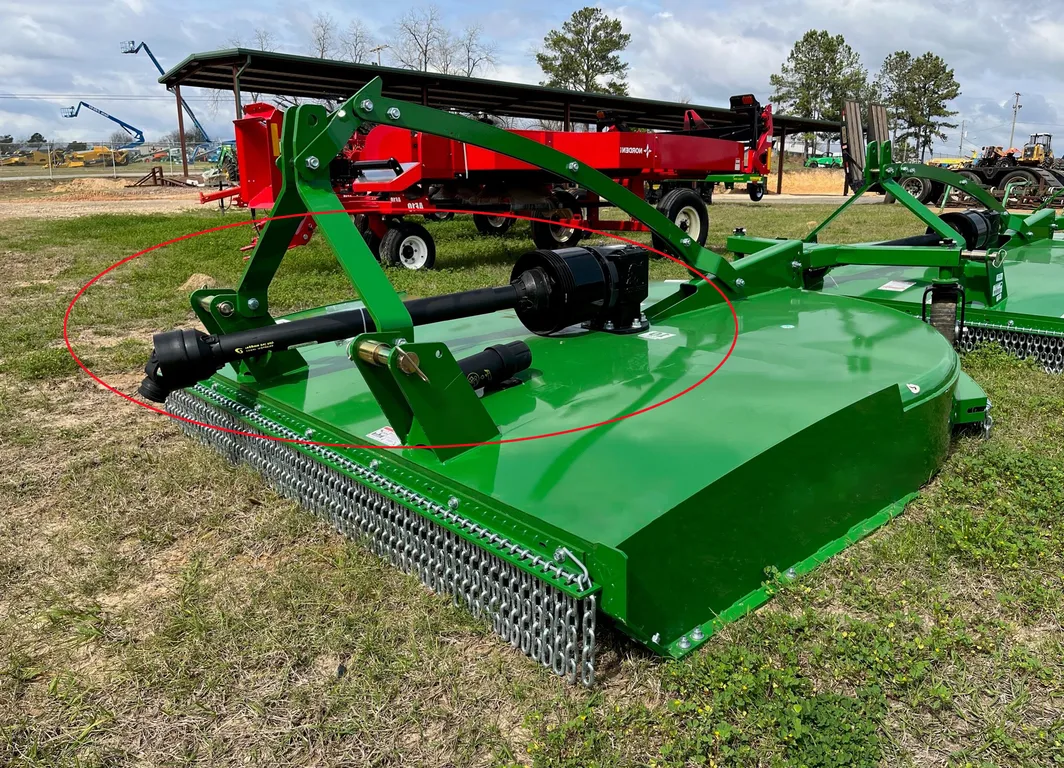

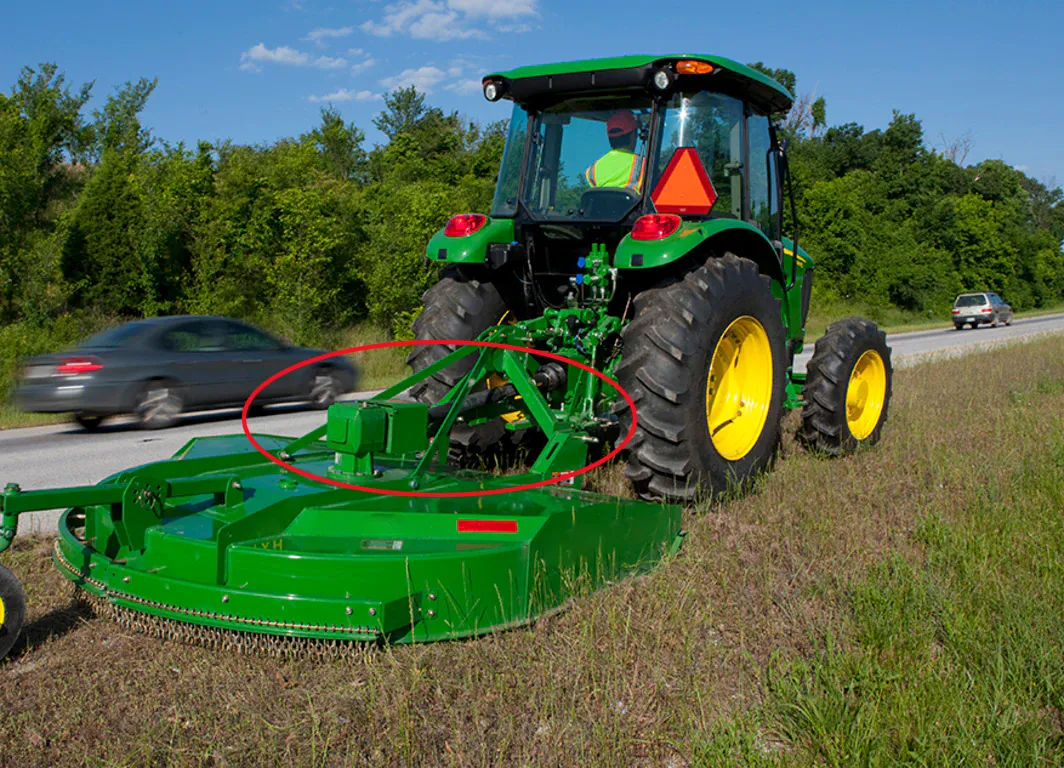

▍How to Choose the Right PTO Shaft for Rotary Cutter Gearbox?

Choosing the right PTO (Power Take-Off) shaft for a rotary cutter gearbox is important to ensure the reliable and efficient operation of the equipment. Here are some factors to consider when selecting a PTO shaft:(1) Length: The PTO shaft should be the correct length to connect the tractor's PTO output shaft to the rotary cutter gearbox input shaft without excessive slack or tension. Measure the distance between the two shafts and choose a PTO shaft that is slightly longer than the measured distance.(2) Size: The PTO shaft should be the correct size to match the tractor's PTO output shaft and the rotary cutter gearbox input shaft. The most common PTO shaft sizes are 1-3/8 inch 6-spline and 1-3/4 inch 20-spline.(3) Operating Speed: The PTO shaft should be rated for the appropriate operating speed of the rotary cutter gearbox. Check the manufacturer's specifications for the maximum operating speed of the gearbox and choose a PTO shaft that is rated for at least that speed.(4) Horsepower and Torque: The PTO shaft should be rated for the appropriate horsepower and torque requirements of the rotary cutter. Check the manufacturer's specifications for the horsepower and torque requirements of the rotary cutter and choose a PTO shaft that is rated for at least those requirements.(5) Safety Features: Choose a PTO shaft with appropriate safety features, such as a shield that covers the rotating shaft to prevent contact with clothing or body parts.Overall, selecting the right PTO shaft for a rotary cutter gearbox requires careful consideration of the length, size, operating speed, horsepower, torque, and safety features. It is important to consult the manufacturer's specifications for both the tractor and rotary cutter to ensure compatibility and safe operation.
