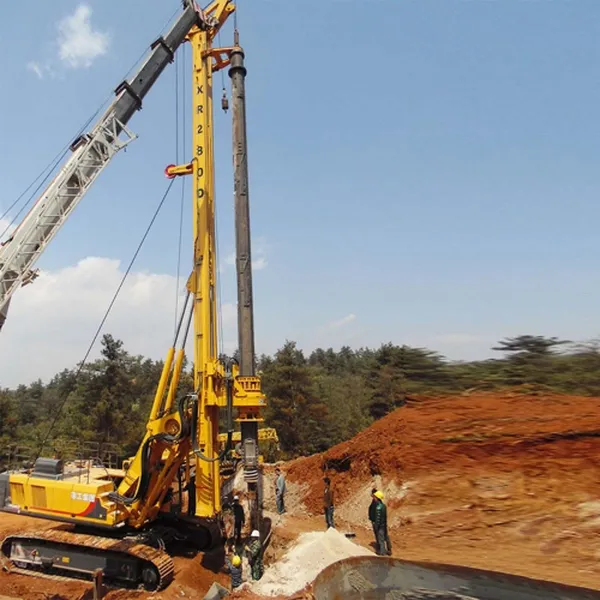

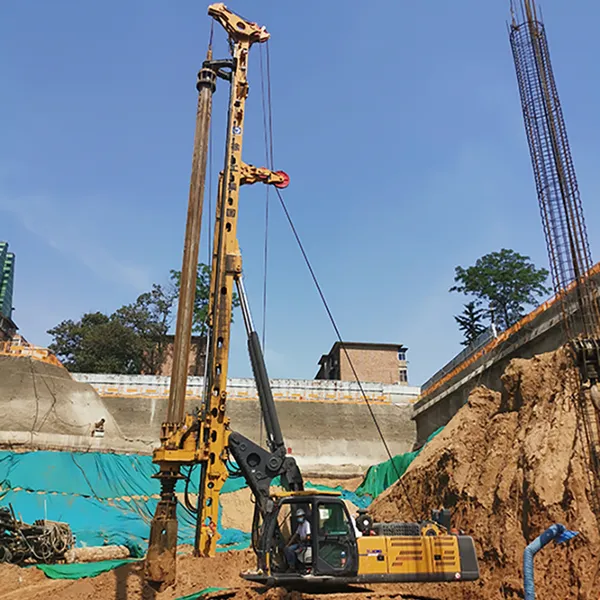

Rotary drilling luffing cylinders are hydraulic devices used in rotary drilling rigs to control the vertical movement of the drilling mast or derrick. These cylinders play a crucial role in the drilling process by providing the necessary lifting and lowering capabilities to position the drilling equipment accurately.The rotary drilling luffing cylinder is typically a double-acting hydraulic cylinder, meaning it can generate force in both directions. It consists of a cylindrical barrel, a piston, and a piston rod. The cylinder is filled with hydraulic fluid, which is pressurized to create the force required for lifting and lowering the drilling mast.The main function of the rotary drilling luffing cylinder is to adjust the angle of the drilling mast. By extending or retracting the piston rod, the cylinder can either raise or lower the mast, allowing for precise positioning of the drilling equipment. This adjustment is essential to accommodate various drilling depths and angles encountered during the drilling operation.The rotary drilling luffing cylinder is usually connected to the drilling mast and the rig's base structure through sturdy mounting points. It operates in conjunction with other hydraulic components and control systems to provide coordinated and controlled movement of the drilling mast.In rotary drilling rigs, rotary drilling luffing cylinders are subjected to high loads and intense operating conditions. Therefore, they are designed to be robust, durable, and capable of withstanding heavy loads and extreme forces. They are typically made from high-strength materials and undergo stringent quality control measures to ensure reliability and safety during drilling operations.

Rotary Drilling Luffing Cylinder Specifications:

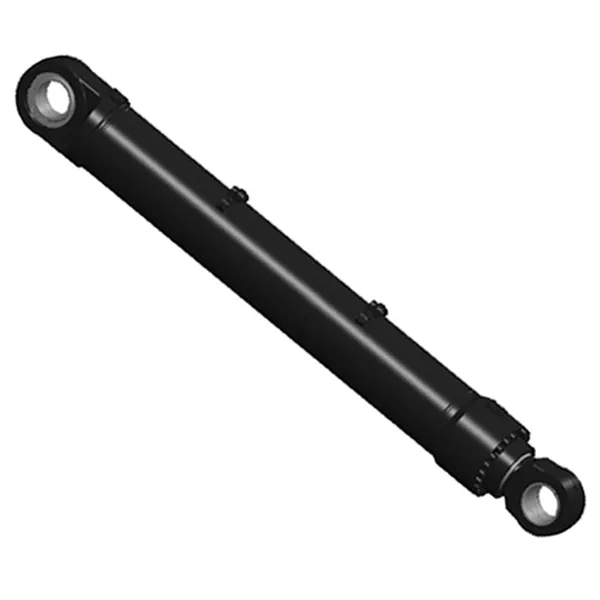

Product Name	Rotary Drilling Luffing Cylinder
Features:	Control the luffing angle, adjust the distance between the mast and the host
Bore diameter:	125mm～250mm
Rod diameter:	90mm～160mmStroke≤1640 mm
Pressure：	up to 32MPa
Luffing Cylinder Applications:	Rotary Drilling

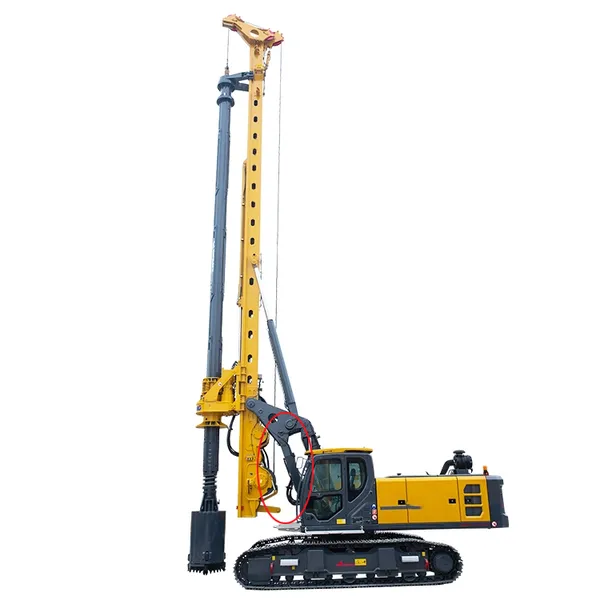

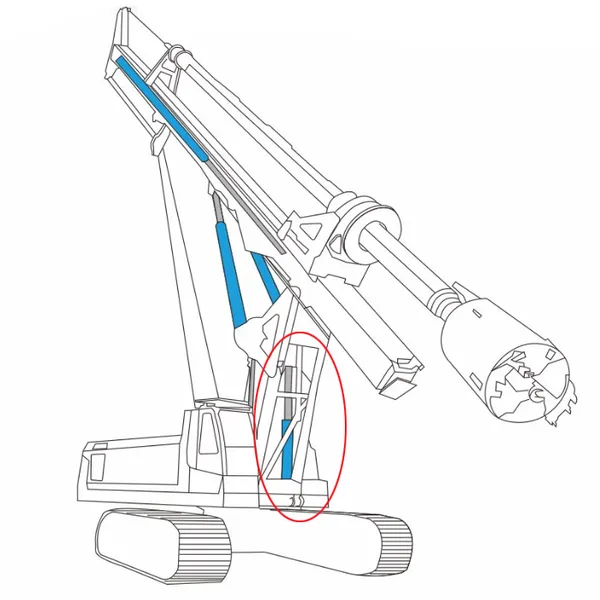

Advantages of Rotary Drilling Luffing Cylinder:

Rotary drilling luffing cylinders offer several advantages that contribute to efficient and effective drilling operations. Here are some key advantages of these hydraulic cylinders:1. Precise Positioning: Rotary drilling luffing cylinders provide precise control over the vertical movement of the drilling mast. By adjusting the angle of the mast, operators can accurately position the drilling equipment to the desired depth and angle. This precision is essential for achieving optimal drilling results and avoiding any deviations or errors.2. Versatility: Luffing cylinders offer versatility in adjusting the drilling mast. They can be extended or retracted to accommodate various drilling depths and angles, allowing for flexibility in different drilling scenarios. This adaptability is particularly useful when drilling in complex geological formations or when encountering unexpected obstacles.3. Efficient Operation: The hydraulic nature of rotary drilling luffing cylinders enables efficient and smooth operation. The use of hydraulic fluid and controlled pressure allows for quick and precise movements, reducing the time required for repositioning the drilling mast. This efficiency translates into increased productivity and reduced downtime during drilling operations.4. Load Handling Capability: Luffing cylinders are designed to handle high loads and forces encountered during drilling operations. They are built with robust materials and construction to withstand the weight of the drilling mast and the forces generated during drilling. This load-handling capability ensures the safety and stability of the drilling rig.5. Improved Safety: Precise control over the positioning of the drilling mast provided by rotary drilling luffing cylinders enhances safety during drilling operations. Operators can carefully position the equipment, minimizing the risk of accidents, collisions, or damage to the rig or surrounding infrastructure. The hydraulic system's reliability and stability further contribute to a safer working environment.6. Durability and Longevity: Luffing cylinders are designed to withstand the harsh operating conditions typically encountered in drilling environments. They are built to be durable, resistant to wear and corrosion, and capable of withstanding heavy loads over extended periods. This durability ensures a longer service life, reducing maintenance requirements and overall costs.

How to Choose the Right Rotary Drilling Luffing Cylinder?

Choosing the right rotary drilling luffing hydraulic cylinder requires careful consideration of various factors to ensure compatibility with the drilling rig and optimal performance. Here are some key factors to consider when selecting a luffing cylinder:Load Capacity: Determine the maximum load capacity required for your drilling operations. Consider the weight of the drilling mast, drilling equipment, and any additional loads that will be imposed on the luffing cylinder. Choose a cylinder that can handle the anticipated loads without compromising safety or performance.Stroke Length: The stroke length refers to the maximum extension/retraction distance of the piston rod. Consider the drilling depths and angles you will encounter in your operations and select a rotary drilling luffing cylinder with an appropriate stroke length to accommodate those requirements. Ensure that the cylinder's stroke length allows for the desired range of mast adjustment.Operating Pressure: Determine the required operating pressure based on the load capacity and desired control precision. Ensure that the selected rotary drilling luffing cylinder can operate within the specified pressure range without exceeding its limits. Consider the hydraulic system of the drilling rig and ensure compatibility with the luffing cylinder's pressure requirements.Mounting Configuration: Consider the mounting configuration of the luffing cylinder and ensure compatibility with the drilling rig's mast and base structure. Evaluate the available space for cylinder installation and verify that the mounting points on the rig align with the cylinder's design. This will ensure proper integration and functionality.Environmental Conditions: Evaluate the environmental conditions in which the luffing cylinder will operate. Consider factors such as temperature variations, exposure to corrosive substances, and potential impacts or vibrations. Choose a cylinder with appropriate seals, coatings, and materials that can withstand the specific environmental conditions of your drilling site.Quality and Reliability: Select a luffing cylinder from a reputable manufacturer known for producing high-quality and reliable hydraulic components. Consider the manufacturer's track record, certifications, and customer reviews to assess their reputation and expertise in the industry. A reliable cylinder will minimize downtime, reduce maintenance costs, and ensure long-term performance.Safety Features: Check for safety features incorporated into the luffing cylinder design. These may include overload protection, pressure relief valves, and fail-safe mechanisms to prevent accidents and equipment damage. Ensure that the cylinder meets relevant safety standards and regulations to promote a safe working environment.
