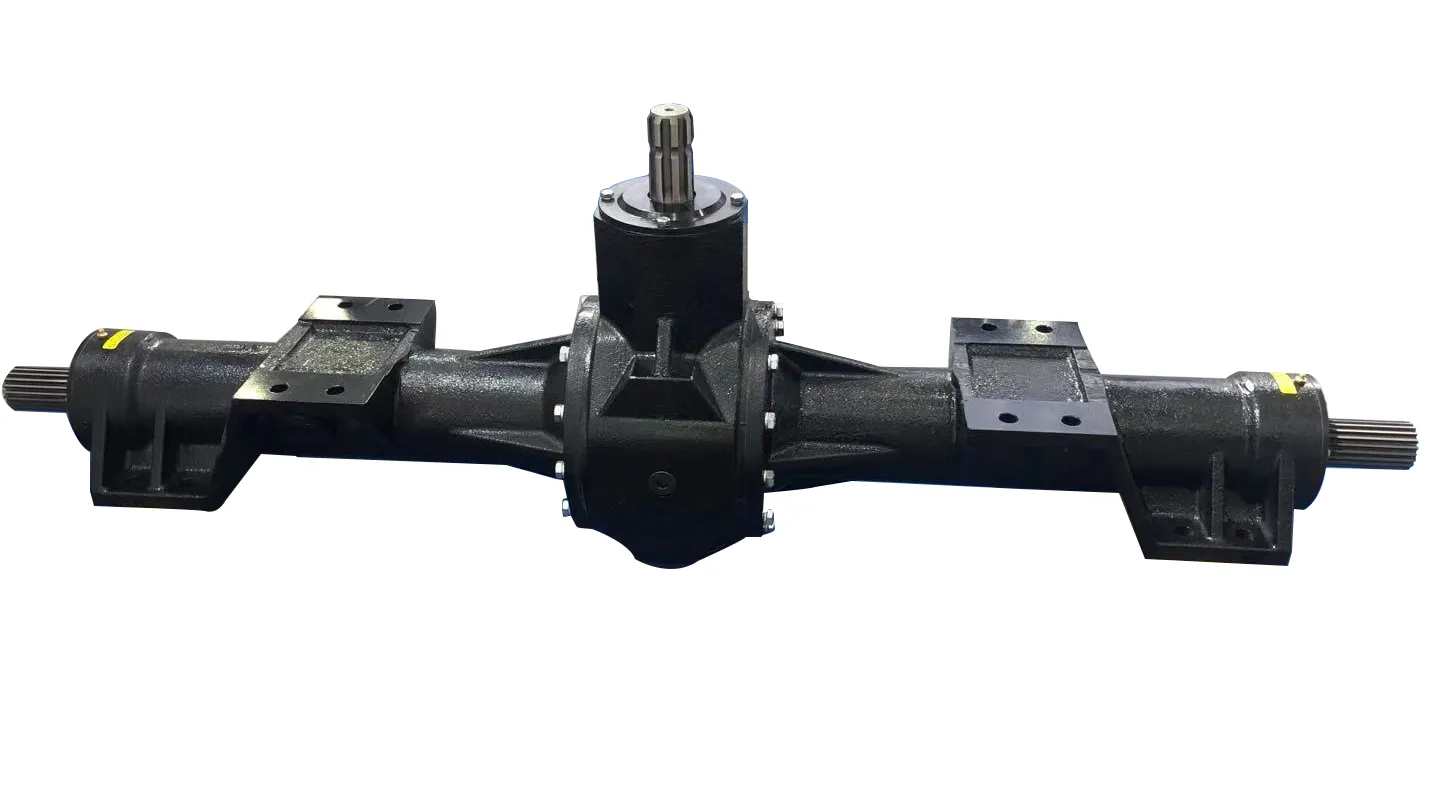

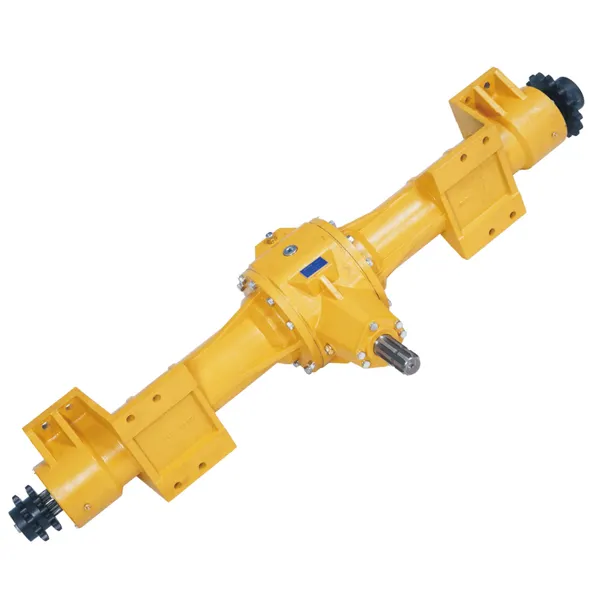

Round Baler Gearbox EP9.35 for Round Baler and Harvester

Round Baler Gearbox EP9.35 for Round Baler and Harvester

The Round Baler Gearbox EP9.35 is a critical component used in agricultural machinery, particularly in round balers and certain types of harvesters. This gearbox is designed to perform specific functions that are essential for the efficient baling of various agricultural materials, primarily crop residues.The Round Baler Gearbox EP9.35 is responsible for powering the key functions of a round baler or harvester used in baling operations. Its primary function is to transfer power from the tractor's power take-off (PTO) to drive the components within the baler or harvester that are involved in gathering, compressing, and forming crop materials into round bales. This gearbox plays a crucial role in ensuring the proper functioning of the baling equipment.

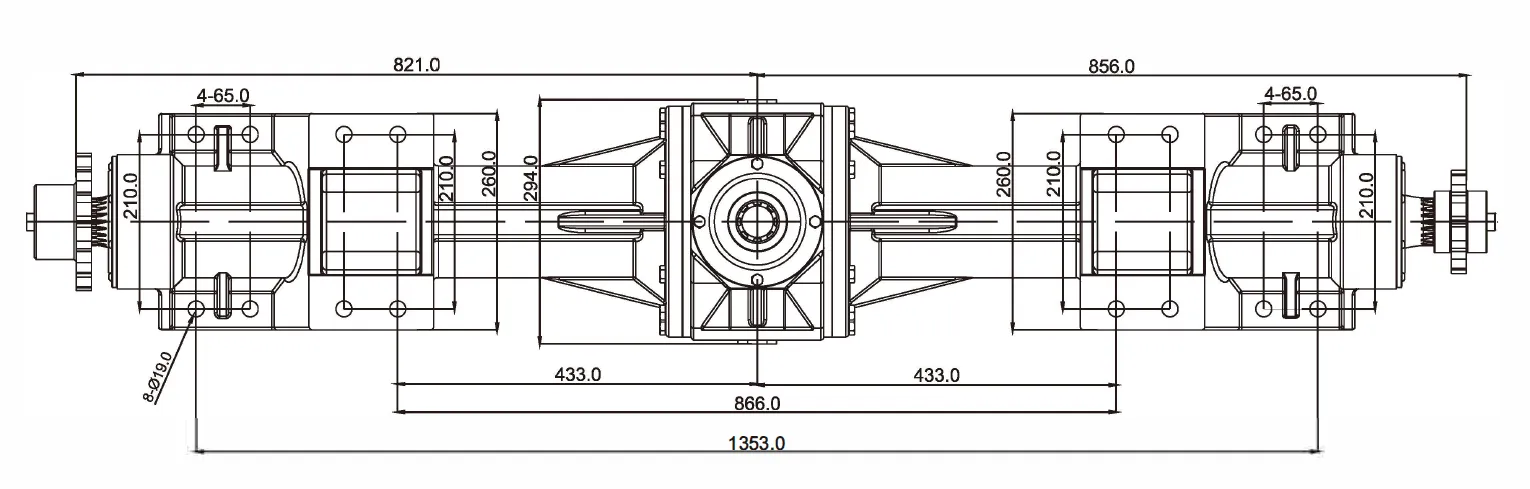

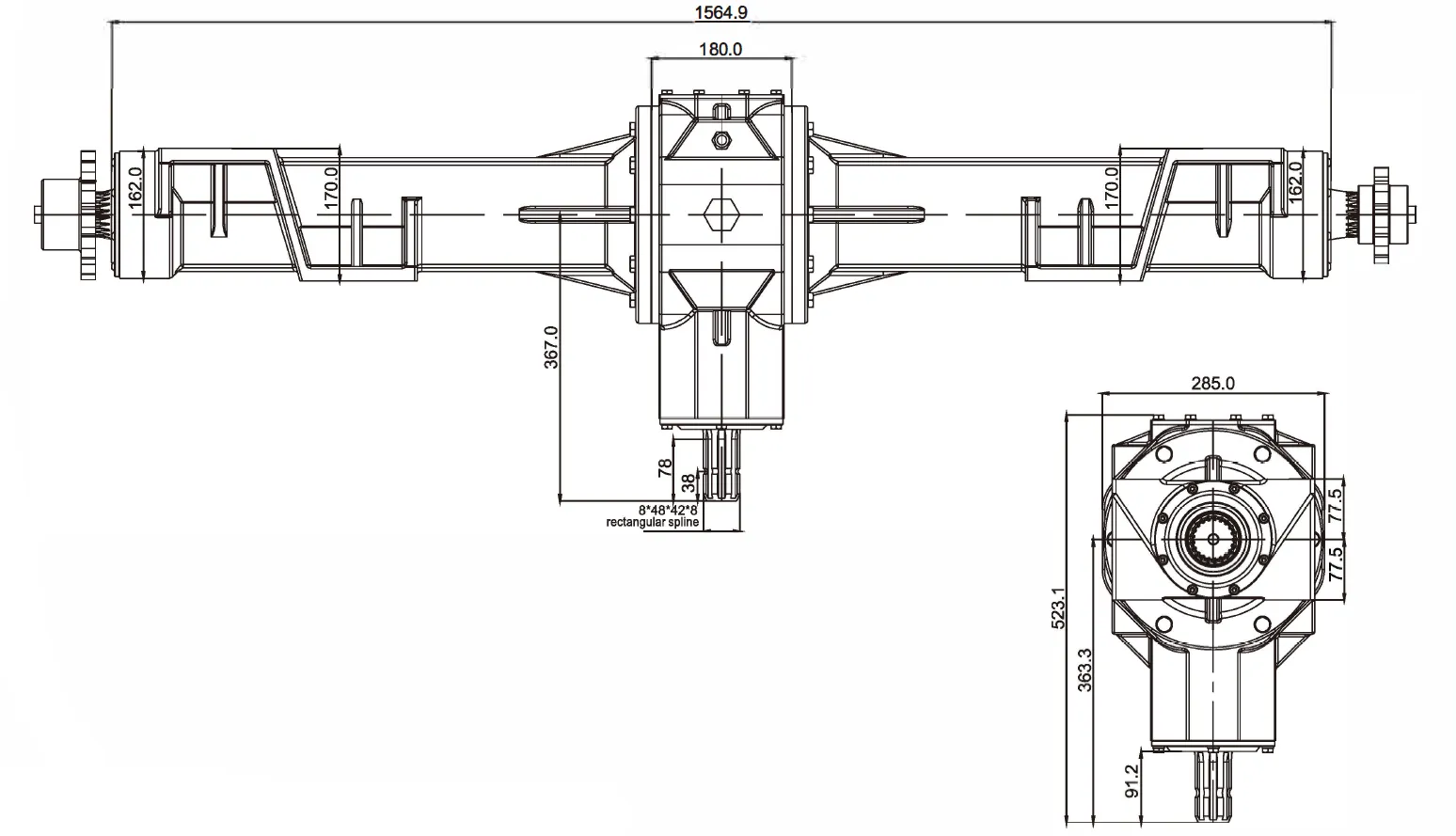

Round Baler Gearbox EP9.35 Dimensions

Round Baler Gearbox EP9.35 Technical Data

i		Suitable	Rpm input	Rpm output	KW(Nom)	KW(Max)	Toothing
			r/min	r/min	hp	hp
Decelerate	1.92:1	Round baler,harvester, etc	540	282	120	3000	Gleason HelicalTeeth
Remark: If you have any special require feel free let me know, we also accept custom.

Round Baler Gearbox EP9.35 Advantages

The Round Baler Gearbox EP9.35 offers several advantages in agricultural applications, particularly in round balers and harvesters. These advantages contribute to its importance and effectiveness in modern farming practices. Here are some of the key advantages of the Round Baler Gearbox EP9.35:1. Efficient Baling: One of the primary advantages of this gearbox is its ability to efficiently compress crop materials into round bales. It ensures that the baler operates smoothly, resulting in well-formed and tightly packed bales.2. High Torque Capacity: The EP9.35 gearbox is designed to handle high levels of torque, making it suitable for heavy-duty baling tasks. It can effectively compress a wide range of crop materials, including dense materials like straw and corn stover.3. Durable Construction: Agricultural equipment operates in harsh and demanding conditions. This round baler gearbox is built with durability in mind, using robust materials and engineering to withstand the rigors of agricultural work.4. Reliable Power Transmission: It provides reliable power transmission from the tractor's power take-off (PTO) to the various components within the baler or harvester. This ensures consistent and efficient operation of the baling equipment.5. Multiple Speed Settings: Some versions of this Round Baler Gearbox EP9.35 offer multiple speed settings. This versatility allows farmers to adjust the baler's speed to match the type of crop being baled, resulting in optimized bale formation.6. Customization: Agricultural equipment manufacturers often provide options for customizing the gearbox to suit specific baling requirements. Farmers can select the appropriate round baler gearbox model and configuration based on their needs.7. Versatility: This round baler gearbox can handle a variety of crop materials, including hay, straw, silage, and crop residues. Its versatility makes it suitable for diverse farming operations.

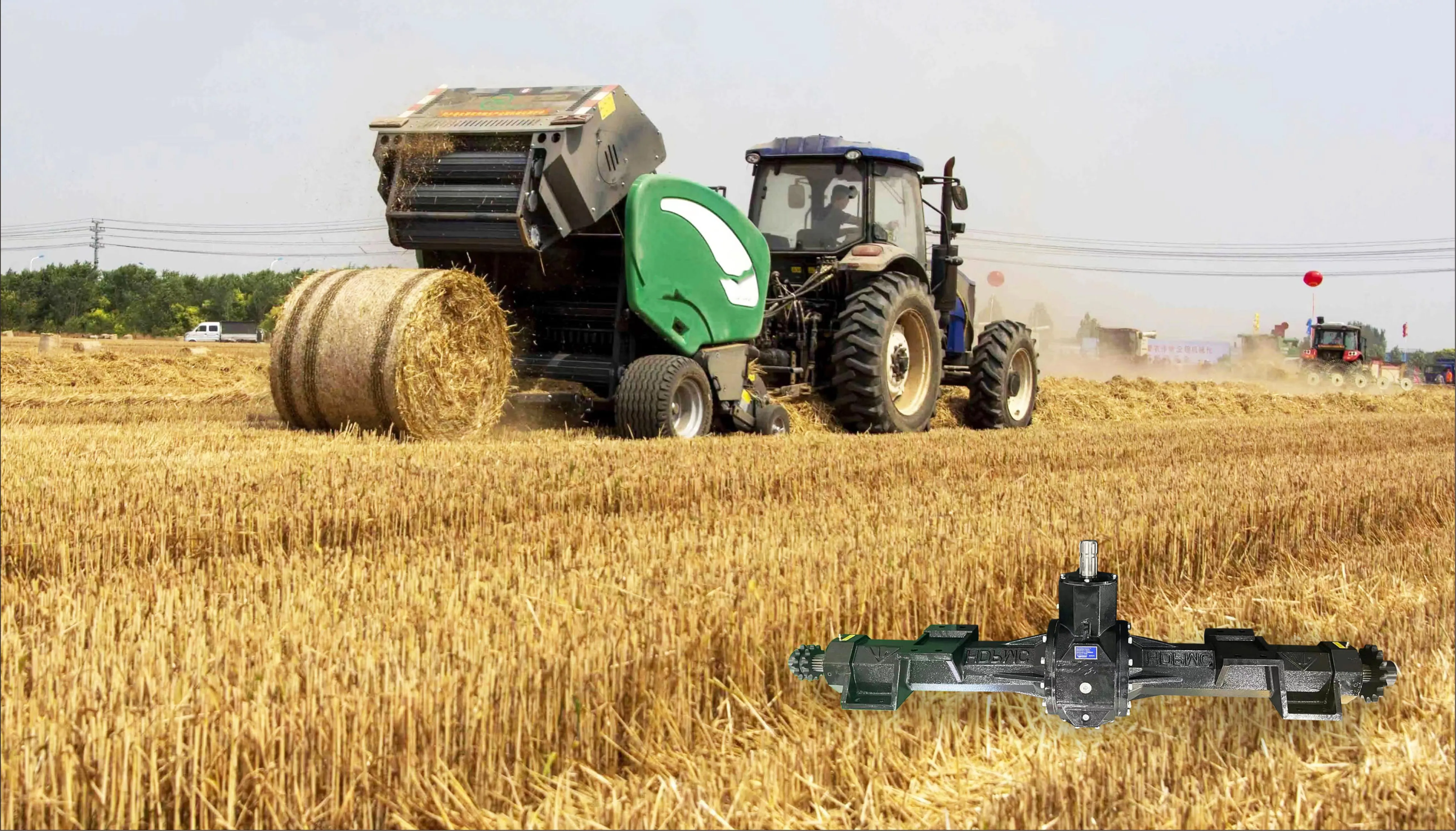

Function of Round Baler Gearbox EP9.35 in Agricultural

The Round Baler Gearbox EP9.35 is a critical component in the agricultural machinery used for baling crops into round bales. Its robust design and efficient operation make it highly suitable for various agricultural applications, primarily in round balers. Here are some of the key agricultural applications of the Round Baler Gearbox EP9.35:1. Hay Baling: The EP9.35 gearbox is commonly used in hay balers to compress and form round bales of hay. This application is essential for harvesting and storing hay for livestock feed.2. Straw Baling: Farmers use this Round Baler Gearbox EP9.35 to bale straw, which can be used for livestock bedding, mulching, or as a source of organic material for various agricultural purposes.3. Silage Baling: Silage is a valuable feed for livestock, and the EP9.35 gearbox is used in balers to create round silage bales. Silage is often made from crops like corn, grass, or legumes.4. Crop Residue Baling: After the main crop harvest, crop residues such as corn stover, wheat straw, and rice straw can be baled using this Round Baler Gearbox EP9.35. These bales can be used for various purposes, including animal bedding and biofuel production.5. Livestock Feed Production: Round bales produced with the help of this Round Baler Gearbox serve as a convenient and compact form of livestock feed. Farmers can easily transport and store these bales to feed their animals throughout the year.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.

Why Choose Our Round Baler Gearbox?

Raydafon MACHINERY (Ningbo) CO.LTD is a professional reducer high-tech enterprise integrating scientific research, production and sales, a high-tech small and medium-sized enterprise in Zhejiang Province, a member of Ningbo R&D center, and a specialized and special new small and medium-sized enterprise in Zhejiang Province. We have a professional R&D team and technical staff specializing in the production of various gearboxes, gearbox assemblies, and components. The products include various series of helical gear reducers, agricultural machinery gearboxes, industrial gearboxes, etc. A number of technical patents and products are pioneering in China. We strictly follows the quality management system to manufacture high-quality products, which are highly appreciated by domestic and foreign customers. In recent years, We has been adhering to the concept and spirit of "innovating with determination, advancing with the times, and creating the future intelligently", and is committed to high-end gearbox, gearbox development and manufacturing. Founded in 2017, We have rich production experience, perfect organizational structure, and complete R&D and design capabilities. It also provides technical support and design and development cases for customers in various industries and has been widely praised by customers.
