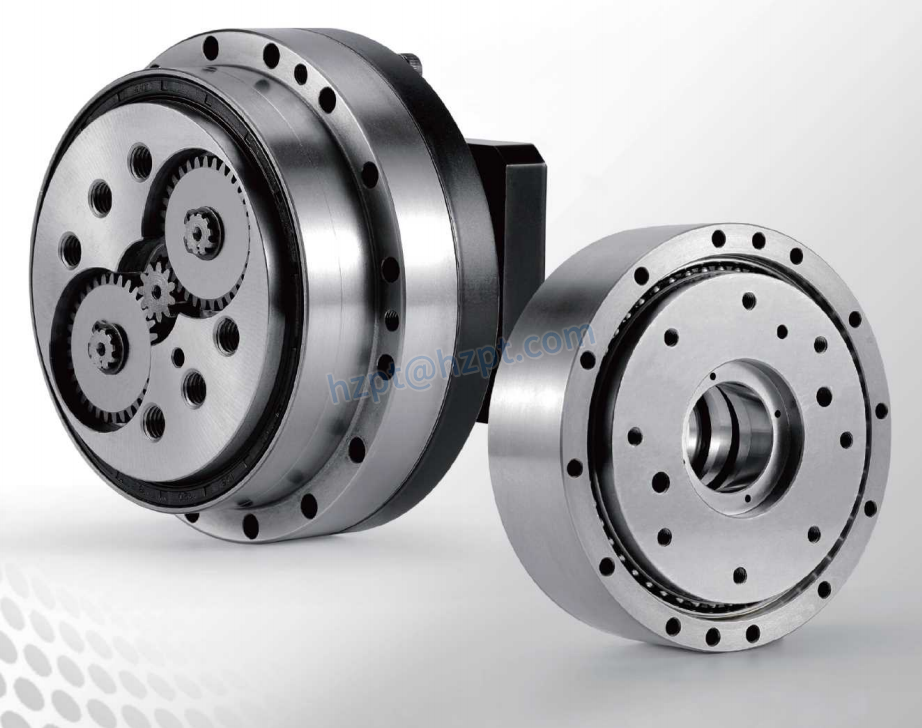

RV-E series Cycloidal Gearbox

Reducer Comparison Table

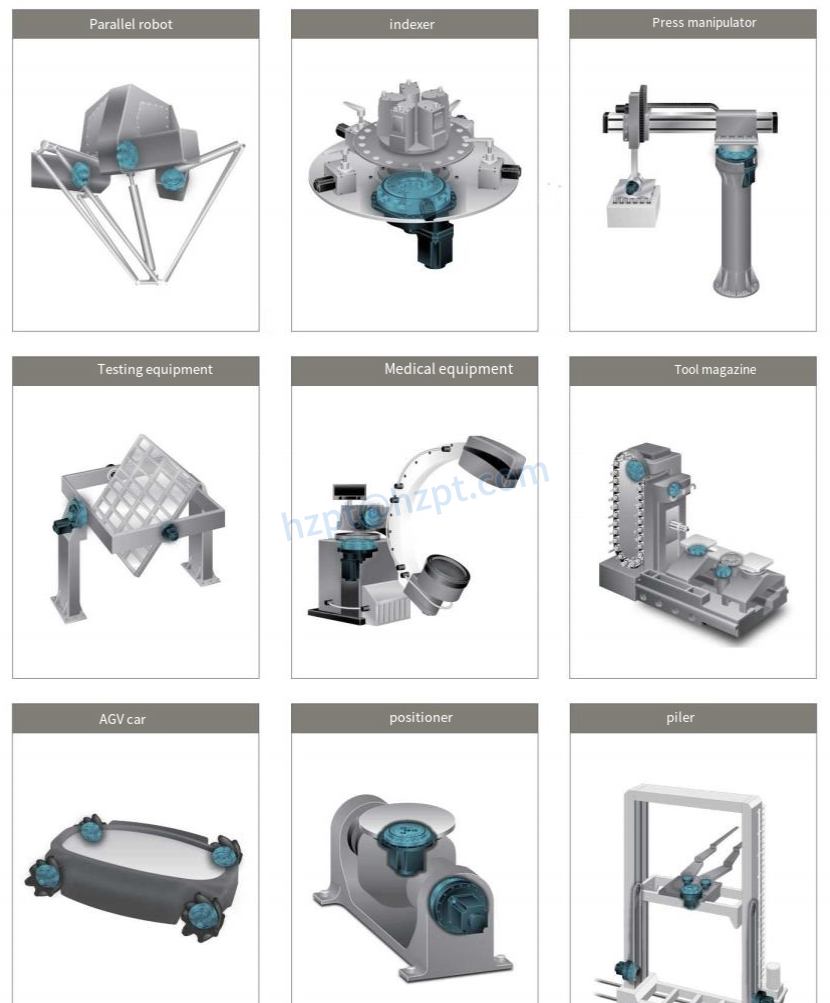

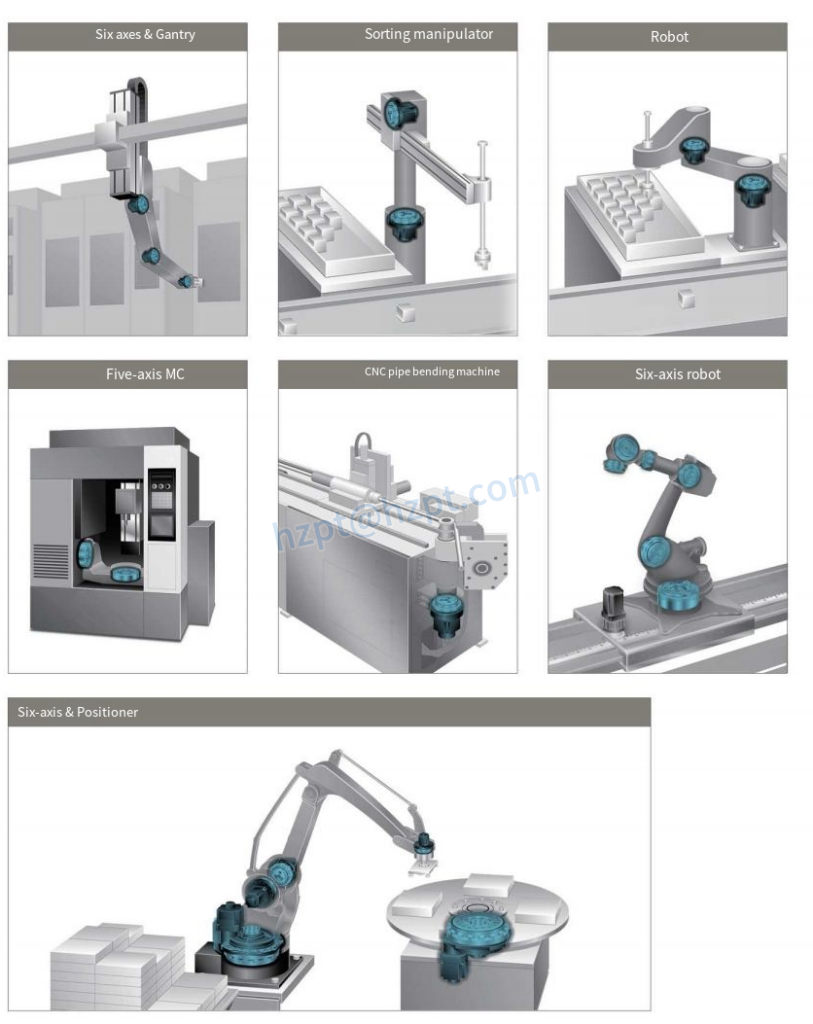

Product Usage

Product features of RV precision reducer

Ultra-flat design & compact structureIt is composed of two parts: an involute cylindrical gear planetary reduction mechanism and a cycloid pinwheel planetary mechanism. Achieving a flat shape contributes to the compact size of the device.High precisionHigh precision achieved through precision cycloidal gears.High rigidityIncreasing the meshing rate distributes the load, so the rigidity is extremely high.high efficiencySet the appropriate pressure angle to achieve smooth action and high efficiency.Low backlashBy optimizing the gap configuration of each component, high-precision positioning of the vest within 1 arcmin can be achieved.Motor installation is simpleUse precision reducer RV for installation. Users can design according to the installation dimensions of the motor they purchase.

Reducer structure

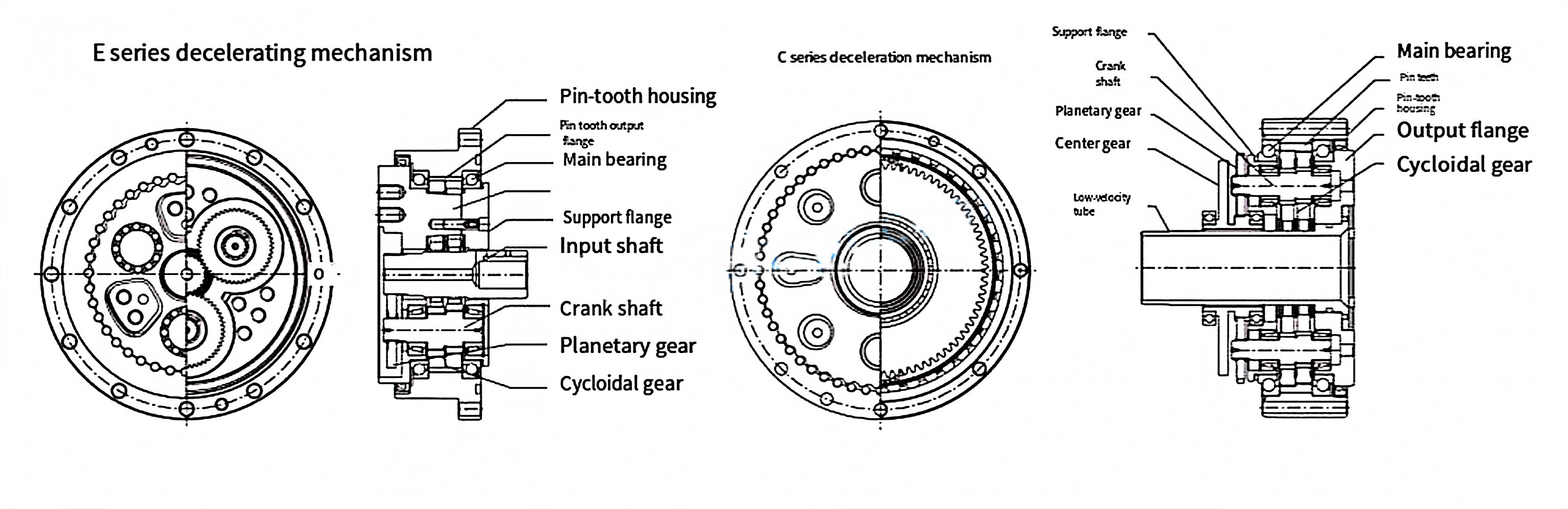

The reducer consists of an output flange, a support flange, a pin gear housing, a cycloidal gear, and a crankshaft. Planetary gears. Pin teeth, input gear (optional). Main bearings, tapered roller bearings. The needle roller bearing is composed of a cage, oil seal, etc.

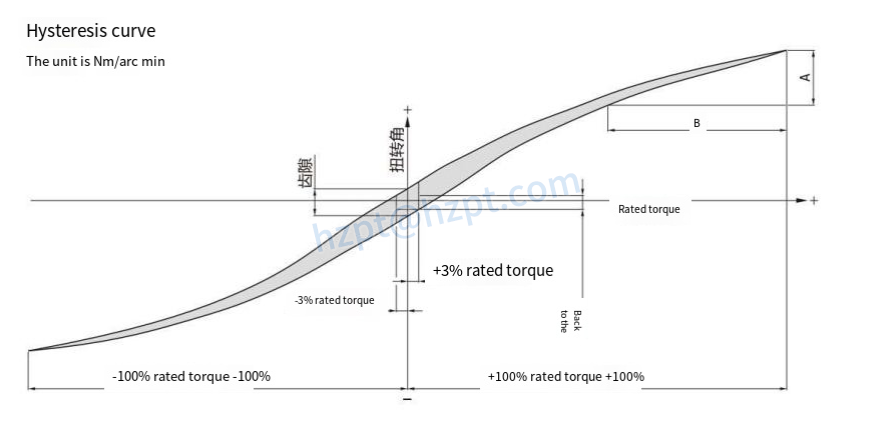

Performance curve

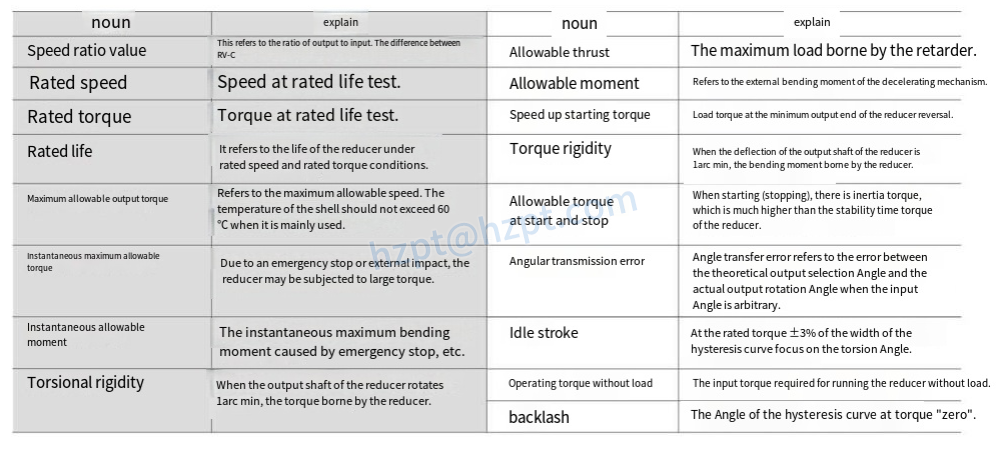

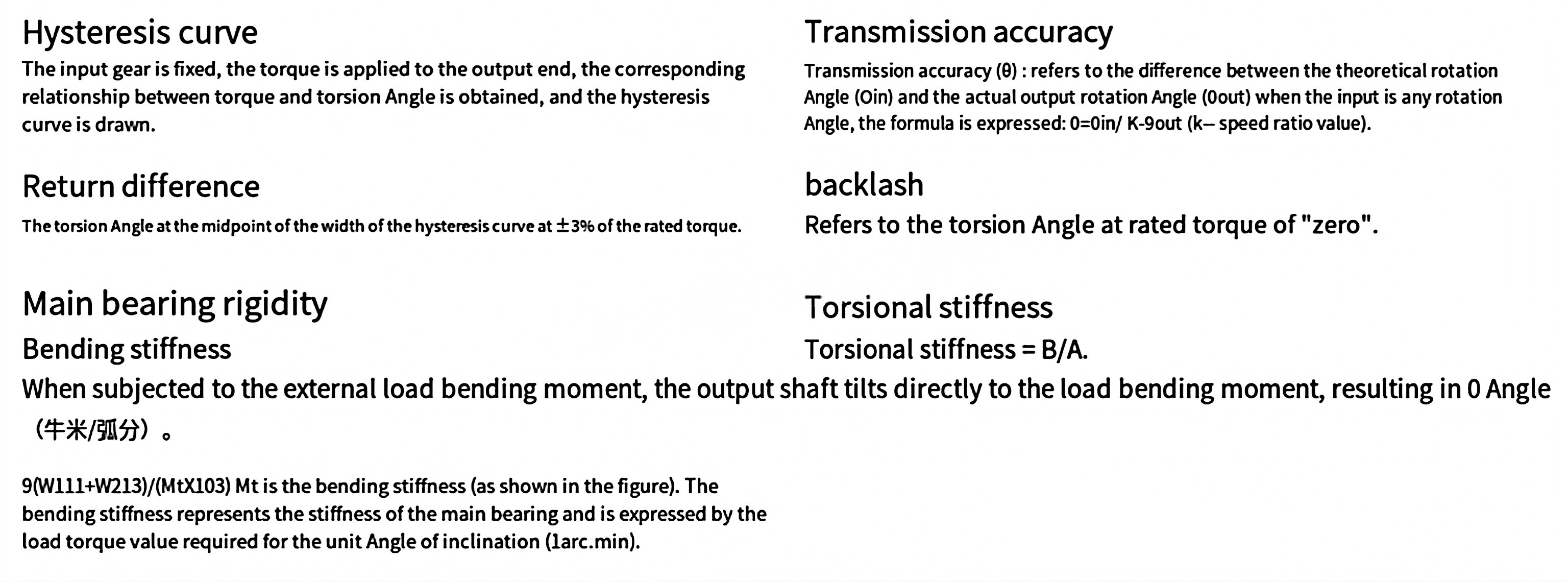

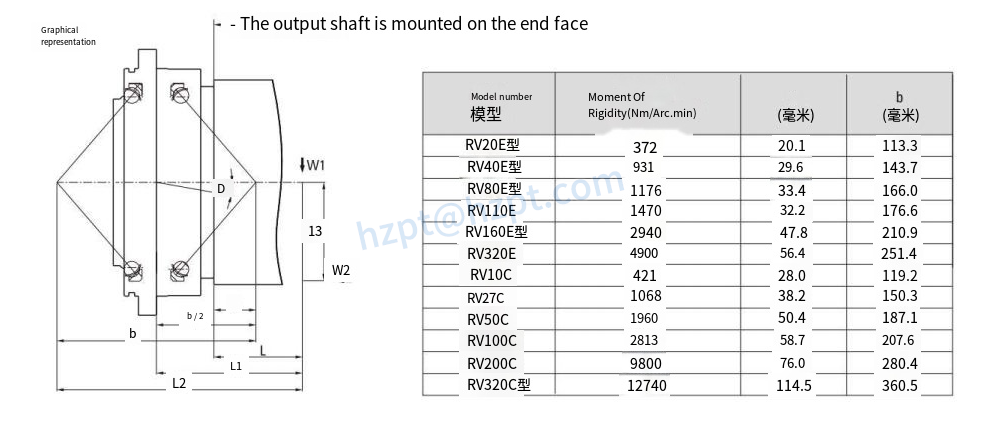

Terms and definitions

RV-E Technical Parameter

E series output torque and efficiency

The rated torque refers to the output torque when the output speed is 18 Rmi. The input power takes into account the efficiency of the reducer.Torque calculation formula T=9549 XPXn/N (T: torque Nm, P: power Kw, N: speed r/min, n: efficiency%).

model	5 r/min		18 r/min			25 r/min		30 r/min		maximum allowedOutput speedr/min
	output torqueN.m	input powerKw	output torqueN.m	input powerKw	efficiency%	Output torqueN.m	input powerKw	Output torqueN.m	input powerK
6E	115	0.075	64	0.15	80	62	0.2	64	0.25	100
20E	245	0,160	170	0.40	80	153	0.5	153	0.60	75
40E	612	0,400	425	1.00	80	367	1.2	382	1.50	70
80E	1146	0750	743	1.75	80	673	2.2	637	2.50	70
110E	1528	1.000	934	2.20	80	978	3.2	892	3.50	50
160E	2292	1,500	1571	3.70	80	1437	4.7	1274	5.00	45
320E	4584	3,000	2972	7.00	80	2903	9.5	2802	11.0	35
450E	6112	4.000	3905	9.20	80	/	/	/	/	25

Model Outline Drawing

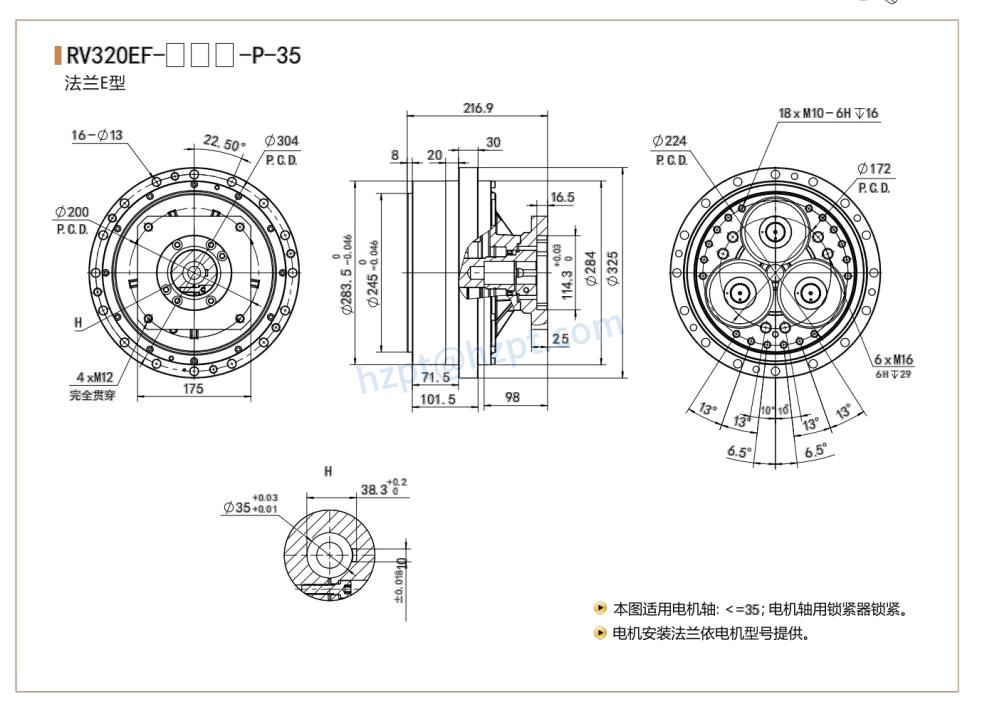

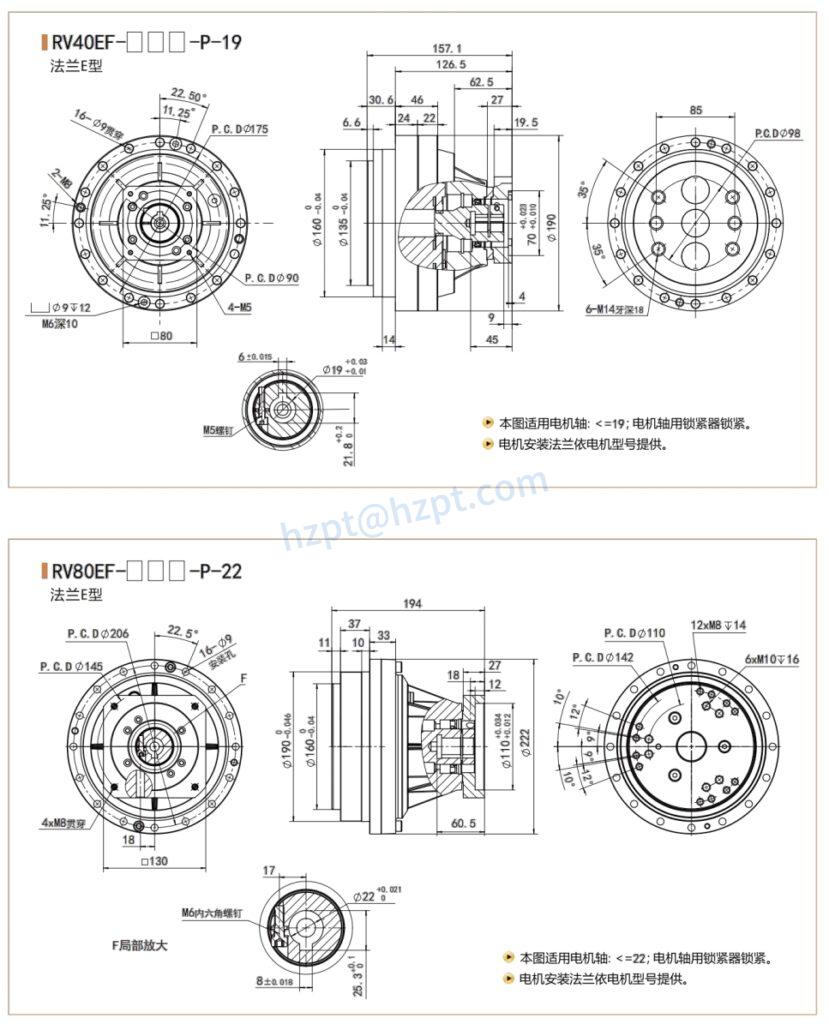

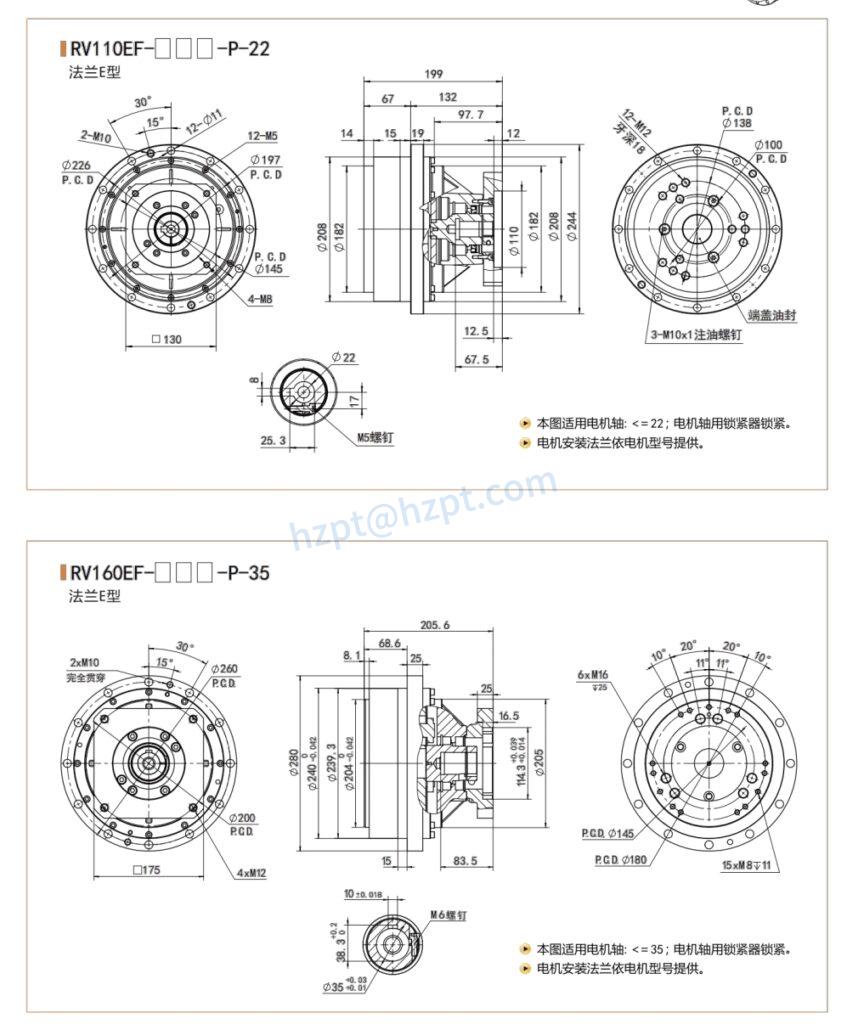

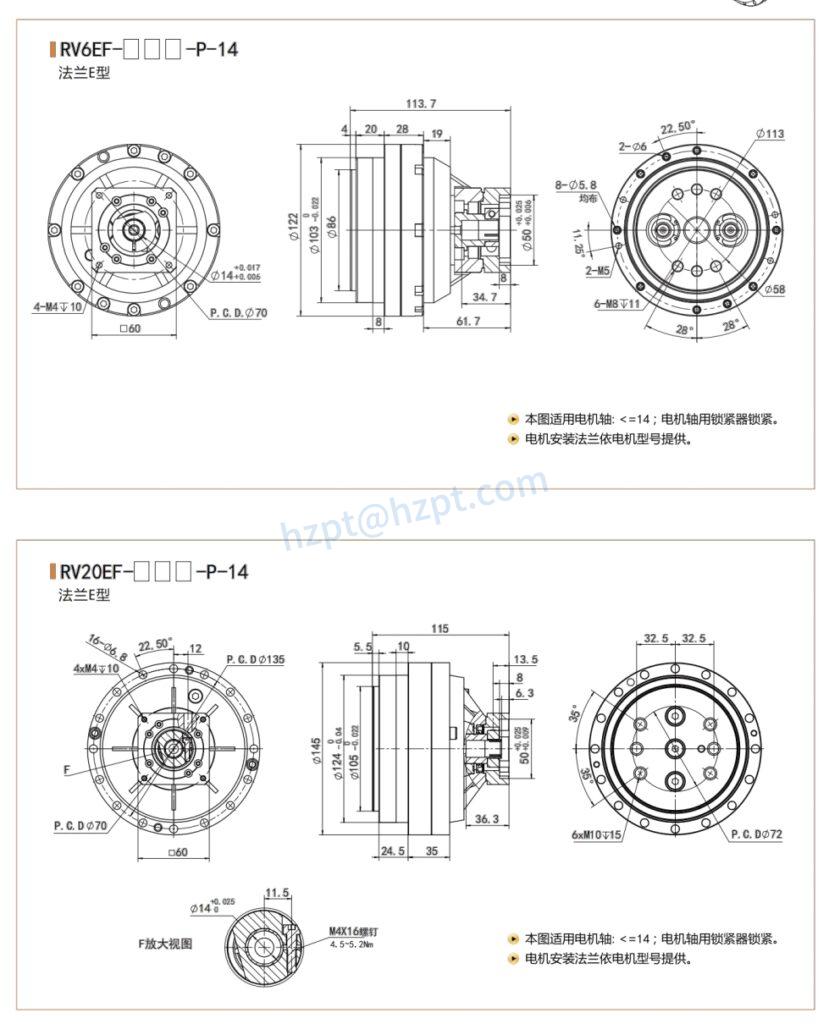

The input gear shaft, mounting flange, etc. can be produced according to customer requirements. The relevant drawings should be confirmed by the customer before production.This picture applies to motor shaft: <=14; the motor shaft is locked with a locking device.The motor mounting flange is provided according to the motor model. This picture applies to motor shaft: <=19 or <=22; the motor shaft is locked with a locking device.The motor mounting flange is provided according to the motor model. This picture applies to motor shaft: <=22 or <=35; the motor shaft is locked with a locking device.The motor mounting flange is provided according to the motor model. This picture applies to motor shaft: <=35; the motor shaft is locked with a locking device.The motor mounting flange is provided according to the motor model.

E-type reducer installation essentials

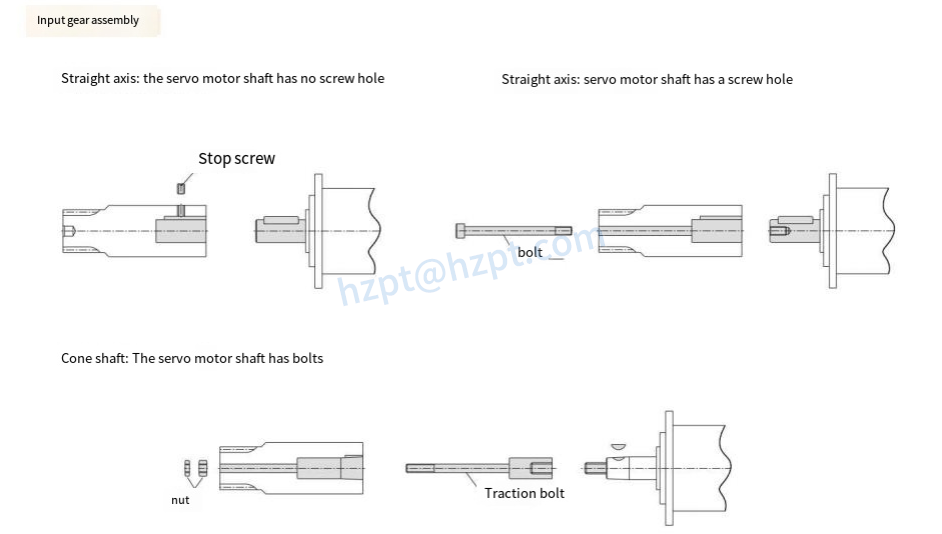

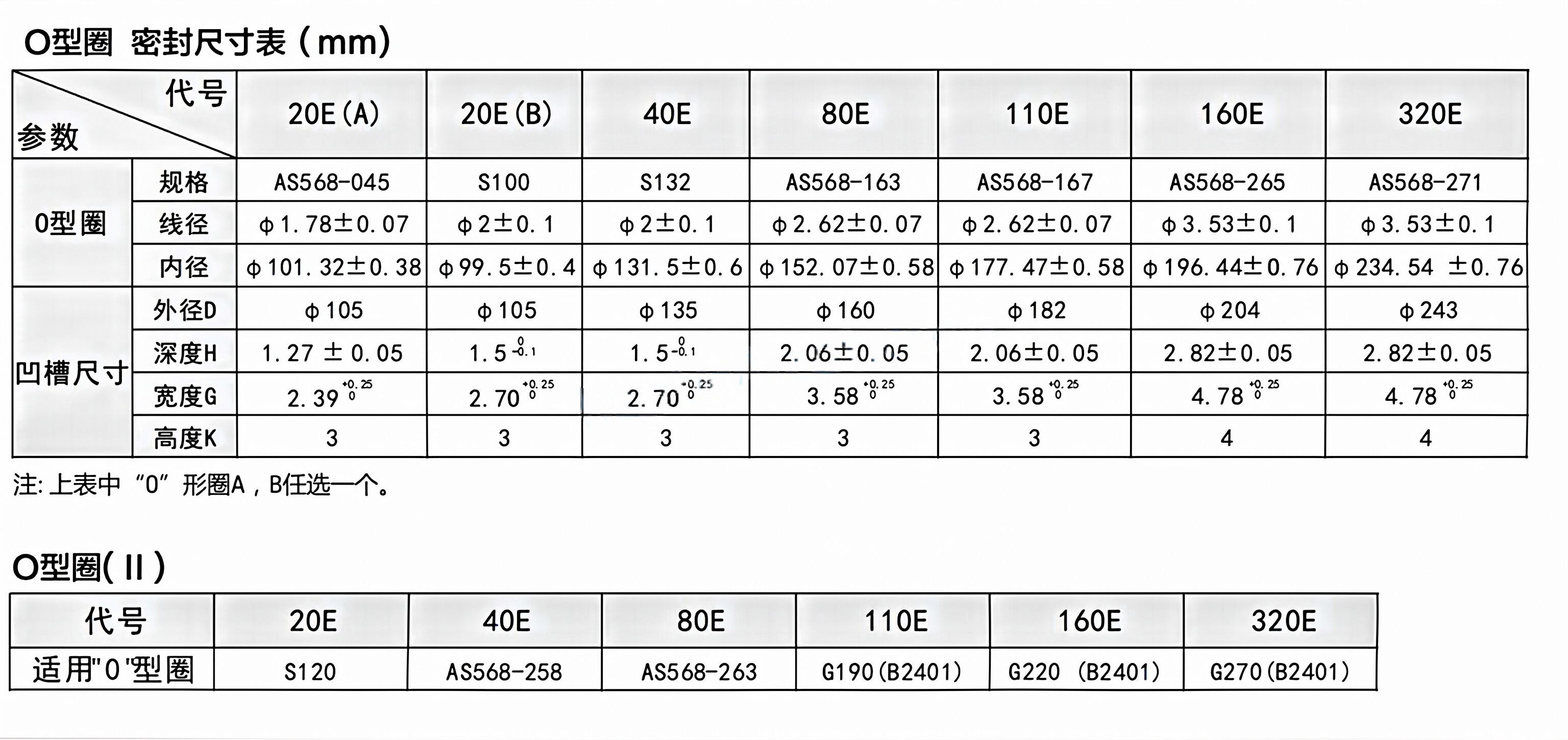

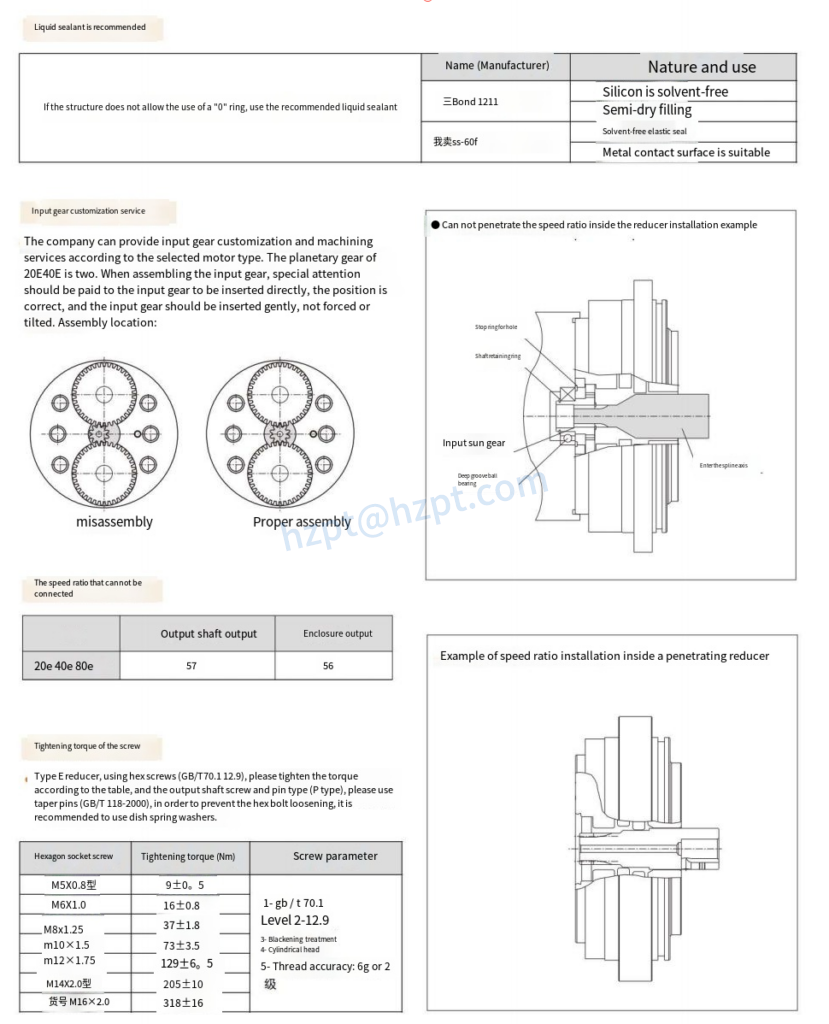

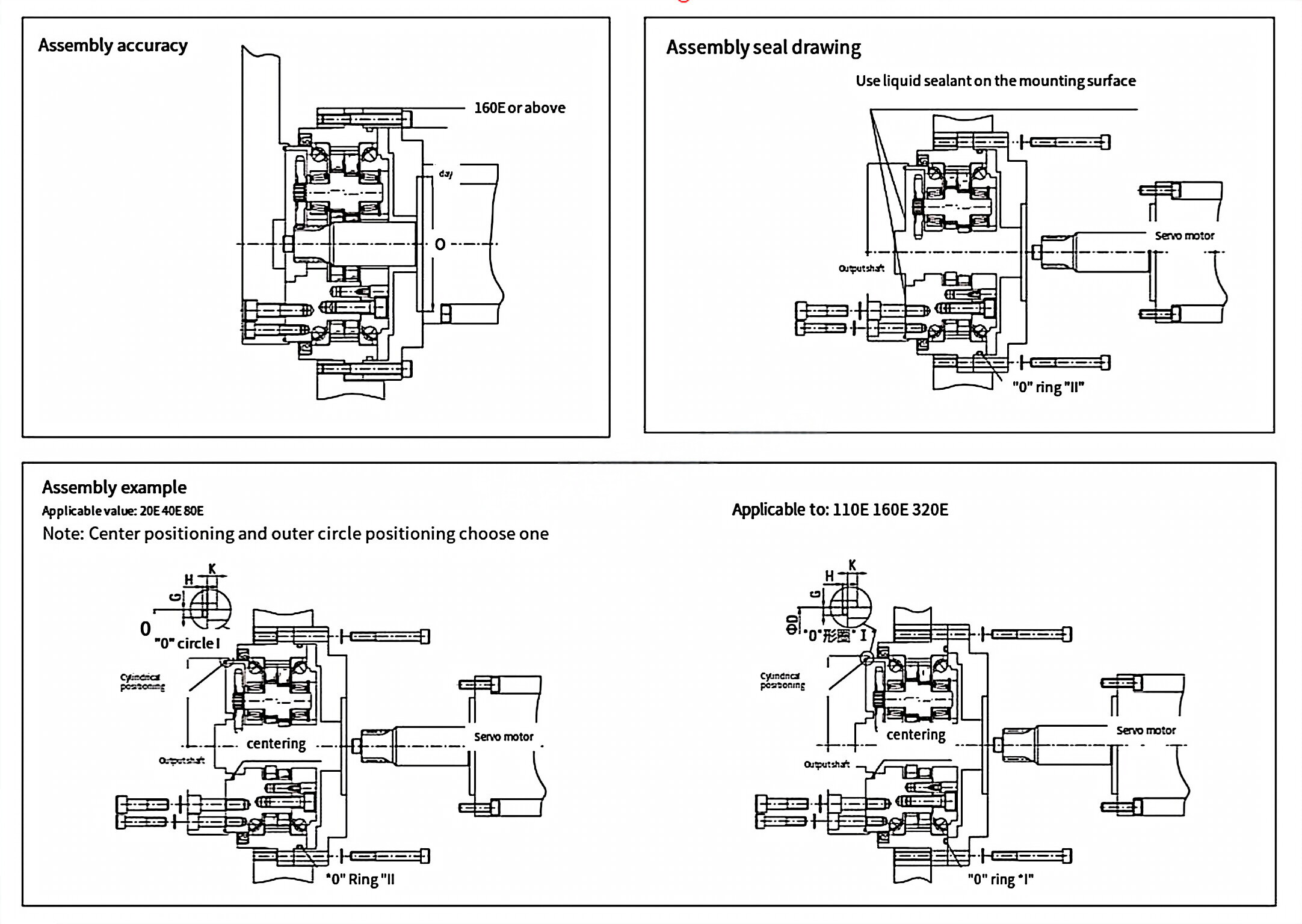

To ensure that the accuracy of the reducer can meet the usage requirements during the installation process. Please assemble according to the following requirements.Bare metal assembly essentials·The coaxiality error between the motor shaft and the reducer is less than 0.03mm (less than 0.05 for models above 160E).·If the installation accuracy is poor, it is easy to cause vibration and noise.·When assembling, the specified lubricating grease must be sealed in the specified amount.·Standard diagram when the reducer is assembled with matching components. The "0" ring position in the diagram needs to be sealed.
