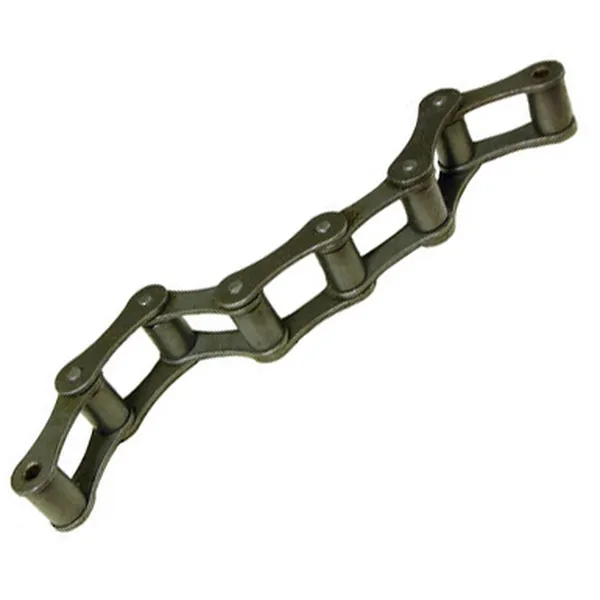

S42 Agricultural Roller Chain

S42 Roller Chain for Agricultural

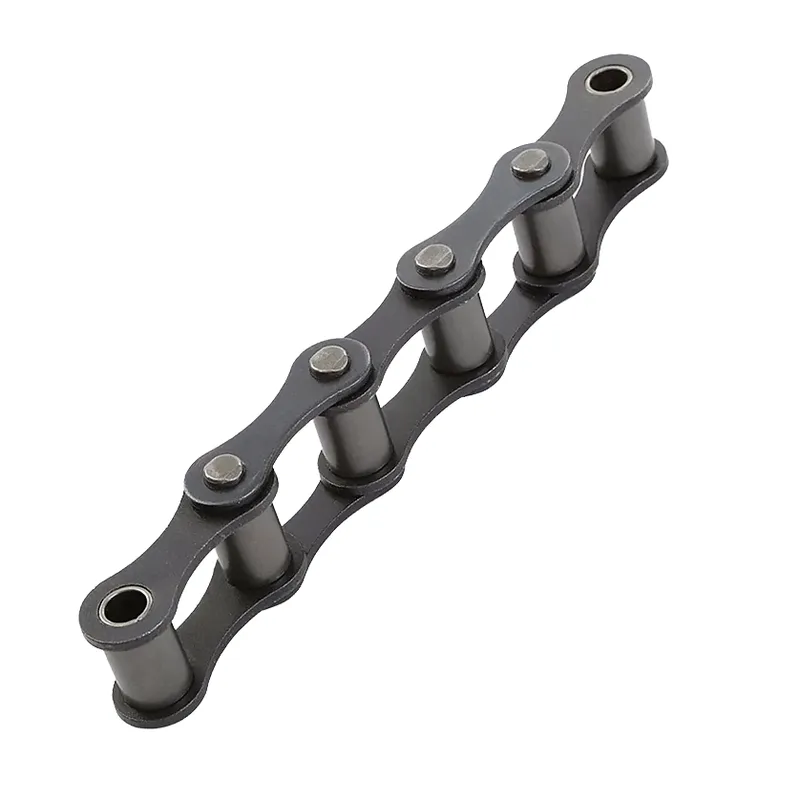

The S42 agricultural roller chain is a type of roller chain that is commonly used in agricultural applications, such as in combine harvesters, balers, and other farm equipment. It is a high-strength chain that is designed to handle heavy loads and withstand the harsh operating conditions of the agricultural industry.The "S42" designation refers to the chain's pitch, which is the distance between the centers of adjacent rollers in the chain. In this case, the pitch is 34.93 mm. The agricultural chain is made up of a series of interconnected links, with each link consisting of two outer plates, a pin, and a bushing. The rollers are mounted on the bushings and rotated on the pins, allowing the chain to move smoothly and transmit power from one component to another.The S42 agricultural roller chain is typically made from high-quality steel and is available in a range of sizes and configurations to fit different agricultural applications. It is important to select the appropriate chain size and strength for the specific application in order to ensure reliable operation and prevent premature wear or failure.

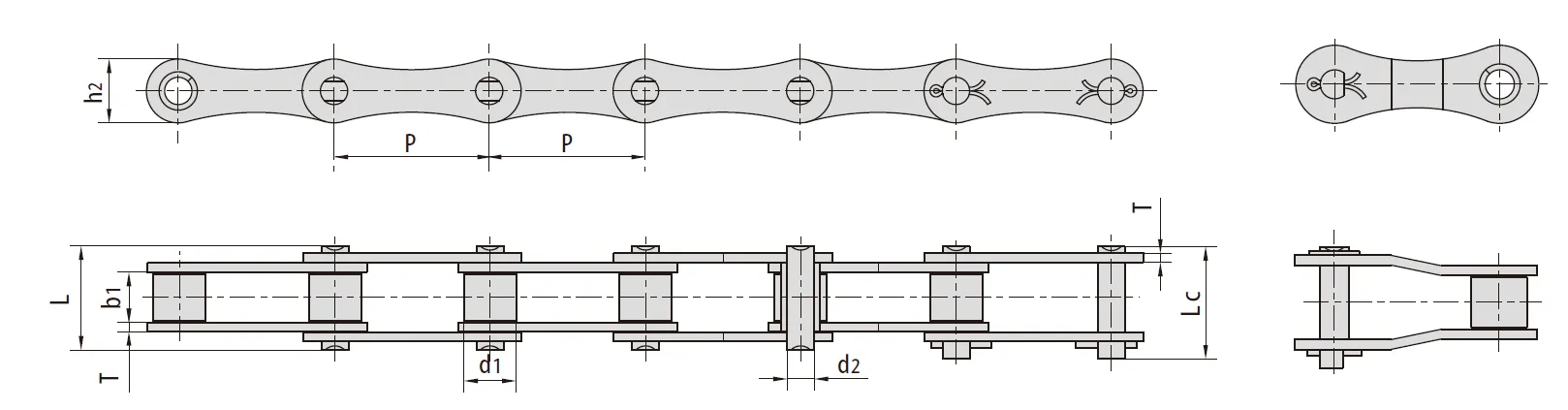

S42 Roller Chain Dimensions

Chain No:	S42 Chain
Pitch (P):	34.93mm
Roller Diameter (d1):	14.27mm
Width Between Inner Plates (b1):	19.05mm
Pin Diameter (d2):	7.00mm
Pin Length (L):	34.3mm
Connecting Link Pin Length (Lc):	37.0mm
Inner Plate Depth (h2):	19.8mm
Plate Thickness (T):	2.8mm
Tensile Strength:	8,992 LBS
Weight Per Meter:	3.53 LBS

Key Features of S42 Agricultural Roller Chain

1. Durable Construction: The S42 roller chain is crafted from high-quality steel, providing exceptional strength and durability. This robust construction is crucial for withstanding the intense demands of agricultural environments, where equipment is often exposed to heavy loads, rough terrain, and continuous operation, ensuring long-lasting performance and reliability.
2. Corrosion Resistance: To combat the challenges posed by moisture and varying weather conditions, the S42 agricultural chain is often coated with special rust-resistant materials. This protective layer helps prevent corrosion, significantly extending the chain's lifespan and maintaining its functionality, even when used in humid or wet environments typical of agricultural settings.
3. Smooth Operation: Precision-engineered rollers and links are a hallmark of the S42 roller chain. These components are designed to minimize friction, ensuring seamless and efficient movement. This smooth operation reduces wear and tear, which is essential for maintaining the longevity and performance of agricultural machinery.
4. High Load Capacity: The S42 agricultural roller chain is built to handle heavy loads, making it ideal for demanding agricultural tasks. Its high load capacity ensures it can support the weight and stress of various machinery applications, such as driving conveyors or powering balers, without compromising on performance or safety.
5. Low Maintenance Requirements: Thanks to its durable design and protective features, the S42 roller chain requires minimal maintenance. This is particularly beneficial in agricultural contexts, where frequent maintenance can lead to costly downtime. Farmers can rely on the chain's longevity and efficiency, allowing them to focus on productivity.
6. Versatile Application: The S42 chain is compatible with a wide range of agricultural machinery. Its versatility makes it suitable for use in combines, harvesters, balers, and more. This adaptability ensures that it meets the diverse needs of farmers and can be integrated into various pieces of equipment seamlessly.

Common Applications of S42 Roller Chains

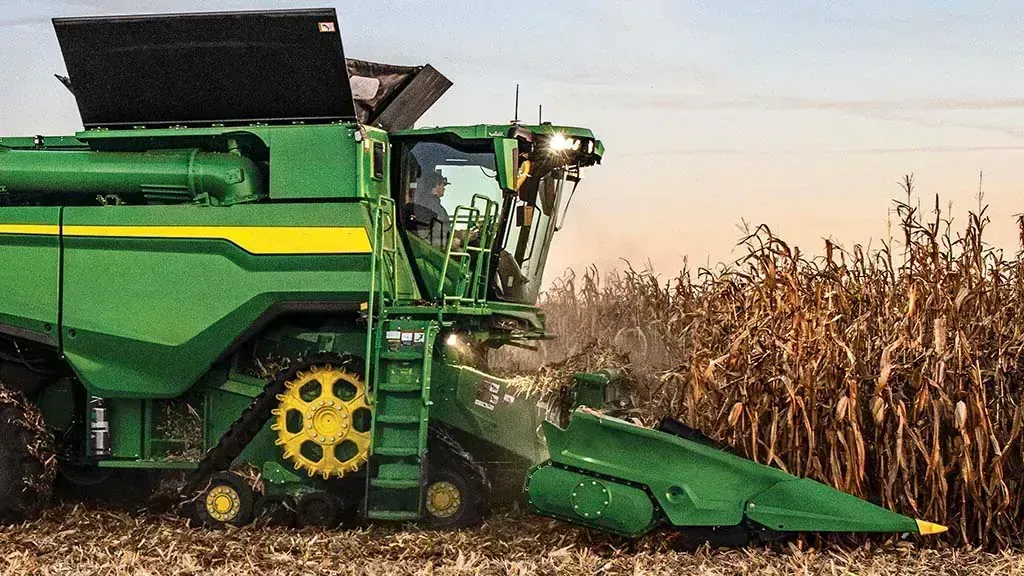

• Corn Harvesters: In corn harvesters, the S42 roller chain is crucial for driving the mechanisms that strip ears of corn from stalks. Its durability and strength allow it to handle the heavy loads and continuous operation required during the harvest season, ensuring efficient and reliable performance in challenging agricultural conditions.
• Rice Harvesters: Rice harvesters rely on the S42 roller chain to manage the intricate processes of cutting, threshing, and winnowing. Given the wet and muddy environments in which rice is often harvested, the chain's corrosion resistance and smooth operation are vital for maintaining efficiency and reducing downtime during critical harvesting periods.

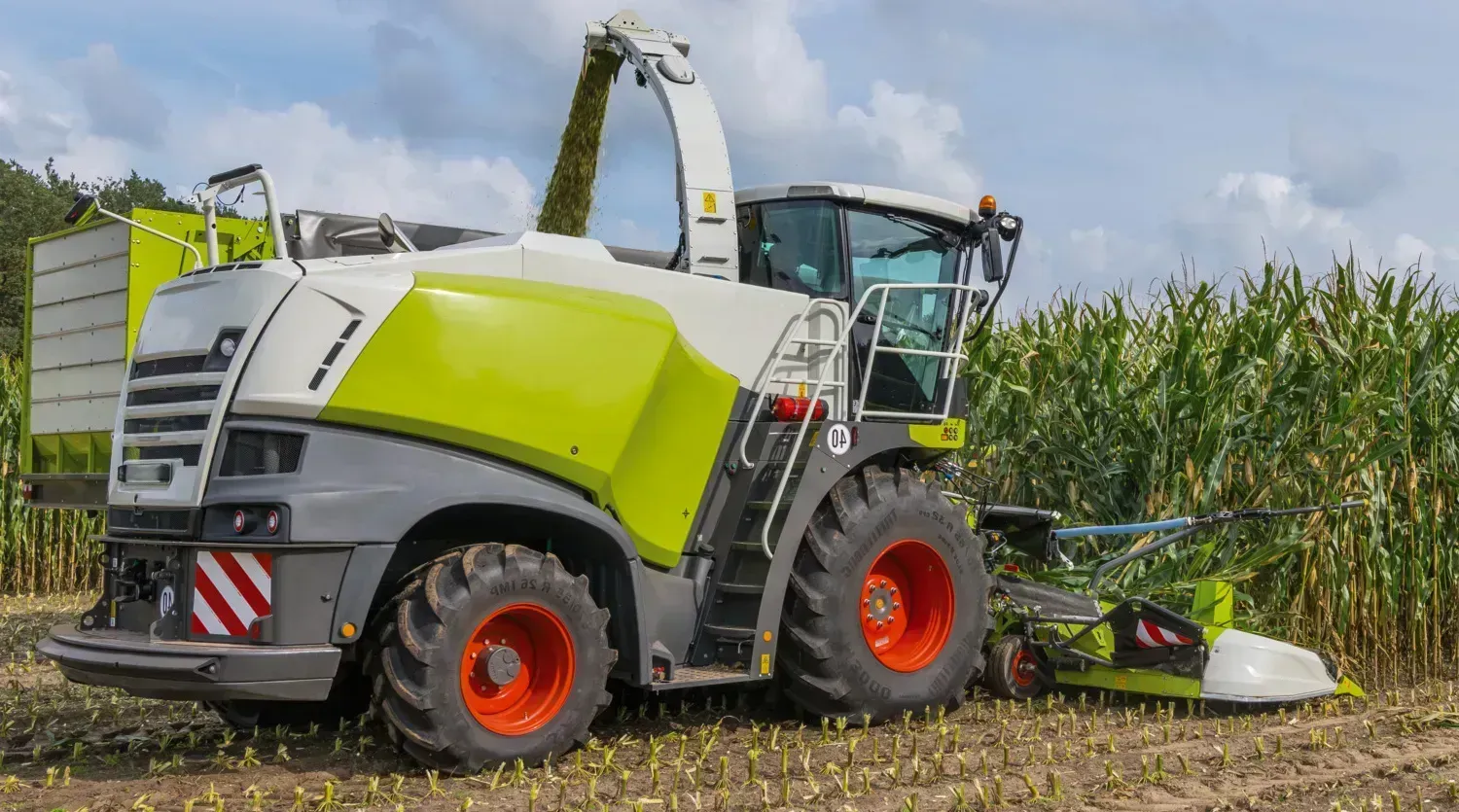

• Silage Harvesters: In silage harvesters, the S42 agricultural chain plays a key role in chopping and collecting forage crops. Its high load capacity ensures it can handle the substantial stress and volume of material processed, while its low maintenance needs help farmers maintain productivity without frequent interruptions for repairs or adjustments.

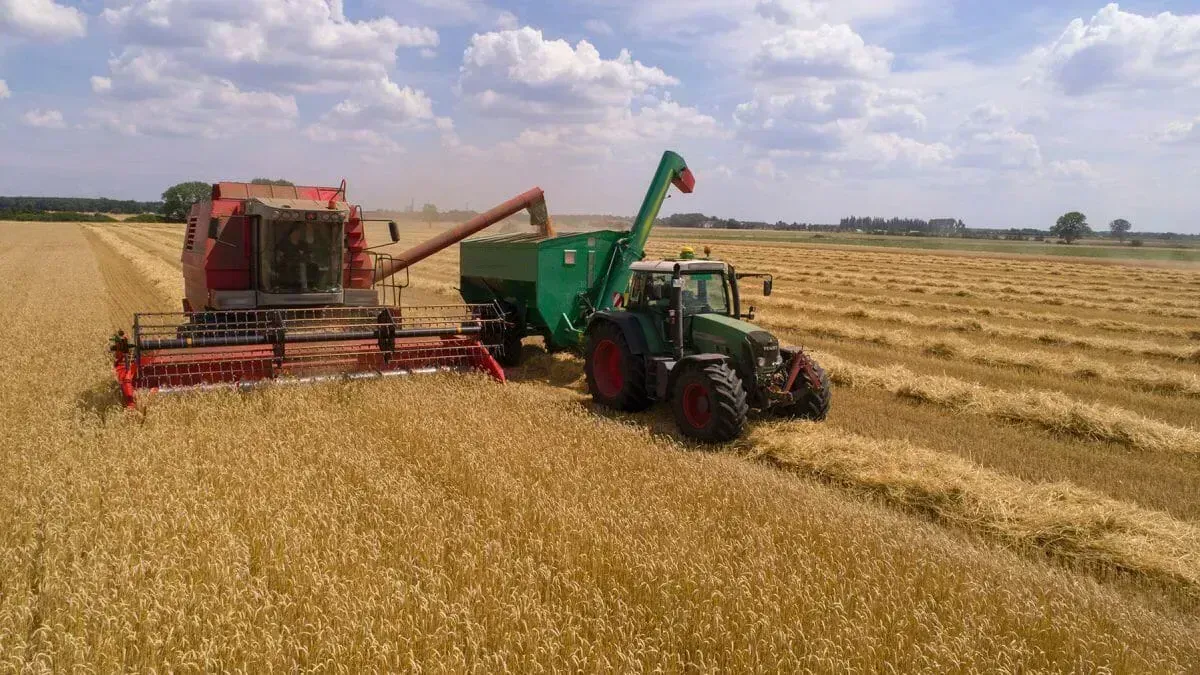

• Wheat Harvesters: Wheat harvesters utilize the S42 roller chain to power the cutting and threshing components. The chain's robust construction and precision engineering facilitate smooth operation, minimizing wear and tear. This reliability is essential for harvesting large fields efficiently, allowing farmers to process crops quickly and effectively during the short harvest window.

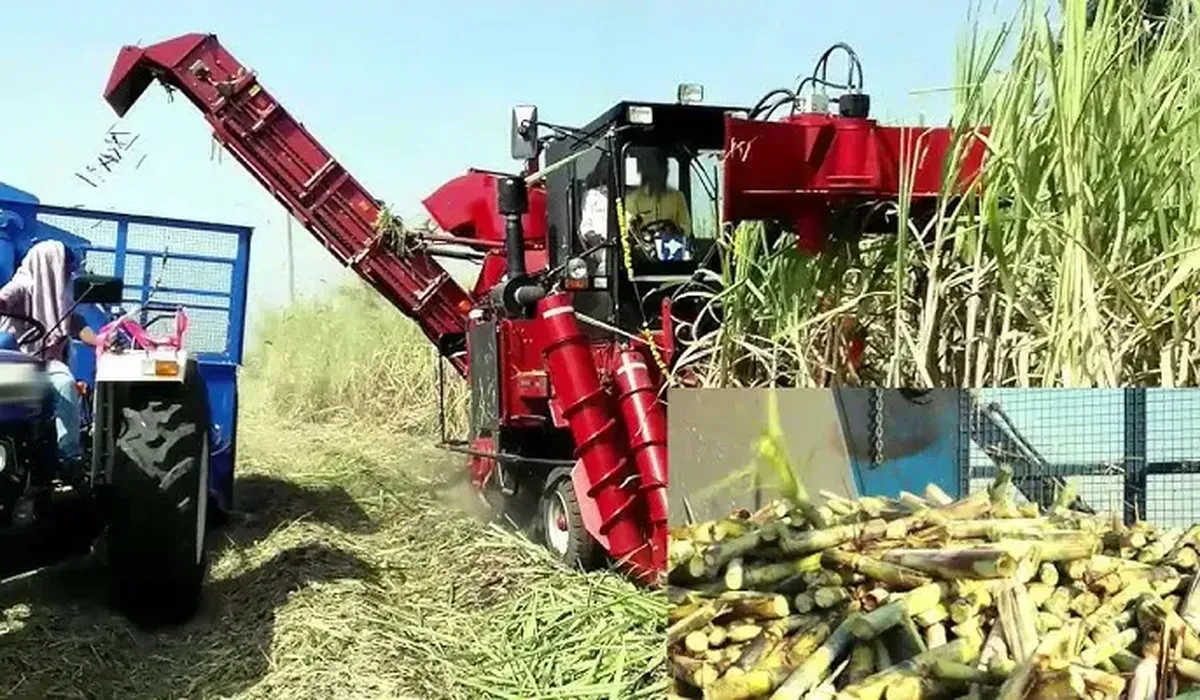

• Sugarcane Harvesters: The S42 agricultural roller chain is integral to sugarcane harvesters, which demand high durability to cut and transport heavy, fibrous stalks. Its corrosion-resistant properties are especially beneficial in the often humid climates where sugarcane is grown, ensuring the chain's longevity and maintaining the harvester's operational efficiency throughout the season.
• Cotton Harvesters: Cotton harvesters depend on the S42 chain for the collection and processing of cotton bolls. The chain's capacity to handle varying loads and its resistance to wear are crucial for maintaining consistent performance. This reliability helps maximize yield and minimize losses, which is essential for the profitability of cotton farming operations.

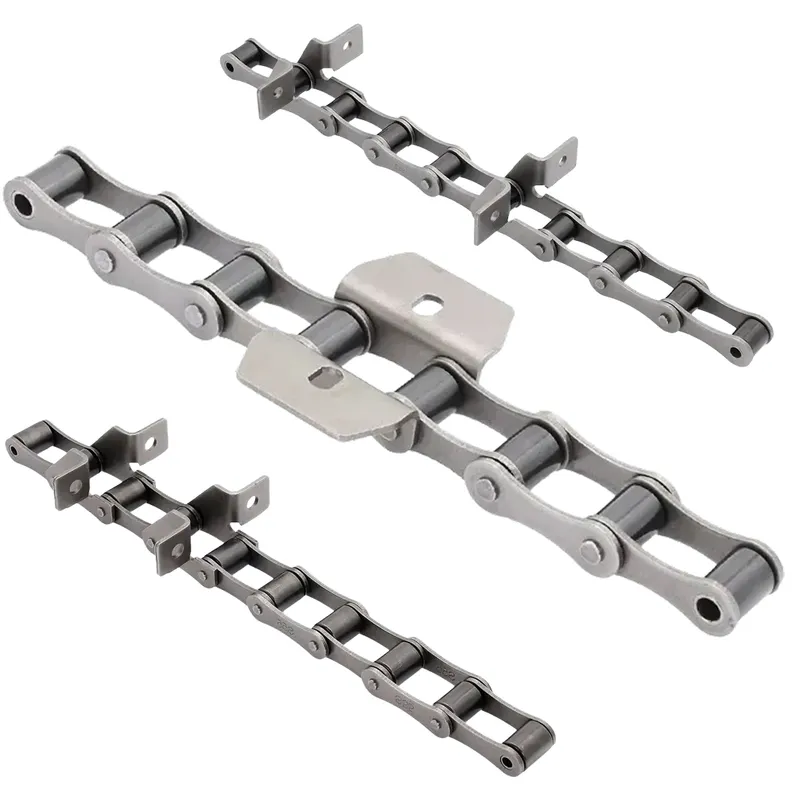

S42 Roller Chain Attachments

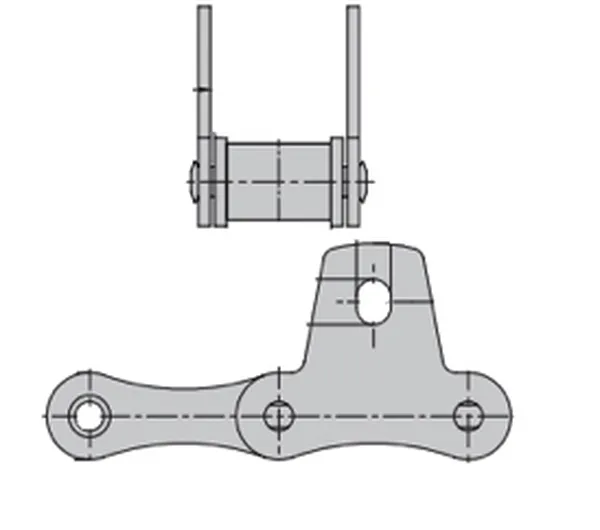

1. S42 Chain SK1 Attachments: SK1 attachments for the S42 chain are specifically designed to provide additional stability and functionality. These attachments typically involve a single bent tab or extension on one side of the chain link. They are used to secure various agricultural tools or components, enhancing the chain's versatility in equipment like harvesters and conveyors.

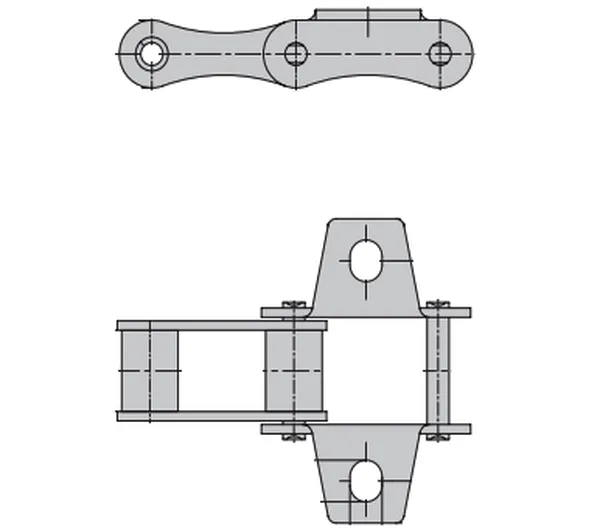

2. S42 Chain K1 Attachments: K1 attachments feature a straight tab or extension on both sides of the chain link, offering balanced support and increased load distribution. These attachments are ideal for applications requiring precise alignment and stability, such as driving conveyor belts or supporting cutting mechanisms in agricultural machinery. Their robust design ensures reliable performance under heavy-duty conditions.
3. OEM Custom Attachments: OEM custom attachments for the S42 chain are tailored to meet specific equipment requirements set by original equipment manufacturers. These bespoke solutions allow for unique configurations and modifications, optimizing the chain's functionality for specialized tasks. Custom attachments ensure that the chain integrates seamlessly with proprietary machinery designs, enhancing overall efficiency and performance.

S42 Chain SK1 Attachment	S42 Chain K1 Attachment

S42 Agricultural Roller Chain Materials Available

The S42 agricultural roller chain is typically available in a variety of materials to suit different needs and operating conditions in agricultural machinery. Some common materials used for manufacturing S42 roller chains include:

• 45Mn Alloy Steel:?The 45Mn alloy steel is known for its excellent tensile strength and toughness, making it ideal for demanding agricultural applications. Its high manganese content enhances its wear resistance, ensuring a long service life even under heavy loads. This material is particularly suited for environments where durability and strength are critical for performance.
• 42CrMo Alloy Steel:?42CrMo alloy steel offers superior strength and toughness, with an excellent balance of ductility and wear resistance. It is heat-treatable, which allows for increased hardness and endurance under stress. This makes it perfect for high-stress applications in combine harvesters, where reliable performance and longevity are essential for operational efficiency.
• 20CrMo Alloy Steel:?Known for its excellent hardenability and toughness, 20CrMo alloy steel is a versatile material used in roller chains. It provides good fatigue strength, which is essential for applications involving repetitive motion. Its chemical composition allows for enhanced performance in harsh environments, making it a reliable choice for agricultural machinery components.
• SS304 Stainless Steel:?SS304 stainless steel offers excellent corrosion resistance and is perfect for use in environments exposed to moisture and chemicals. Its non-magnetic properties and ability to withstand extreme temperatures make it versatile for various applications. This material ensures the chain remains reliable and maintenance-free, even in challenging agricultural conditions.
• SS316 Stainless Steel:?SS316 stainless steel is known for its superior corrosion resistance, especially against chlorides and industrial solvents. This makes it ideal for agricultural environments where exposure to chemical fertilizers and harsh weather conditions is common. Its robustness and longevity make it a preferred choice for components that require high durability and minimal maintenance.
• OEM According to Your Request:?Customization through OEM options allows for tailored material solutions to meet specific operational needs. Whether it’s enhancing corrosion resistance, increasing tensile strength, or adjusting to unique environmental conditions, OEM capabilities ensure the roller chain material is perfectly suited to your combine harvester’s requirements, optimizing performance and longevity.

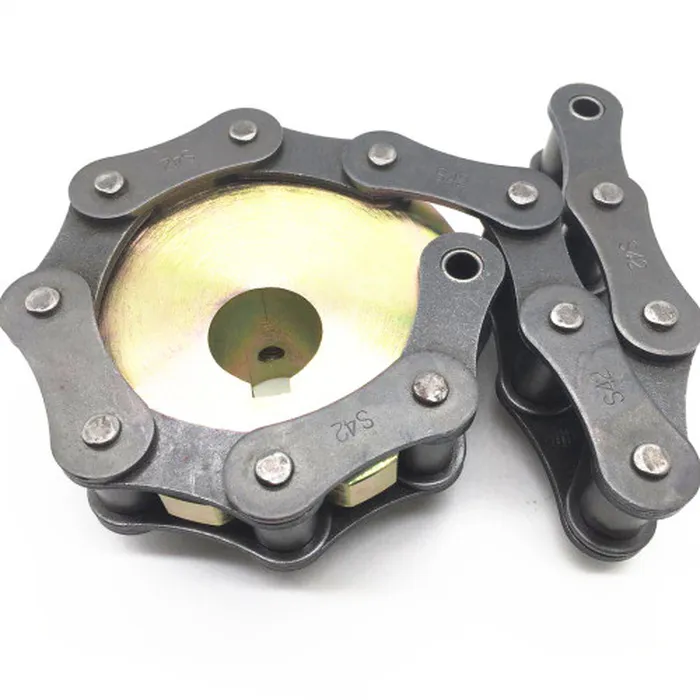

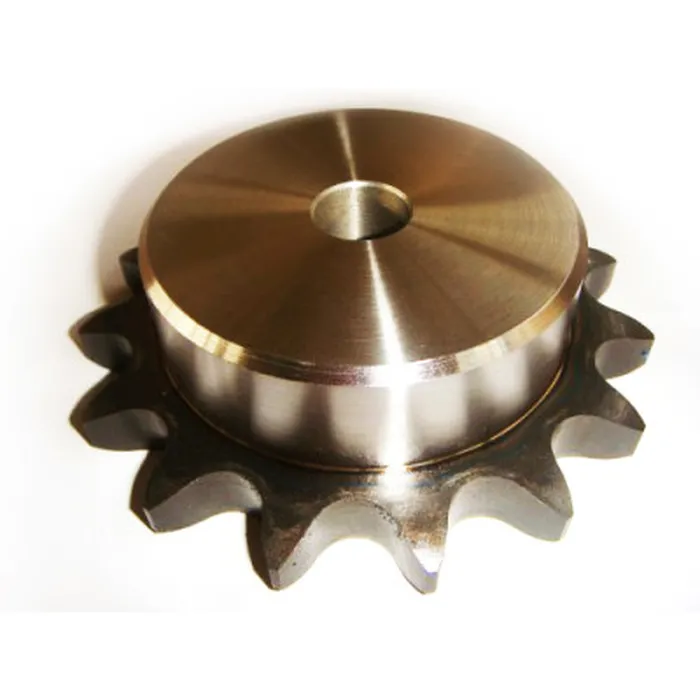

S42 Chain Sprockets for S42 Chain

The S42 chain and S42 chain?sprockets form an integral part of agricultural machinery, working together to ensure efficient power transmission and operation. The sprockets are specifically designed to mesh perfectly with the S42 chain, ensuring smooth and precise movement. This compatibility is crucial for maintaining the durability and performance of the machinery in which they are used.S42 chain sprockets are typically made from high-strength materials, such as hardened steel, to withstand the rigorous demands of agricultural environments. Their teeth are precision-engineered to fit the links of the S42 chain precisely, minimizing wear and reducing the risk of slippage. This precise fit is essential for maintaining the efficiency of machines like harvesters, balers, and conveyors, where consistent power delivery is necessary.The relationship between the S42 chain and its sprockets is symbiotic. The chain sprockets guide the chain, ensuring it remains aligned and operates smoothly, while the chain transfers power from the engine or motor to various parts of the machinery. This power transmission is vital for driving components such as cutting blades, feeder mechanisms, and conveyor belts, which are essential for processing crops like corn, wheat, and rice. The efficiency of this system directly impacts the productivity and reliability of agricultural operations, minimizing downtime and maintenance requirements.In addition to their functional relationship, the sprockets and chain must be maintained regularly. Proper lubrication, alignment checks, and timely replacement of worn parts are essential to extend the lifespan of both components. Regular maintenance ensures that the machinery operates at peak efficiency, reducing operational costs and improving overall productivity.

China Agricultural Roller Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains,?81X conveyor chains, agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain,?engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
