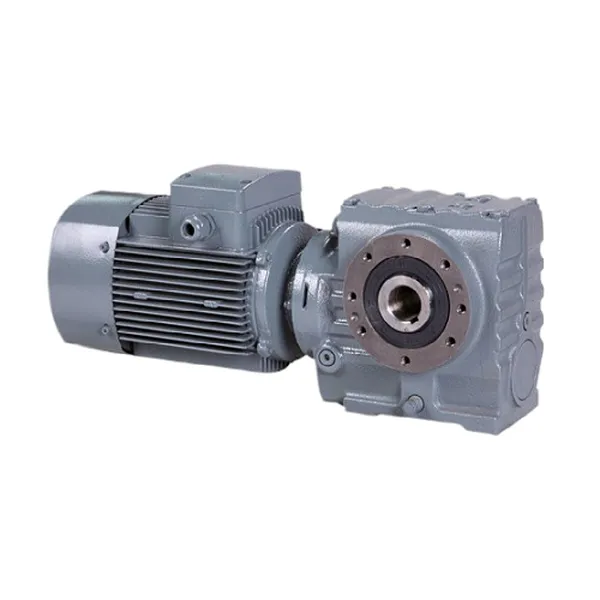

SA Series Hollow Shaft Helical Worm Gearbox with Flange Mounted

SA Series Hollow Shaft Helical Worm Gearbox with Flange Mounted

SA series is the type of hollow shaft mounted. For the SA series helical worm gearbox, the same type can be equipped with motors of various rate powers, and it is easy to realize the combination through the connection of various models. It has high transmission efficiency, and the efficiency of the single-type reducer is as high as 96%. And the transmission ratio is finely divided and has a wide range. The combined model can form a larger transmission ratio and achieve a low output speed. SA series helical worm gearbox can be installed in various forms like foot, B5 flange, B14 flange, hollow shaft, or torsion arm.SA series helical worm gearbox is designed and manufactured on the basis of the modular combination system. There are many motor combinations, installation forms, and structural schemes. The wide range of transmission ratios meets different working conditions of our customers.

SA Series Hollow Shaft Helical Gearbox Specifications:

Product name:	SA series helical gearbox
Model:	SA37、SA47、SA57、SA67、SA77、SA87、SA97
Mounting ways:	Foot mounted, flange mounted, torque arm
Input ways:	Motor input, AM (IEC) flange input, and shaft input
Output way:	Solid shaft output or hollow shaft output
Efficiency:	up to 96%
Housing material:	HT250 high-strength cast iron
Worm Gear material:	High-quality copper
Gear material:	20CrMnTi
Surface hardness of gears:	HRC58-62
Input/Output shaft:	40Cr steel
Heat treatment:	Carburizing and quenching
Bearing:	C&U or another brand
Oil seal:	NAK or another brand
Lubricating oil:	Gear oil
Packing:	Pywood case

SA Series Hollow Shaft Helical Worm Gearbox Parameters:

Size	37	47	57	67	77	87	97
Structure	S  SA  SF  SAF  SAT  SAZ
Input power(kW)	0.18-0.75	0.18-1.5	0.18-3	0.25-5.5	0.55~7.5	0.75-15	1.5-22
Ratio	10.27~165.71	11.46-244.74	10.75-196.21	11.55-227.20	96-241.09	11.83-223.26	12.75-230.48
Permissible torque(N.m)	90	170	300	520	1270	2280	4000

SA Series Hollow Shaft Helical Worm Gearbox Advantages:

1. High modular design, biomimetic surface with an owned intellectual property right.2. Adopt a German worm hob to process the worm wheel.3. With the special gear geometry, it gets high torque, efficiency, and a long life circle.4. Can achieve the direct combination for two sets of gearboxes.5. Mounting mode: foot mounted, flange mounted, torque arm mounted.6. Output shaft: solid shaft, hollow shaft.

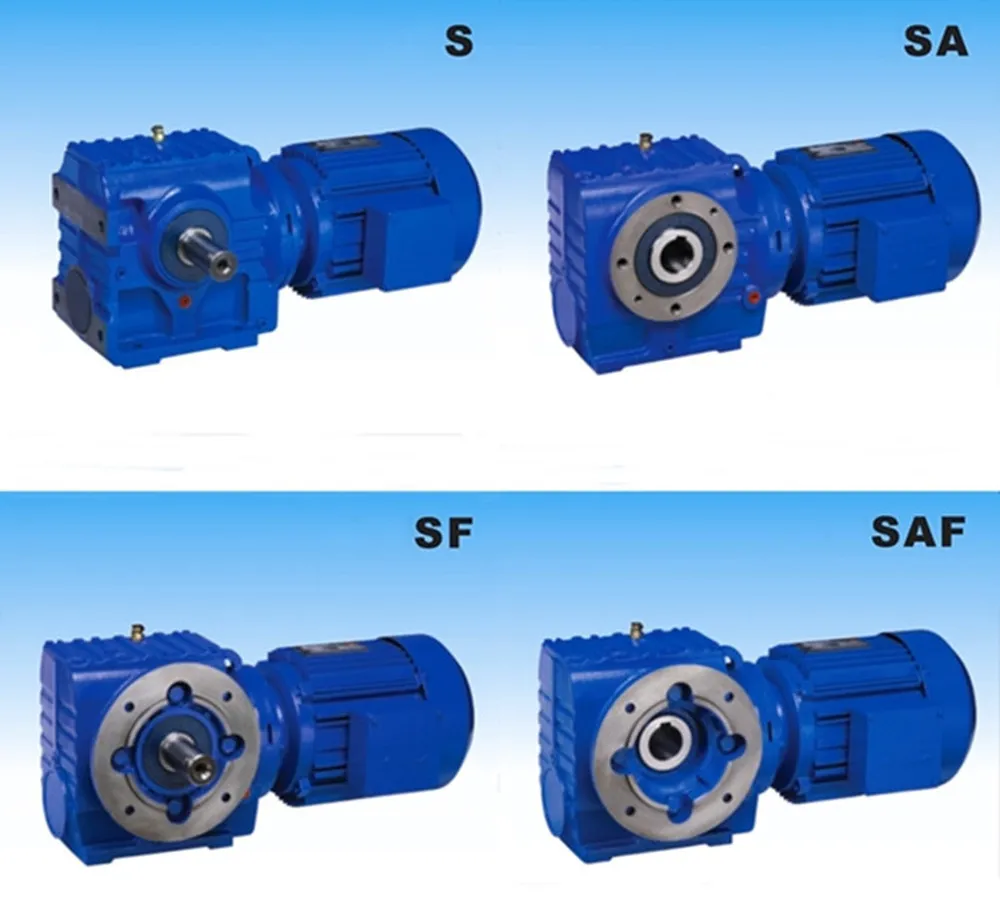

S Series Helical Worm Gearbox Other Types:

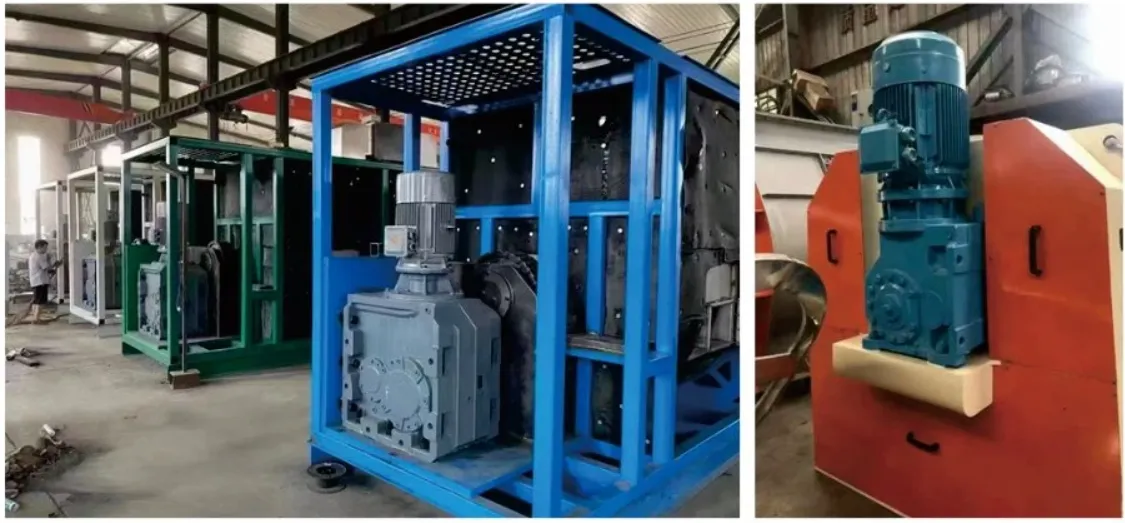

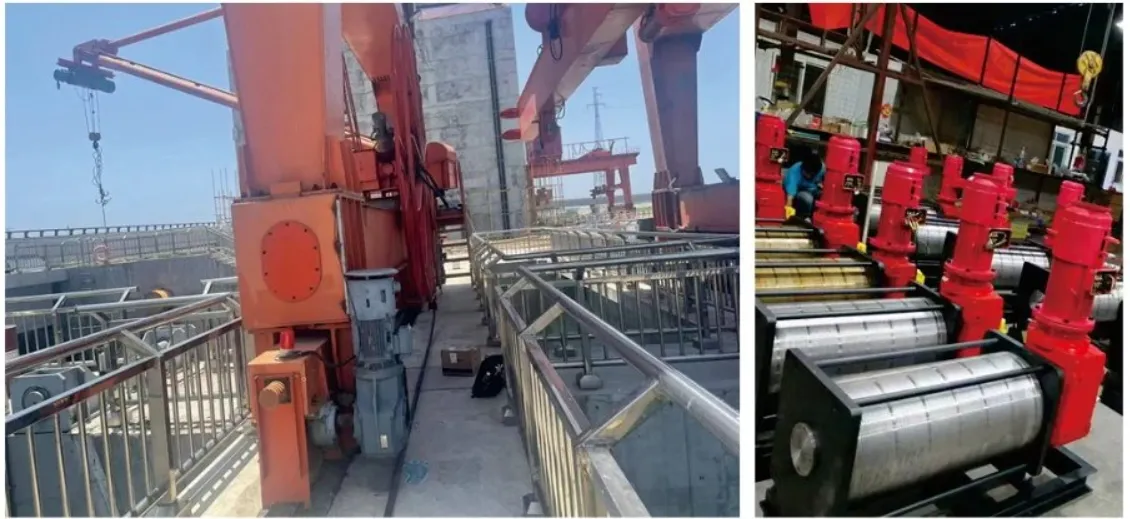

SA Series Helical Worm Gearbox Main Applications:

1. Chemical industry and environmental protection2. Metal processing3. Building and construction4. Agriculture and food5. Textile and leather6. Forest and paper7. Car washing machinery

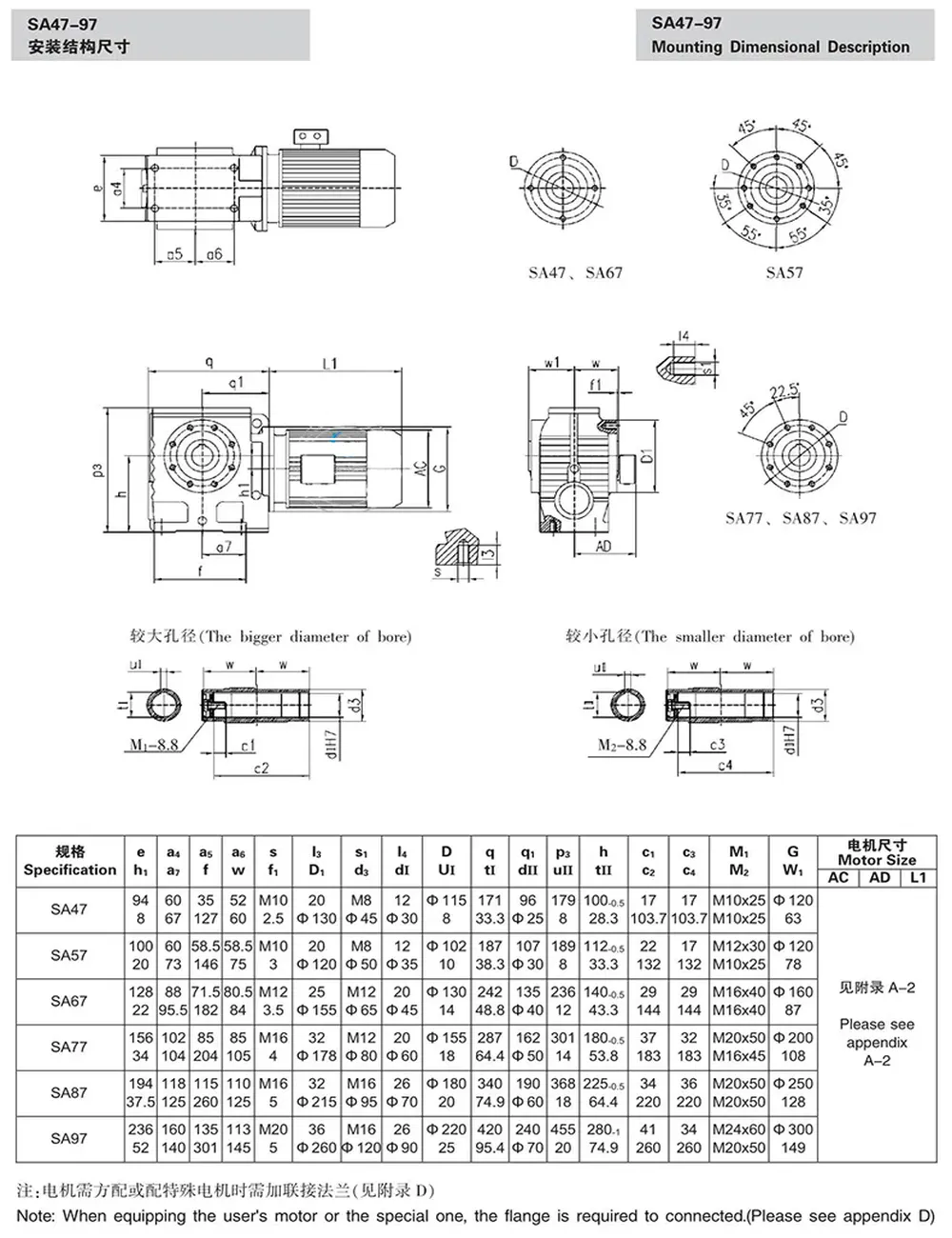

SA Series Helical Worm Gearbox Mounting Dimensions:

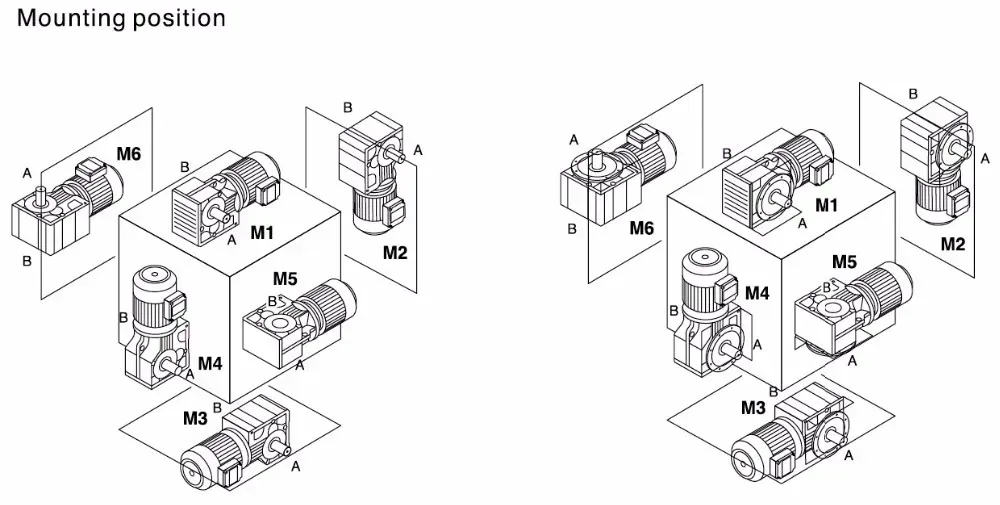

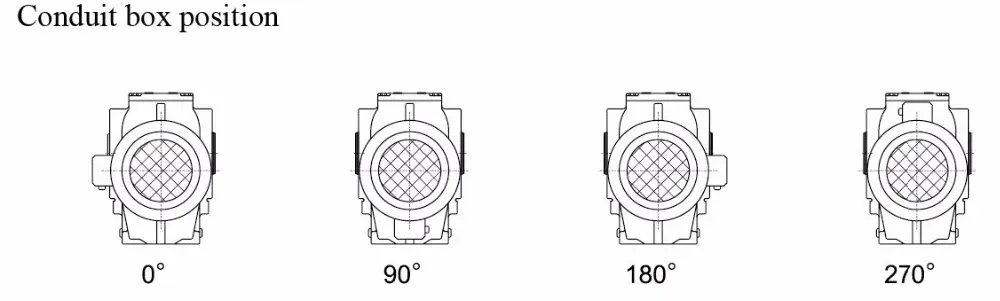

SA Series Helical Worm Gearbox Mounting Position:
