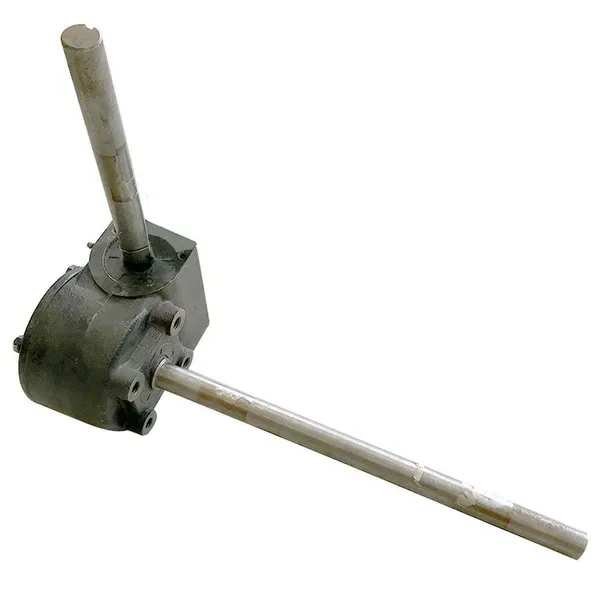

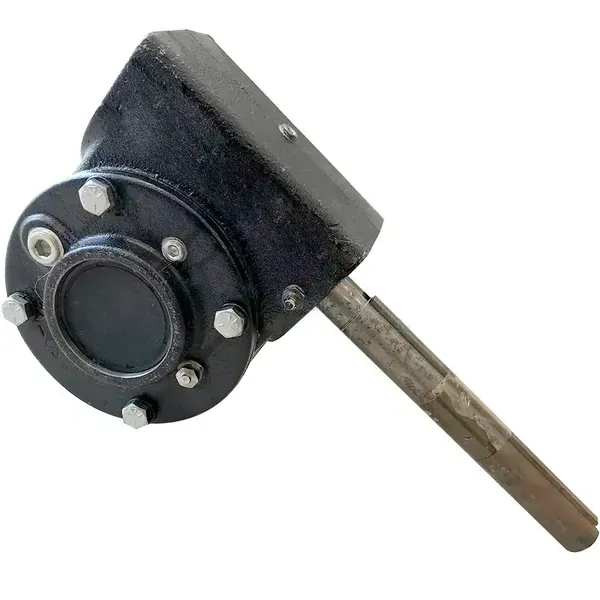

Salt Spreader Gearbox with Sprocket for Road Snow Removal

Salt Spreader Gearbox with Sprocket for Road Snow Removal

A salt spreader gearbox is a crucial component of equipment used for road snow removal. It plays a vital role in distributing salt or other de-icing materials evenly across road surfaces to melt snow and ice, improving traction and ensuring safer driving conditions. The gearbox is responsible for transferring power from the drive system to the spinner mechanism, which disperses the salt or ice melt onto the road.

Key Components of the Salt Spreader Gearbox with Sprocket

Here is a breakdown of the key components and functions of a typical salt spreader gearbox:Gear Train: The gearbox consists of a series of gears that transmit power from the input (driveshaft) to the output (spinner mechanism). The gear train helps to increase or decrease the rotational speed and torque as required.Input Shaft: The input shaft connects to the drive system of the salt spreader, such as a hydraulic motor or a power take-off (PTO) shaft from a vehicle. It transfers the rotational force to the gearbox.Output Shaft: The output shaft is connected to the spinner mechanism, which is responsible for spreading the salt or ice melt material. When the gearbox receives power from the input shaft, it transfers the rotational force to the output shaft, causing the spinner to rotate.Bearings: Bearings are used to support and allow smooth rotation of the gears and shafts within the gearbox. They help reduce friction and ensure efficient power transmission.Seals: Seals are used to prevent contaminants, such as water, dirt, and debris, from entering the gearbox. They help maintain proper lubrication and protect the internal components from damage.Lubrication System: The gearbox requires proper lubrication to minimize friction and wear between the moving parts. Lubricating oil or grease is typically used, and periodic maintenance is essential to ensure the gearbox operates smoothly.Housing: The gearbox is enclosed in a housing that provides protection and support to the internal components. The housing is designed to withstand the harsh operating conditions encountered during snow removal operations.

Specification of Salt Spreader Gearbox with Sprocket

Product Name	Salt Spreader Gearbox with Sprocket for Road Snow Removal
Fits:	SaltDogg SCH072SS, SCH072SSX, SCH096C, SCH096CX, SCH096SS, SCH096SSX, SCH120SS and SCH120SSX Spreaders
Diameter	6.000
Shaft Diameter	1.000
Mounting Pattern	4 Bolt @ 5.42"
Rotation	Clockwise
Speed	900 RPM
Warranty	1 Year

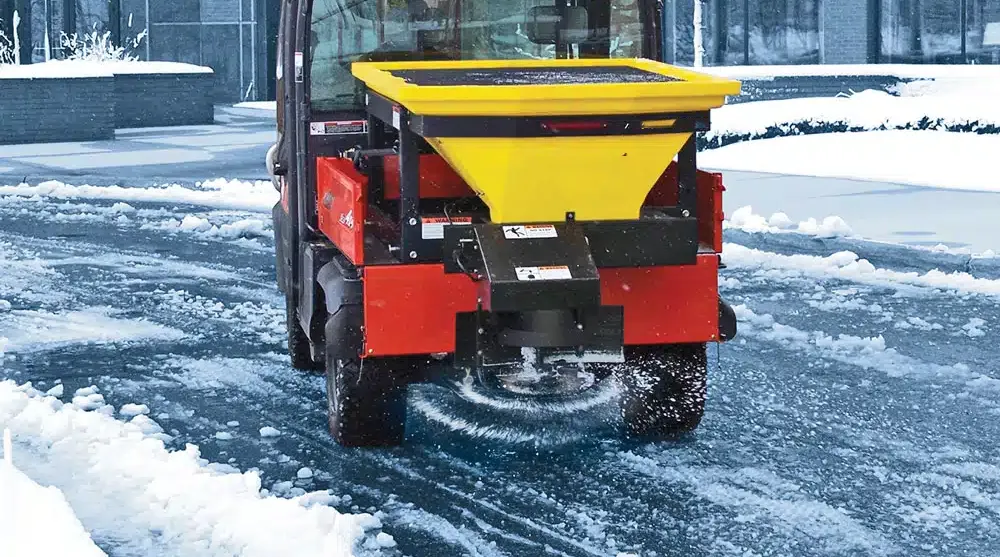

Working Principle of Salt Spreader Gearbox for Road Snow Removal

The working principle of a salt spreader gearbox for road snow removal involves a series of mechanical processes designed to efficiently distribute salt or other de-icing materials over roads and pavements. This system is crucial for maintaining road safety and accessibility during winter months. Here's a step-by-step explanation of how it typically works:(1) Power Input: The salt spreader gearbox receives power from the drive system of the snow removal equipment. This power is typically provided by a hydraulic motor or a power take-off (PTO) shaft connected to a vehicle.(2) Input Shaft: The power from the drive system is transmitted to the gearbox through the input shaft. The input shaft is connected to the gearbox and receives the rotational force.(3) Gear Train: Inside the gearbox, there is a gear train consisting of multiple gears with different sizes. The gears are arranged in a specific configuration to achieve the desired speed and torque.(4) Power Transmission: As the input shaft rotates, it drives the first gear in the gear train. The rotation of the first gear transfers power to the subsequent gears in the train, resulting in a speed or torque increase or decrease, depending on the gear ratios.(5) Output Shaft: The final gear in the gear train is connected to the output shaft. As power is transmitted through the gear train, it reaches the output shaft, causing it to rotate.(6) Spinner Mechanism: The output shaft is connected to the spinner mechanism, which is responsible for spreading the salt or ice melt material onto the road. The rotation of the output shaft is transferred to the spinner, causing it to rotate.(7) Material Dispersal: The spinner mechanism is designed to distribute the salt or ice melt material evenly across the road surface. This can be achieved through various mechanisms, such as an adjustable spinner plate or a dispersal auger, depending on the specific design of the salt spreader. The rotational speed of the spinner determines the rate at which the material is dispersed.By controlling the power input and adjusting the gear ratios, operators can regulate the speed and torque of the salt spreader gearbox, thereby controlling the rate and coverage of material distribution. This allows for efficient snow and ice removal and helps maintain safer driving conditions on the road.

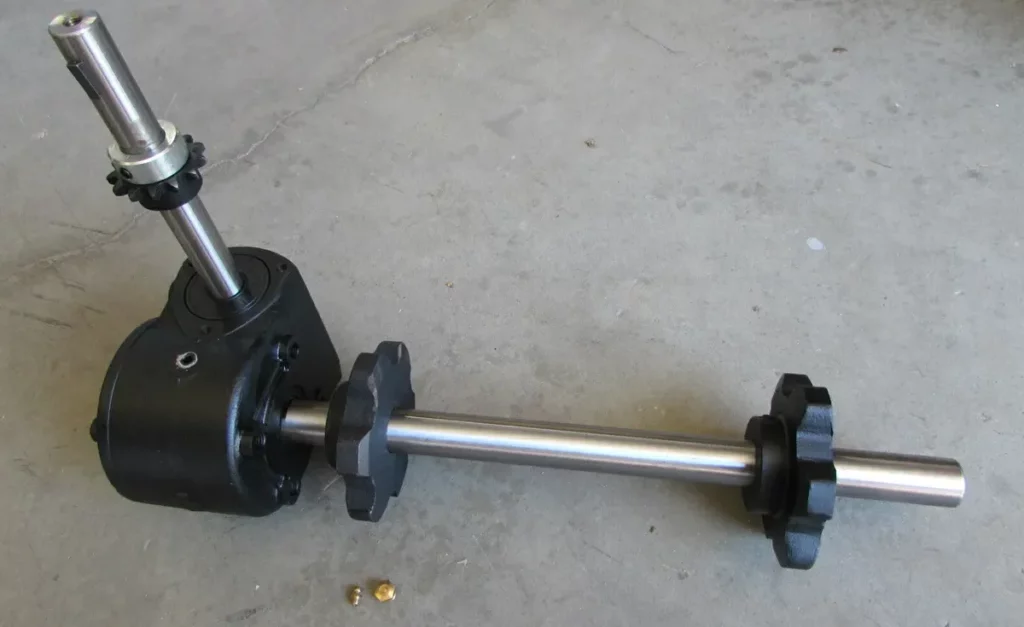

Maintenance of Salt Spreader Gearbox for Road Snow Removal

Proper maintenance of a salt spreader gearbox is essential to ensure its reliable performance and longevity. Here are some maintenance guidelines for maintaining a salt spreader gearbox used in road snow removal:1. Regular Inspection: Perform routine visual inspections of the gearbox to check for any signs of wear, damage, or leaks. Look for loose or damaged components, such as bolts, seals, and bearings. Inspect the housing for cracks or signs of corrosion. Address any issues promptly to prevent further damage.2. Lubrication: Proper lubrication is crucial for the smooth operation of the gearbox. Follow the manufacturer's recommendations for the type and quantity of lubricant to use. Regularly check the lubrication levels and top up or replace the lubricant as needed. Ensure that the lubrication points, such as bearings and gears, are adequately greased or oiled.3. Seal Maintenance: Inspect the seals for wear or damage. Replace any worn or faulty seals to prevent moisture and contaminants from entering the gearbox. Proper sealing helps maintain the lubrication and protects the internal components.4. Bearing Maintenance: Check the bearings regularly for signs of wear or damage, such as excessive noise, vibration, or rough operation. Lubricate the bearings as per the manufacturer's guidelines. If any bearings are worn or faulty, replace them promptly to prevent further damage to the gearbox.5. Cleaning: Regularly clean the exterior of the gearbox to remove dirt, debris, and salt residue. Use a mild detergent and water to wash the gearbox housing. Avoid using high-pressure water or harsh chemicals, as these can damage the seals or other components.6. Protection from Moisture and Corrosion: Salt and moisture encountered during snow removal operations can contribute to corrosion. Apply a protective coating or paint to the gearbox housing to prevent corrosion. Ensure that all access points, such as fill plugs and breathers, are properly sealed to prevent moisture ingress.

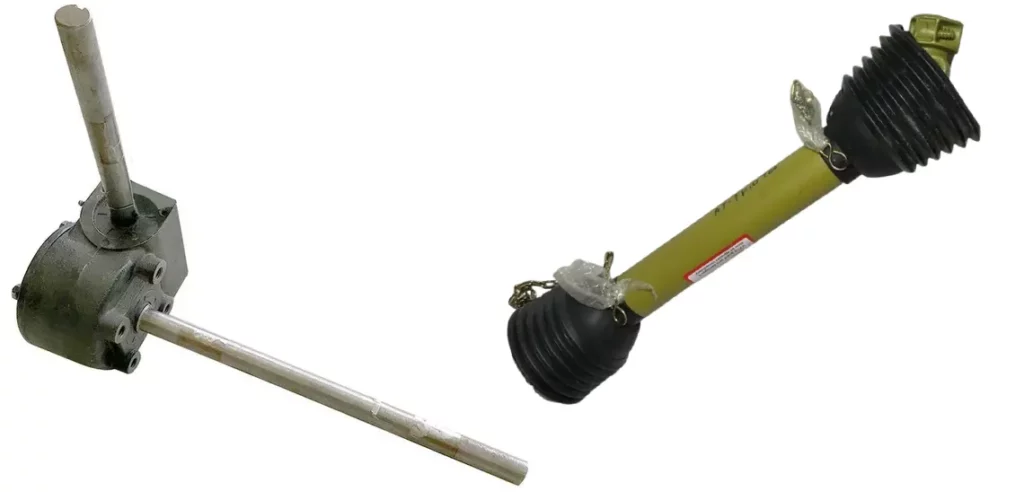

Agricultural PTO Shaft for Salt Spreader Gearbox

An agricultural Power Take-Off (PTO) shaft can be used to connect a salt spreader gearbox to the power source on agricultural equipment. The PTO shaft serves as a mechanical transfer of power from the tractor or other agricultural machinery to the salt spreader gearbox.Here are some key points to understand about using an agricultural PTO shaft with a salt spreader gearbox:

• Compatibility: Ensure that the PTO shaft you are using is compatible with both the salt spreader gearbox and the power source, such as a tractor. The PTO shaft should have the appropriate dimensions, spline count, and rotation direction to fit and connect securely.
• PTO Shaft Installation: Proper installation of the PTO shaft is crucial for safe and efficient operation. Follow the manufacturer's instructions for attaching the PTO shaft to the power source and the salt spreader gearbox. Ensure that all connections are securely fastened and that the PTO shaft is aligned correctly.
• Length Adjustment: The length of the PTO shaft may need to be adjusted to accommodate the distance between the power source and the salt spreader gearbox. Most PTO shafts have telescopic sections or a sliding mechanism that allows for length adjustment. Carefully follow the manufacturer's guidelines for adjusting the shaft length to ensure proper engagement and alignment.
• Safety Considerations: When working with a PTO shaft, it is essential to prioritize safety. Ensure that the PTO shaft is shielded with a proper protective guard or shield to prevent accidental contact with rotating components. Always engage and disengage the PTO shaft following the recommended procedures and safety guidelines provided by the equipment manufacturer.
• Maintenance: Regularly inspect the PTO shaft for any signs of wear, damage, or loose components. Check for proper lubrication of the shaft and ensure that all safety guards or shields are in place and functioning correctly. Replace any damaged or worn parts promptly to maintain safe and efficient operation.
