Scaffolding Coupler for Construction Engineering

Raydafon Group's Scaffolding Coupler for Construction Engineering ensures robust, secure connections on every job site. Crafted from premium materials, it offers superior durability and easy installation, ideal for contractors and builders seeking reliable efficiency. Elevate your projects with confidence – this coupler delivers peace of mind and unmatched performance.

Send Inquiry

Product Description

A scaffolding Coupler is an essential part of a tube and coupler scaffold. They are used to fix two vertical steel pipes, parallel or at any angle, so as to provide a temporary working platform for high-altitude operations. Scaffolding couplers usually need to comply with EN74 / BS1139 standards.Scaffold couplers used to connect steel pipes when building scaffolds, and connectors between steel pipes and other structures, are widely used in various types of scaffolding projects. There are usually European standards and Japanese standards. Raydafon, as China's leading scaffolding coupler supplier, focuses on introducing European standard scaffold fasteners to meet the use of the following countries, Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland, and the United Kingdom.

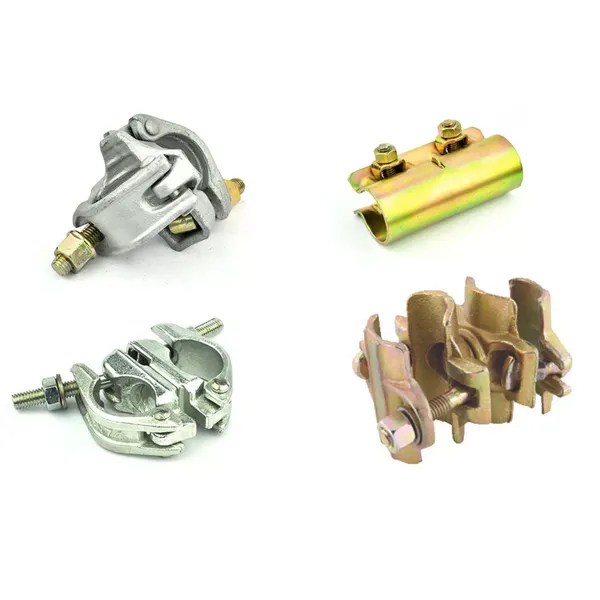

Scaffolding Couplers Types


Right Angle Scaffolding Coupler	Sleeve Scaffolding Coupler	Swivel Scaffolding Coupler

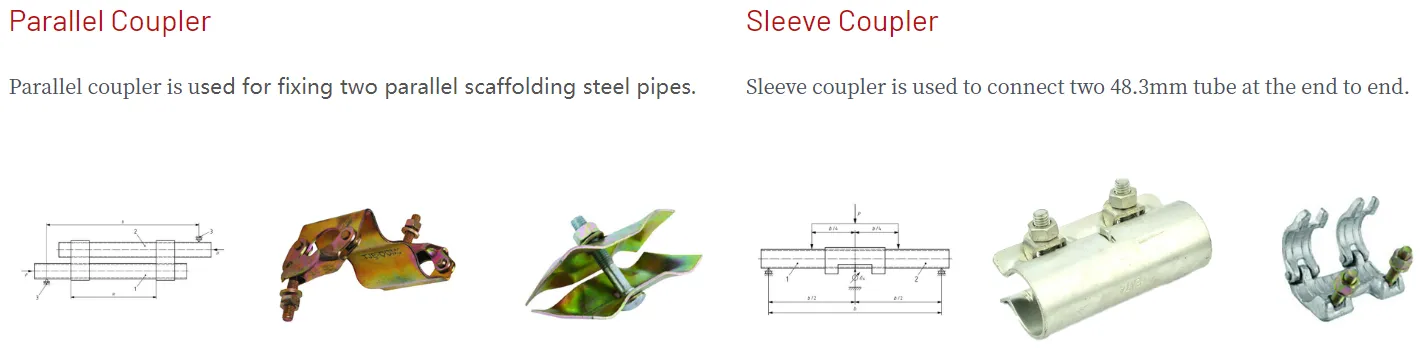

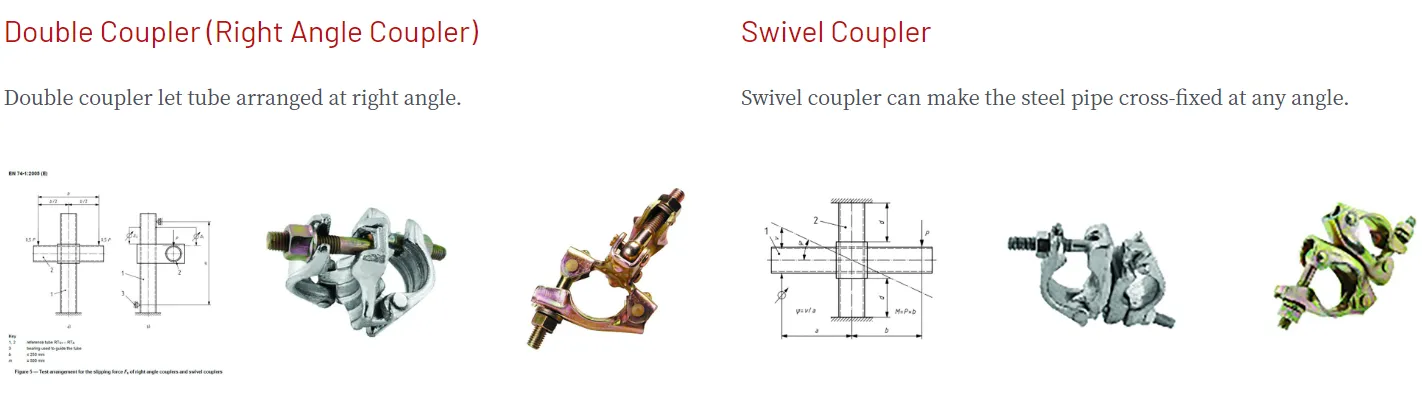

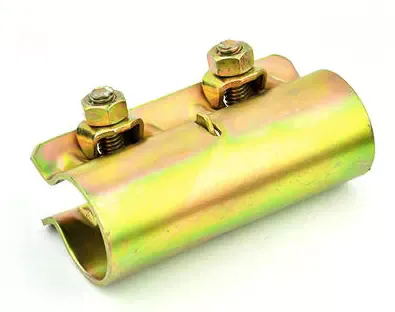

Right angle scaffolding coupler let tube arranged at the right angle.	The sleeve scaffolding coupler makes tube arrangement end to end coaxially.	Scaffolding pipe can be crossed at any swivel scaffold coupler.

Types of Scaffolding Coupler

The following five ways to classify help you find the scaffold couplers you want.

(4) Surface Treatments

The Different Surface Treatments, Is Divided Into The Following Three Categories:

1. Hot-dip galvanized couplers: After degreasing, pickling, dipping, and drying, the scaffold couplers are immersed in the molten zinc solution for a certain period and then taken out.2. Electro-galvanized couplers: Electro-galvanized couplers are scaffold couplers that need to be processed by degreasing and pickling with electrolysis equipment, then putting them into a solution of zinc salt and then connecting the negative electrode of the electrolysis equipment; Place a zinc plate on the opposite side of the piece and connect it to the positive electrode of the electrolysis device, turn on the power, and use the directional movement of the current from the positive electrode to the negative electrode to gradually deposit a layer of zinc on the surface of the coupler.3. Hight Protected paint couplers: Spray paint is a coating method that is sprayed through a spray gun or a disc atomizer, dispersed into uniform and fine droplets using pressure or centrifugal force, and applied to the surface of the coupler.

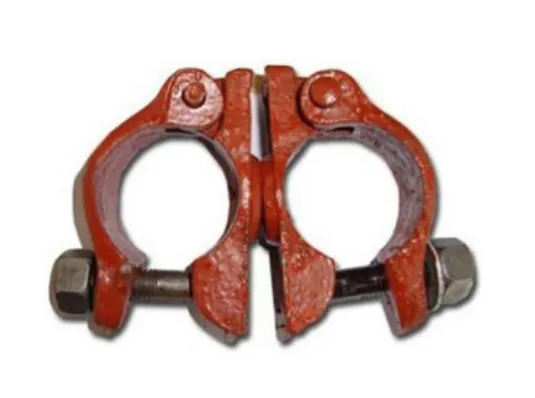

Hot-Dip Galvanized Coupler	Electro-Galvanized Coupler	Hight Protected Paint Coupler

(5) Coupler Specifications

scaffolding coupler item	size	weight(kg)	Remark	Packing
BS double coupler	48.3*48.3mm	0.96-0.98	drop forged Q235	25pcs/bag 1250pcs/pallet
BS swivel coupler	48.3*48.3mm	1.12-1.15	drop forged Q235	25pcs/bag 1250pcs/pallet
BS board retains the coupler	48.3mm	0.61-0.63	drop forged Q235	25pcs/bag 1600pcs/pallet
BS sleeve coupler	48.3*48.3mm	1.0	pressed Q235	25pcs/bag 1000pcs/pallet
BS beam coupler	48.3mm	1.45-1.5	drop forged Q235	20pcs/bag 1000pcs/pallet
BS single coupler	48.3mm	0.63-0.65	drop forged Q235	25pcs/bag 1600pcs/pallet
JIS double coupler	48.6*48.6mm	0.56-0.66	pressed Q235	30pcs/bag 1600pcs/pallet
JIS swivel coupler	48.6*48.6mm	0.56-0.66	pressed Q235	30pcs/bag 1600pcs/pallet

Scaffolding Coupler Accessories

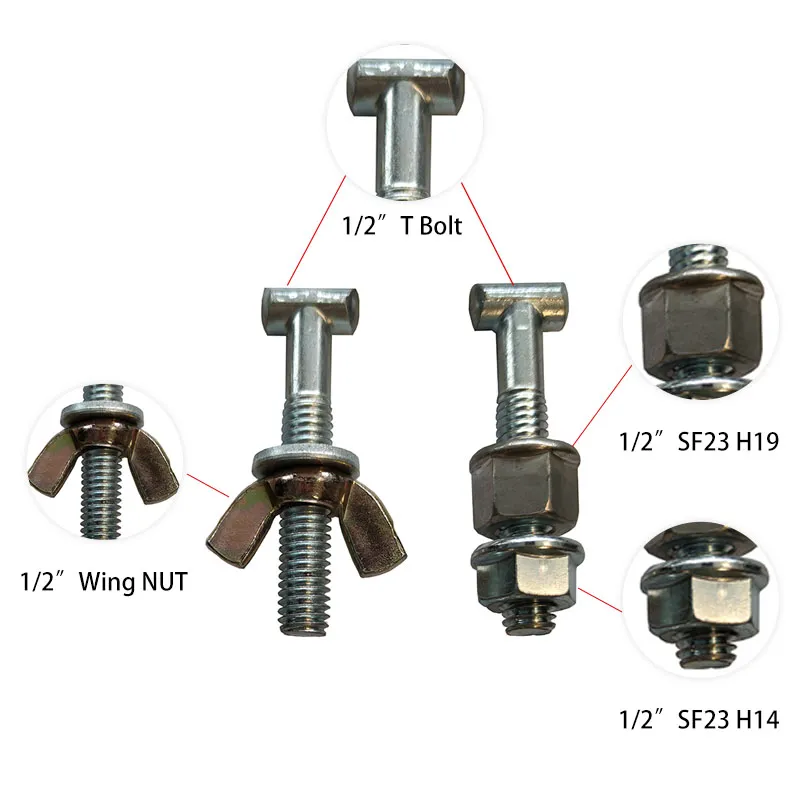

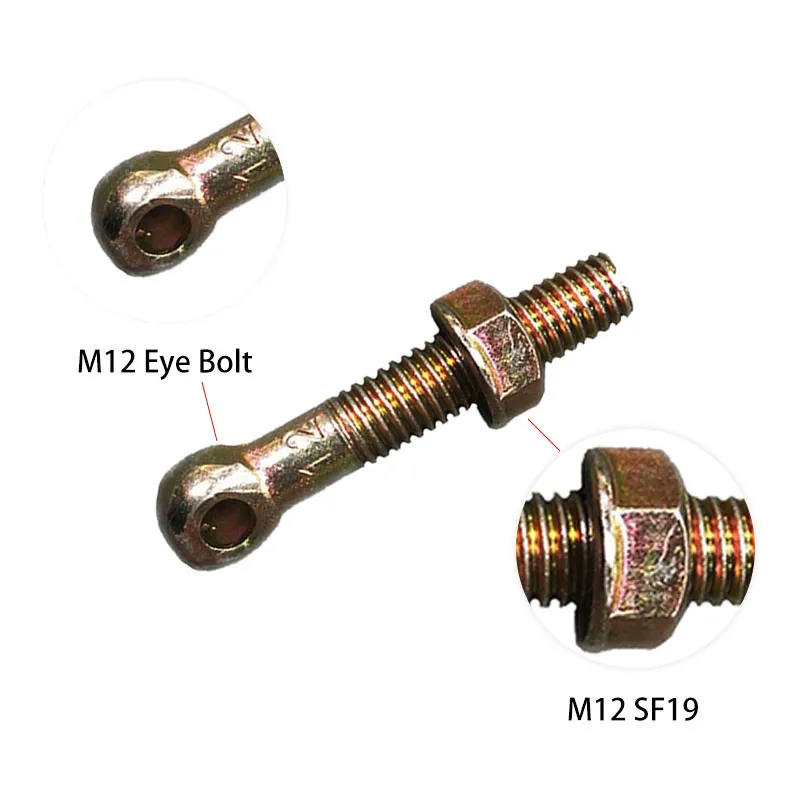

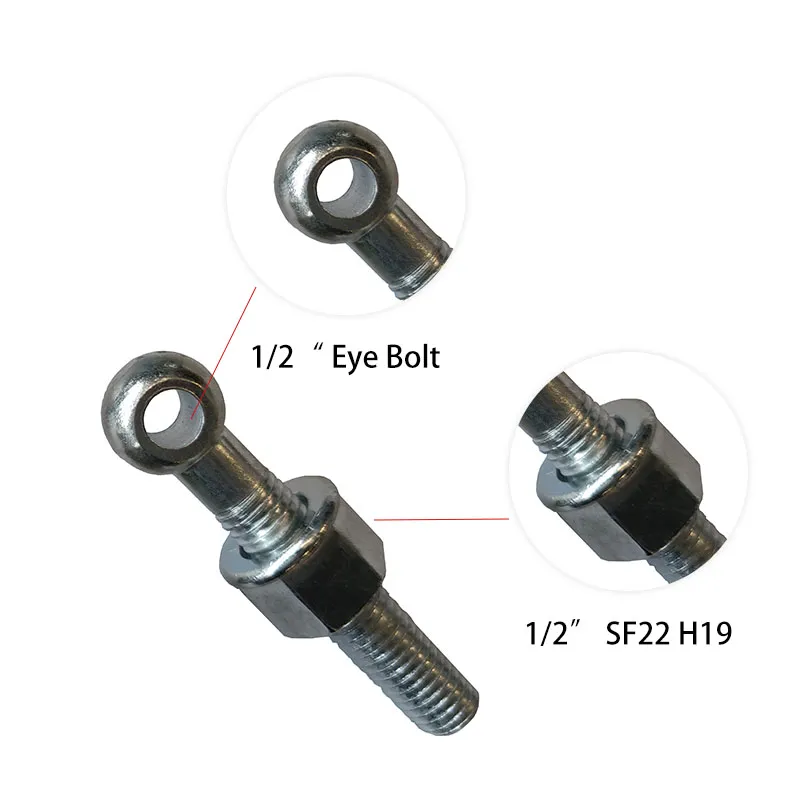

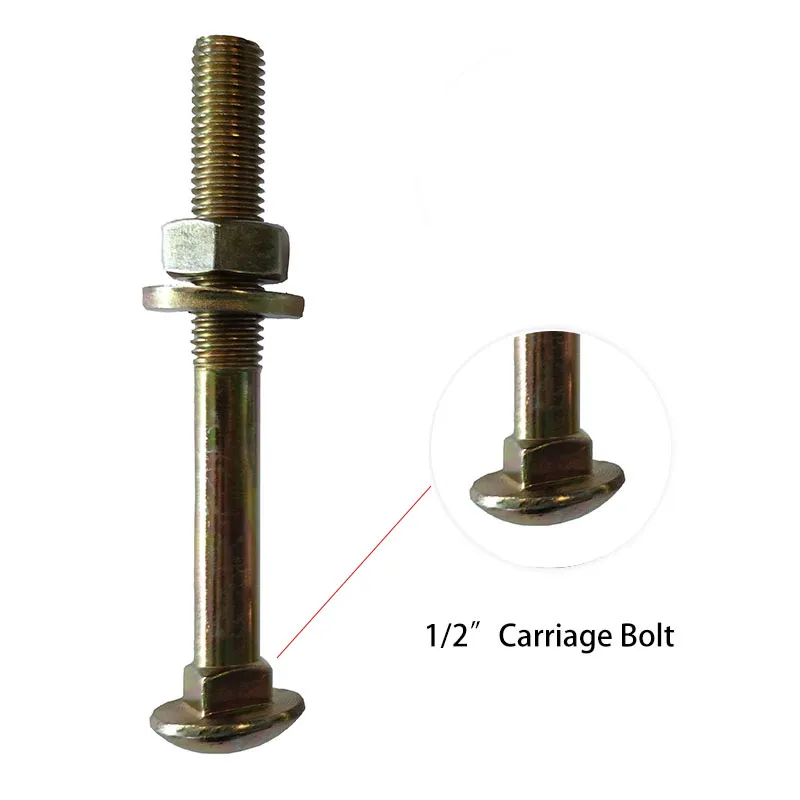

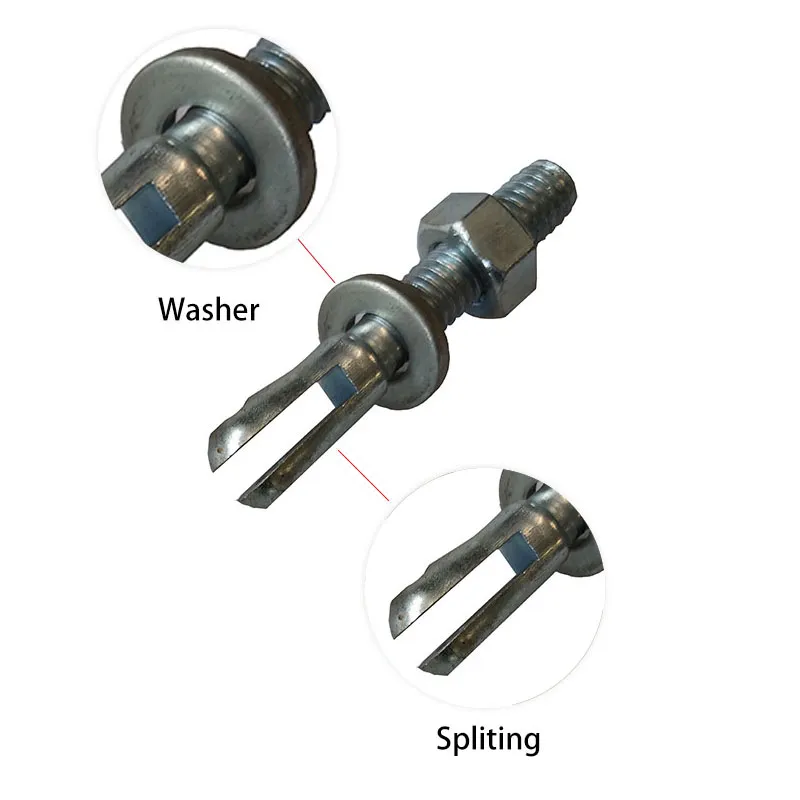

A common type of bolt: T-Bolt, Eye Bolt, Splitting End BoltCommon types of nuts: Hexagon nuts, wing nuts, and flange nuts.According to the size of wrenches in different countries, the standard coupler nut sizes are 19mm, 21mm, 22mm, and 23mm.19mm nuts are generally used in scaffolding couplers in Japan, South Korea, and some Southeast Asian countries. 21mm nuts are usually used in related couplers in the United Kingdom and Commonwealth countries. 22mm nuts are suitable for scaffolding systems in the United States, Germany, and some European countries. 23mm nuts are mainly used in Australia.

Company Information

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tube; galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, frame systems, steel props, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil and petrochemical projects.The factory has 10 production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" for this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.If you need, you can contact our branch：SN TRADING & TRANSPORTATION PTE LTDMp: 89417358 Tel: 65923150 Email: [email protected]
