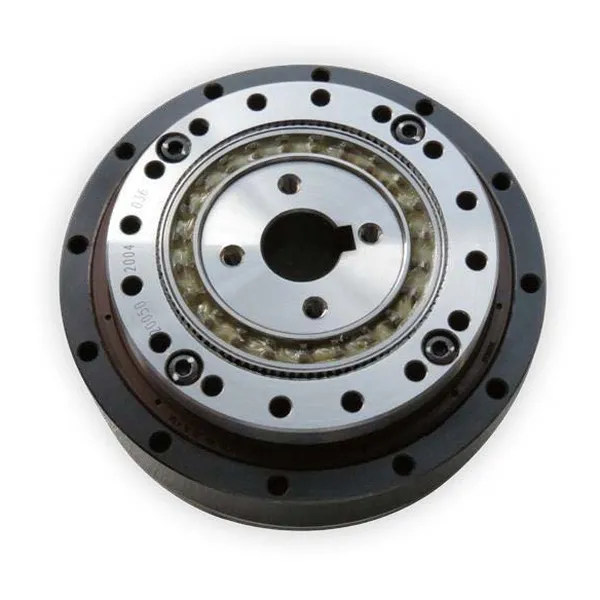

SF/SG-S1 Series Harmonic Drive (Strain Wave Gear Reducer)

SF/SG-S1 Series Harmonic Drive Reducer

The SF/SG-S1 series harmonic drive reducer is a type of precision gear mechanism widely used in robotics, industrial automation, and other applications that require high torque and precise motion control. Harmonic drive reducers are known for their compact size, high gear ratios, zero backlash, and excellent positional accuracy.The basic structure of the SF/SG-S1 series harmonic drive reducer consists of three main components: a wave generator, a flex spline, and a circular spline. The wave generator is typically a high-precision elliptical cam that generates a wave-like motion. The flex spline is a thin, flexible steel cup with external teeth that meshes with the wave generator. The circular spline is a rigid outer ring with internal teeth that engages with the flex spline.The unique motion transmission mechanism of the harmonic drive reducer relies on the elastic deformation of the flex spline caused by the wave generator. As the wave generator rotates, it creates a wave-like motion in the flex spline, causing it to deform and engage with the circular spline. This deformation results in a significant gear reduction ratio between the input and output shafts.The SF/SG-S1 series harmonic drive offers various sizes and gear ratios to suit different applications. These reducers are known for their high torque density, allowing for compact and lightweight designs. They also provide excellent positional accuracy and repeatability, making them suitable for applications that require precise positioning, such as robotic arms and CNC machines.

SF/SG-S1 Series Harmonic Drive Reducer Features:

1. solid input shaft for easy installation2. compact design3. High torque capacity4. high rigidity5. no backlash6. Input and output coaxial

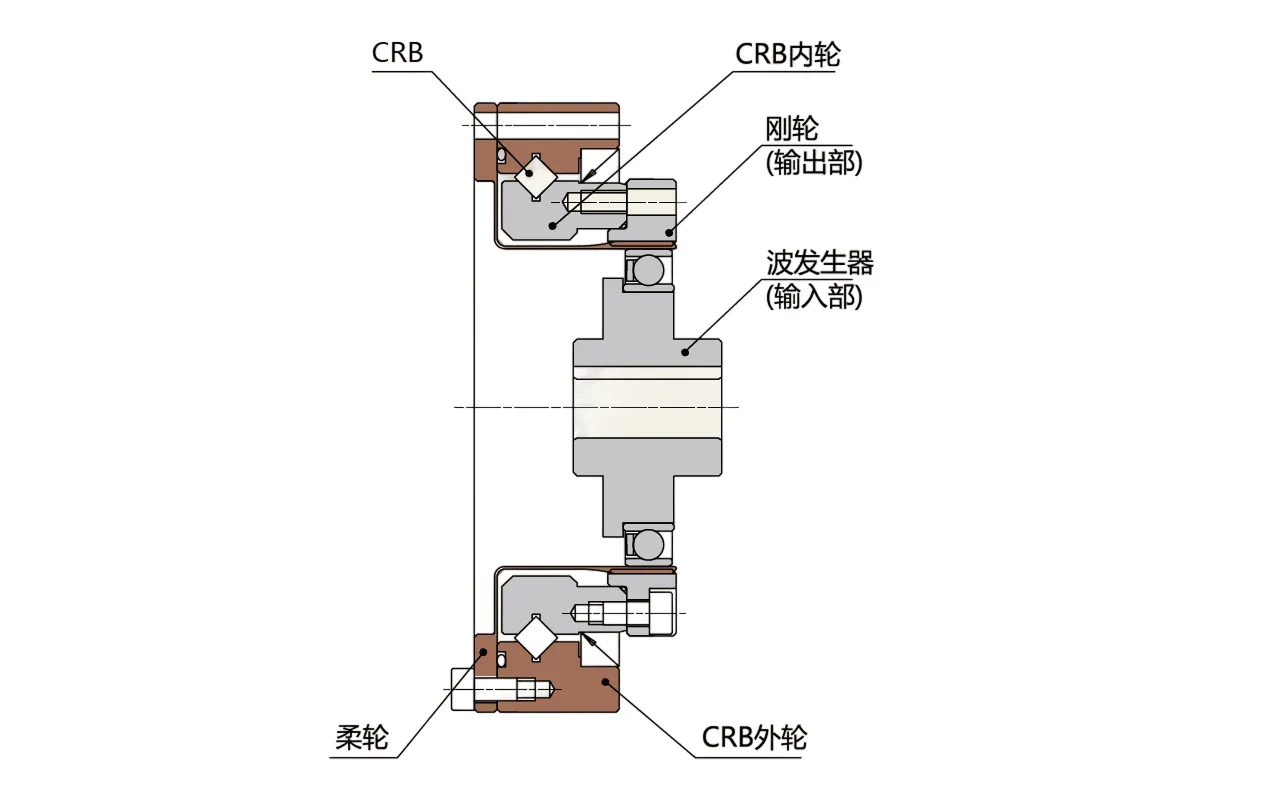

SF/SG-S1 Series Harmonic Drive Reducer Structure:

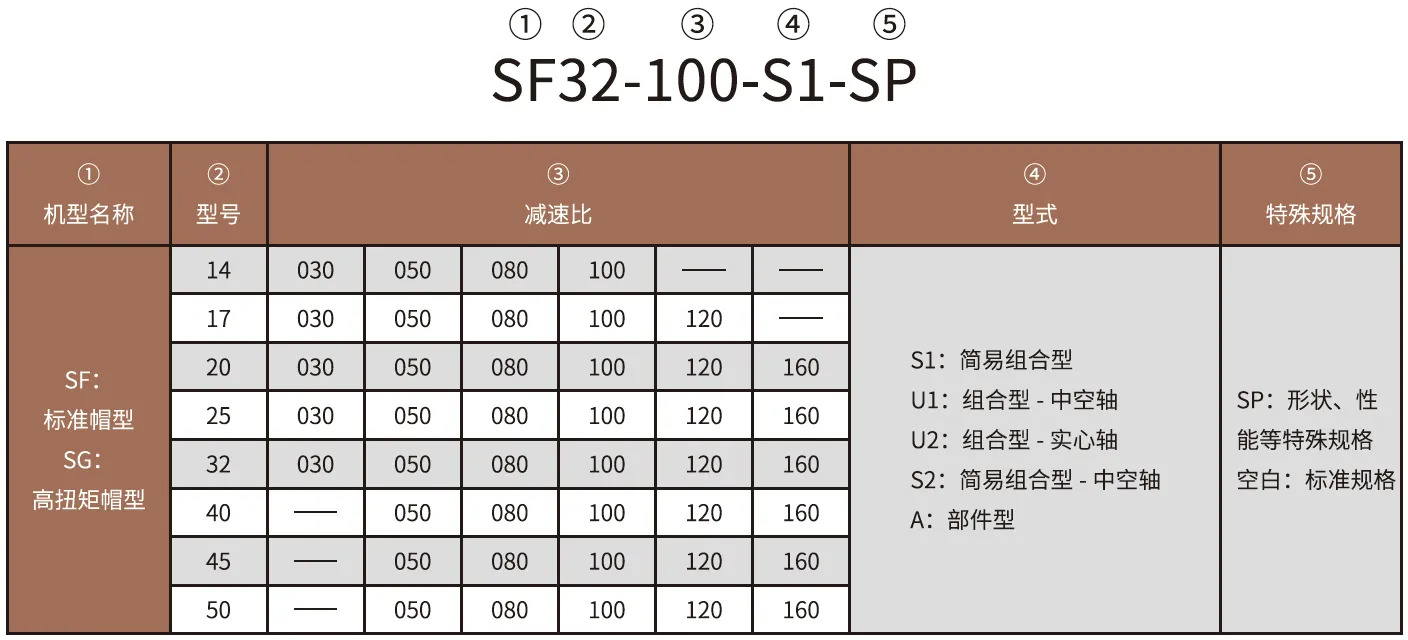

SF/SG-S1 Series Harmonic Drive Reducer Naming Rules:

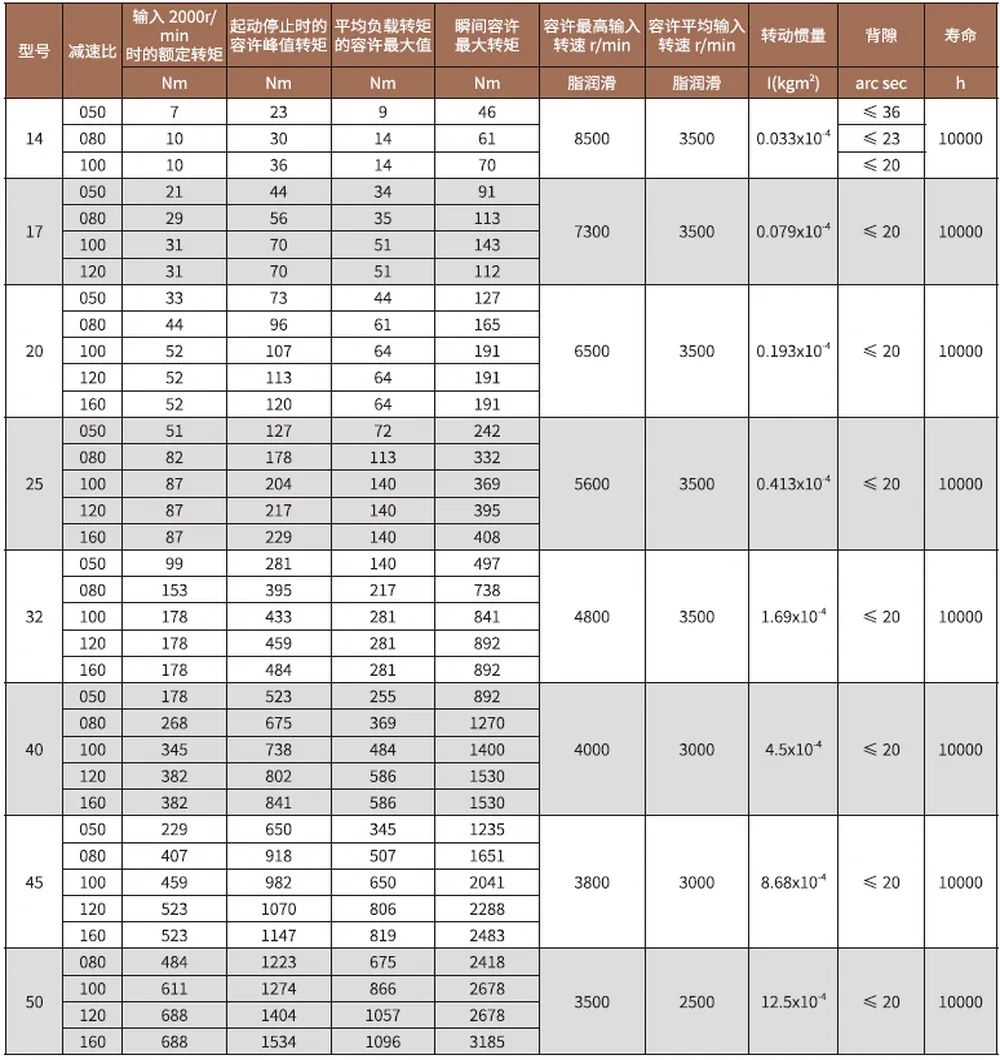

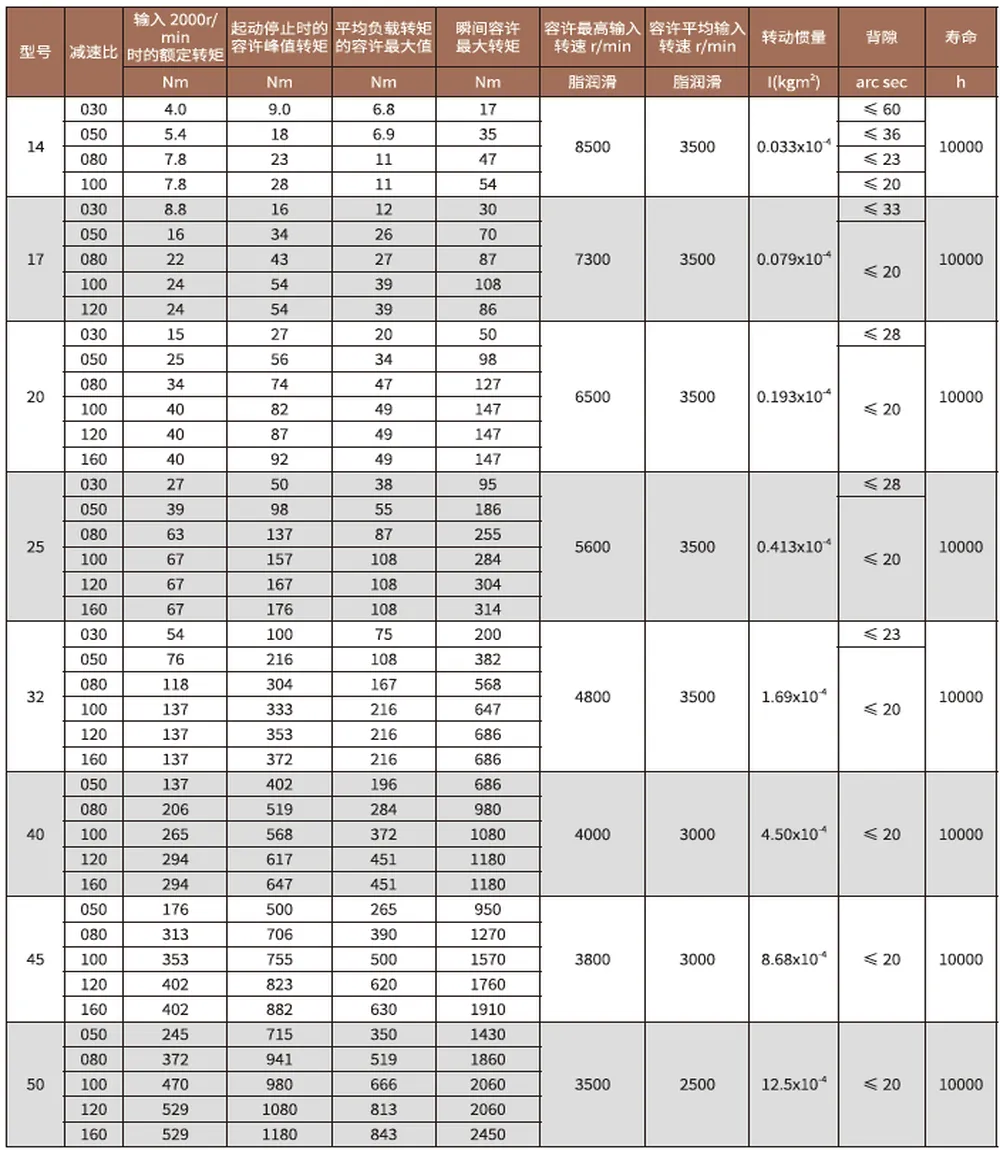

SF/SG-S1 Series Harmonic Drive Reducer Specifications:

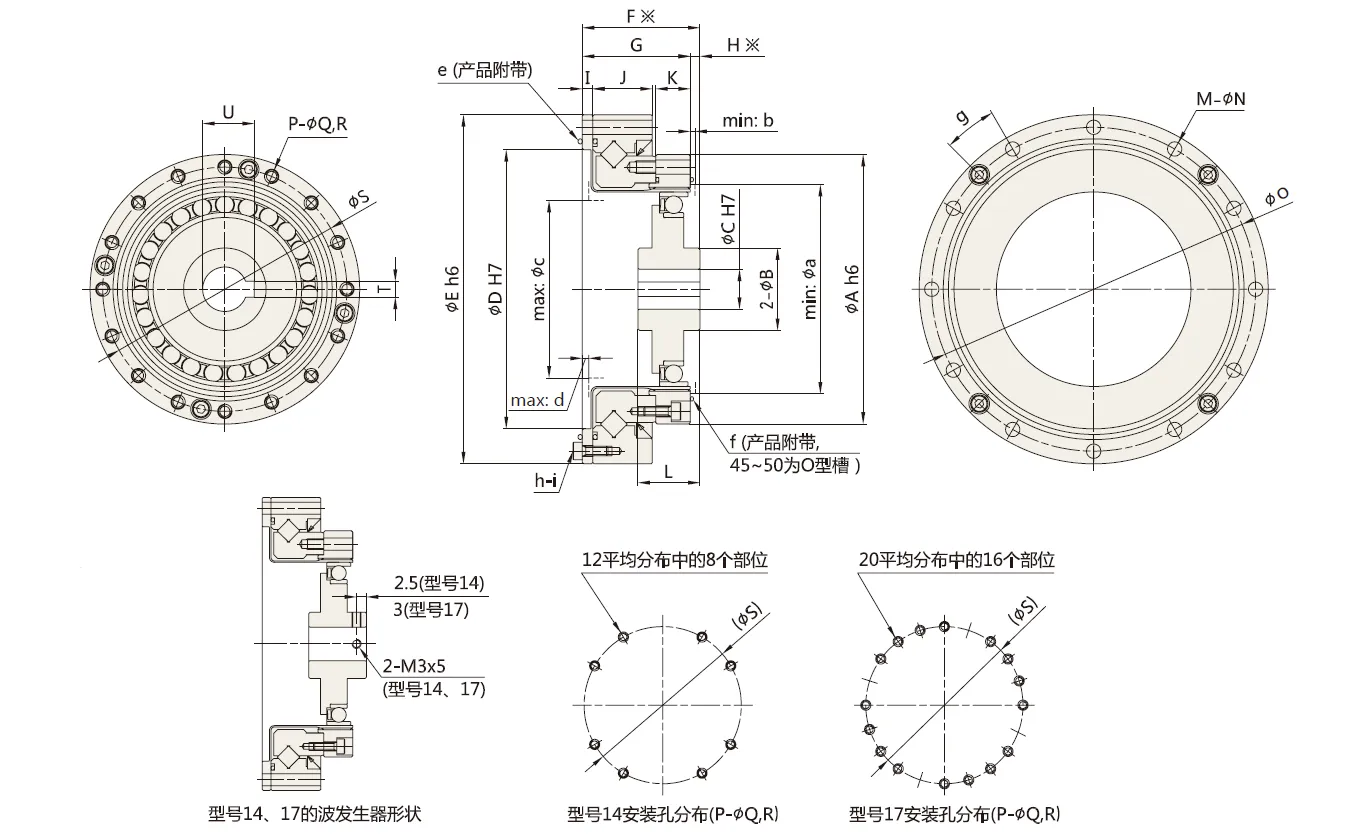

SF/SG-S1 Series Harmonic Drive Reducer Dimensions:

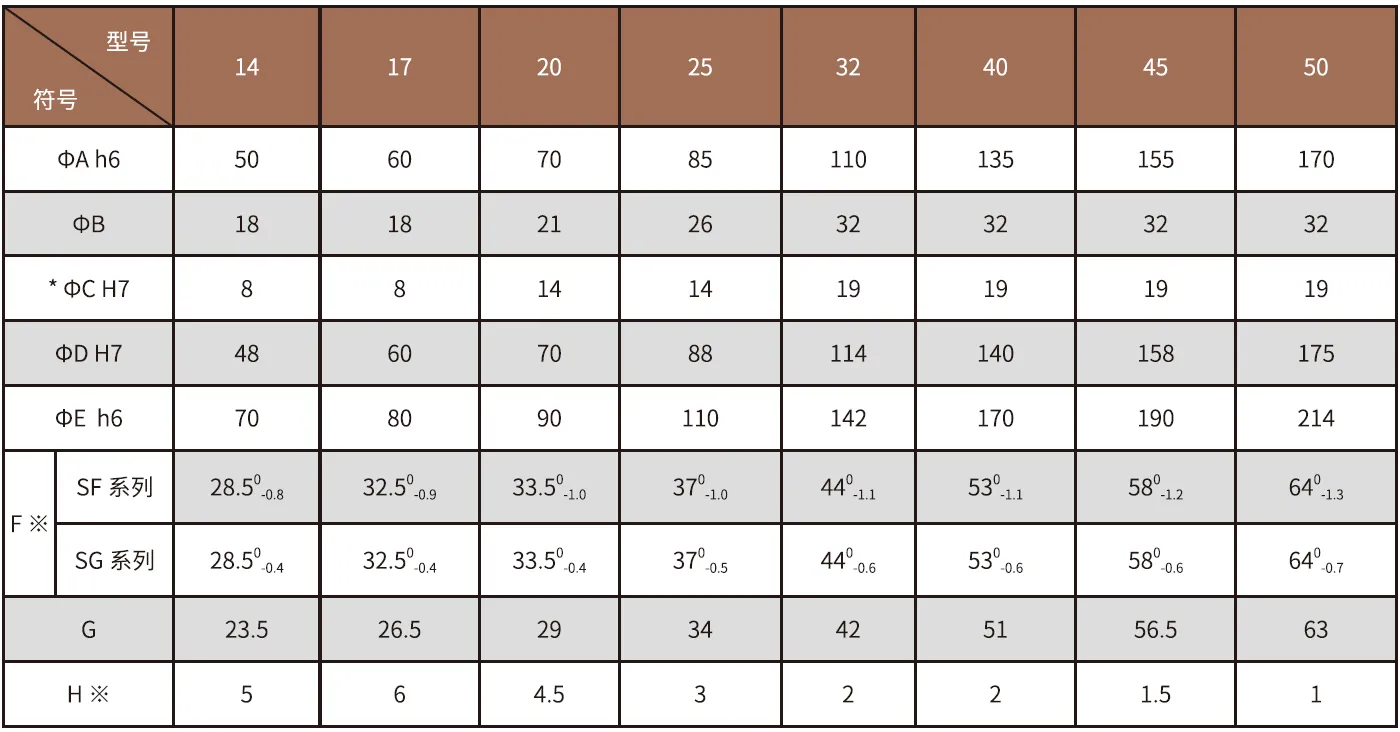

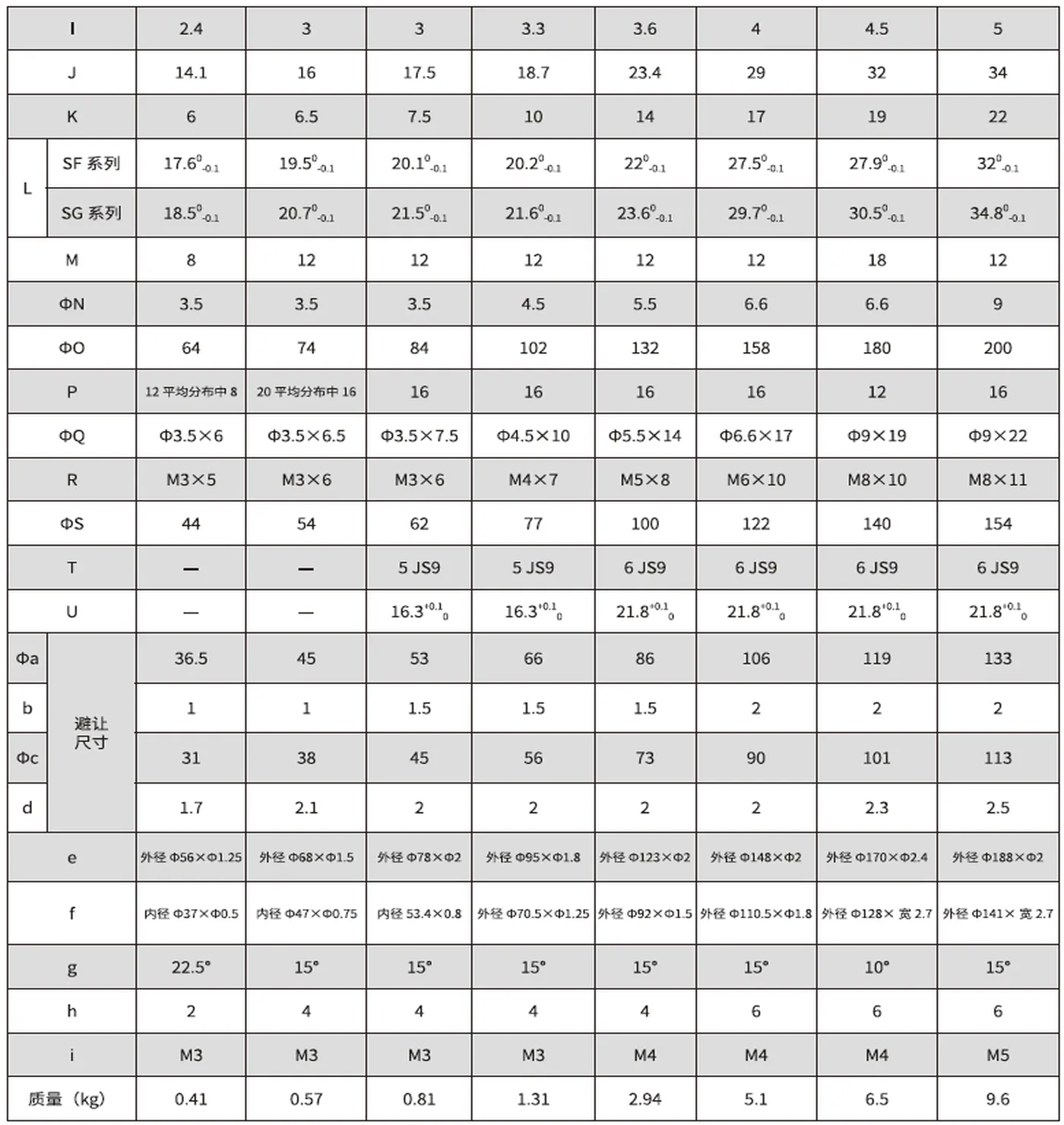

SF/SG-S1 Series Harmonic Drive Reducer Size Chart:

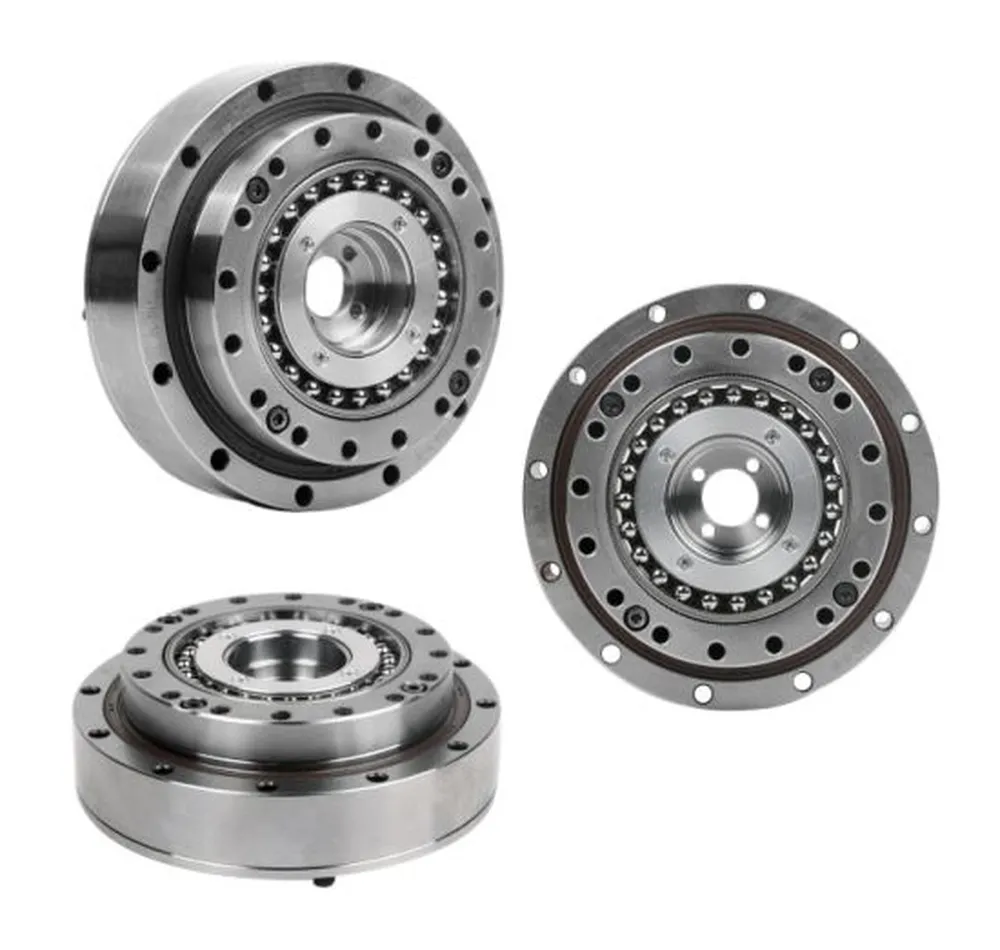

SF/SG-S1 Series Harmonic Drive Reducer Function:

The SF/SG-S1 series harmonic drive reducer serves the primary function of transmitting motion and torque between input and output shafts with high precision and efficiency. It accomplishes this through its unique gear mechanism and design features. Here are the key functions and characteristics of the SF/SG-S1 series harmonic drive reducer:1. Gear Reduction: The harmonic drive reducer achieves a significant gear reduction ratio by utilizing the elastic deformation of the flex spline. As the wave generator rotates, it generates a wave-like motion that causes the flex spline to deform and engage with the circular spline. This results in a gear reduction between the input and output shafts, allowing for high torque multiplication.2. Compact Size: The SF/SG-S1 series strain wave gear reducer is designed to be compact and lightweight, making it suitable for applications where space is limited. The harmonic drive mechanism allows for a high gear reduction within a small form factor, enabling more efficient use of available space in machinery and systems.3. Zero Backlash: Backlash refers to the play or lost motion between the input and output shafts of a gear mechanism. The SF/SG-S1 series harmonic drive reducer is designed to minimize or eliminate backlash altogether. This characteristic ensures precise and accurate motion control, making it ideal for applications that require high positional accuracy and repeatability.4. High Torque Density: The SF/SG-S1 series strain wave gear reducer offers a high torque density, meaning it can transmit a significant amount of torque in relation to its size and weight. This characteristic is achieved through the efficient gear reduction mechanism, allowing for the delivery of high torque outputs while maintaining a compact form.5. Positional Accuracy: The harmonic drive reducer provides excellent positional accuracy, allowing for precise positioning and control of the output shaft. This makes it suitable for applications such as robotics, CNC machines, and other systems that require accurate and repeatable motion control.6. Smooth Operation: The SF/SG-S1 series harmonic drive reducer operates with smooth and continuous motion. The wave generator's elliptical cam motion and the flex spline's deformation provide a continuous engagement with the circular spline, resulting in a seamless transmission of motion and torque.

SF/SG-S1 Series Harmonic Drive Reducer Uses:

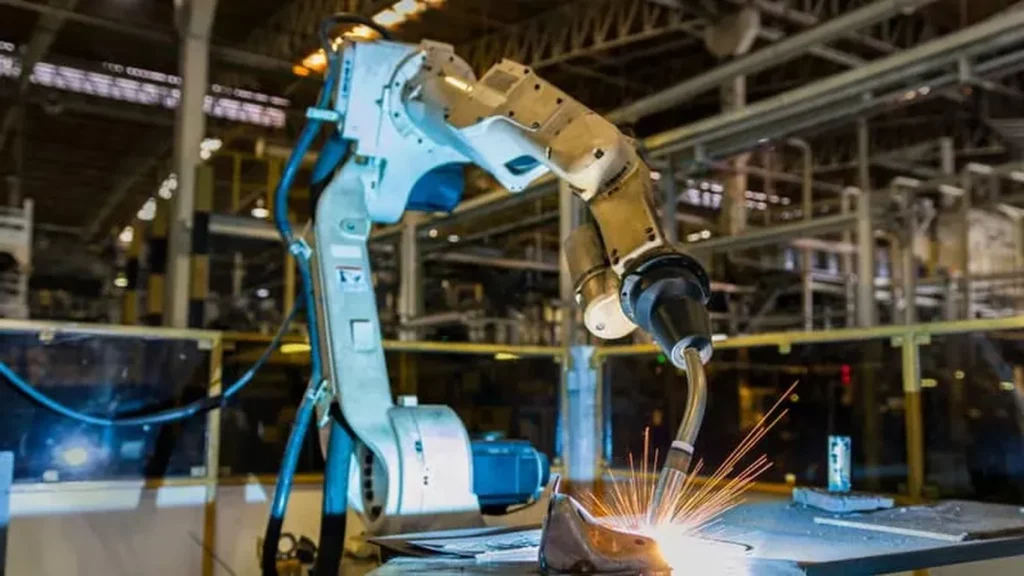

The SF/SG-S1 series harmonic drive reducer is used in a wide range of applications that require high torque, precise motion control, compact size, and zero backlash. Some common uses of the SF/SG-S1 series harmonic drive reducer include:(1) Robotics: Harmonic drive reducers are extensively used in robotics for joint actuation and precise motion control. The SF/SG-S1 series harmonic drive is employed in robotic arms, humanoid robots, exoskeletons, and other robotic systems that require accurate positioning, smooth motion, and high torque capabilities.(2) Industrial Automation: The SF/SG-S1 series strain wave gear reducer finds applications in various industrial automation systems, including pick-and-place robots, assembly machines, packaging equipment, and semiconductor manufacturing. The precise motion control and compact size of harmonic drive reducers make them suitable for tasks that require high precision and efficient power transmission.(3) CNC Machines: Computer Numerical Control (CNC) machines, such as milling machines and lathes, often utilize harmonic drive reducers to achieve accurate positioning and smooth motion control for tool movement. The zero backlash feature of the SF/SG-S1 series strain wave gear reducer ensures precise and repeatable machining operations.(4) Medical Equipment: The SF/SG-S1 series harmonic drive reducers are used in medical devices and equipment, such as surgical robots, medical imaging systems, and rehabilitation devices. These applications require precise and controlled movements, and harmonic drive reducers provide the necessary motion transmission capabilities.(5) Aerospace and Defense: Harmonic drive reducers are employed in aerospace and defense applications that require lightweight and compact power transmission solutions. The SF/SG-S1 series is used in mechanisms for aircraft control surfaces, satellite tracking systems, unmanned aerial vehicles (UAVs), and defense equipment.(6) Precision Engineering: The SF/SG-S1 series harmonic drive reducer is utilized in precision engineering applications, including optics positioning systems, measurement instruments, and scientific equipment. The high accuracy and repeatability of harmonic drive reducers make them suitable for tasks that demand precise positioning and controlled movements.

Why Choose  Raydafon's Harmonic Drive Reducer?

Raydafon Technology Co., Ltd. is a gearbox manufacturer with a core supply system, and has more than 8,000 cooperating customers. Since its establishment, Raydafon has joined hands with partners in the industry to build factories all over the country, introduced advanced production equipment and precision monitoring equipment, and continuously innovated, researched and developed, and perfected its products. Raydafon provides domestic and foreign customers with a comprehensive range of gearmotors and a diversified range of gearboxes to meet the different needs of customers in various fields.Our main products include: planetary gearboxes, RV gearboxes, hollow rotary platforms, miniature gearboxes and matching speed controllers, miniature gearmotors, worm gearboxes, DC brushless gearmotors, three-phase asynchronous motors, vertical and horizontal gearmotors, torque reducers, cross steering gearboxes, harmonic reducers, and other series of gearmotors and their matching products. Many of them are of modularized design. Adopting new equipment and new technology, the products have better internal quality, smaller volume, lighter weight and more beautiful appearance. The products are widely used in: lithium equipment, laser equipment, engineering equipment, CNC machine tools, machinery production, non-standard automation, automobile manufacturing, aviation field, printing machinery, paper making, robotics, packaging machinery, filling, solar energy equipment, medical and pharmaceutical, testing instruments and many other industries.
