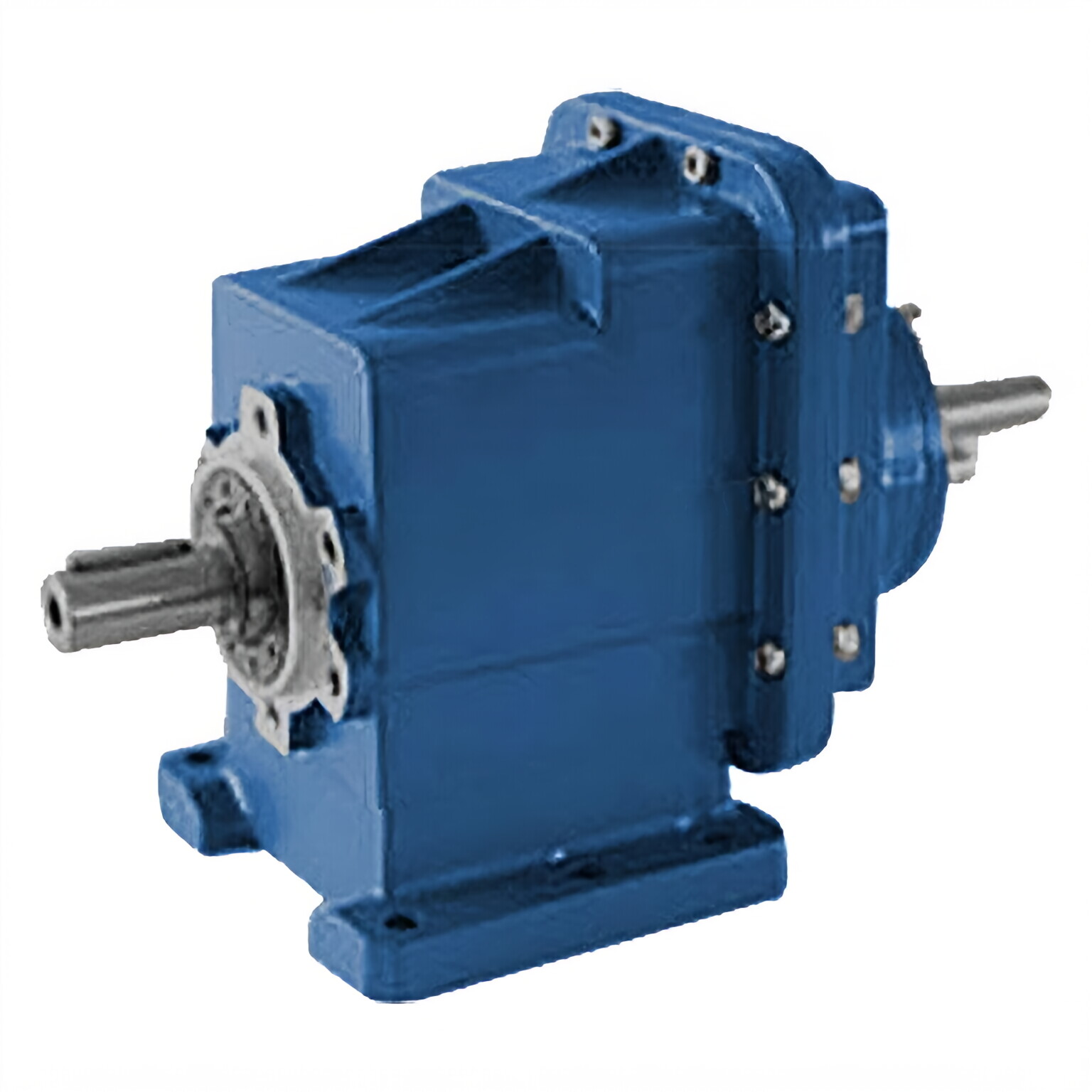

Shaft Input Foot-mounted RC Helical Gear Unit
  • Shaft Input Foot-mounted RC Helical Gear UnitShaft Input Foot-mounted RC Helical Gear Unit

Shaft Input Foot-mounted RC Helical Gear Unit

Introducing the Shaft Input Foot-mounted RC Helical Gear Unit from Raydafon Group: a robust industrial solution designed for precise power transmission in machinery and automation systems. Engineered with durable materials and helical gear technology, it delivers smooth, quiet operation, high efficiency, and extended durability. Ideal for engineers, manufacturers, and maintenance teams in sectors like manufacturing, agriculture, and logistics, this gear unit tackles heavy-duty tasks reliably. Users experience reduced downtime, enhanced performance, and peace of mind. Its unique foot-mounted design ensures easy integration and space-saving installation, setting it apart from standard units. Upgrade your equipment with Raydafon Group’s trusted innovation for lasting reliability.
Send Inquiry
Product Description

Shaft input Foot mounted Aluminum Alloy Housing RC helical gear unit gear reducer

Product Description

The RC series helical gear reducers feature a highly modular design. It can be combined with ordinary iec, brake, explosion-proof, frequency conversion, servo and other motors respectively. This product is widely used in traditional fields such as textile, food, ceramics, packaging, logistics, plastics, etc. Different flanges and feet can be used to form the structure of various reducers
Main Parameter: Output speed: 0.1~560rpmOutput torque: up to 28000NmMotor power: 0.18~160kwInput Model: directly connected with motor, flange input or shaft input.Installation Model: Horizontal or Vertical.
Shaft Input Foot-mounted RC Helical Gear Unit

ModelShaft Dia.Center Height(mm)Output Flange Dia. (mm)Power(kw)RatioPermitted Torque(Nm)Weight(KGS)
Solid (mm)
RC3725k690h13120/1600.12~0.755~13615010
RC4730k6115h13160/2000.25~2.25~17330015
RC5735k6115h13200/2501.18~5.55~17340021
RC6735k6130h13200/2500.37~7.55~17050027
RC7740k6140h13250/3000.55~115~19275035
RC8750k6180h13300/3500.75~18.55~192125065
RC9760m6225h13350/4501.5~305~1972400120
RC10770m6250h13350/4502.2~455~1973600165
RC13790m6315h13450/5504~555~1976600255
RC147110m6355h13450/5507.5~905~19510700370
RC167120m6425h13550/66011~1328~18614800700
RC187160m6510h13660/77015~1608~186280001500
Remark: the weight without oil and motor, shaft and flange input add 10%.
