Shoring Frame Scaffolding for Concrete Wall Forms, Shoring Tower, Bridge & Highway Infrastructure Construction

The scaffolding shoring frame features a simple assembly and disassembly, better load-bearing capacity, a high safety factor, and simple and convenient construction. A shoring frame offers a higher load-bearing capacity when compared to available frames and provides more stable bottom support. The surface treatment is powder coating or hot dip galvanized for corrosion resistance.

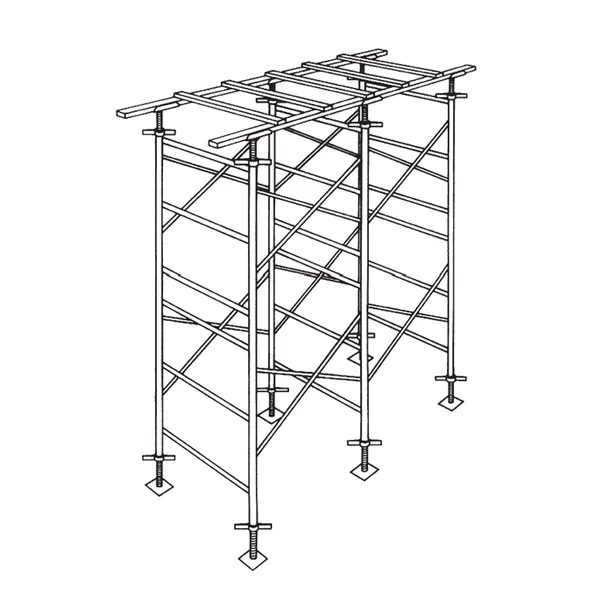

Parts of Shoring Frames Scaffolding

Similar to the types of scaffolding, the parts, and components of shoring frames closely relate to them.

Base Plate

These are the foundations of a shoring frame. They hold everything from their position upwards to stay intact.

Cross Braces/Connectors

These parts and components connect, link, and cross all the other parts, keeping everything together in one go.

Steel Beams

These are the beams that support the load that is going to be carried by the shoring frame. You'll usually find them at the top part of the shoring frame formwork.

Hi-Load Frames

Hi-load frames are the outermost or the outer part of the shoring frame. They provide the balance and the second layer of absorption for the weight and load the steel beams carry.

Flat Heads or U-Heads

Lastly, these are the components that hold onto the materials the steel beams carry. They're not clamping onto the fabrics. Instead, they go as a whole support type of component.These are the parts of shoring frames or shoring posts. So, the next time that you require information about it, you will know where to look!

Product Specification

Name: Shoring Frame ScaffoldingMaterial: Q235 steelSurface treatment: Powder coating/HDG color as you requestMOQ: 100pcs

Specification	Weight(kg)

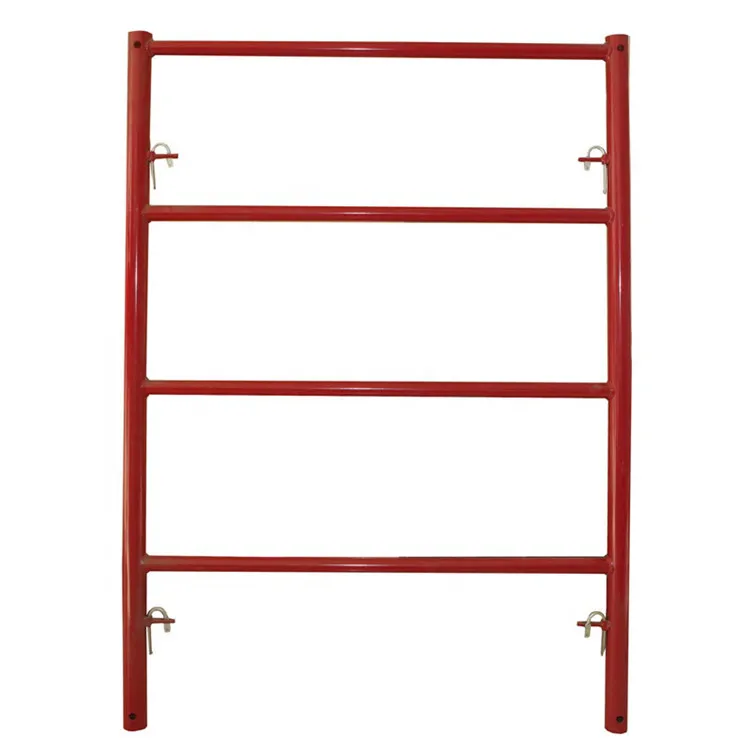

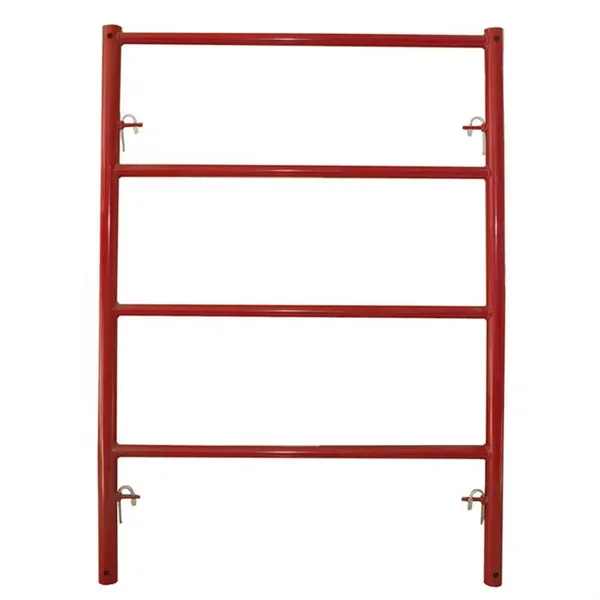

4'x6' Red Shoring Frame	30.3
4'x5' Red Shoring Frame	24.3
4'x4' Red Shoring Frame	21.2
4'x3' Red Shoring Frame	15.5
2'x6' Red Shoring Frame	25.5
2'x5' Red Shoring Frame	20.8
2'x4' Red Shoring Frame	17.6
2'x3' Red Shoring Frame	12.6

Product Display

What is the Purpose of Shoring Frames?

The primary purpose of shoring is to prevent the collapse of buildings and infrastructure. It is also an ideal component of scaffolding where it’ll be able to protect and keep the safety and security of workers intact.Collapses are part of the most common problems the construction industry has ever faced, and with shoring, the collapse of such buildings and establishments could be ceased and minimized overall.Apart from the depreciation of collapses, you can also make use of shoring frames for other purposes, too such as:

• An added layer of protection for the workers and operators
• It can serve as a platform for items that are needed constantly
• It can be a higher ground-level base

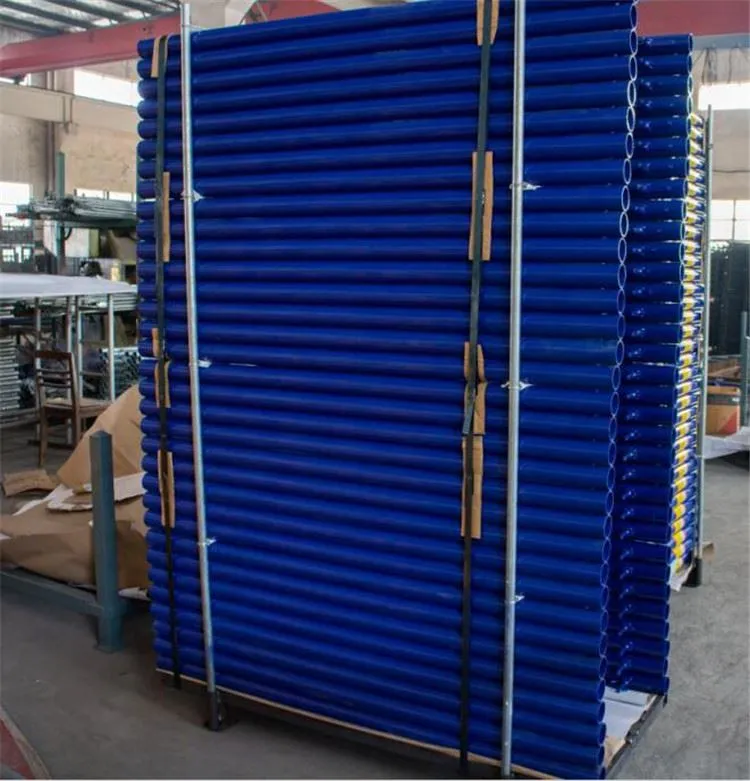

Packaging

Company Information

The company has an independent R & D team, import and export rights, global sales network that can provide customers with comprehensive scaffolding solutions. Products mainly include hot-dip galvanized steel tube; galvanized metal plank, hot-dip galvanized ring lock scaffolding, scaffolding couplers, frame systems, steel props, and so on; hot product sales at home and abroad are widely used in construction engineering facades, building support bridges, tunnels, chimneys, power plants, oil and petrochemical projects.The factory hasten0 production lines, processing lines, 4,000 square meters of production workshop, 4,000 square meters of warehousing, and 10,000 square meters yard, with an annual output of 200,000 tons, and has more than 10,000 tons perennial spot. "Customer-centric, continue to meet customer needs, improve customer satisfaction" is the long-term development basic strategy. In the future, "high-quality products are a bridge to the world" for this purpose, we will continue to provide customers with "the best quality of products, the most comprehensive sales service, the lowest market price" to enhance customer market competitive advantages.If you need, you can contact our branch：SN TRADING & TRANSPORTATION PTE LTDMp: 89417358    Tel: 65923150    Email: [email protected]
