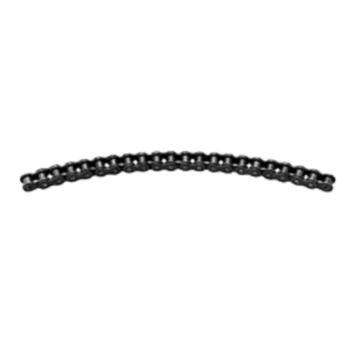

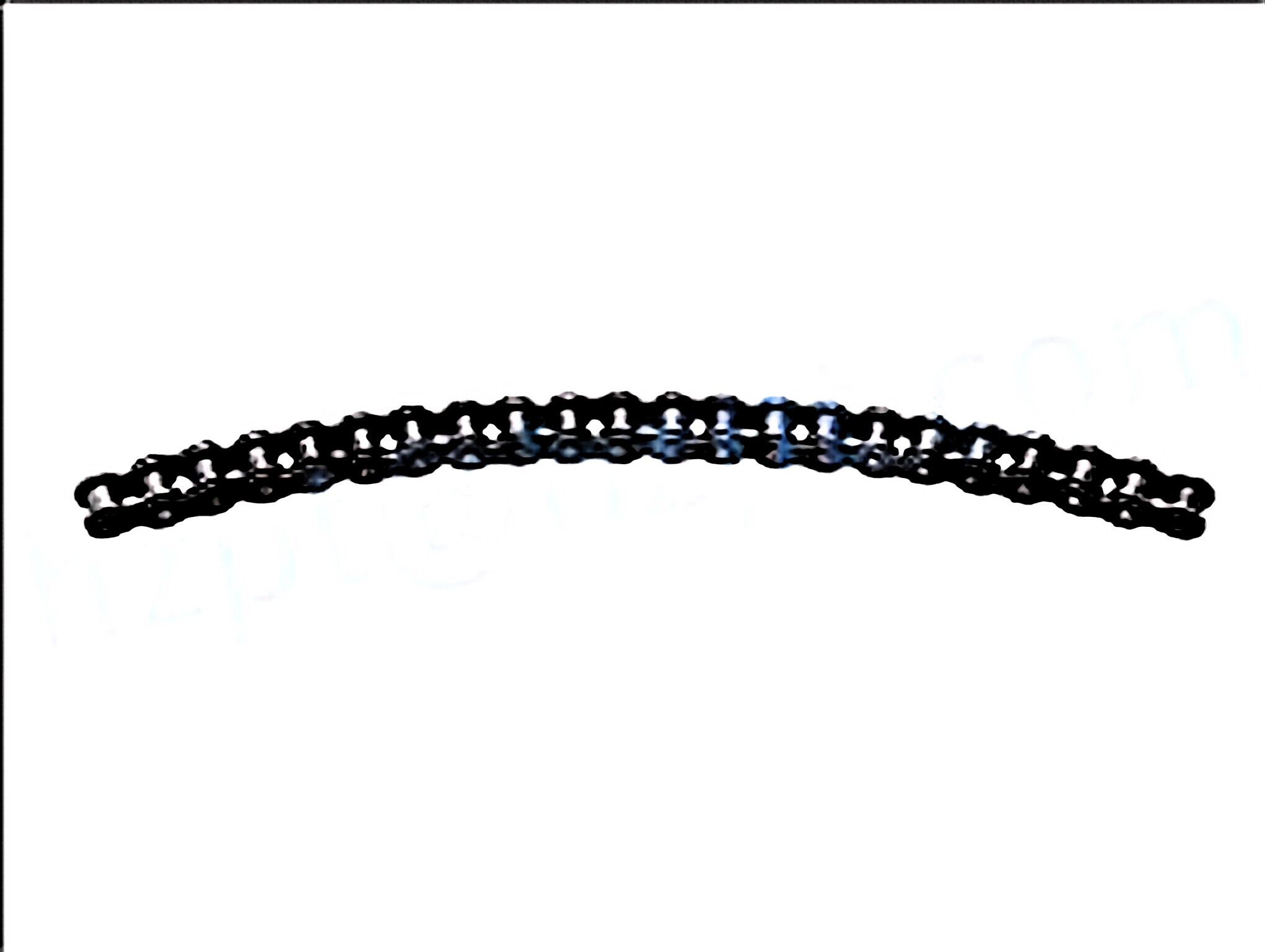

Side Bow Chains with Attachments 43SBF11/43SBF12/43SBF13

Side Bow Chains with Attachments 43SBF11/43SBF12/43SBF13

Side bow chains are the most popular method of attaching a motorcycle's side bow. They are made of carbon steel or iron and provide extra clearance between bushings and pins. Because of this extra clearance, side bow chains can be used with curbed trails, allowing them to run smoothly. These chains are also easily adjustable and can be purchased in different lengths and diameters.Side bow chains are used in many applications, ranging from high-temperature environments to conveying systems. They are similar to roller chains but differ in the way they are connected to their pins. They may have a different bow radius and may have a smaller diameter. They can also feature conical pins or bi-conical bushes. They also have a special pin shape to allow them to negotiate curves. The side bow chain can run up to 250 mm of curved radius.Side bow roller chains have additional clearance to allow the chain to bend on the bow. They also are pre-loaded, eliminating initial stretching. Aside from being able to bend to the right and left, the side bow roller chains can also be used on standard roller chain sprockets. They are an excellent solution for curved applications. They can be purchased in stainless steel and are available with different coatings. There are many different kinds of side bow chains available.

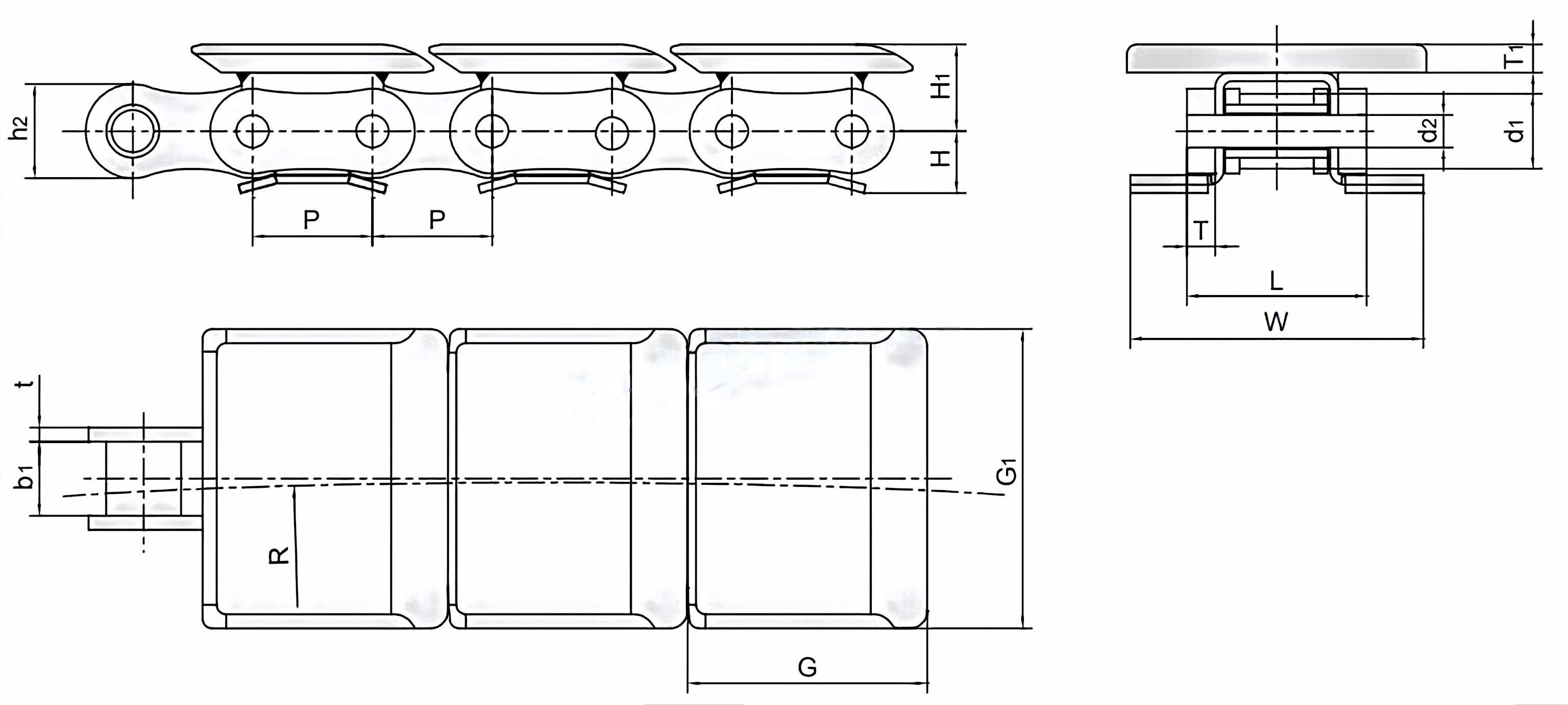

Side Bow Chains with Attachments Details

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length	Inner plate depth	Attachment dimension
	P	d1	b1	d2	L	h2	H	H1	t/T	T1	G	G1	W	R
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
43SBF11	12.7	7.95	7.85	3.45	19.6	9.8	6.9	9.2	1.5/2.8	3	25.7	31.75	31.6	254
43SBF12	12.7	7.95	7.85	3.45	19.6	9.8	6.9	9.2	1.5/2.8	3	25.7	36.00	31.6	254
43SBF13	12.7	7.95	7.85	3.45	19.6	9.8	6.9	9.2	1.5/2.8	3	25.7	64.00	31.6	254

Why Choose Side Bow Chains?

There are several advantages of Side bow chains. One of them is that they have a smaller centering projection. This is achieved by the inner link plate having a groove positioned in the middle of it. This groove allows the centering projection to pivot further into the transition region. In this way, the chain can bow sideways and be more stable. In addition, they are much cheaper than conventional designs. Here are some examples of their benefits.Depending on the size of the sprocket, side bow chains can have a radius of R of less than half the width of the receiving sleeve. They are particularly applicable to screw lifting conveyors, turning machines, and conveyors of food and beverage products. They can also be used in conveyor technology and cleaning technology. And if you have a high-temperature plant environment, you should consider side bow chains.Another advantage of Side bow chains is their flexibility. They can be adjusted to flex either to the left or the right. Choosing between a conical pin and a loose bush and pin depends on your preferences. The former is cheaper, but has a lower pitching accuracy. The latter has a longer life and is ideal for high-speed operations. Some chains can be customized to fit specific needs, so they can meet specific specifications.Side bow chains have many advantages. They are widely used for drag and conveyor chains. These chains can negotiate bends thanks to their smaller diameter. Biconical bushes and conical pins are also available. High-pretensioned Ever power transmission roller chains provide a high level of corrosion protection. They are also highly wear resistant and have better fatigue strength than standard chain designs. And thanks to advanced technology and innovative design, these chains can withstand high loads without the risk of detaching.

Sprockets For Chains

There are many different types of sprockets for chains. Some are made of stainless steel, while others are made of non-stainless steel. Stainless steel sprockets are ideal for harsh environments and are usually 304-grade stainless steel. You can also find 316-grade stainless steel sprockets, which are ideal for extreme corrosive conditions. In addition to standard sizes, you can also find idler sprockets with a ball bearing pressed in.There are two standards for sprockets: ISO and metric. ISO sprockets are used in most American, European, and Asian machines. In the United States, ISO sprockets are used to meet stringent standards, while metric sprockets are more flexible and interchangeable with European-style chains. For the most part, sprockets are interchangeable, although there is still a small number of exceptions to this rule.The most common type of sprockets are made from metal or reinforced plastic. These devices are closely related to gears, and their wheel-shaped design with teeth allows them to span greater distances than their mating gears. Most sprocket and chain systems are similar to bicycle chain assemblies.To choose sprockets for chains, it's essential to get the size and pitch of the chain. Depending on your requirements, you may want to select one that has wide teeth or a sprocket with small teeth. In addition to pitch, you should also consider the size of the drive shaft. For example, if the chain is large, you will need a sprocket that is wide. For smaller chains, you'll need a sprocket with smaller teeth. Likewise, you should consider the sprocket bore.As a professional transmission parts manufacturer and supplier in China, Raydafon offers a variety of high-quality?drive chains?and?sprockets for sale. Contact now！
