Single Direction Thrust Ball Bearings

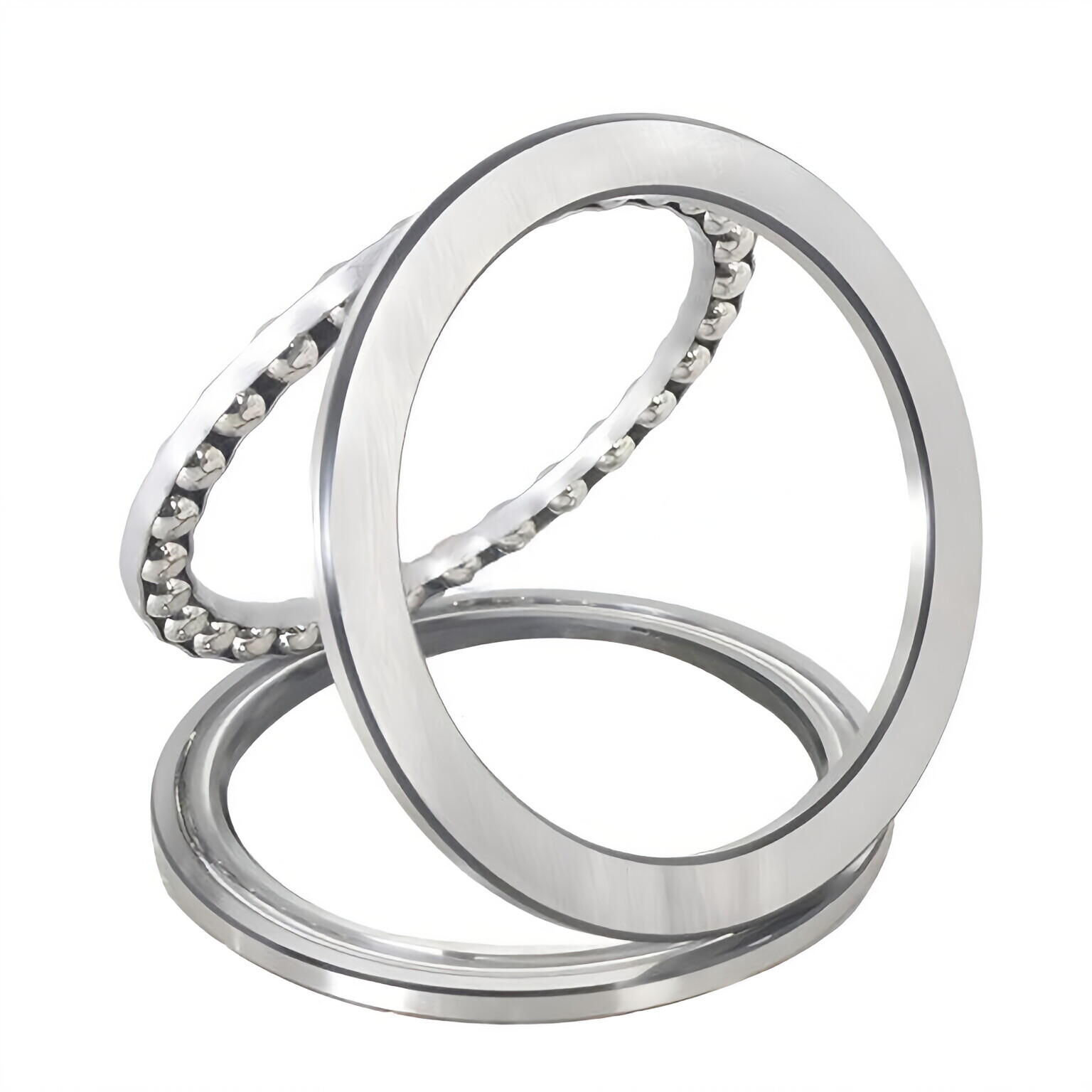

Single Direction Thrust Ball BearingsSingle direction thrust ball bearings are a common type of thrust ball bearings. As their name implies, single-direction thrust ball bearings can accommodate axial loads and locate a shaft axially, in one direction only. Single direction thrust ball bearings consist of a shaft washer, a housing washer, and a ball and cage assembly. The bearings are not self-retaining; the ball, cage assembly, and bearing washers can be fitted separately. Depending on their series and size, thrust ball bearings are equipped with one of the cages, like sheet steel cages or Solid brass window cages.

Product parameter

Boundary dimensions(mm)			Mass(kg)	Bearing NO.
d	D	T		Raydafon
10	24	9	0.018	51100
10	26	11	0.029	51200
10	26	11.6	0.028	53200
12	26	9	0.021	51101
12	28	11	0.032	51201
12	28	11.4	0.03	53201
15	28	9	0.024	51102
15	32	12	0.043	51202
15	32	13.3	0.046	53202
17	30	9	0.024	51103
17	35	12	0.05	51203
17	35	13.2	0.052	53203
20	35	10	0.037	51104
20	40	14	0.082	51204
20	40	14.7	0.081	53204
25	42	11	0.055	51105
25	47	15	0.114	51205
25	47	16.7	0.121	53205
25	52	18	0.154	51305
25	52	19.8	0.203	53305

Single direction thrust ball bearings application

Single direction thrust ball bearings are mainly used to bear a part of the axial load and low speed, such as crane hooks, vertical pumps, vertical centrifuges, jacks, low-speed reducers, etc.
