Single-row Metric Size Tapered Roller Bearings

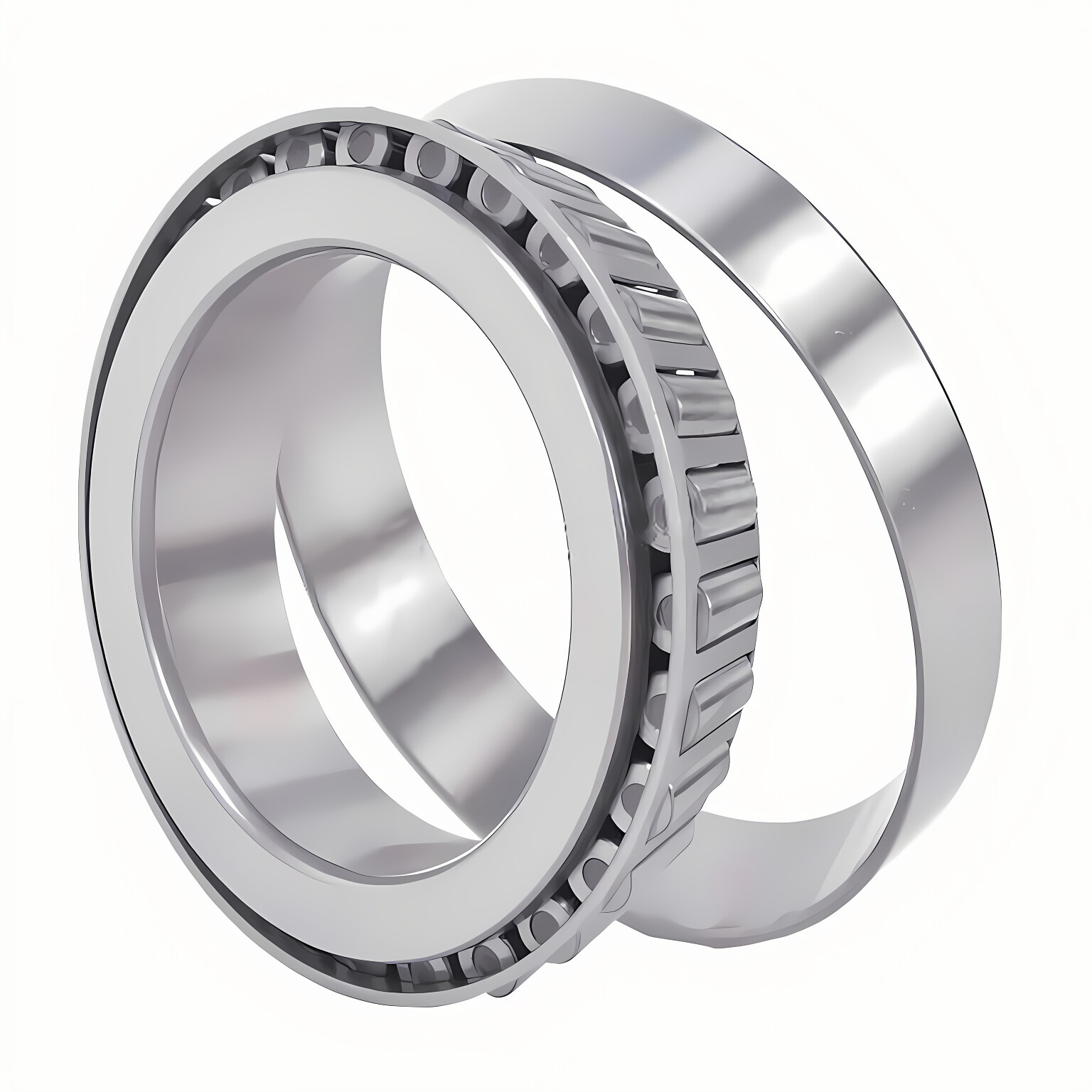

Single-row Metric Size Tapered Roller BearingsSingle row metric tapered roller bearings are a common type of tapered roller bearings that are separable. Both the inner and outer rings of the bearing have tapered raceways, and the rollers are in the shape of a truncated cone. The roller and the raceway are in linear contact, which can bear heavier combined radial and axial loads, as well as axial loads. The larger the contact angle, the higher the axial bearing capacity; conversely, the smaller the contact angle, the lower the axial bearing capacity.The design of the single row metric tapered roller bearing should extend the contact line between the roller and the inner and outer raceways and then intersect at the same point on the bearing axis for rolling. Single row metric tapered roller shafts mostly use inches.

Product parameter

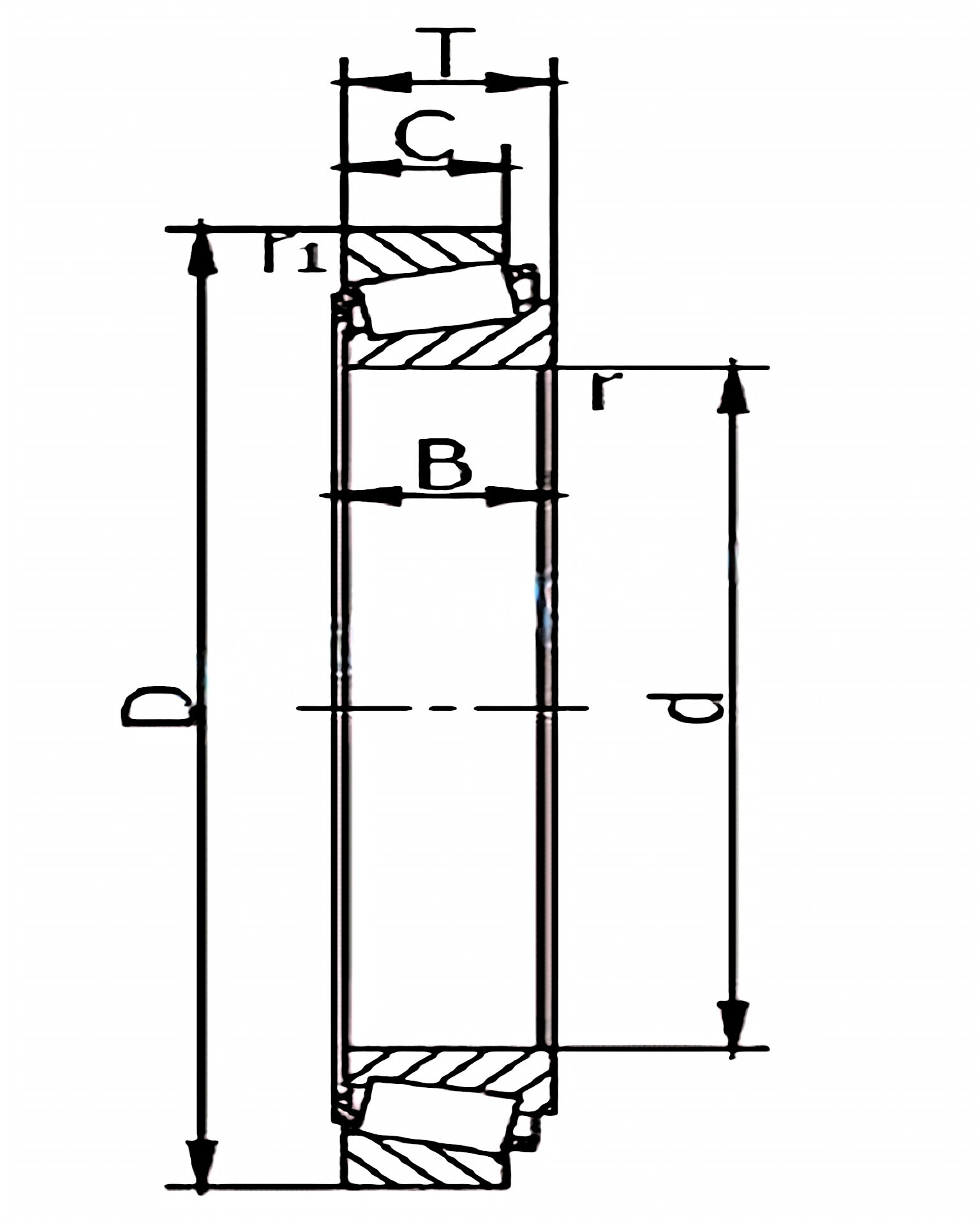

Boundary dimensions(mm)			Mass(kg)	Bearing NO.
d	D	T		Raydafon
15	35	11.75	0.054	30202
15	42	14.25	0.096	30302
17	40	13.25	0.056	30203
17	40	17.25	0.105	32203
17	47	15.25	0.129	30303
17	47	20.25	0.18	32303
20	42	15	0.108	32004X
20	47	15.25	0.092	30204
20	52	16.25	0.188	30304
20	52	22.25	0.241	32304
25	47	15	0.12	32005X
25	47	17	0.139	33005
25	52	16.25	0.155	30205
25	52	19.25	0.186	32205
25	52	22	0.214	33205
25	62	18.25	0.297	31305
25	62	18.25	0.289	30305
25	62	25.25	0.362	32305
28	52	16	0.156	320/28X
30	55	17	0.195	32006X

Series of Single row metric size tapered roller bearings

Popular types of Single row metric tapered roller bearings:

• 30202
• 30302
• 30203

Features of single row metric size tapered roller bearings

• Low frictionThe flange's optimized roller end design and surface finish promote lubricant film formation, resulting in lower friction. This also reduces frictional heat and flange wear. In addition, the bearings can better maintain preload and run at reduced noise levels.
• Long service lifeThe crowned raceway profiles of basic design bearings and the logarithmic raceway profiles optimize the load distribution along the contact surfaces, reduce stress peaks at the roller ends, and reduce the sensitivity to misalignment and shaft deflection compared with conventional straight raceway profiles.
• Enhanced operational reliabilityThe optimized surface finish on the contact surfaces of the rollers and raceways supports the formation of a hydrodynamic lubricant film.
• Consistency of roller profiles and sizesThe rollers incorporated in tapered roller bearings are manufactured to such close dimensional and geometrical tolerances that they are practically identical. This provides optimal load distribution, reduces noise and vibration, and enables preload to be set more accurately.
• Rigid bearing applicationA single row tapered roller bearing is typically adjusted against a second tapered roller bearing. By applying a preload, a rigid bearing application can be achieved.
• Running-in period with reduced temperature peaksTapered roller bearings typically have a running-in period, during which a conventional design tapered roller bearing experiences significant friction, resulting in wear. This effect is noticed as a temperature spike. With a tapered roller bearing design, friction, frictional heat, and wear are significantly reduced, provided the bearings are mounted and lubricated correctly.
• Separable and interchangeableThe inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). This facilitates mounting, dismounting, and also maintenance inspection routines. Furthermore, the separable components are interchangeable.

Applications of Single row metric size tapered roller bearings

Single row metric tapered roller bearings are widely used in the following industries:

• mining
• petroleum
• heavy machinery
• wind power
• engineering machinery
• and other industries
