Slewing Drive for Solar Tracking System

Slewing Drive Planetary Gearbox: Key Technical Component in Solar Tracking Systems

In today's world, with the deepening awareness of sustainable development and the urgent need for environmental protection, solar energy, as a clean and renewable form of energy, is becoming increasingly important. It can not only reduce dependence on fossil fuels and alleviate the energy crisis, but also significantly reduce greenhouse gas emissions and combat global climate change.Solar tracking system, as one of the key technologies to improve the efficiency of photovoltaic power plants, dynamically adjusts the direction of photovoltaic panels to ensure that they always maintain an optimal angle with the sun's rays, thereby maximizing light energy absorption and electrical energy output. Compared with traditional fixed installations, tracking systems can increase power generation by 15% to 45% during daytime hours, significantly improving the economics and environmental benefits of solar energy utilization.However, to achieve such precise and stable tracking actions, an efficient and reliable transmission and control system is indispensable. This is where the Slewing Drive Planetary Gearbox comes into play. As the core technical component in the solar tracking system, it not only bears the important task of converting and transmitting driving torque, but also directly affects the tracking accuracy, stability and service life of the system. This article will deeply explore the working principle, technical advantages and core role of Slewing Drive Planetary Gearbox in improving the performance of solar tracking systems, and reveal how this precision mechanical device can help green energy move towards a more efficient and intelligent future.

What is Slewing Drive

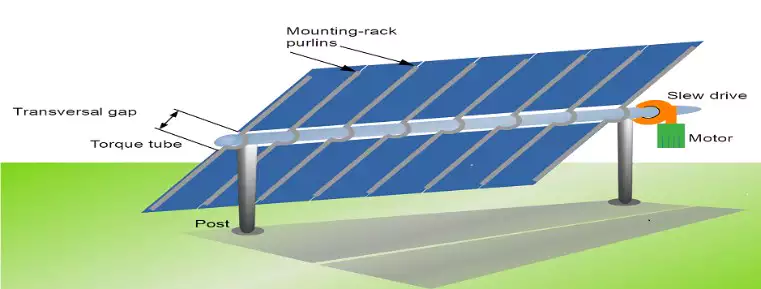

Slewing Drive, also known as slew drive, is a highly integrated transmission system that is particularly suitable for applications that require a wide range of slewing motion and carry heavy loads, such as photovoltaic panel positioning in solar tracking systems. Its core lies in the perfect integration of the planetary gear reducer and the slewing bearing to form a drive unit that can withstand large loads and achieve precise angle control. In the field of precision transmission, the rotary drive ensures high precision and reliability of transmission with its unique structural design, and has become one of the key technologies to improve the performance of mechanical equipment.

Working Principle of Planetary Gear Reducer

The planetary gear reducer is the core component of Slewing Drive. Its working principle is based on the mutual meshing of a set of planetary gear sets (including planetary gears, sun gears and external ring gears). The planet gear not only rotates around its own axis, but also revolves around the sun gear. Through this complex gear interaction, the conversion of high speed input to low speed and high torque output is achieved. This mechanism provides several significant advantages: high torque output, low-noise operation, compact size and smooth transmission. It is very suitable for application scenarios that require a large amount of deceleration and torque increase, such as driving the precise rotation of photovoltaic panels.

Advantages of Integrated Design of Slewing Bearing & Drive

• Large load-bearing capacity: The slewing bearing part can withstand huge axial force, radial force and overturning moment, making the entire system stable and reliable even when bearing wind pressure, snow load and other external loads.
• Compact structure: The integrated design greatly reduces the installation space requirements, simplifies the complexity of system integration, and makes the layout of the solar tracking system more flexible and efficient.
• High reliability: Due to the reduction of external connecting parts, such as belts, chains, etc., the failure rate caused by wear and looseness is reduced, and the stability and life of the overall system are improved.
• Easy maintenance: The integrated design facilitates centralized maintenance and inspection, reduces maintenance costs and time, and ensures long-term stable operation of the solar tracking system.
• Precision control: The built-in high-precision slewing bearing combined with the planetary gear reducer can fine-tune the angle of the photovoltaic panel to ensure tracking accuracy, thereby maximizing solar energy collection efficiency.

Planetary Gearbox/Reducer Procurement Guide

Parameter	Considerations
Ratio	Determine the required speed reduction ratio for the application.
Torque	Determine the maximum torque required for the application.
Backlash	Determine the acceptable amount of backlash for the application.
Mounting	Determine the appropriate mounting method for the application.
Environmental Conditions	Determine the environmental conditions the planetary gearbox/reducer will be exposed to.

By considering these factors, you can ensure that you choose the appropriate planetary gearbox/reducer for your application.

Author: Miya

Thank you for reading our article on Slewing Drive Planetary Gearbox for Solar Tracking System. If you have any questions or would like to inquire about our products, please contact us.
