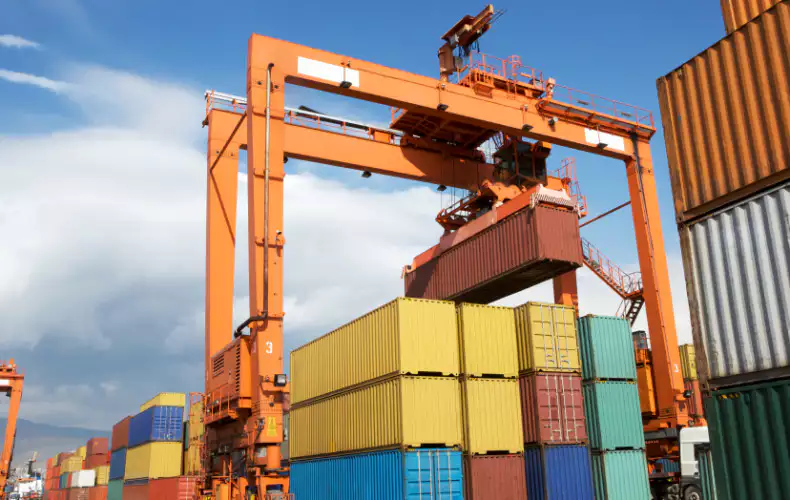

A slewing drive is a gearbox that is designed to handle heavy loads and provide smooth rotation for machinery. In gantry crane rotational drives, the slewing drive is crucial to ensure the crane can rotate easily and with precision. In this article, we will explore the working principle, installation position, function, and necessity of the slewing drive in gantry crane rotational drives.
The slewing drive is a gearbox that consists of two essential components: the slewing ring and the drive train. The slewing ring is the bearing that supports the load and allows for rotational movement, while the drive train provides the necessary torque to move the load. The slewing drive uses a planetary gear system to achieve the torque needed to rotate the load. The sun gear is the central gear, and the planet gears orbit around it, providing the necessary torque to rotate the load. The ring gear is the outer gear that acts as the stationary component, holding the load in place.
The slewing drive is typically installed between the crane base and the crane tower. The slewing drive is mounted horizontally and provides a rotating platform for the crane tower to rotate on. By installing the slewing drive in this position, the crane can rotate 360 degrees, providing more flexibility and precision in its operation.
The slewing drive is a critical component in gantry crane rotational drives. Its primary function is to provide the necessary torque to move the load and ensure smooth and precise movement. The slewing drive also helps to distribute the load evenly, reducing the stress on other components of the crane.
The slewing drive is necessary for gantry crane rotational drives to function correctly. Without the slewing drive, the crane would not be able to rotate, reducing its overall functionality and efficiency. The slewing drive is also necessary to ensure the safety of the crane and its operators, as the smooth and precise movement provided by the slewing drive reduces the risk of accidents or damage.
At our company, we are dedicated to the research, design, and manufacturing of planetary gearboxes, including slewing drives. We are a leading enterprise in the industry, with a commitment to providing high-quality products and excellent service to our customers.
| Parameter | Factors to Consider |
|---|---|
| Ratio | Load requirements, torque output, and speed requirements. |
| Size | Load requirements, available space for installation, and mounting options. |
| Efficiency | Power consumption, heat dissipation, and overall system efficiency. |
| Accuracy | Application requirements, precision requirements, and load distribution. |
| Service Life | Load requirements, application environment, and maintenance requirements. |
When purchasing a planetary gearbox/reducer, it is essential to consider these factors to determine which parameters are necessary for your specific application. By taking these factors into account, you can ensure that you choose the right gearbox for your needs, providing optimal performance and efficiency.
The slewing drive is a vital component in gantry crane rotational drives, providing the necessary torque and smooth rotation to ensure the crane can operate efficiently and safely. By understanding the working principle, installation position, function, and necessity of the slewing drive, you can better appreciate its importance and the role it plays in crane operation. When purchasing a planetary gearbox/reducer, it is crucial to consider the necessary parameters to ensure optimal performance and efficiency.
Author: Miya
