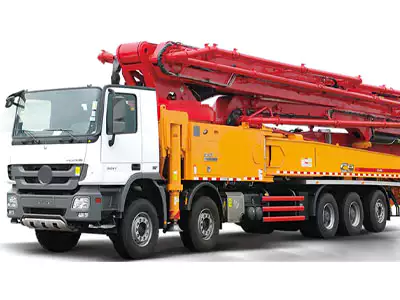

Slewing Drive Planetary Gearbox for Truck-mounted Concrete Pump

Slewing Drive Planetary Gearbox for Truck-mounted Concrete Pump

Introduction

Slewing drive planetary gearbox is a crucial component in a truck-mounted concrete pump. It is responsible for controlling the rotation of the concrete pump's boom and ensuring precise positioning of the concrete output. In this article, we will explore the working principle, installation location, function, and necessity of slewing drive in the truck-mounted concrete pump.

Working Principle of Slewing Drive in Truck-mounted Concrete Pump

The slewing drive in a truck-mounted concrete pump works by transferring the torque from the hydraulic motor to the pinion, which engages the ring gear. The ring gear is fixed to the slewing bearing, which is mounted on the truck's chassis. When the hydraulic motor rotates, the pinion drives the ring gear, which causes the boom to rotate and move up or down to deliver the concrete to the desired location.

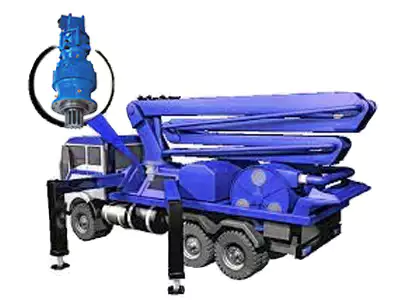

Installation Location of Slewing Drive in Truck-mounted Concrete Pump

The slewing drive in a truck-mounted concrete pump is usually located at the base of the boom, where it can transfer the maximum torque to the ring gear. The slewing drive is typically bolted to the chassis of the truck and connected to the hydraulic motor with hoses.

Function of Slewing Drive in Truck-mounted Concrete Pump

The main function of the slewing drive in a truck-mounted concrete pump is to control the rotation of the boom, which is necessary for delivering the concrete to the desired location. It also ensures that the boom is accurately positioned to prevent any spillage or wastage of the concrete. Moreover, the slewing drive helps reduce the stress on the hydraulic system by providing a mechanical advantage to the hydraulic motor.

Necessity of Slewing Drive in Truck-mounted Concrete Pump

The slewing drive is a crucial component of a truck-mounted concrete pump. Without it, the boom cannot be rotated, and the concrete cannot be delivered to the required location. Moreover, the slewing drive ensures that the boom is precisely positioned, which is essential for the quality and efficiency of the concrete pouring process.

About Our Company

We are a leading company dedicated to the research, design, and manufacture of planetary gearboxes. Our products are widely used in various industries, including construction, mining, and renewable energy. We have years of experience in the field of planetary gearboxes and have a team of experts who can provide customized solutions to meet your specific needs.

Planetary Gearbox/Reducer Purchasing Guide

Parameter	Factor to Consider
Reduction Ratio	Required torque and speed
Output Torque	Load capacity and safety factor
Input Speed	Motor speed and required output speed
Mounting Position	Compatibility with other components and ease of installation
Operating Temperature	Environmental conditions and lubrication requirements
Service Life	Quality of materials and manufacturing processes

By considering these factors, you can choose the right planetary gearbox for your specific application, ensuring optimal performance and longevity.Author: Miya
