Slewing Drive Gearbox in Wastewater Treatment System

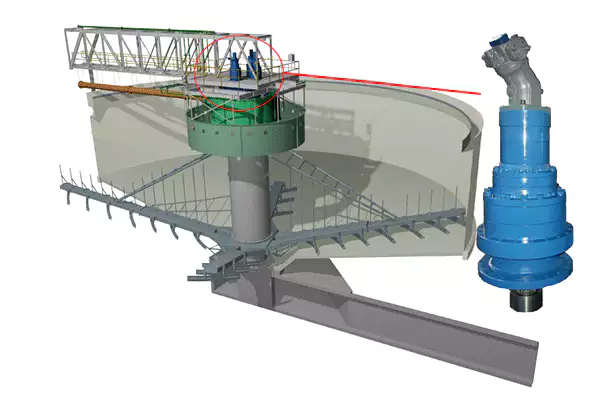

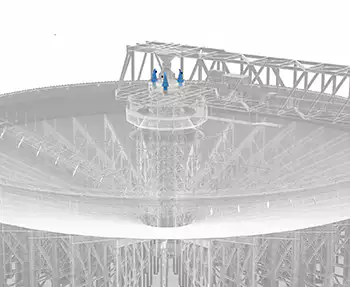

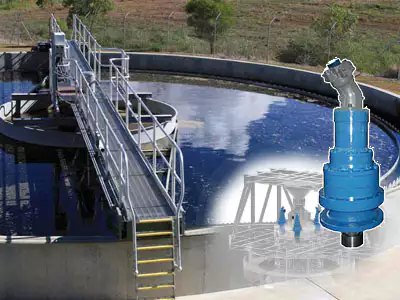

In wastewater treatment systems, the sliding drive planetary gearbox is an important mechanical component mainly used to drive large mechanical equipment that needs to achieve continuous rotation or wide range swing action, such as mixing equipment or scraper in thickener clarifiers.Installation location: In the sludge concentration and clarification tank, the sludge drive planetary gearbox is usually installed on the central drive device as the core transmission component. It is connected between the driving motor and the mixing shaft or mud scraping mechanism, ensuring that power can be efficiently and smoothly transmitted to these rotating components, allowing the mixing arm or mud scraping plate to continuously rotate at the set speed and direction, thereby promoting the process of solid-liquid separation in sewage.Working principle:The functions and working methods of the slewing drive planetary gearbox are as follows:

• Drive function: The rotary drive planetary gearbox is connected to an electric motor or other power source, and converts the input power into a huge torque output, which is used to drive agitators, scrapers or other rotations used for solid suspension settling and liquid clarification. equipment. Due to the high torque density characteristics of the planetary gearbox, sufficient driving force is provided even at low speeds.
• Precise control: Due to its unique design (multiple planetary gears rotate around a central sun gear), planetary gearboxes are able to achieve very precise speed and angle control. This is crucial for the agitation or mixing process in wastewater treatment systems to ensure full contact and reaction between sludge particles and chemicals while ensuring uniform mixing of fluids in the clarifier.
• Durability and Reliability: Wastewater treatment environments are often harsh, containing corrosive substances and large amounts of suspended solids. High-quality slewing drive planetary gearbox usually has good sealing performance and anti-corrosion design, which can maintain stable performance during long-term and continuous operation, reducing maintenance costs and failure rates.
• Load distribution and overload protection: The mutual meshing between the gears inside the planetary gearbox distributes the load, making the entire drive system more able to withstand unbalanced forces and impact loads. Some advanced slewing drives are also equipped with overload protection devices, which can cut off power transmission in time when the system encounters abnormal resistance to avoid equipment damage.

Design Features and Benefits

The Slewing Planetary Gearbox is designed with a number of unique features and advantages that allow it to perform superiorly in industrial applications such as concentration and clarification processes, providing significant performance improvements over conventional gearboxes. :

• A. High load-bearing capacity: Due to the planetary gear set structure, the load can be evenly distributed among multiple planetary gears, greatly improving the overall load-bearing capacity and life, especially suitable for applications that need to withstand heavy loads and impacts. Loads of wastewater treatment equipment.
• B. Precise transmission: The planetary gearbox can provide high-precision transmission ratio and rotation positioning to ensure that the equipment's stirring or scraping action is highly accurate during the concentration and clarification process, which helps optimize the sewage treatment effect and improve the quality of the effluent.
• C. Compact structure: The planetary gear layout is compact, reducing space occupation, making the entire transmission system more compact, easy to integrate and install in a limited space, and also reducing the overall weight of the equipment.
• D. Large torque output: Despite its relatively small size, the planetary gearbox can achieve a large torque conversion ratio and can generate high torque at low speeds to meet the needs of driving heavy stirring paddles or mud scraping equipment in wastewater treatment systems.
• E. High efficiency: The planetary gearbox has high transmission efficiency and small losses, which helps reduce energy consumption and operating costs, and is in line with the trend of pursuing energy conservation and environmental protection in the modern sewage treatment industry.
• F. High reliability: The characteristics of multiple gear meshes make the system have good redundancy and fault tolerance. Even if there is a problem with an individual gear, it will not cause the entire system to fail immediately.

Comparing the Performance Improvement of Traditional Gearboxes in the Concentration Clarification Process

 1. Better wear and corrosion resistance: The slewing planetary gearbox optimized for wastewater treatment environments may use special surface treatment technology and materials to resist wear and corrosion under harsh working conditions, thereby increasing its service life.2.Lower maintenance requirements: Thanks to the characteristics mentioned above, planetary gearboxes generally require less frequent and less intensive maintenance than conventional spur or helical gearboxes, which means less downtime and higher availability.3.Dynamic response capability: The planetary gearbox can provide faster dynamic response speed, which is helpful for responding to situations that require rapid adjustment due to load changes during the clarification process.4.Noise and vibration control: The planetary gearbox is carefully designed and manufactured to effectively reduce noise and vibration during operation, creating a better working environment for sewage treatment plants.

Other Similar Application Scenarios



• Municipal sewage treatment: In the sludge concentration stage after secondary biological treatment, it is used to increase the sludge concentration to facilitate subsequent dehydration treatment.
• Industrial wastewater treatment: Wastewater generated in industries such as chemical industry, papermaking, food processing, metallurgy, etc. needs to be concentrated and clarified first to remove suspended solids and recover useful resources.
• Mine concentrator: used to concentrate the ore slurry, separate fine-grained ores and other impurities, and improve the grade of the concentrate.
•

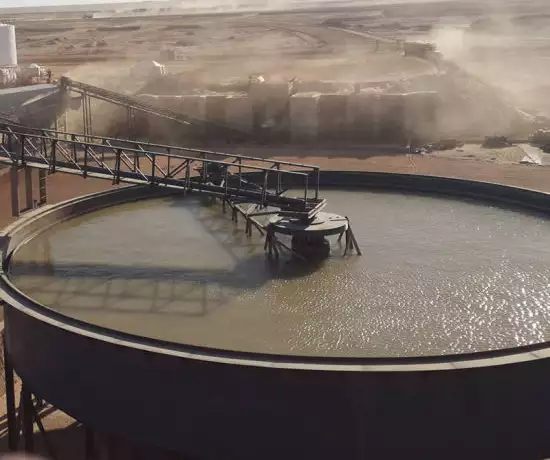

• Coal washing: Wastewater treatment after coal washing removes suspended particles through concentration and clarification, thereby recycling water resources and reducing environmental pollution.
• Nuclear power plants and thermal power plants: In cooling water treatment systems, slewing drives can drive clarification equipment to complete the separation of sediments in wastewater.
• Food and beverage industry: wastewater treatment in the production process, such as molasses clarification, wheat grain clarification in the brewing industry, etc., the slewing drive planetary gearbox can accurately control the action of the agitator to help the sediment settle quickly.
