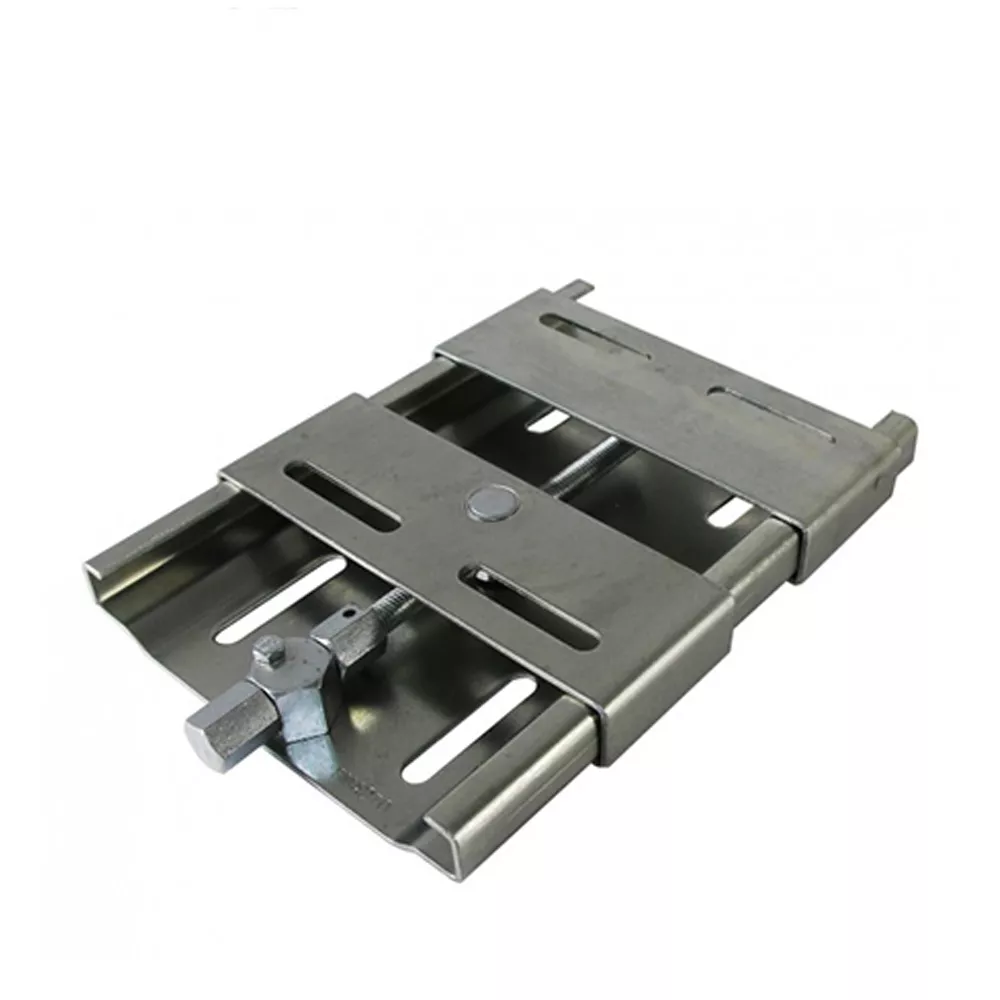

SMA Common Motor Base SMA 210B-SMA 490

SMA Common Adjustable Motor Base

The motor base can solve the problem of the belt tension in the power transmission. They are easy to assemble and allow adjustment of bel tension or disassembly without removing the electric motor. The movement of the motor is controlled by a screw which is adjusted by a common key.

Characteristics of SMA Motor Bases galvanization finish with split plates sliding, It's convenient for bolts fixing of motors. Application of SMA Motor Bases fixing and adjustment of all series motors.

We also can supply Adjustable Motor Mounts products according to drawings or samples.

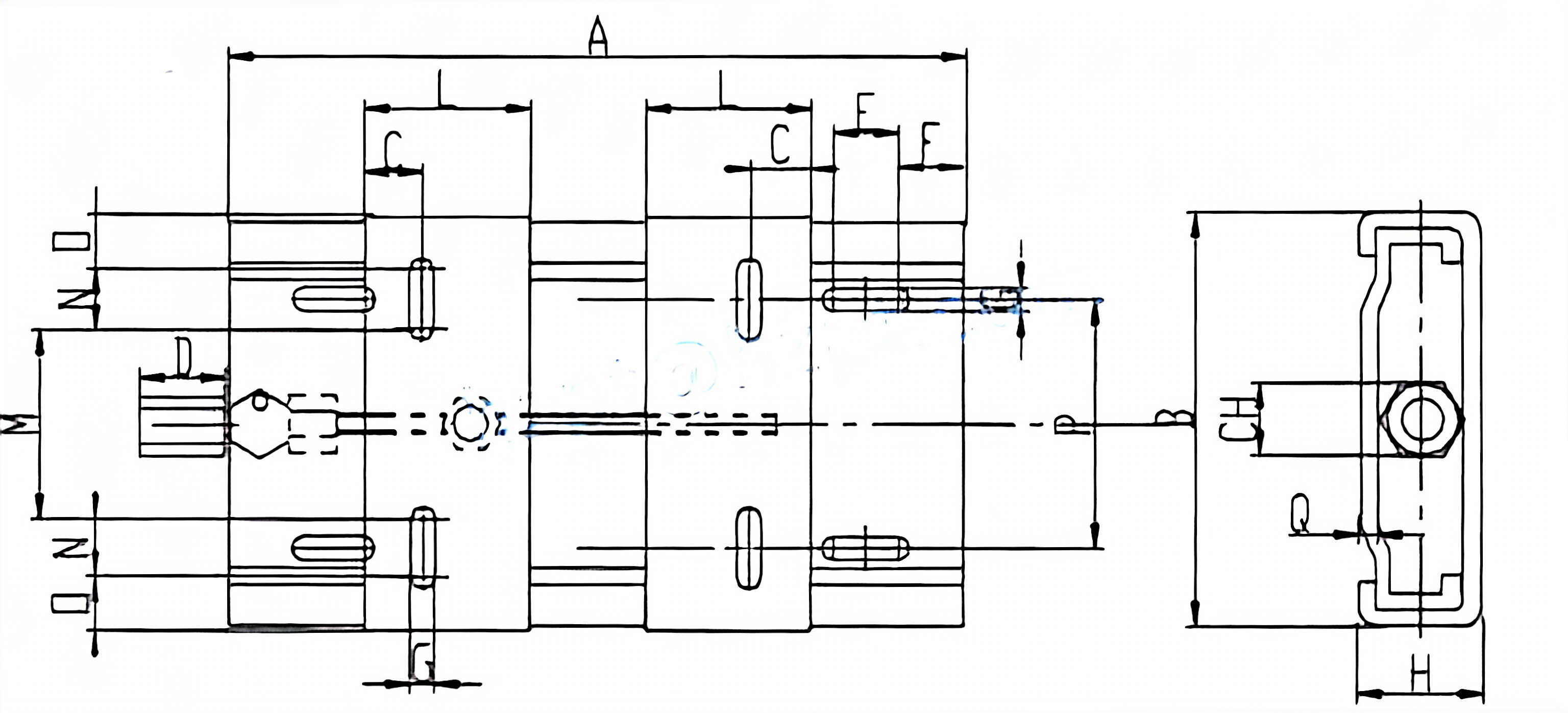

Dimensions of SMA Motor Bases

Specifications of SMA Motor Base

T1P0	A	B	C	CH	D	E	F	G	H	L	M	N	0	P	Q	Kg
SMA2I0B	210	150	20	19	30	25	25	10	27	65	50	25	25	80	2.5	1.8
SMA210	210	195	20	19	25	50	25	10.5	33	70	43	50	26	98	3	2.6
SMA 270	270	195	20	19	25	50	25	10.5	33	70	43	50	26	98	3	3.0
SMA 307	307	213	20	19	25	50	25	10.5	33	70	65	50	24	108	3	3.2
SMA 340	S40	290	27	22	30	62	30	12.5	40	95	90	62	38	165	4	6.3
SMA 380	380	240	27	19	25	43	30	12	33	95	96	43	29	160	3	4.5
SMA 430	430	290	27	22	30	62	30	12.5	40	95	90	62	38	165	4	7.5
SMA 450	450	350	40	22	30	55	30	15	40	125	174	55	33	225	4	9.7
SMA 490	490	410	40	22	30	60	30	15	40	95	193	60	48.5	284	4	10.8



Packing & Shipping

Package	Standard suitable package / Pallet or container.Polybag inside export carton outside, blister and Tape and reel package available.If customers have specific requirements for the packaging, we will gladly accommodate them.
Shipping	10-20 working days after payment receipt is confirmed (based on actual quantity).Packing standard export packing or according to customers' demand.Professional goods shipping forward.

Motor Base Manufacturer-Raydafon

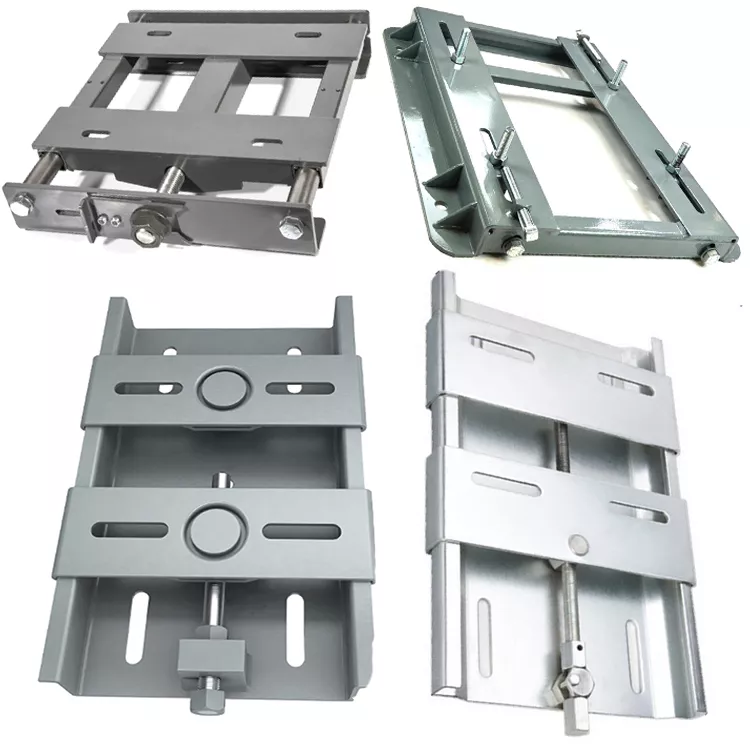

A motor base manufacturer provides various types and sizes of motor bases. These are designed by using premium quality raw materials that are sourced from reliable vendors. The range of motor bases available from Raydafon includes welded, bolted, adjustable, sliding, and modular bases. Moreover, these bases can be customized according to the client's specifications.The motor base is a crucial component of a motor. Its structure and machining have a big influence on its performance. If the machining base of a motor is not suitable for the intended use, it can affect the performance of the motor. Therefore, it is necessary to select the right structure and process it according to the technical requirements of the motor. This will reduce the chances of non-conformity caused by the machining base.Special fixed-position bases feature mounting studs extending from slots. This type of base allows the motor to be lifted above the pulley center. However, the motor may shift closer to the driven pulley during the tightening process, which puts excessive tension on the mounting studs. Alternatively, a tension-controlling base automatically changes the center distance of the pulley during mounting.
