South Africa Type Hook On Board / Steel Planks for Construction Safety
  • South Africa Type Hook On Board / Steel Planks for Construction SafetySouth Africa Type Hook On Board / Steel Planks for Construction Safety

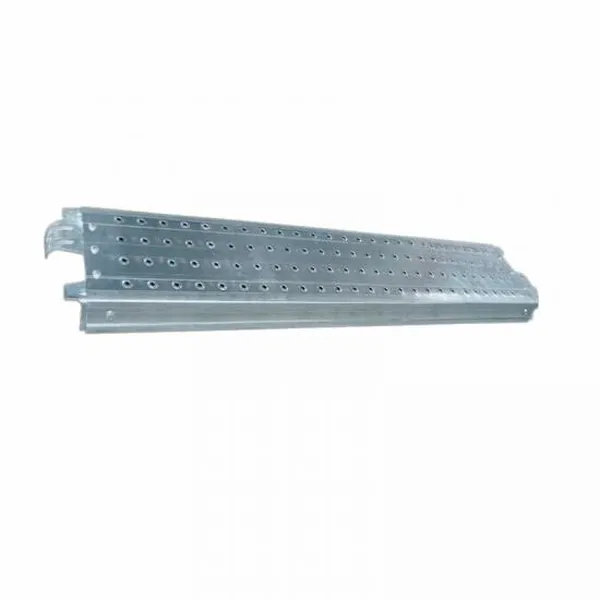

South Africa Type Hook On Board / Steel Planks for Construction Safety

Enhance construction safety with Raydafon Group's South Africa Type Hook On Board / Steel Planks, designed for durability and secure scaffolding. Made from high-strength steel, these planks offer reliable support and easy installation, ideal for builders and contractors on demanding job sites. Experience peace of mind and improved efficiency, standing out with superior load-bearing capacity and corrosion resistance. Trust Raydafon Group for top-tier safety solutions.
Steel plank is used as a walkway plank in scaffolding systems for construction safety. It is a fitting part of construction scaffolds. There are stamping holes on the scaffolding plank to resist skidding for workers. The galvanized surface and rib reinforcement design make scaffolding plank more stronger in the rainy days and in moist environments.Hook on board is a popular and economic scaffolding plank in South Africa.South Africa Type Hook On Board / Steel Planks for Construction Safety

South Africa Type Hook On Board / Steel Plank, 230mm (9") wide, t=1.8mm

CodeSize (Metric)Size (Imperial)Weight(kg)Weight(lbs)
SP3.23305230x3048mm9" x 10'19.2242.38
SP3.23300230x3000mm9" x 9'-10 1/8"18.9541.78
SP3.23270230x2700mm9" x 8'-10 1/3"17.2738.08
SP3.23250230x2500mm9" x 8'-2 7/16"16.0135.30
SP3.23244230x2438mm9" x 8'15.6734.55
SP3.23230230x2300mm9" x 7-'6 9/16"14.9032.85
SP3.23213230x2134mm9" x 7'13.9730.80
SP3.23210230x2100mm9" x 6-'10 11/16"13.6430.08
SP3.23200230x2000mm9" x 6'-6 3/4"13.0828.84
SP3.23183230x1829mm9" x 6'12.1226.72
SP3.23180230x1800mm9" x 5'-10 7/8"11.9626.37
SP3.23160230x1600mm9" x 5'-3"10.8423.90
SP3.23152230x1524mm9" x 5'10.4122.95
SP3.23150230x1500mm9" x 4'-11 1/16"10.2822.67
SP3.23129230x1295mm9" x 4'-3"8.9919.82
SP3.23122230x1219mm9" x 4'8.5718.90
SP3.23120230x1200mm9" x 3'-11 1/4"8.4618.65
SP3.23100230x1000mm9" x 3'-3 3/8"7.3416.18
SP3.23090230x900mm9" x 2'-11 7/16"6.7814.95
SP3.23080230x800mm9" x 2'-7 1/2"6.2213.72
SP3.23060230x600mm9" x 1'-11 5/8"5.1011.25
* Material: Steel grade Q235. Plank thickness 1.8mm, width 230mm, height 63.5mm.* Surface Treatment: Hot dip galvanized is recommended, pre-galvanized, powder coated, or painted is also available.

Features of Steel Plank

  • High bearing capacity and low weight, anti-corrosion.
  • Anti-deposited sand, fireproof.
  • Slip-resistant surface.
  • Foolproof, weather resistant.
  • Safe and neat construction.
  • Environmental protection.
  • Easy to assemble & dismantle, reusable, cost saving.

Product Display

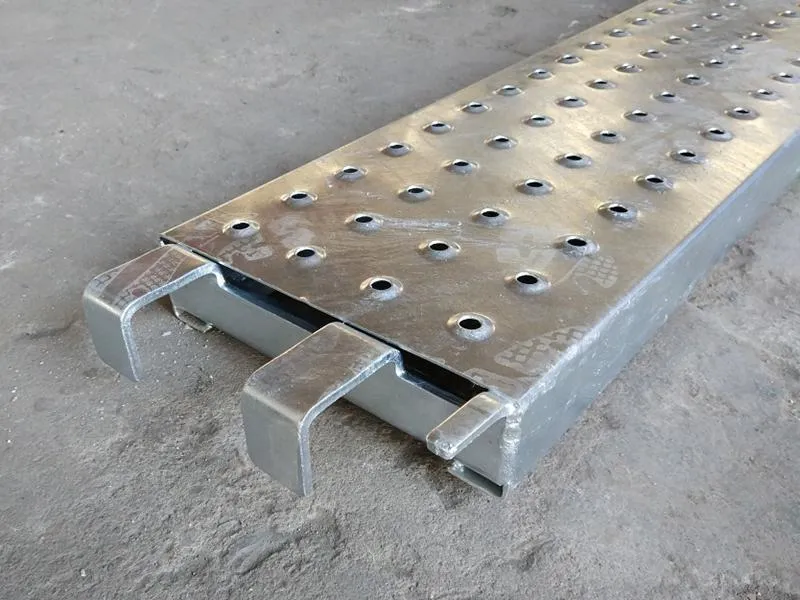

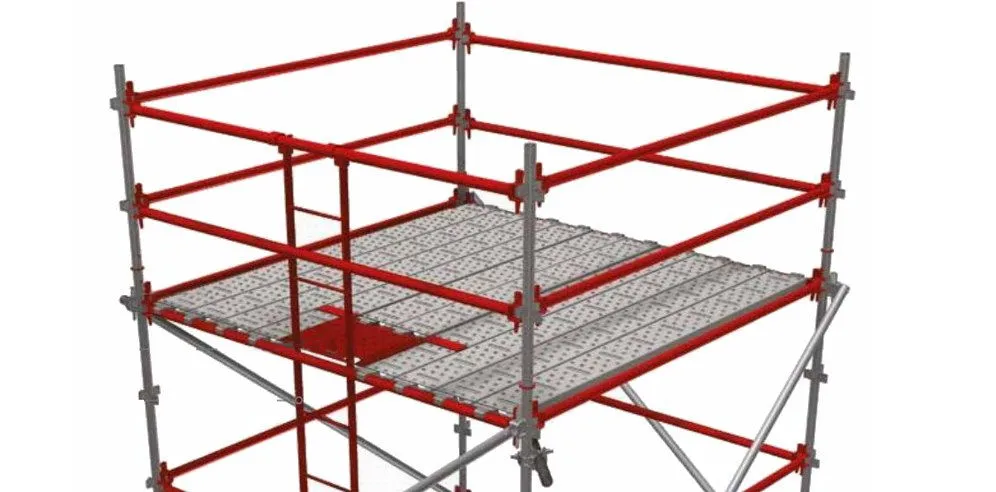

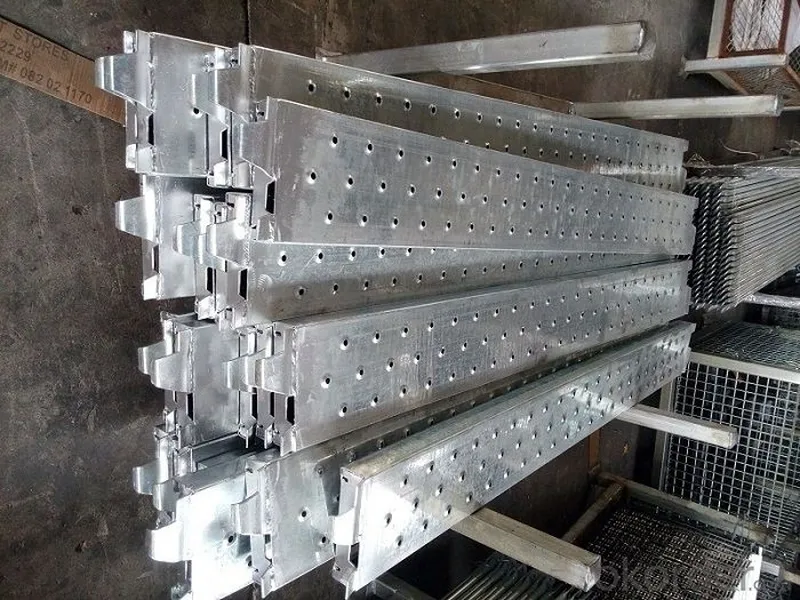

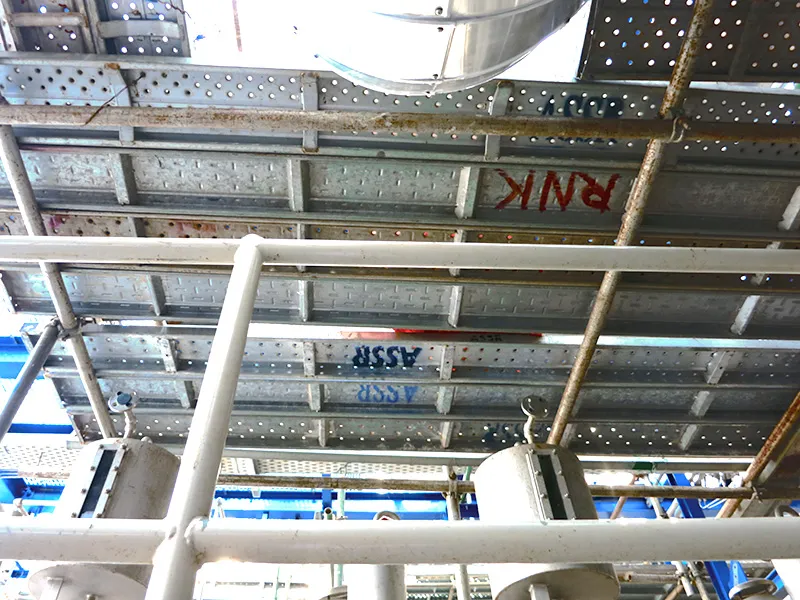

South Africa Type Hook On Board / Steel Planks for Construction SafetySouth Africa Type Hook On Board / Steel Planks for Construction SafetySouth Africa Type Hook On Board / Steel Planks for Construction Safety
