speed double teeth Gear H75179 for combine harvester

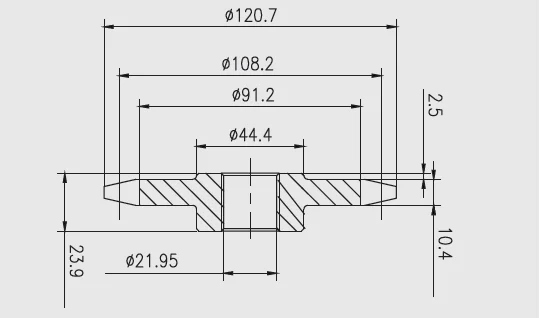

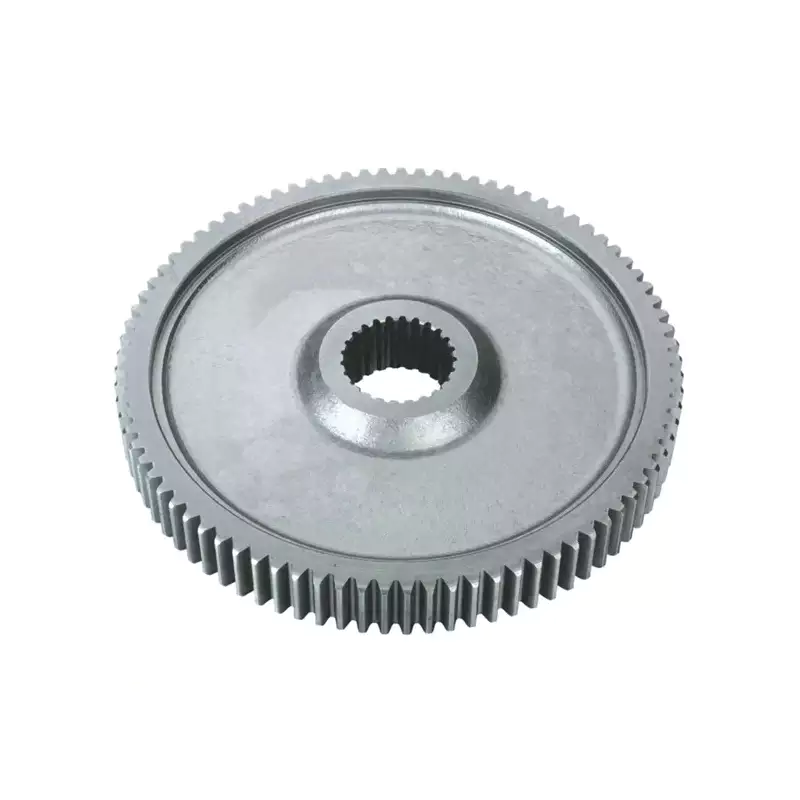

Speed Double Teeth Gear H75179 for Combine Harvester

The Speed Double Teeth Gear H75179 is an essential part of the combine harvester. This gear helps to increase the speed of the harvester while maintaining its efficiency. It is an important component that ensures the smooth operation of the combine harvester.

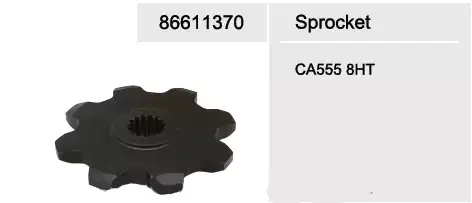

Item Name	Sprocket
Ref. OEM No.	86611370
Application	2208, 2212, 2406, 2408, 2412, 3206, 3208, 3212, 3406, 3408, 3412, 3416, 3418 N H Cornheads

Item Name	Sprocket
Ref. OEM No.	AE23950
Application	JD 336, 346, 466, 327, 347, 456, 456T/WS, 466T/WS, 342, 342T/WS, 346, 346T/WS, 332, 332T/WS, 336, 336T/WS, 342AT, 342AWS, 456A,456AT, 456AWS, 466A,

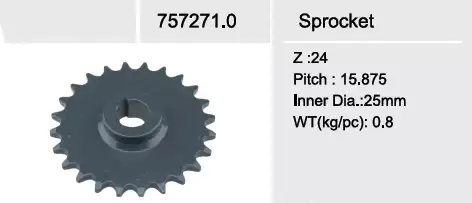

Item Name	Sprocket
Ref. OEM No.	757271.0
Application	CL AAS series

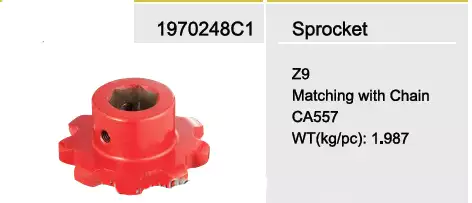

Item Name	Sprocket
Ref. OEM No.	1970248C1
Application	CASE 1620,1640,1644,1660,1666,1680,2144,2166,2188,615 late,715,815,915 late,1420,1440,1460,1480

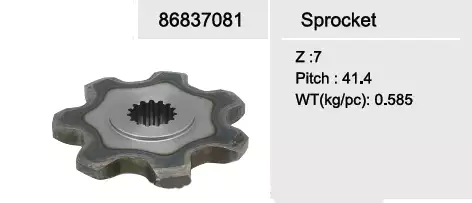

Item Name	Sprocket
Ref. OEM No.	86837081
Application	Case IH Cornheads - 2206, 2208, 2212, 2406, 2408, 2412, 3206, 3208, 3212, 3406, 3408, 3412, 3416, 3418 New Holland Cornheads

Item Name	Sickle Knife head
Ref. OEM No.	666743.1
Application	CL AAS LEXION / MEGA / MEDION / DOMINATOR series

PRODUCT SPECIFICATIONS

No	Ref. No.	Description	Application
1	AN102448 /573399 /70595084	Z8 Matching with CA555 chain	J D 235, 243 , 244, 335, 343, 344, 435, 443, 444, 543, 546, 635, 642, 643, 644, 645, 842, 843, 844, 1243. NH/AGRO
2	AH101219	Z8 Matching with CA555 chain	J D 1243, 1293, 235, 243, 244, 335, 343, 344, 435, 443 , 444 , 493, 494, 543, 546, 594, 635, 642, 643 , 644 , 645 , 693, 693SH,694, 842, 843, 844, 893, 894
3	AN102382	Z14 Matching with 60 Chain, AH89038 and H87725	J D 40 series, 900 series, CTS, CTS II, 3300, 4400, 4420, 6600, 6620, 7700, 7720, 8820, 9400, 9410, 9500, 9510, 9600, 9610
4	H159615	Z13 WT (kg/pc): 3.500	J D 9560STS, 9570STS, 9650STS, 9660STS, 9670STS, 9750STS, 9760STS, 9770STS, 9860STS, 9870STS.
5	H159616	Z13WT (kg/pc): 4.900	J D S550 STS, S690, S690 STS, 9560STS, 9570STS, 9650STS, 9660STS, 9670STS, 9750STS, 9760STS, 9770STS, 9860STS, 9870STS
6	645333.1	50A14/60B13 WT(kg/pc): 0.65	CL AAS ME GA/MEDION/DOMINATOR series
7	673329.1	WT(kg/pc): 0.525	CL AAS DOMINATOR 38,48,58,68,78,88,98,108,118,76,86,96,106,130,140,150, COMMANDER CS 114,115,116,228,ME GA
8	503995.1	Z14 Matching with 38.4VB chain WT(kg/pc): 0.725
9	650869 / 670489	650869 (ID=50mm) 670489 (ID=40mm) WT(kg/pc): 1.69
10	670145	12B56 Z56 Matching with 12B1 chain WT(kg/pc): 4.95	CL AAS DOMINATOR 130,140,150
11	87691619 /168683C1	Z7 Pitch 41.4 Matching with chain CA550 WT(kg/pc): 0.808	CA SE1620,1640,1644,1660,1666,1670,1680,1682,1688,2144,2166,2188,2344,2366,2377,2388,2577,2588,815,914,915,1420,1440,1460,1470,1480,1482C N H 2388,AF2399
12	87740180 /144031A1	Z7 Pitch 41.4 Matching with chain CA550 WT(kg/pc): 0.950	CASE 2144,2166,2188,2344,2366,2388,CNH 2388,AF2399,AF2566,AF2688,AF2799,AF7130
13	87757278	Z9 Pitch 41.4 Matching with chain CA550 WT(kg/pc): 1.665	J&D 3300, 4400, 6600, 7700, 900 series, 200 series
14	199497C1	CA555 10HT Matching with 1.0" diameter shaft.	Cornhead Models - 963, 1043, 1044, 1054, 1063, 1064, 1083, 1084
15	84038624	Z10 Matching with chain CA550	N H TX36,TX66,TX68



Applications

The Speed Double Teeth Gear H75179 is commonly used in the following parts of agricultural machinery:

• Combine harvesters
• Forage harvesters
• Balers
• Corn harvesters
• And more

Compatibility

The Speed Double Teeth Gear H75179 can be adapted to fit a wide range of agricultural machinery models and brands. Here is a list of some of the compatible models:

Brand	Model
John Deere	9400, 9500, 9600, 9700, 9860 STS, 9870 STS
Case IH	1688, 2188, 2388, 2588, 5088, 6088, 7088, 7120, 8120, 9120
New Holland	CR series, CX series

Other Agricultural Machinery Parts

In addition to the Speed Double Teeth Gear H75179, we also offer a wide range of other agricultural machinery parts. Our selection includes:

• Agricultural chains
• Agricultural gearbox
• Pulley
• Sprocket
• Coupling
• PTO shaft
• Concave

Signs for Replacement

It is important to replace the Speed Double Teeth Gear H75179 when the following signs start to appear:

• Noise coming from the gear
• Difficulty in changing gears
• Increased vibration
• Low power output

If any of the above signs occur, it is crucial to replace the gear immediately to prevent further damage to the machine.

Choosing the Right Replacement Part

When choosing a replacement part for the Speed Double Teeth Gear H75179, it is essential to consider the following factors:

• Compatibility with the machine's model and brand
• The quality of the replacement part
• The supplier's reputation

It is important to choose a high-quality replacement part from a reputable supplier to ensure the smooth operation of the agricultural machinery. Author: Miya
