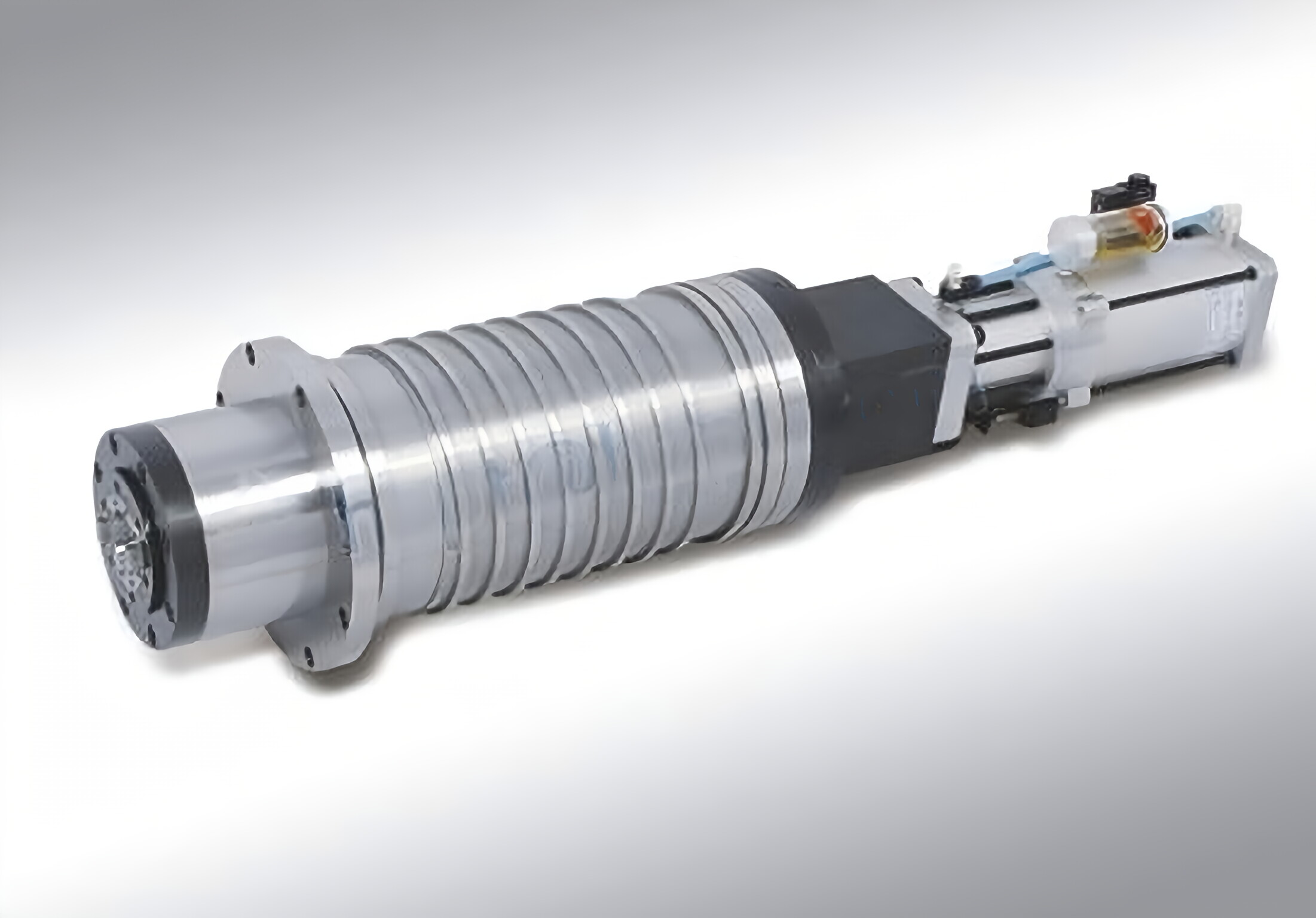

Spindle Motor Used for CNC Spindle JSZD220

Spindle Motor Used for CNC Spindle JSZD202

A spindle motor has two main parts, the spindle and the motor. In addition, they can be used in industrial machines, robots, and for CNC applications. The spindle fiber is an important protein structure in a cell. This fiber helps divide the genetic material within the cell evenly. The spindle is also essential for mitosis.

What Is a Spindle Motor?

Two common types of spindle motors are available. They are the CAT40 and the ATC types. Both provide high levels of precision and dependability. In general, the CAT40 spindle is the most common spindle for CNC routers. It is available in different sizes and power ranges.Spindle motors require special knowledge and experience to repair. These complex motors typically have many different failure modes. Proper rotor balancing is critical to preventing overheating and preventing breakdowns. In addition to basic maintenance, owners should be careful not to overload the spindle motor.There are three common types of spindle motors. Some are air-cooled while others are water-cooled. Air-cooled spindles are better for use in cold conditions. The water-cooled ones can run for long periods of time. Water-cooled spindles can be used for high-power applications.When designing spindle motors, keep in mind that they must be able to achieve a certain speed range while maintaining a constant output of torque. Furthermore, they must be able to accommodate a wide range of RPMs. In addition, they must have a specific amount of static stiffness.While choosing a spindle motor, be sure to consider the material to be cut. The material will influence the spindle motor's power and RPM. For example, wood and aluminum require a spindle with a high RPM and low power. For steel and other hard metals, you will want a spindle with at least 1kW of power. Likewise, the type of tools you use will determine how much power is needed.

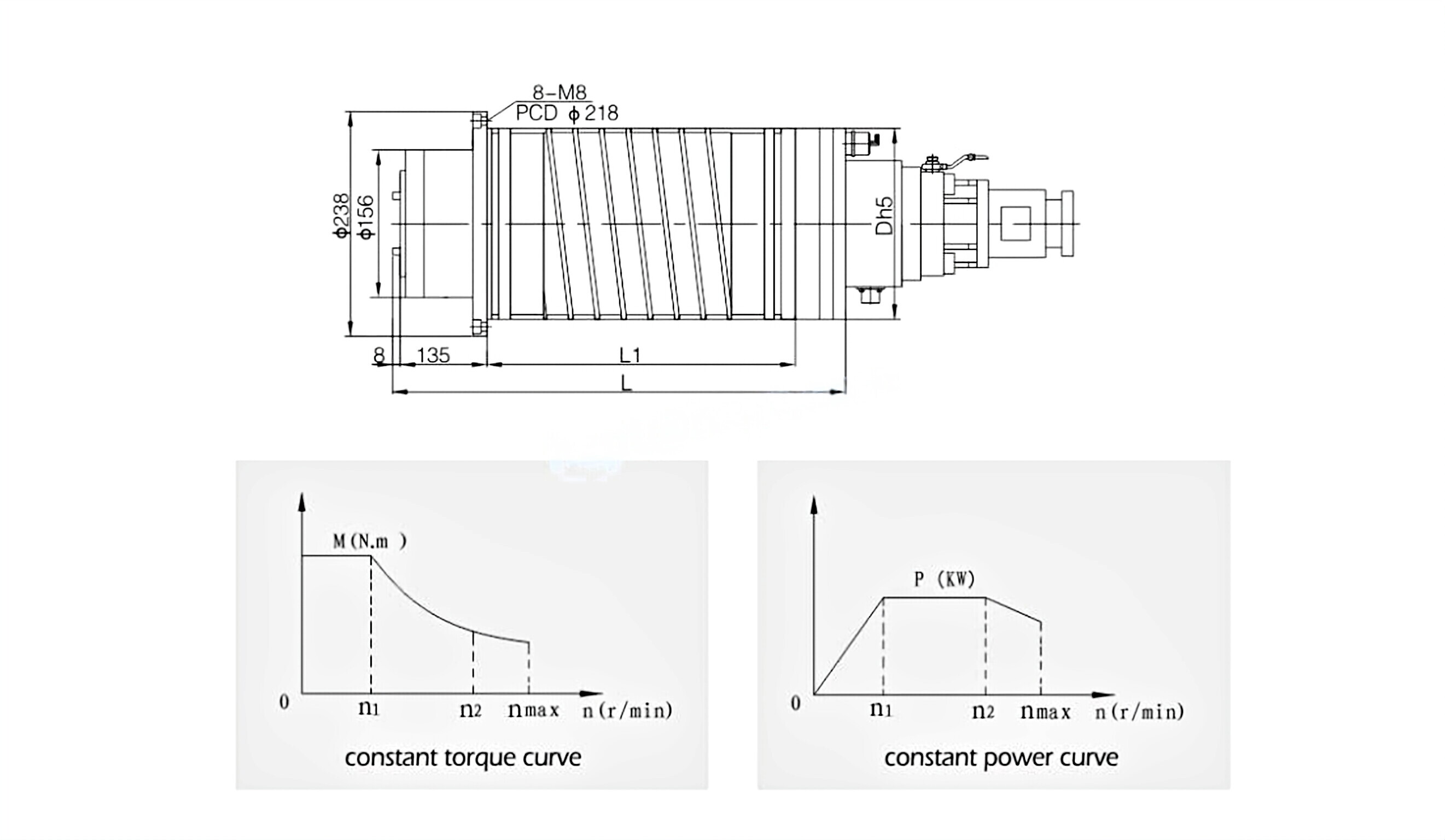

There are Two Ways for the Output One is Constant Torque, and Another is Constant Power as Below:

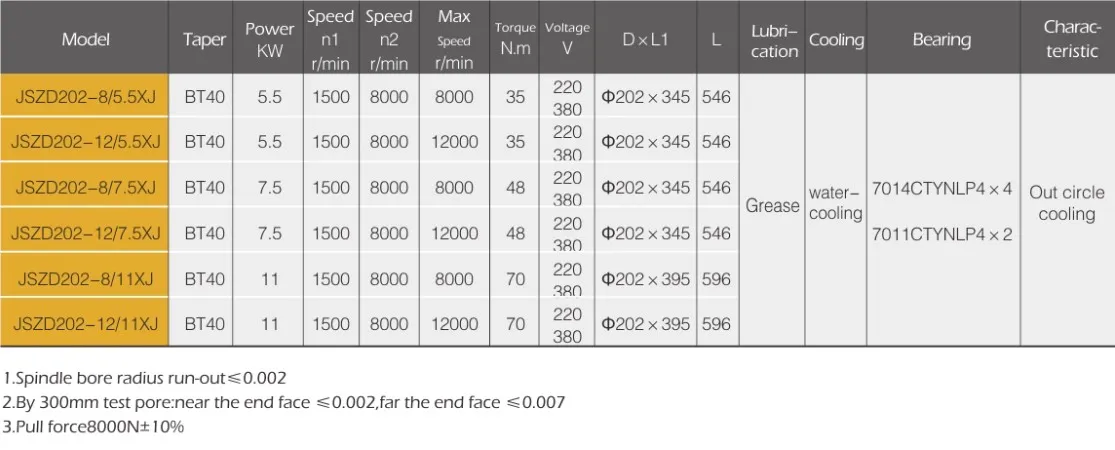

Nomenclature Explanation of Motor Spindle

The End of the Spindle Connection

Its have many different types of connection, depending on the different model spindle, please refer to the table below.

Spindle Instruction
