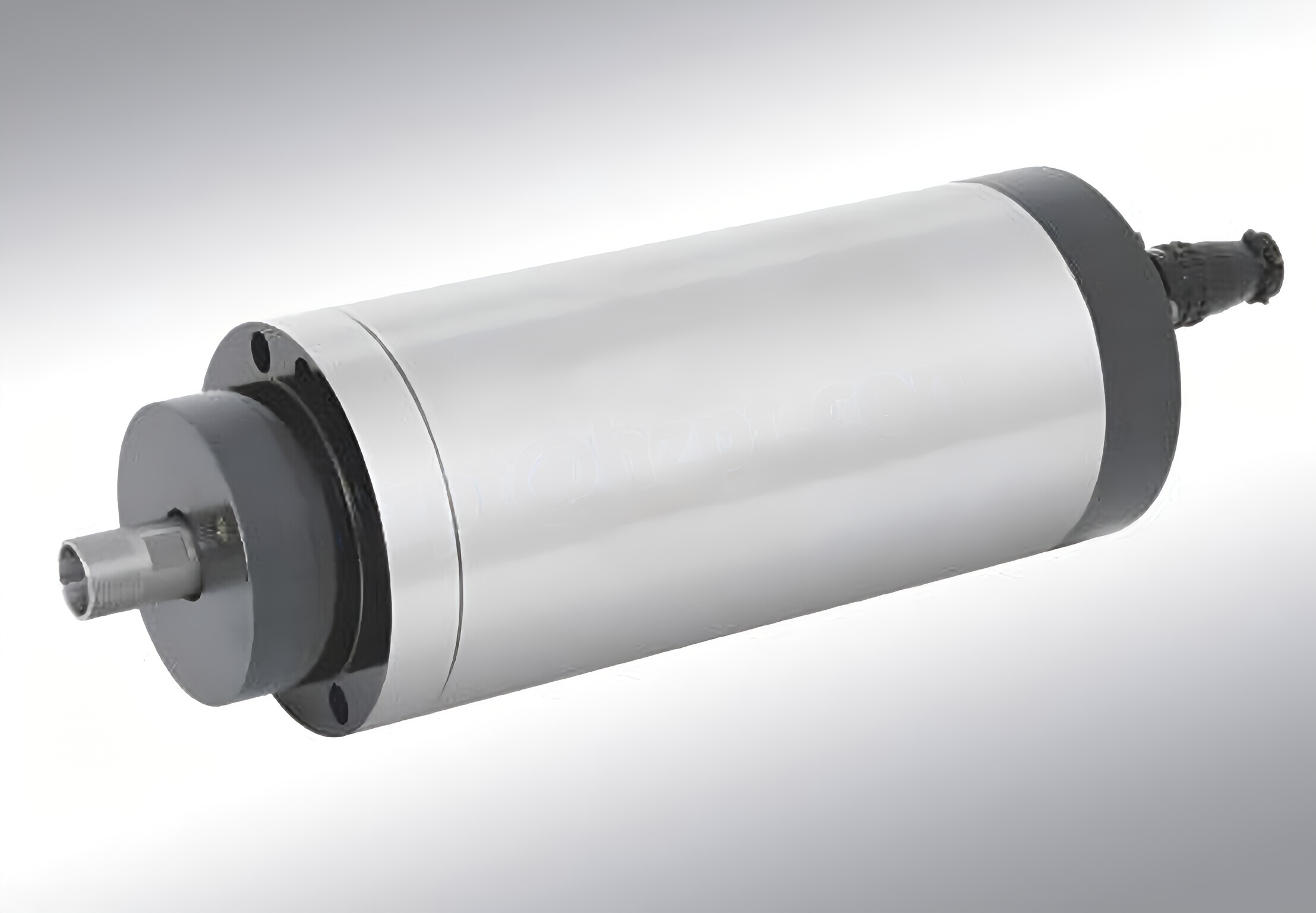

Spindle Motor Used for Engraving and Milling

Spindle Motor Used for Engraving and Milling

The main products can be divided into 5 styles with more than 10 series, the speed from 600r/min To 110.000/min. the power from 0.05kw to 40KW, the spindle bearing according to different speeds using high precision and speed bearing, or ceramic bearing, or maglev bearing. The cooling way uses oil, oil fog, and oil gas, We also can design it for your requirement.

There are Two Ways for the Output One is Constant Torque, and Another is Constant Power as Below:

Nomenclature Explanation of Motor Spindle

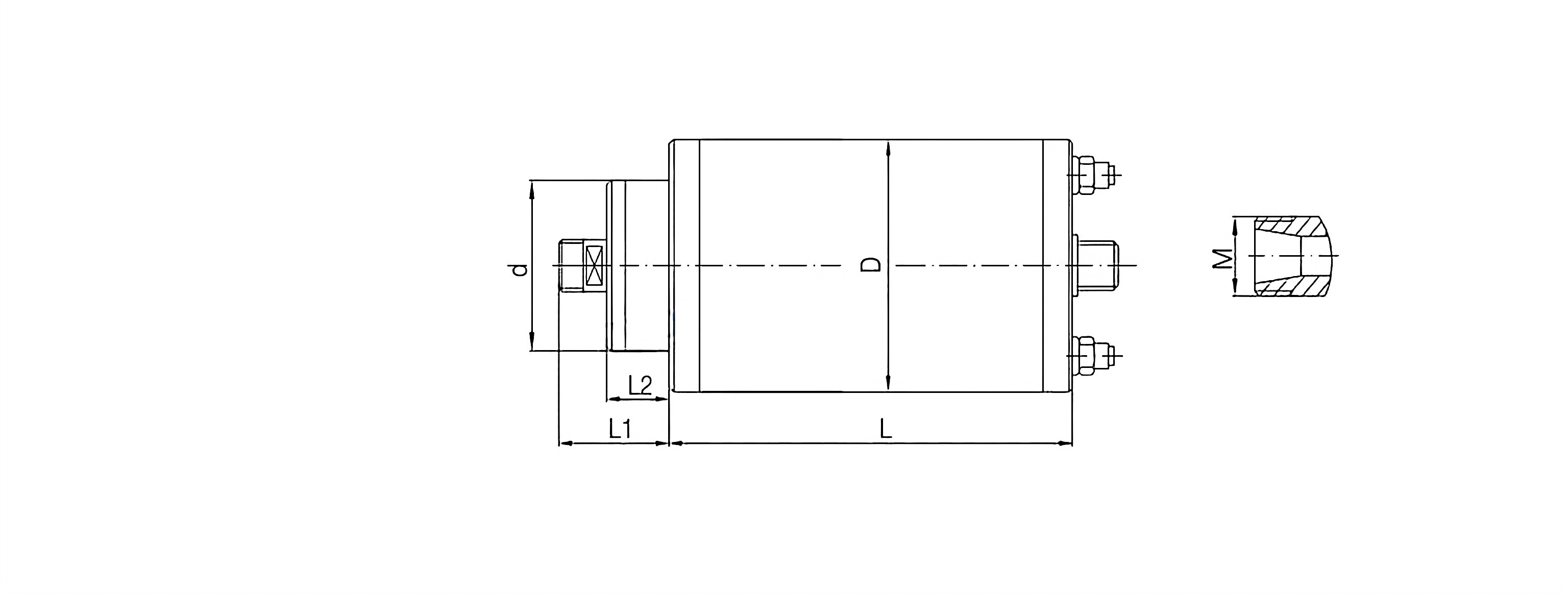

The End of the Spindle Connection

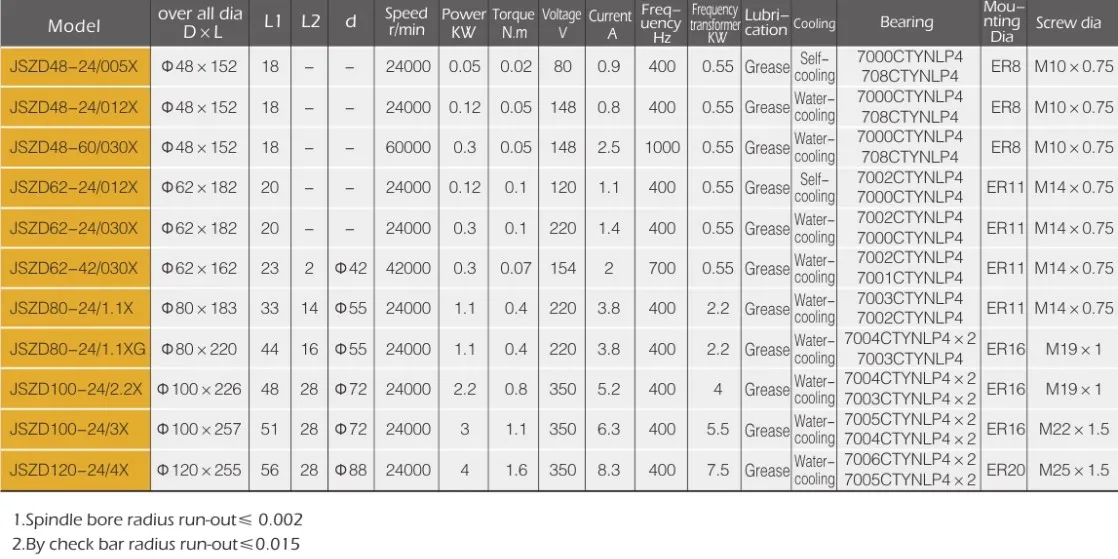

Its have many different types of connection, depending on the different model spindle, please refer to the table below.

Spindle Instruction

1. The frequency converter must match the electric spindle unit. The fundamental frequency or the nominal frequency and the voltage must meet the technical parameters of the electric spindle.2. Electric spindle is usually cooled by circulating water. Cooling water should be rust-proof and filtered clean. When receiving water, the inlet should be below the electric spindle.3. When using an oil mist lubricated spindle, the pressure regulating valve of the oil mist device should be adjusted to 0.25~0.3 MPA the fog pressure should be 0.1~0.2 MPA, and the number of drops of oil should be 60-70 drops/min. and the lubricating oil should be bell oil or turbine oil No. 20.4. The speed on the motorized spindle manual is the highest speed, and it can not be increased, but it can be used to reducethe speed and voltage and frequency are reduced when the speed is lowered.5. The rotation direction of the motorized spindle is usually counter-clockwise (viewed from the shaft). except for specialrequirements.6. The motorized spindle lubricated by oil mist must be connected with water and gas before it can start and stop water and gassupply after shutdown.Explanation: specific operation is required according to the electric spindle instructions.
