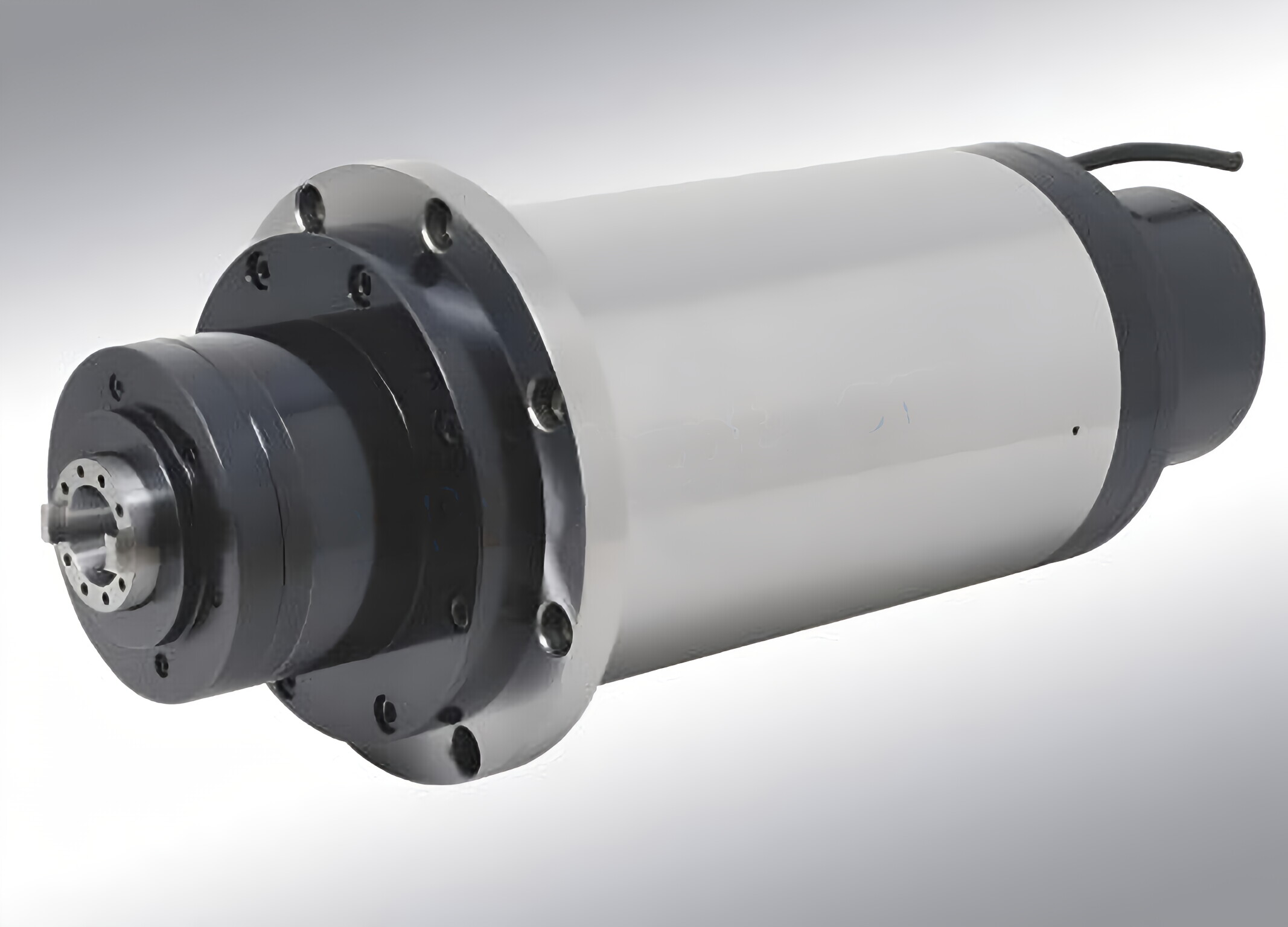

Spindle Motor Used for CNC Spindle JSZD170C

Spindle Motor Used for CNC Spindle JSZD170C

Spindle motors have a number of advantages over other types of motors, including their low size, high reliability, and low power consumption. They can also operate for thousands of hours without failure and are extremely quiet. This allows them to be installed in smaller spaces with less space occupied by the track. The track is a concentric circle of magnetic material around the shaft of the spindle motor.A spindle motor is a powerful machine tool that is used to turn a rotating tool. Its speed can be controlled by varying the power or torque it can generate. It should be noted that higher power and torque mean higher speeds and larger motors. However, this often comes at the expense of a larger and heavier spindle. For this reason, engineers have developed spindle motors that can provide high torque without the added weight and bulk of a larger spindle.

What Is a Spindle Motor?

The motor that controls the spindle is either a DC motor or an AC motor. DC spindles are cheaper than AC spindles because they use PWM circuits. However, AC spindles require variable frequency drives to maintain the desired speed. Therefore, AC spindles are more suitable for high-power applications.The spindle is one of the most important parts of CNC machine tools. Without the right spindle, a CNC machine cannot perform its task properly. The right spindle determines the speed, power, and torque of a CNC machine. It also plays a key role in the precision and efficiency of the CNC.Spindles come in a variety of sizes and functions. The right spindle will meet the needs of your project. For example, an aluminum spindle can be used for engraving and cutting soft materials. However, if you plan to machine hard metals, a steel or cast iron spindle is recommended. However, they are more expensive than aluminum ingots.The spindle is also equipped with a cooling system. Some are water-cooled, while others use air cooling. Water cooling is more suitable for high-power work. However, it is more expensive and requires storage tanks and pumps. Also, it is less efficient in cold environments. Air-cooled spindles, on the other hand, are easier to use, require less space, and produce higher torque.

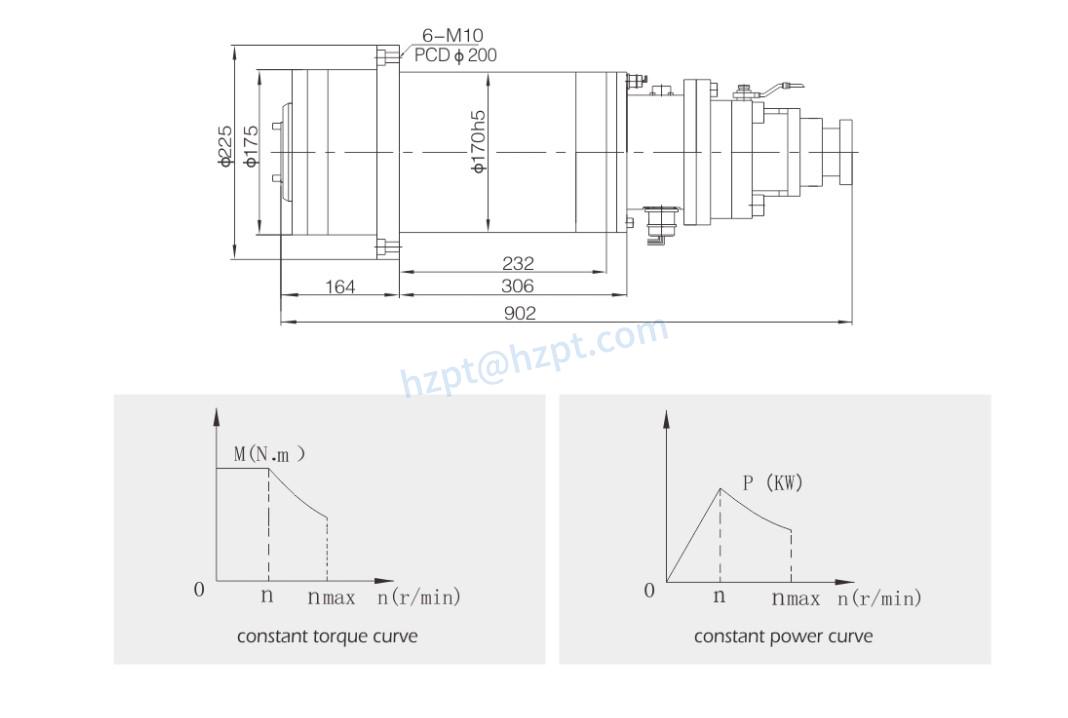

There are Two Ways for the Output One is Constant Torque, and Another is Constant Power as Below:

Nomenclature Explanation of Motor Spindle

The End of the Spindle Connection

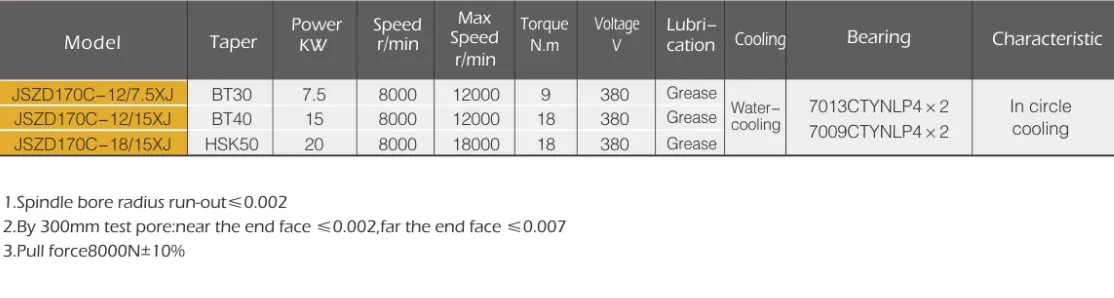

Its have many different types of connection, depending on the different model spindle, please refer to the table below.

Spindle Instruction
