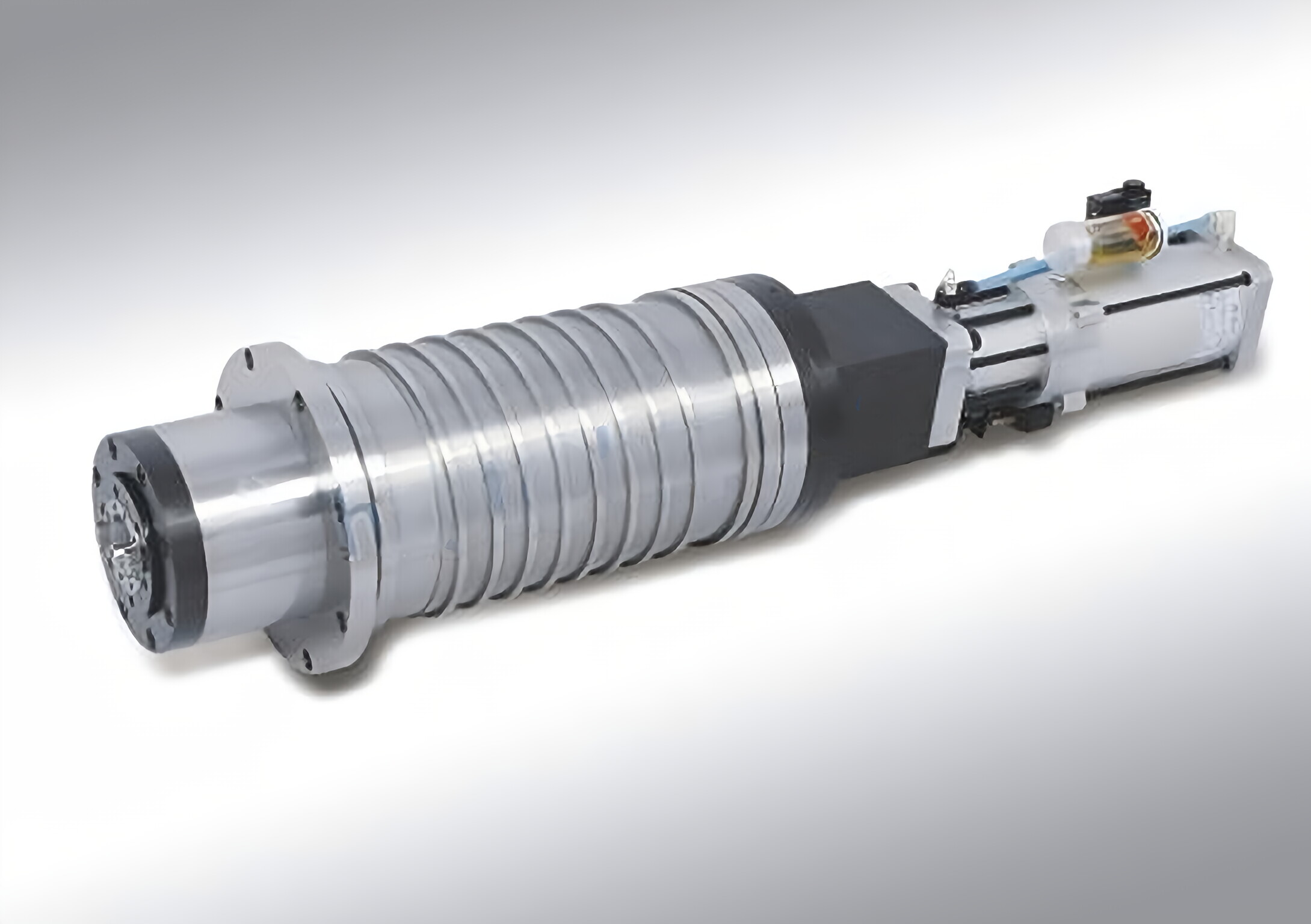

Spindle Motor Used for CNC Spindle JSZD240

Spindle Motor Used for CNC Spindle JSZD240

Spindle motors have a number of advantages over other types of motors, including their low size, high reliability, and low power consumption. They can also operate for thousands of hours without failure and are extremely quiet. This allows them to be installed in smaller spaces with less space occupied by the track. The track is a concentric circle of magnetic material around the shaft of the spindle motor.A spindle motor is a powerful machine tool that is used to turn a rotating tool. Its speed can be controlled by varying the power or torque it can generate. It should be noted that higher power and torque mean higher speeds and larger motors. However, this often comes at the expense of a larger and heavier spindle. For this reason, engineers have developed spindle motors that can provide high torque without the added weight and bulk of a larger spindle.

Choosing the Right CNC Spindle Motor Type

Choosing the correct spindle motor type depends on your application. If you want to cut soft materials, an aluminum spindle may be the best choice. However, if you need to cut hard metals, a cast iron or steel spindle is recommended.A good option is a spindle with an automatic tool changer. This motor will help you change tools and reduce cycle time. For steel drills, you should choose a high-speed spindle. Finally, consider the capacity of the spindle. Spindles with high RPM can handle large and small-diameter tools and can handle roughing and finishing operations.Brushless motors with variable frequency drives are more expensive but ensure consistent accurate cuts. It will also limit the amount of interference during machining. It also helps limit the number of shaded finishes and contour errors. It also reduces the size of the spindle. However, it is best to use a servo motor with the correct speed, torque, and inertia characteristics.Brushless motors have no brushes and require no external connection to the rotor. Unlike traditional counterparts, brushless motors are more efficient and powerful. They also use encoders to provide feedback to the rest of the system. This increases the precision of the system and is more accurate than their counterparts.CNC spindles can handle a variety of materials, including foam, wood, and glass. This makes them useful in woodworking, glass cutting, and electronic component manufacturing. If you want to simplify your production process, CNC spindles are an excellent choice.

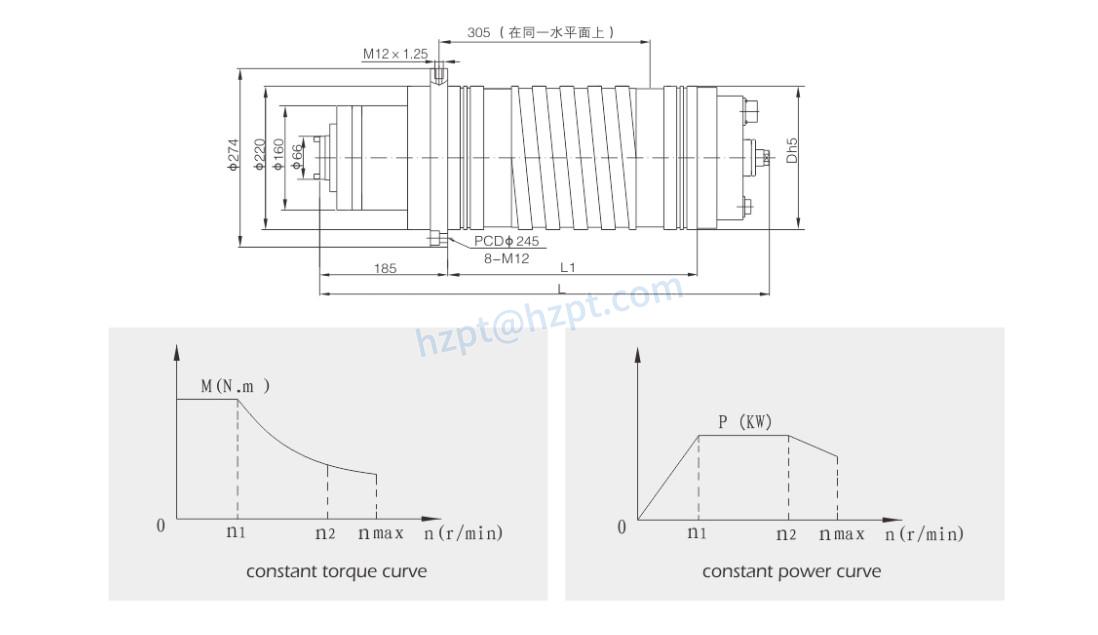

There are Two Ways for the Output One is Constant Torque, and Another is Constant Power as Below:

Nomenclature Explanation of Motor Spindle

The End of the Spindle Connection

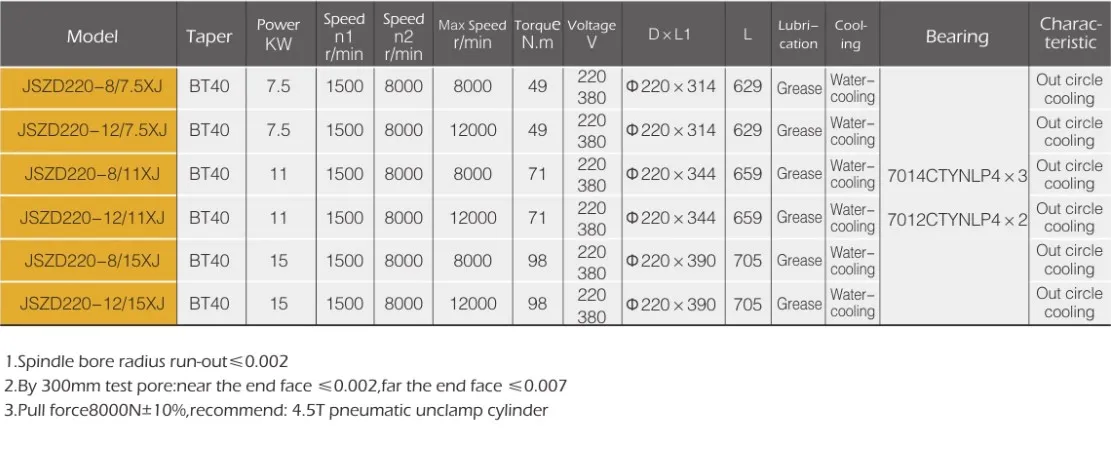

Its have many different types of connection, depending on the different model spindle, please refer to the table below.

Spindle Instruction
