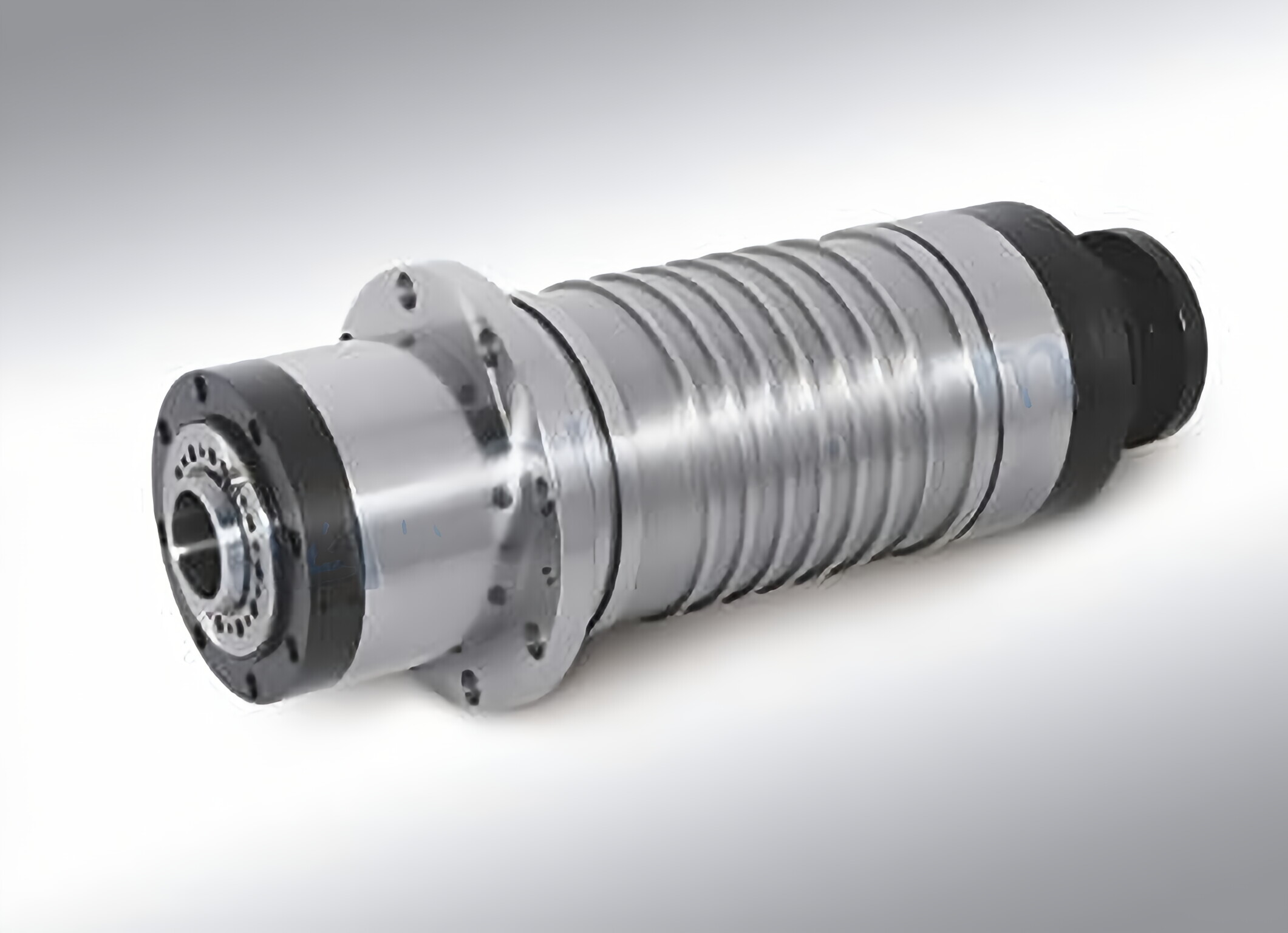

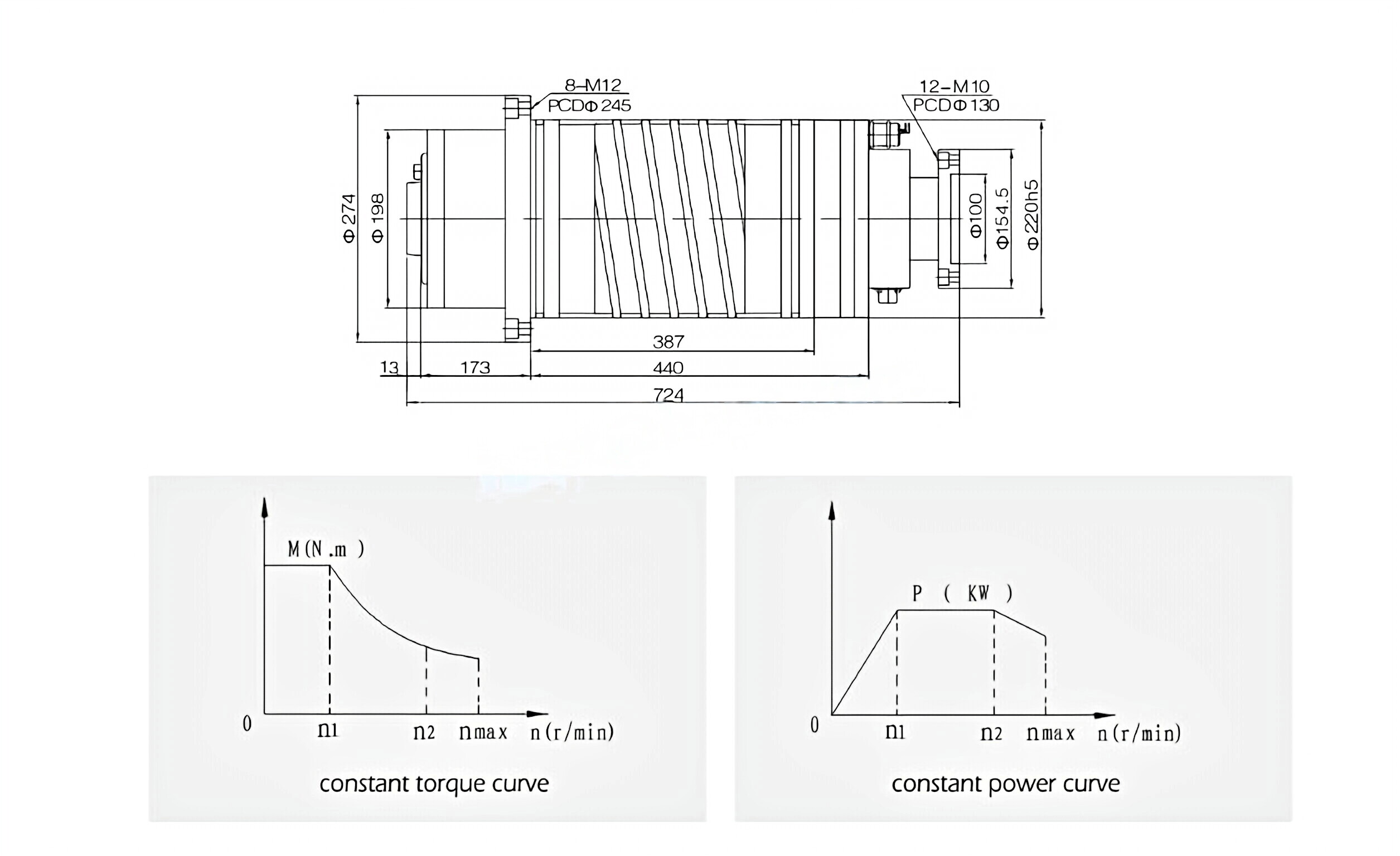

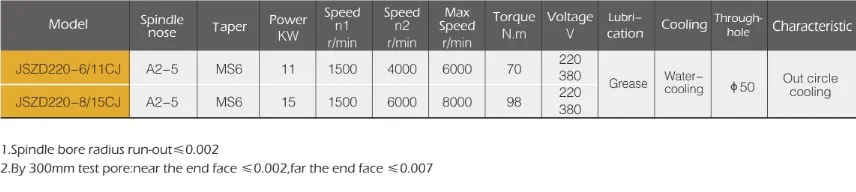

Spindle Motor Used for Lathe JSZD220

You will find many various kinds of spindles out there for your lathe. These incorporate Belt-driven, Direct-drive, and Heavy-duty spindles. Discover additional about each and every form that is best for the machine. You will like to opt for a spindle that will take care of the quantity of performance you must do.Stepper motors

A spindle motor is really a rotating element within a lathe. A lathe ordinarily employs two distinct motor styles, one particular to the spindle and a single to the carriage. A spindle motor usually rotates at two speeds: one for rapid rotation and 1 for slow rotation. The motor is built to operate on increments of a fraction of the flip.You will find two primary kinds of stepper motors: standard and alternative. Both have a linear controller and might set feed charges concerning a single and twenty-five inches per minute. These are also available with both a 15 or 30-tooth cog pulley. In either case, the feed price is proportional to your RPM.Considered one of these controllers is the Nextion. It functions as a touch-screen interface and will take care of 4 amps of the present. It also features a typical placement and fits into an existing MDF rose engine.Belt-driven spindlesSpindles are one among one the most essential elements of a lathe, and you'll find two styles: belt-driven and direct-drive. Belt-driven spindles are the conventional alternative for lathes since they've got a simple framework and allow for quick upkeep. Direct-drive spindles can spin up to twice as rapidly as their belt-driven counterparts, producing them the best selection for high-volume production runs.The motorized spindle is additionally complex and necessitates greater horsepower, however, it has numerous added benefits, such as substantial torque and no tooth reduction problems. Motorized spindles also require an extra complicated housing than belt-driven spindles. These machines commonly have several spindle elements. Considering the production price is an important consideration, as well as a balance, must be found concerning the cost of generating each and every spindle form. The vertical and horizontal spindles are similar, though you will find some subtle variations that make every possibility suitable for different applications.Belt-driven spindles can be found in several sizes. They can be personalized to meet distinct necessities and can be ordered at a variety of speeds. In addition to regular spindle versions, HDT spindles are available in two distinctive sizes - 150 mm and 170 mm. They may be also out there with an optional maximum electrical power of 5.6kW.Direct-drive spindlesDirect-drive spindle motors for any lathe are built to drive the spindle without the usage of a gearbox. This can make them an economic decision for most applications. In addition, they provide increased torque for rough machining. A direct-drive spindle motor can reach a continuous electrical power rating of 150 percent in 15 minutes and 200 % in 3 minutes. This gives it a lot more effective headroom than every other driver at the moment on the market.Even though direct-drive spindle motors are intimidating to put in at the outset, they deliver long-term worth. Owning a motor that will optimize the machine's overall performance, reduce interruptions, and maximize throughput, is often a vital advantage. Even following 10 many years, a direct-drive spindle motor can perform as efficiently being a brand-new single.Direct-drive spindle motors for a lathe deliver larger torque energy and faster activation than belt-driven spindles. A direct-drive spindle is also much simpler to maintain than a belt-driven one in particular. The benefit of direct-drive spindles more than belt-driven spindles is that they demand fewer components to exchange.Heavy-duty spindlesHeavy-duty spindles are a crucial part of the lathe and have a wide range of applications. They are applied for any wide variety of machining processes and are ideal for making parts as much as twelve m in length. PTG Hefty Industries was awarded the buy because of its knowledge of manufacturing technologies and modular design, which enabled it to meet the requirements of the buyer.The spindle would be the most critical aspect of the lathe and is linked to the engine axle by means of the headstock. It truly is a rotating element and is typically a metal plate or disc. Some spindles are mounted flush with the headstock while some others are mounted above the bed.There are two main forms of spindles for lathes. One particular is direct-drive as well as other is belt-drive. Belt-drive spindles are typically applied for older lathes. They take longer to spin up to their greatest RPMs and therefore are slower to slow down. As an end result, they could get twice as extended to machine a workpiece. In contrast, direct-drive spindles are a lot more rapidly than belt-driven spindles, creating them perfect for high-volume production runs.

1. The frequency converter has to match the electric spindle unit. The basic frequency or even the nominal frequency as well as voltage will have to meet the technical parameters of the electrical spindle.2. Electric spindle is generally cooled by circulating water. Cooling water needs to be rust-proof and filtered clean. When acquiring water, the inlet must be under the electric spindle.three. When working with an oil mist lubricated spindle, the stress regulating valve on the oil mist gadget should be adjusted to 0.25~0.3 MPA the fog pressure should be 0.1~0.2 MPA and the variety of drops of oil must be 60-70 drops/min. and also the lubricating oil ought to be bell oil or turbine oil No. 20.four. The velocity around the motorized spindle guide is definitely the highest velocity, and it can not be elevated, nevertheless, it may be employed to reducethe pace, voltage, and frequency are reduced once the speed is lowered.5. The rotation course with the motorized spindle is usually counter-clockwise (viewed in the shaft). except for exclusivedemands.6. The motorized spindle lubricated by oil mist has to be linked with water and gasoline prior to it could possibly commence and cease water and fuel supply after shutdown.Explanation: unique operation is required according to the electric spindle guidelines.
