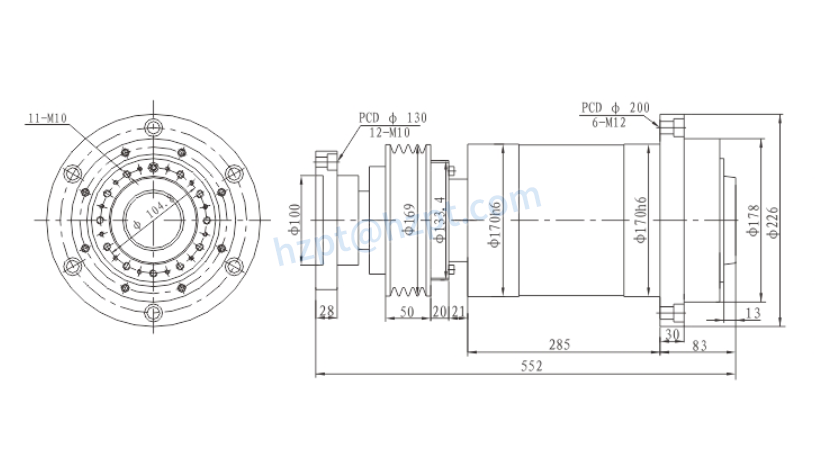

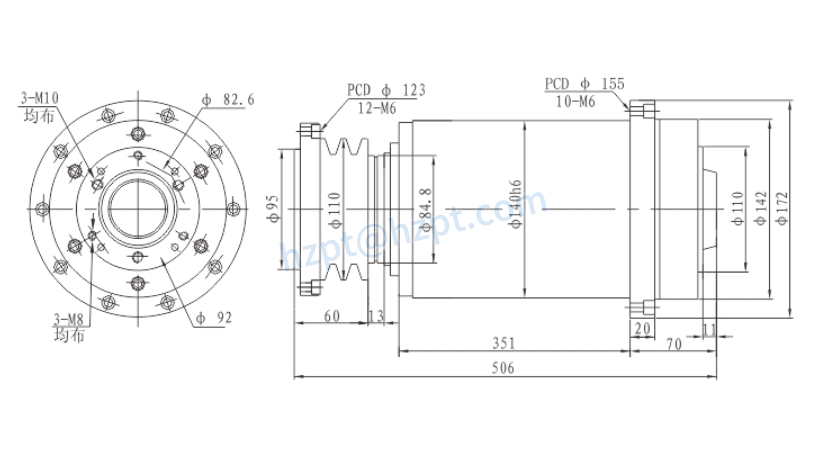

Spindle Unit for CNC Lathe JSC140 JSC170

Spindle Unit for CNC Lathe JSC140 JSC170

On a lathe (whether wood lathe or metal lathe), the spindle is the heart of the headstock. In rotating-cutter woodworking machinery, the spindle is the part on which shaped milling cutters are mounted for cutting features (such as rebates, beads, and curves) into moldings and similar millwork.1. For horizontal use, the water holes on the gland must be vertically downwards.2. Inside and outside spindle taperrunout≤0.003.3. Distance 300mm runout: near the end is ≤0.002, and the far end is ≤0.007.4. The form of pulley and encoder can be specified by the customer.5. Accept the special specifications of customers. 1. For horizontal use, the water holes on the gland must be vertically downwards.2. Inside and outside spindle taper runout ≤0.003.3.Distance 300mm runout:near end is ≤0.002,far endis ≤0.007.4. The form of pulley and encoder can be specified by the customer.5. Accept the special specifications of customers.

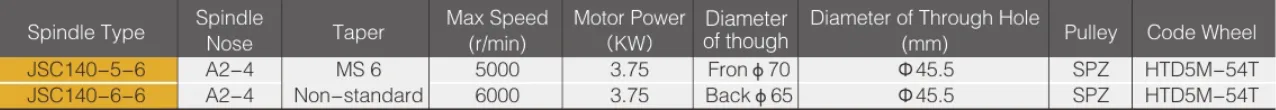

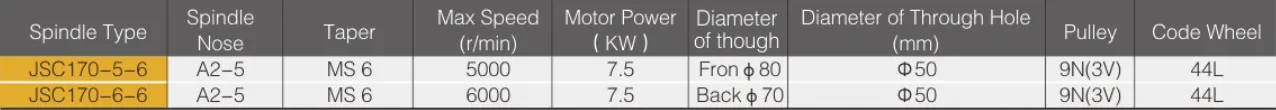

Nomenclature Explanation of Spindle Unit

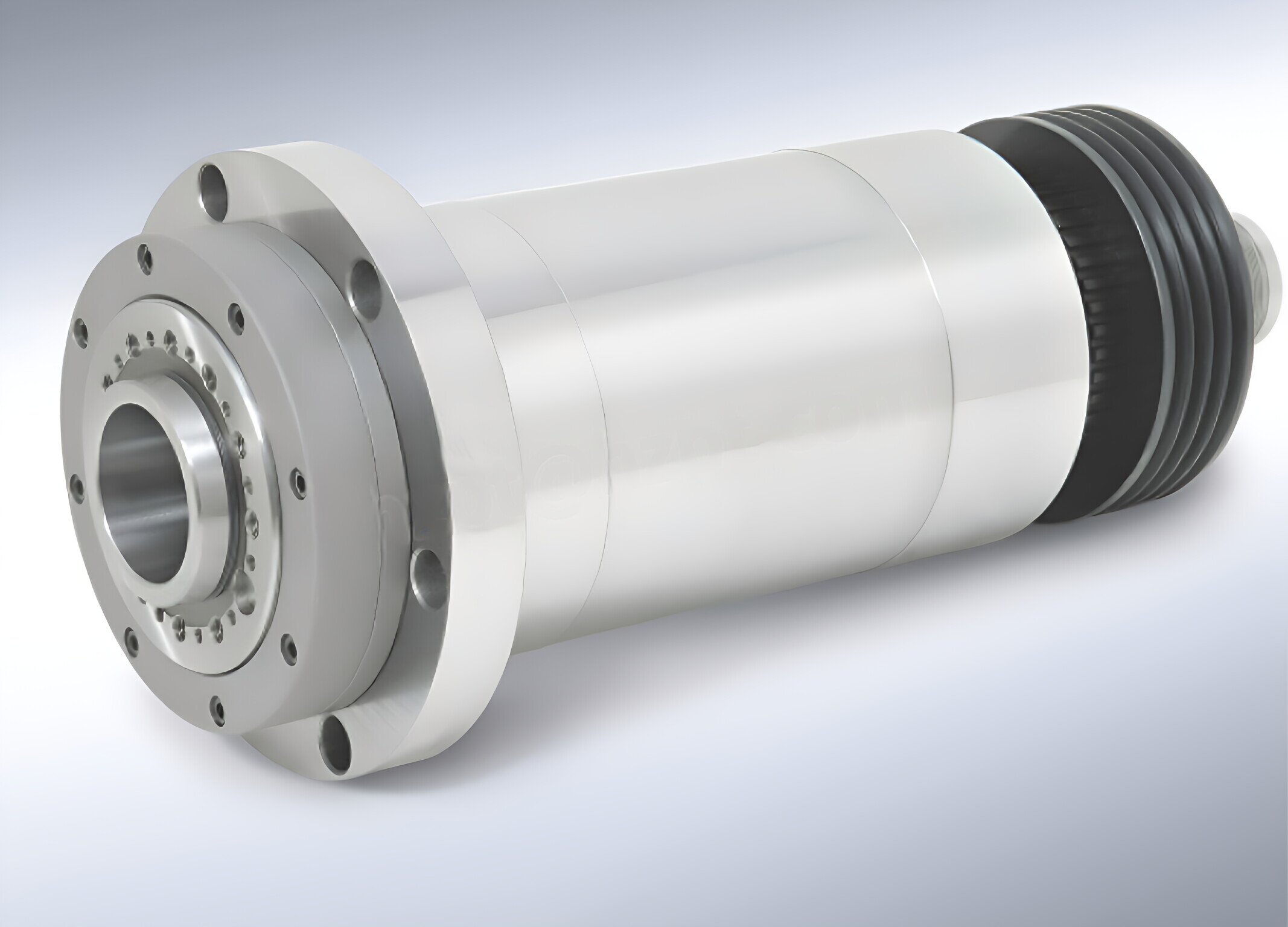

The Spindle Unit for a CNC Lathe

The spindle unit in a CNC lathe is a tool that cuts a workpiece on a rotating axis. Weiss Spindeltechnologie GmbH is one of the leading manufacturers of various spindle units and supplies these to customers worldwide. Weiss' decades of experience in motor spindles and individual spindles for special applications has given it a solid reputation as a top supplier of quality spindles made in Germany.Standard machine models include a 10-inch chuck and a sub-spindle. Larger models come with a 12- or 15-inch collet. Y-axis and optional milling are also available. Both machines offer additional spindle length and can be configured to accommodate more workpieces.Spindle units in CNC lathes should be able to handle higher and lower RPMs. Lower RPM spindles are suitable for basic steel machining and higher RPM units are suitable for drilling steel. These features are critical to the overall performance of a CNC lathe.

Spindle Application Use by Industry

Machine tool spindles have a variety of uses in many different industries. This includes equipment that is integral to agricultural, automotive, mold-making, and even aerospace applications. As far as machine technology is concerned, the spindle plays an important role in the fast production space.For example, metal lathes are used to cut hard materials. In addition to metal, these machines can cut plastic as well as tough composite materials. A lathe can be used for milling, which uses a rotating tool to trim the workpiece until it reaches the desired shape. CNC machines that include spindles are also used in woodworking, electronic component manufacturing, and computer parts manufacturing.
