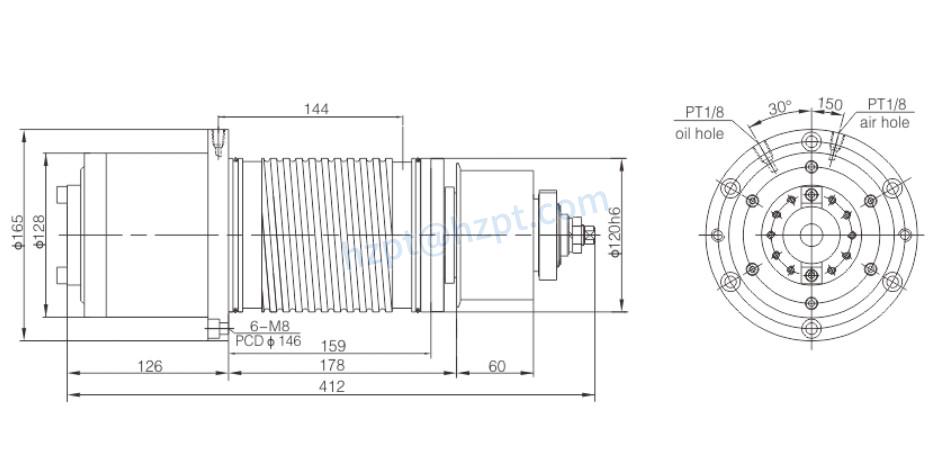

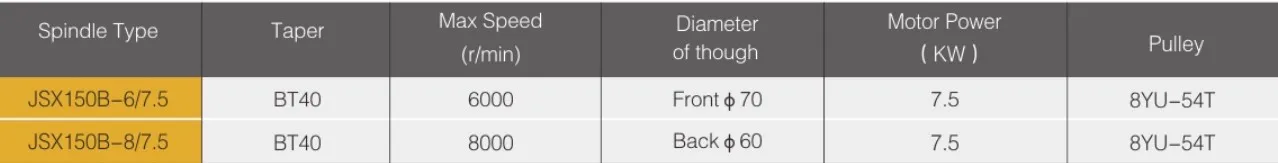

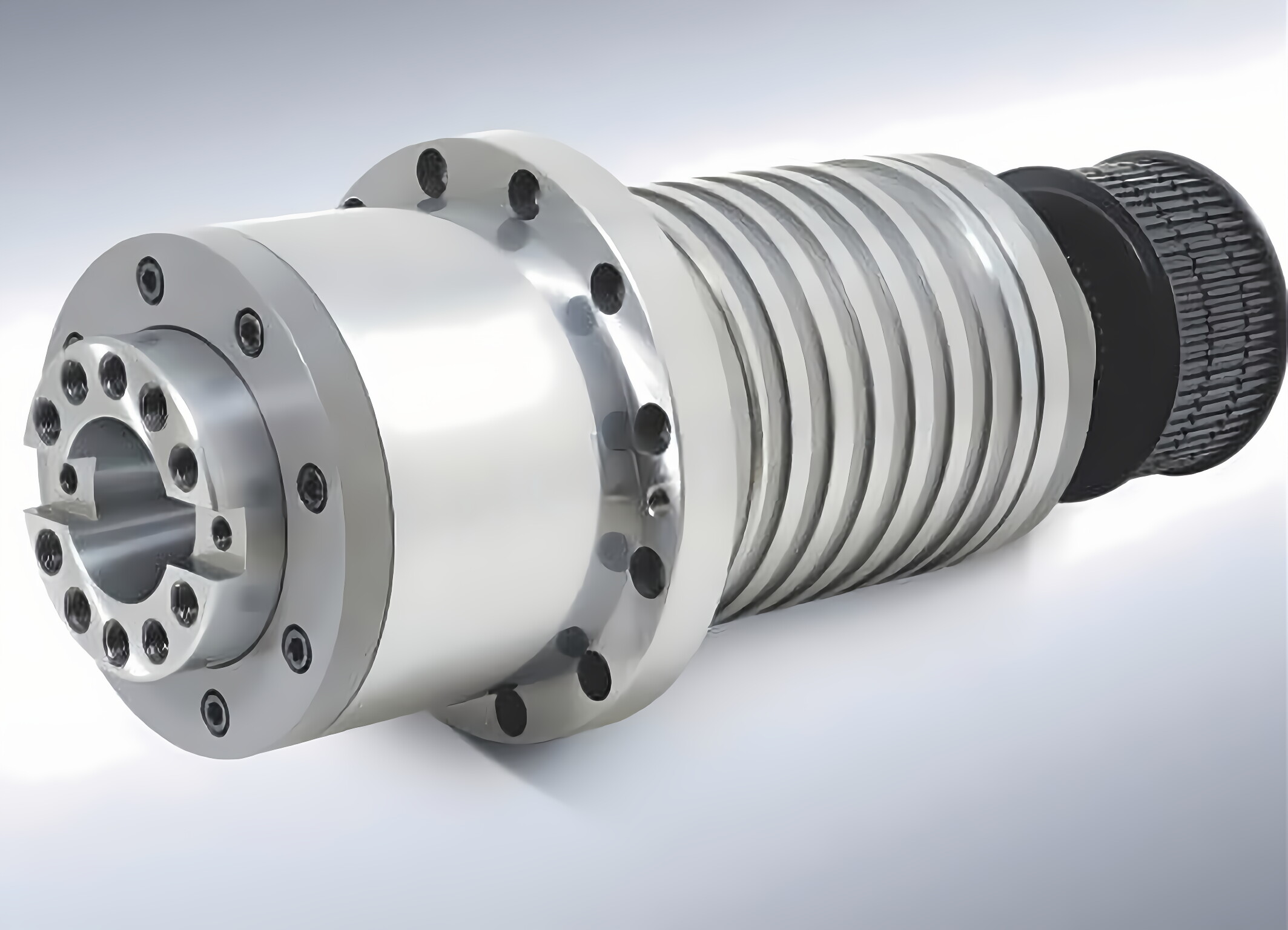

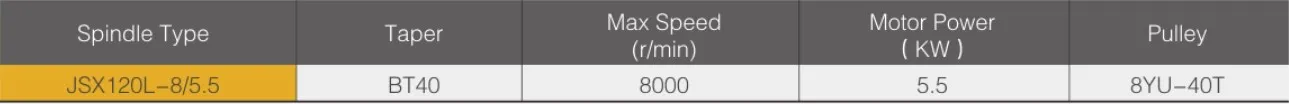

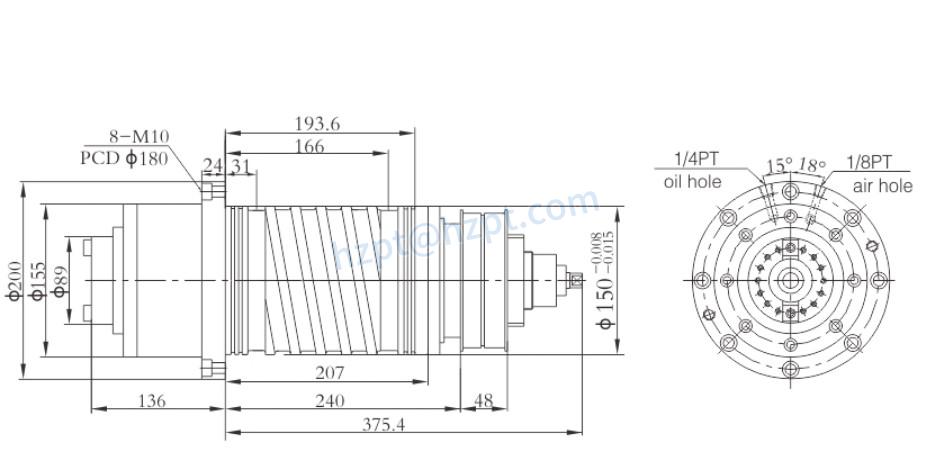

Spindle Unit for CNC Machine Center JSX120L JSX150B

Spindle Unit for CNC Machine Center JSX120L JSX150B

Spindle units play a vital role in machining operations. Spindle designs range from belt-driven to motor-integrated spindles, including drive tools, and are used in a variety of machines, from high-speed milling to high-volume turning operations. 1. The pull claw can be selected with BT, CAT, or DIN specifications, and stroke 6~7mm.2. The form of the pulley can be specified by the customer.3. The broaching force is 7000N + 10%, and recommend gas-liquid pressurized cylinders should be to 4.5T4. Distance 300mm runout: near the end is≤0.002, and the far end is≤0.007.5. Accept the special specifications of customers. 1. The pull claw can be selected with BT, CAT, or DIN specifications and stroke 6~7mm.2. The form of the pulley can be specified by the customer.3. The broaching force is 7500N + 10%, and recommend gas-liquid pressurized cylinders should be to 4.5T4. Distance 300mm runout: near the end is ≤0.002.farendis ≤0.007.5. Accept the special specifications of customers.

Nomenclature Explanation of Spindle Unit



Why a Spindle Unit is Important for a CNC Machine Center?

CNC machines use a 3D Cartesian coordinate system. The part to be machined is attached to the table. The table moves in the XY plane or left and right. The Y axis moves the table back and forth. The column holds the tool and controls the Z axis.CNC machining centers can be equipped with spindle units. This unit controls and positions the main shaft of the machine. This allows changing workpieces in a fraction of the time on single-axis machines. It also allows multiple spindles to work simultaneously.The spindle unit is an important part of a CNC machining center because it allows the machine to adjust the tool length. Changing tools can be challenging. Due to wear and tear, the replacement tool cannot be set at the exact same distance as the old tool. Therefore, it needs to have a way to know how far the new tool is from the center of the machine.The air supply to the spindle is also important. Dirty air can damage spindle bearings and other machine parts. The air supply should be clean and free of particles and moisture. It is also important to ensure that the spindle unit has adequate lubrication.CNC machining centers can be used in a wide range of industries. Options range from general-purpose CNC machines to more complex systems. Typically, the machine will be equipped with a belt or direct drive spindle. For a shop that needs a lot of torque, they will most likely choose a belt spindle unit.
