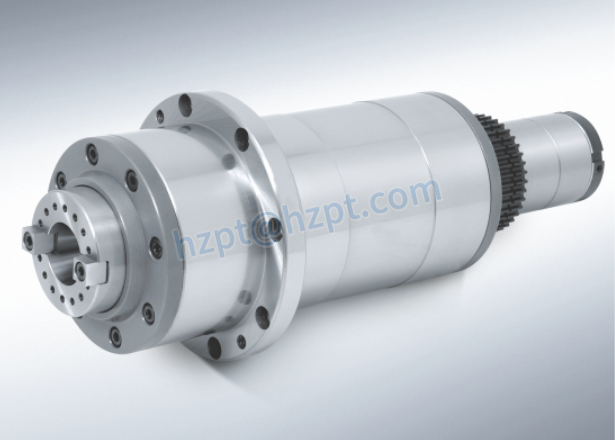

Spindle Unit for CNC Machine Center JSX150 JSX150A

Spindle Unit for CNC Machine Center JSX150 JSX150A

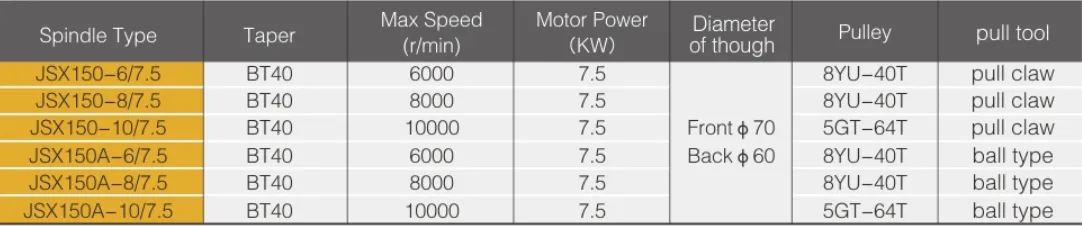

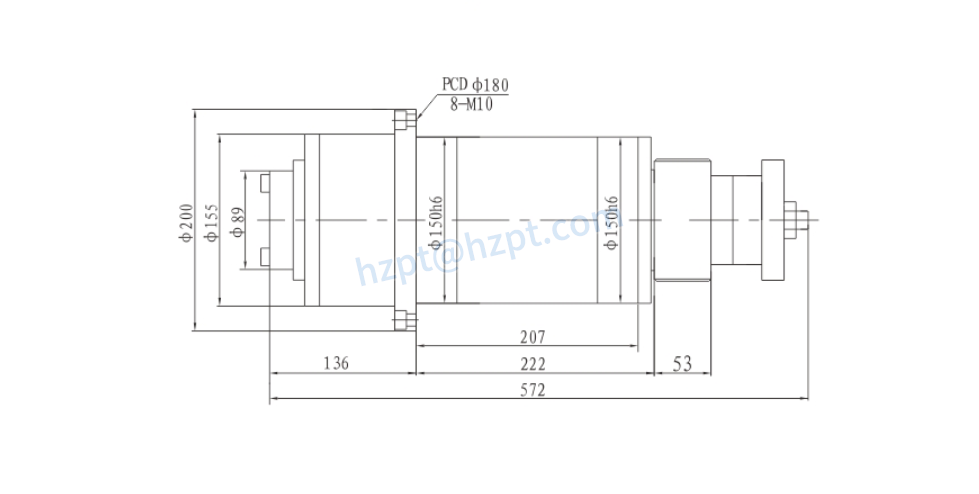

CNC spindles, sometimes called spindle drives, play a crucial role in machining. These components are fundamental to a fast and efficient process while also ensuring that produced elements are as precise as possible. Our team to helping their clients understand these components. Keep reading to learn more about spindles and their overall function in your CNC machine. 1. The pull claw can be selected with BT, CAT, or DIN specifications. It has two types of broach mechanism, one is the steel ball type, and the other is the pull claw type. The steel ball type stroke is 7~9mm, and the pull claw is 5~7mm．2. The form of the pulley can be specified by the customer．3. The broaching force is 7500N + 10％ and recommended gas-liquid pressurized cylinders should be to 4.5T.4. Distance 300mm　runout: near the end is ≤0.002, and the far end is ≤0.007．5. Accept the unique specifications of customers.

Nomenclature Explanation of Spindle Unit



Why a Spindle Unit is Important for a CNC Machine Center?

The spindle is the heart of any CNC machine. A damaged spindle can disrupt operational processes and cost the business money. Repairs can be a costly inconvenience and can leave the machine out of service for days. Spindle failure can also damage tools and parts, as well as injure operators. Therefore, CNC machining centers must invest in reliable spindle units. A reliable spindle can last for many years with proper care and maintenance.When purchasing a spindle unit, it is critical to choose a unit that is compatible with your machine's needs. The speed, torque, and horsepower of a machining center are important, but so is the quality of its spindle unit. Because the spindle is buried in the center of the machine, proper preparation is critical. While this may seem like a simple process, it requires extensive research to determine the required parts.CNC spindles come in many different sizes and configurations. One type is the BT40, which has a medium spindle diameter and limited maximum speed. This model is commonly found in machining centers. Its versatility makes it ideal for roughing and finishing. It can also be used to process molds with larger hole diameters.

The Benefits of a CNC Machine Center

CNC machining centers are precision and versatile tools for manufacturing. They control various processes, such as tool selection and replacement, as well as spindle speeds, feeds, and tool travel paths. They can even perform multiple processes on one workpiece. Unlike manual machines, CNC machines are computer controlled. This allows them to run repeatedly and produce high-quality parts without human intervention.CNC machining centers use solid materials to create precise shapes. The machine's tools and fixtures hold the material in place, while the computer controls its movement. The machine is housed in a metal enclosure with doors for easy operator access. This machine is usually installed in a manufacturing facility with skilled employees or teams of employees.There are two types of CNC machining centers: horizontal and vertical. Horizontal machining centers are typically used for mass production, while vertical machining centers are more versatile and more common. Horizontal machining centers are equipped with automatic tool changers and pallet systems, while vertical machining centers rotate the tool around a vertical axis. The latter type is more common because of its ability to mount artifacts. CNC vertical machining centers are equipped with computer numerical control, making them ideal tools for various industries.
